GraphQL

Overview

Tyk supports GraphQL natively. This means Tyk doesn’t have to use any external service or process for any GraphQL middleware.

Tyk always supports all capabilities described in the latest release of GraphQL specification listed on GraphQL Foundation webpage

This means support for the following operations:

• queries
• mutations
• subscriptions

What can you do with GraphQL and Tyk?

You can securely expose existing GraphQL APIs using our GraphQL core functionality.

In addition to this, you can also use Tyk’s integrated GraphQL engine to build a Universal Data Graph. The Universal Data Graph (UDG) lets you expose existing services as one single combined GraphQL API.

See our video on getting started with GraphQL.

What is GraphQL?

GraphQL is a query language for APIs and a runtime for fulfilling those queries with your existing data. GraphQL provides a complete and understandable description of the data in your API, gives clients the power to ask for exactly what they need and nothing more, makes it easier to evolve APIs over time, and enables powerful developer tools.

source: GraphQL Foundation website

Why would you want to use GraphQL?

Since this is the documentation section, we won’t get into a debate about GraphQL vs REST. The main benefits of using GraphQL are:

• Reduced network traffic One of the biggest benefits of GraphQL is that it allows clients to specify exactly what data they need. This means that you can avoid sending unnecessary data over the network, which can help reduce the amount of traffic and improve the performance of your application.
• Flexibility GraphQL is very flexible and can be used with many different programming languages and frameworks. It can also be used to retrieve data from multiple sources, such as databases, APIs, and even third-party services.
• Simplified data fetching With GraphQL, you can fetch all the data you need with a single request. This is because GraphQL allows you to specify exactly what data you need and how it should be structured, which can simplify the process of fetching data and reduce the amount of code you need to write.
• Easy maintenance Because GraphQL allows you to define a schema for your data, it can be easier to maintain and evolve your API over time. This is because changes to the schema can be made without breaking existing clients, as long as the changes are backwards compatible.
• Strong typing GraphQL has a strong type system that allows you to define the shape of your data and ensure that the data you receive is of the correct type. This can help catch errors early on and make your code more reliable.
• Better developer experience for certain use cases Examples of those use cases mostly mentioned by developers are: APIs with multiple consumers that have very different requirements, public APIs with large group of unknown users (like Shopify of Github), rapidly evolving APIs, backends for mobile applications, aggregating data from multiple microservices and development of data-driven products.

Our team has also published some blog posts that go deeper into GraphQL discussions. You can check some of them here:

• How Airbnb, Shopify, GitHub and more are winning with GraphQL
• Who is Tyk GraphQL functionality for
• GraphQL: Performance is no longer a trade-off

Create a GraphQL API

GraphQL API can be created in Tyk using:

• Tyk Dashboard UI
• Tyk Dashboard API
• Tyk Gateway API - for OSS users

The process is very similar to HTTP API creation with a few additional steps to cover GraphQL specific functionalities.

Via Tyk Dahsboard UI

Prerequisites

In order to complete the next steps, you need to have Tyk Self Managed installed. You can also create a 5-week trial account in Tyk Cloud.

Steps for Configuration

1. Select “APIs” from the “System Management” section



2. Click “ADD NEW API”



3. Set up the Base Configuration for your API

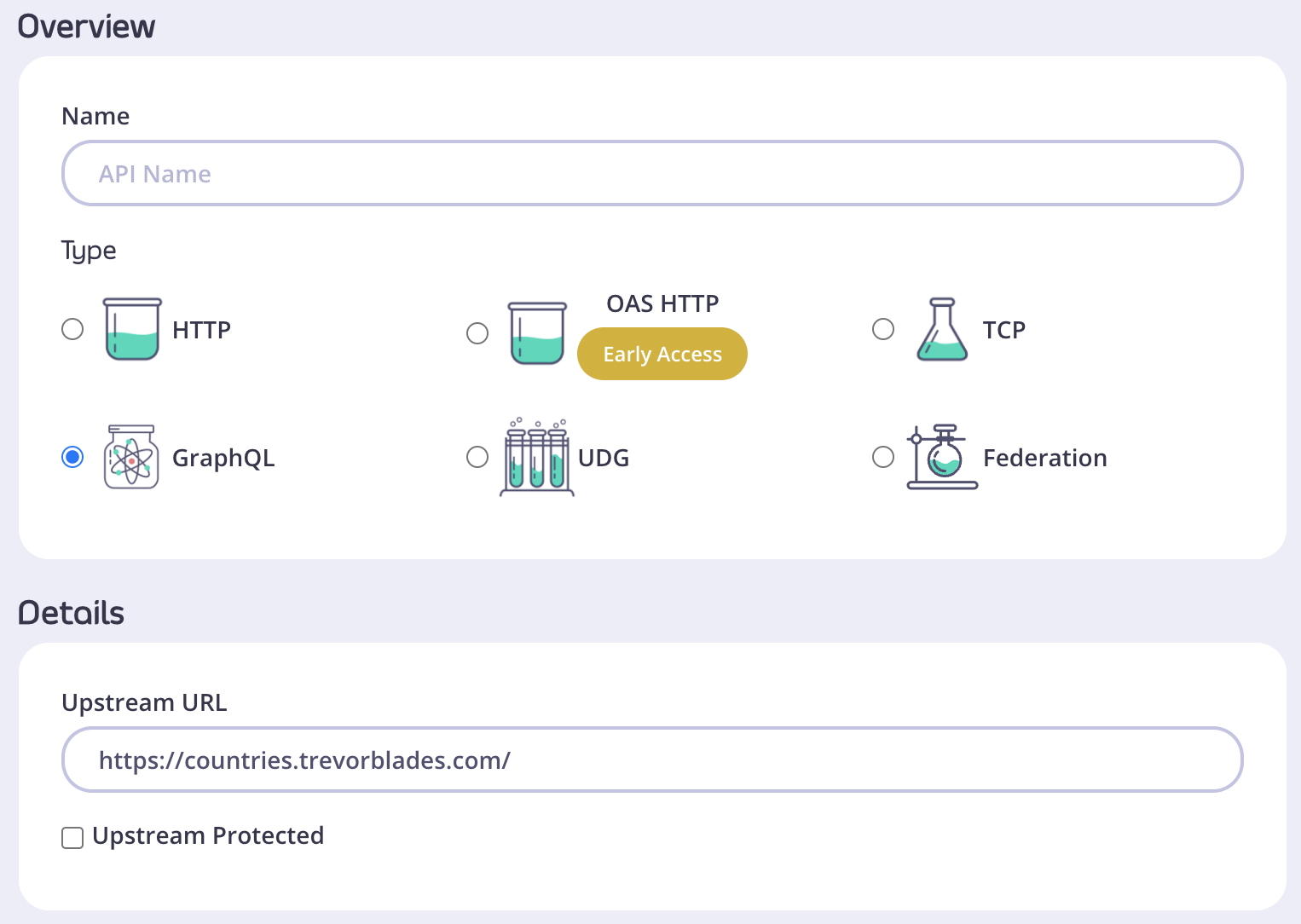

   • From the Overview section, add your API Name and your API Type (In this case it’s GraphQL).
   • From the Details section, add your Target URL. This will set the upstream origin that hosts the service you want to proxy to. As an example, you can use https://countries.trevorblades.com/.
   • In case your upstream GQL service is protected, tick the box next to Upstream Protected and provide authorization details, so that Tyk can introspect the GraphQL service. You can provide authorization details as a set of headers or a certificate. Introspection of your upstream service is important for Tyk to correctly work with your GraphQL.
   • If you would like to persist authorization information for future use you can tick the Persist headers for future use box. That way, if the upstream GQL schema changes in the future, you will be able to update it easily in Tyk.
   • Click Configure API when you have finished

4. Set up the Authentication for your API

   From the Authentication section:



   You have the following options:

   • Authentication mode: This is the security method to use with your API. First, you can set it to Open(Keyless), but that option is not advised for production APIs. See Client Authentication for more details on securing your API.
   • Strip Authorization Data: Select this option to strip any authorization data from your API requests.
   • Auth Key Header Name: The header name that will hold the token on inbound requests. The default for this is Authorization.
   • Allow Query Parameter As Well As Header: Set this option to enable checking the query parameter as well as the header for an auth token. This is a setting that might be important if your GQL includes subscription operations.
   • Use Cookie Value: It is possible to use a cookie value as well as the other two token locations.
   • Enable client certificate: Select this to use Mutual TLS. See Mutual TLS for details on implementing mutual TLS.

5. Save the API

   Click SAVE



   Once saved, you will be taken back to the API list, where the new API will be displayed.

   To see the URL given to your API, select the API from the list to open it again. The API URL will be displayed at the top of the editor:



   Your GQL API is now secured and ready to use.

Via Tyk Dashboard API

Prerequisites

It is possible to create GQL APIs using Tyk Dashboard APIs. To make things easier you can use our Postman collection.

You will need an API key for your organization and one command to create a GQL API and make it live.

Steps for Configuration

1. Obtain your Tyk Dashboard API Access Credentials key & Dashboard URL

   From the Tyk Dashboard, select “Users” from the “System Management” section. Click Edit for your user, then scroll to the bottom of the page. Your Tyk Dashboard API Access Credentials key is the first entry:



   Store your Dashboard Key, Dashboard URL & Gateway URL as environment variables so you don’t need to keep typing them in:

   export DASH_KEY=db8adec7615d40db6419a2e4688678e0

   # Locally installed dashboard
   export DASH_URL=http://localhost:3000/api

   # Tyk's Cloud Dashboard
   export DASH_URL=https://admin.cloud.tyk.io/api

   # Locally installed gateway
   export GATEWAY_URL=http://localhost:8080

   # Your Cloud Gateway
   export GATEWAY_URL=https://YOUR_SUBDOMAIN.cloud.tyk.io


2. Query the /api/apis endpoint to see what APIs are loaded

   curl -H "Authorization: ${DASH_KEY}" ${DASH_URL}/apis
   {"apis":[],"pages":1}


   For a fresh install, you will see that no APIs currently exist.

3. Create your first GQL API

   This example API definition configures the Tyk Gateway to reverse proxy to the https://countries.trevorblades.com/ public GraphQL service.

   To view the raw API definition object, you may visit: https://bit.ly/3zmviZ3

   curl -H "Authorization: ${DASH_KEY}" -H "Content-Type: application/json" ${DASH_URL}/apis \
     -d "$(wget -qO- https://bit.ly/3zmviZ3)"
   {"Status":"OK","Message":"API created","Meta":"64270eccb1821e3a5c203d98"}


   Take note of the API ID returned in the meta above - you will need it later.

   export API_ID=64270eccb1821e3a5c203d98


4. Test your new GQL API

   curl --location ${GATEWAY_URL}/trevorblades/
   --header 'Content-Type: application/json'
   --data '{"query":"query {\n    countries {\n        name\n        capital\n        awsRegion\n    }\n}","variables":{}}'


   You just sent a request to the gateway on the listen path /trevorblades. Using this path-based-routing, the gateway was able to identify the API the client intended to target.

   The gateway stripped the listen path and reverse-proxied the request to https://countries.trevorblades.com/

5. Protect your API

Let’s grab the API definition we created before and store the output in a file locally.

curl -s -H "Authorization: ${DASH_KEY}" -H "Content-Type: application/json" ${DASH_URL}/apis/${API_ID} | python -mjson.tool > api.trevorblades.json

We can now edit the api.trevorblades.json file we just created, and modify a couple of fields to enable authentication.

Change use_keyless from true to false.

Change auth_configs.authToken.auth_header_name to apikey.

Then send a PUT request back to Tyk Dashboard to update its configurations.

curl -H "Authorization: ${DASH_KEY}" -H "Content-Type: application/json" ${DASH_URL}/apis/${API_ID} -X PUT -d "@api.trevorblades.json"
{"Status":"OK","Message":"Api updated","Meta":null}

6. Test protected API

Send request without any credentials

curl -I ${GATEWAY_URL}/trevorblades/ \
--header 'Content-Type: application/json' \
--data '{"query":"query {\n    countries {\n        name\n        capital\n        awsRegion\n    }\n}","variables":{}}'

HTTP/1.1 401 Unauthorized
Content-Type: application/json
X-Generator: tyk.io
Date: Wed, 04 Dec 2019 23:35:34 GMT
Content-Length: 46

Send a request with incorrect credentials

curl -I ${GATEWAY_URL}/trevorblades/ \
--header 'Content-Type: application/json' \
--data '{"query":"query {\n    countries {\n        name\n        capital\n        awsRegion\n    }\n}","variables":{}}' \
-H 'apikey: somekey'

HTTP/1.1 403 Forbidden
Content-Type: application/json
X-Generator: tyk.io
Date: Wed, 04 Dec 2019 23:36:16 GMT
Content-Length: 57

Congratulations - You have just created your first keyless GQL API, and then protected it using Tyk!

Via Tyk Gateway API

Prerequisites

In order to complete the next steps, you need to have the Tyk OSS installed.

Creation Methods

With Tyk OSS, it is possible to create GQL APIs using Tyk’s Gateway API or to generate a file with the same object and store it in the /apps folder of the Tyk Gateway installation folder. This is demonstrated here.

Steps for Configuration

See our video for adding an API to the Open Source Gateway via the Gateway API and Postman:

You can also use our Postman collection to make things easier.

In order to use the Gateway API you will need an API key for your Gateway and one command to create the API and make it live.

1. Make sure you know your API secret

   Your Tyk Gateway API secret is stored in your tyk.conf file, the property is called secret, you will need to use this as a header called x-tyk-authorization to make calls to the Gateway API.

2. Create a GQL API

   To create a GQL API, let’s send a definition to the apis endpoint, which will return the status and version of your Gateway. Change the x-tyk-authorization value and curl domain name and port to be the correct values for your environment.

   This example API definition configures the Tyk Gateway to reverse proxy to the https://countries.trevorblades.com/ public GraphQL service.

   To view the raw API definition object, you may visit: https://bit.ly/3nt8KDa

   curl --location --request POST 'http://{your-tyk-host}:{port}/tyk/apis' \
   --header 'Content-Type: application/json' \
   --header 'Accept: application/json' \
   --header 'X-Tyk-Authorization: {your-secret}' \
   --data "$(wget -qO- https://bit.ly/3nt8KDa)"


   If the command succeeds, you will see:

   {
     "key": "trevorblades",
     "status": "ok",
     "action": "added"
   }


   What did we just do?

   We just sent an API definition to the Tyk /apis endpoint. API definitions are discussed in detail in the API section of this documentation. These objects encapsulate all of the settings for an API within Tyk Gateway.

   **Note**

   Notice that  when creating a GQL API you need to include your GQL service schema in the API definition. Tyk Gateway doesn't have the capacity to introspect your GQL service on its own.

   Including the correct schema allows Tyk Gateway to validate incoming requests against it. More on validation can be found [here](//tyk.io/docs/api-management/graphql/#validation)


   Restart or hot reload

   After generating the file, you must either restart the Gateway or initiate a hot reload through an API call to the gateway, as outlined below:

   curl -H "x-tyk-authorization: {your-secret}" -s http://{your-tyk-host}:{port}/tyk/reload/group


   This command will hot-reload your API Gateway(s) and the new GQL API will be loaded, if you take a look at the output of the Gateway (or the logs), you will see that it should have loaded Trevorblades API on /trevorblades/.

   Your GQL API is now ready to use. We recommend that you secure any GQL API that you want to publish.

   Check the following docs for more on GraphQL-specific security options:

   • Field based permissions
   • Complexity limiting
   • Introspection

Graphql Proxy Only

What is GraphQL Proxy Only

GraphQL Proxy Only is just a GraphQL API with a single datasource and read-only schema. Schema will be loaded automatically from GraphQL upstream supporting introspection queries. GraphQL API, like other APIs, support policies but with more advanced settings. If you want a more detailed explanation about GraphQL in Tyk, checkout this section

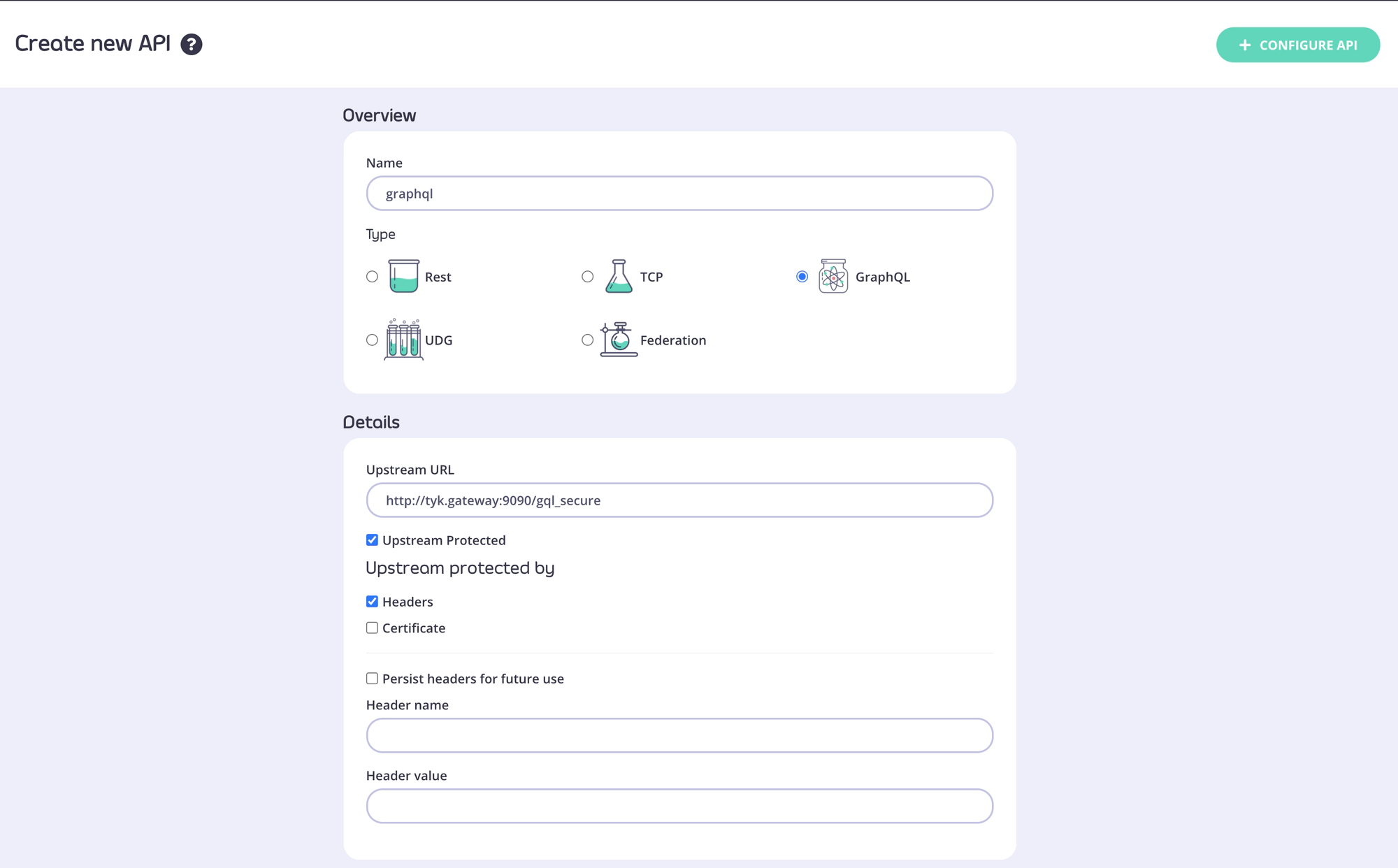

Creating a GraphQL API via the Dashboard UI

1. Log in to the Dashboard and go to APIs > Add New API > GraphQL.

2. Choose a name for your API and provide an upstream URL

3. In this case, the upstream is protected with Basic Authentication, so we add Authorization header.

4. Once done, click Configure API and the Dashboard API designer will show up.

5. Configure your API and click save, Your API will now be saved.

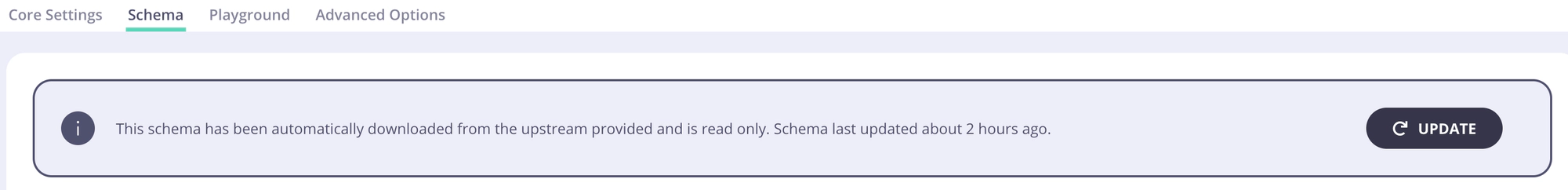

Managing GQL Schema

There can be a need to update/sync the schema on your GraphQL API, say when the schema on the upstream is updated. The Dashboard UI can show the last time your API schema was synced with the upstream schema.

If you click the Get latest version, the gateway will make an introspection query to your upstream to fetch the schema. You need to click Update on the top right button, to update your API.

Policies, Keys and Developer Portal

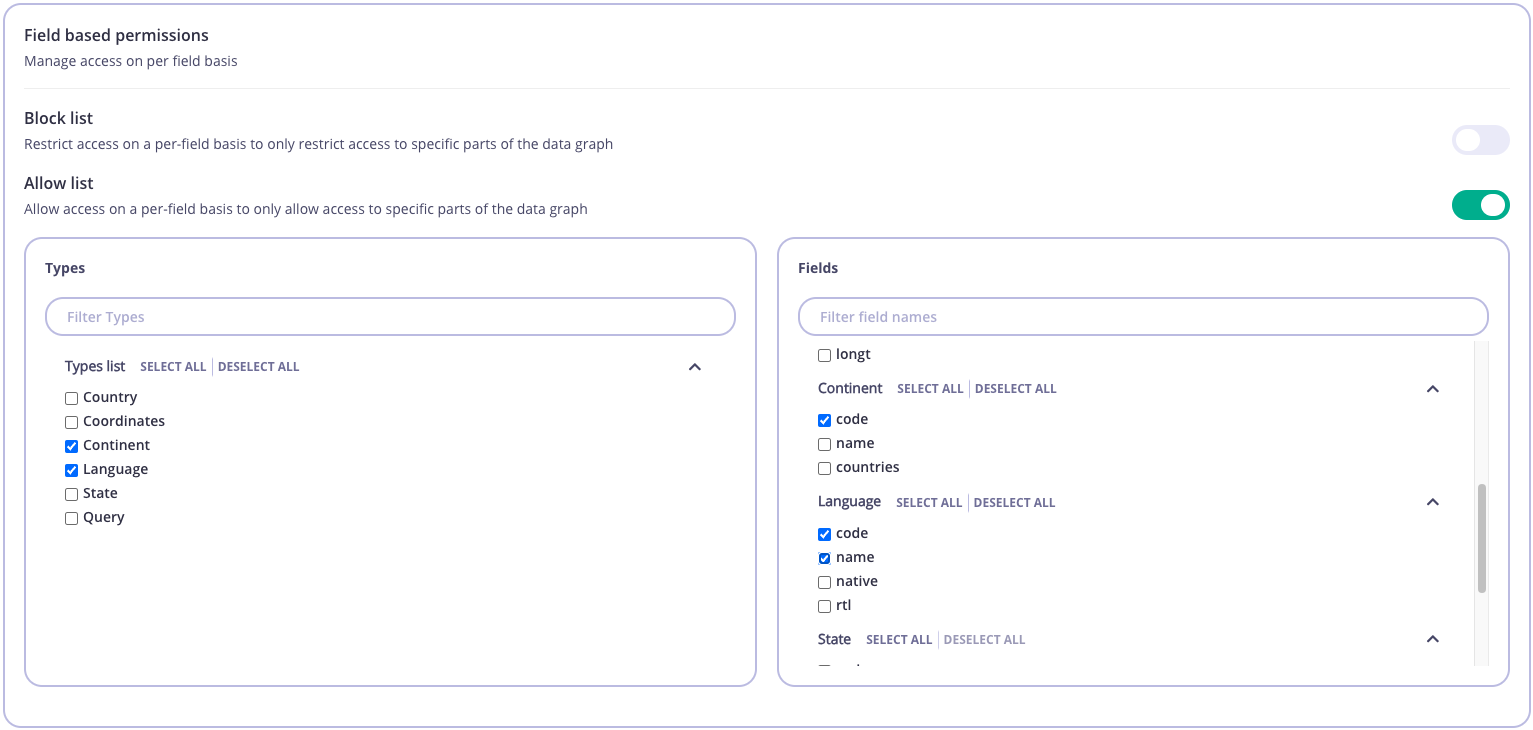

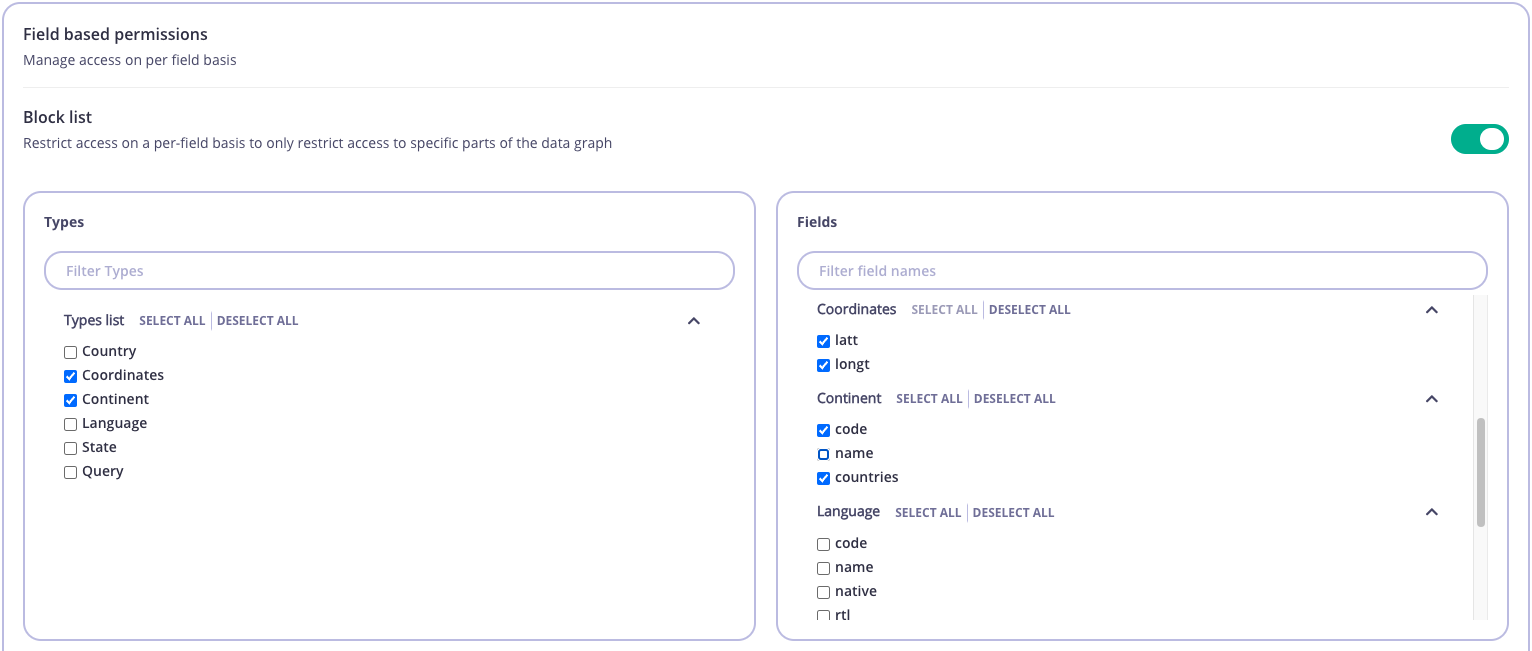

Field based permission

You may want to allow different consumers access to your GraphQL API without exposing all data to them. So for example this could be a schema for a GraphQL API:

type Query {
  accounts: [Account!]
}

type Account {
  owner: String!
  number: ID!
  balance: Float!
}

and you don’t want some associate with a certain key to access balance field on type Account, the gateway will respond with:

{
    "errors": [
        {
            "message": "field: balance is restricted on type: Account"
        }
    ]
}

Checkout this link, to find more on how you can configure field based permission.

Complexity Limiting

The complexity of a GraphQL query is about its depth. checkout this query:

{
  continents {
    countries {
      continent {
        countries {
          continent {
            countries {
              name
            }
          }
        }
      }
    }
  }
}

The above query has a depth of seven, since the nested queries are seven.

Tyk offer solution to limit the depth of a query. Checkout this link on how to set query depth.

Developer Portal

As of Tyk v3.0.0, you can now publish GraphQL APIs to the Tyk Developer Portal. This section will show how you can expose a GraphQL API to the developer portal.

Introspection

Overview

A GraphQL server can provide information about its schema. This functionality is called introspection and is achievable by sending an introspection query to the GraphQL server.

If introspection is a completely new concept for you, browse through the official GraphQL Specification published by the GrapQL Foundation to find out more.

When creating a GraphQL proxy in Tyk Dashboard an introspection query is used to fetch the schema from the GraphQL upstream and display it in the schema tab.

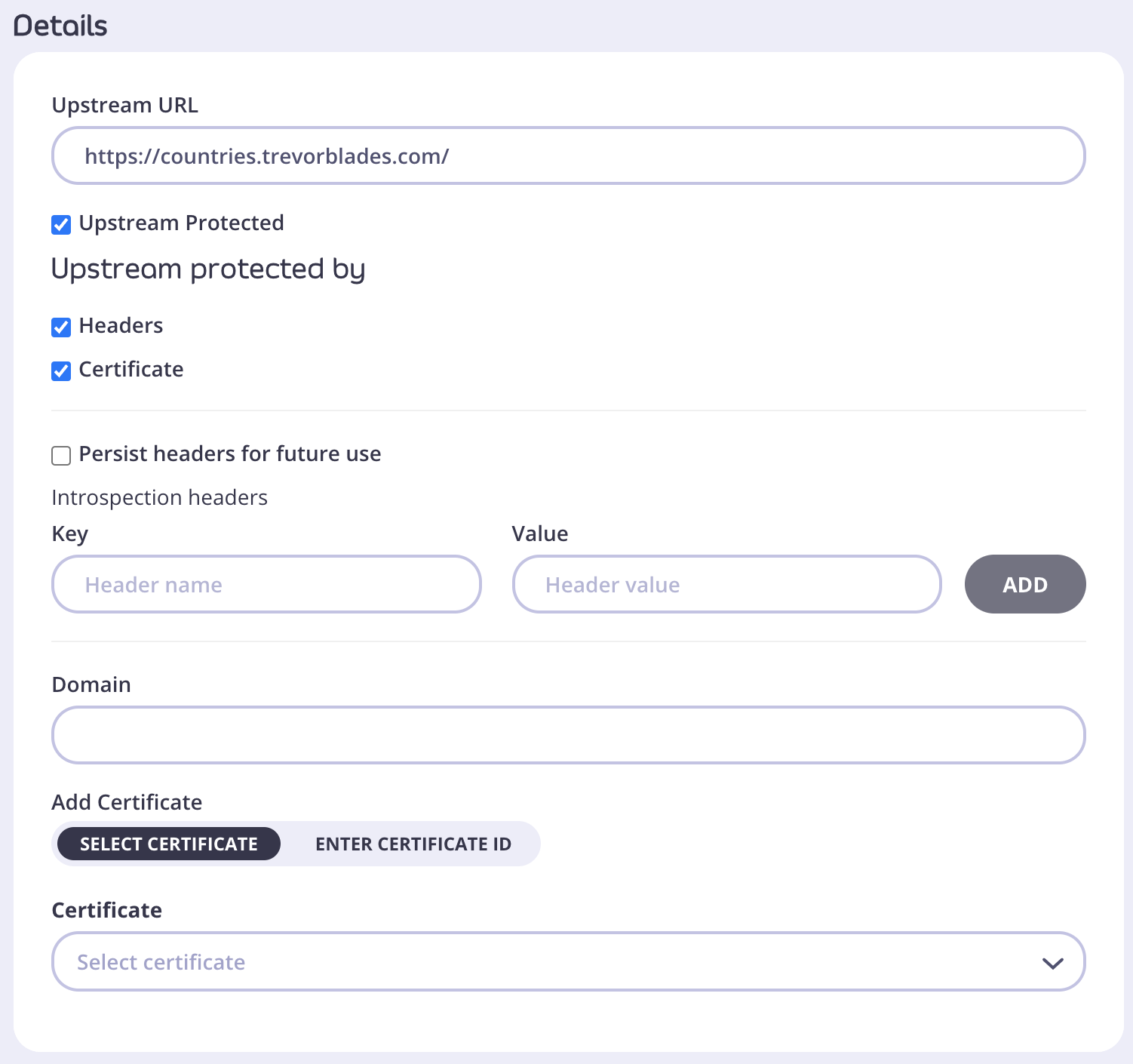

Introspection for protected upstreams

When you are creating a GQL API using Tyk Dashboard and your target GQL API is protected, you need to provide authorization details, so that Tyk Gateway can obtain your schema.

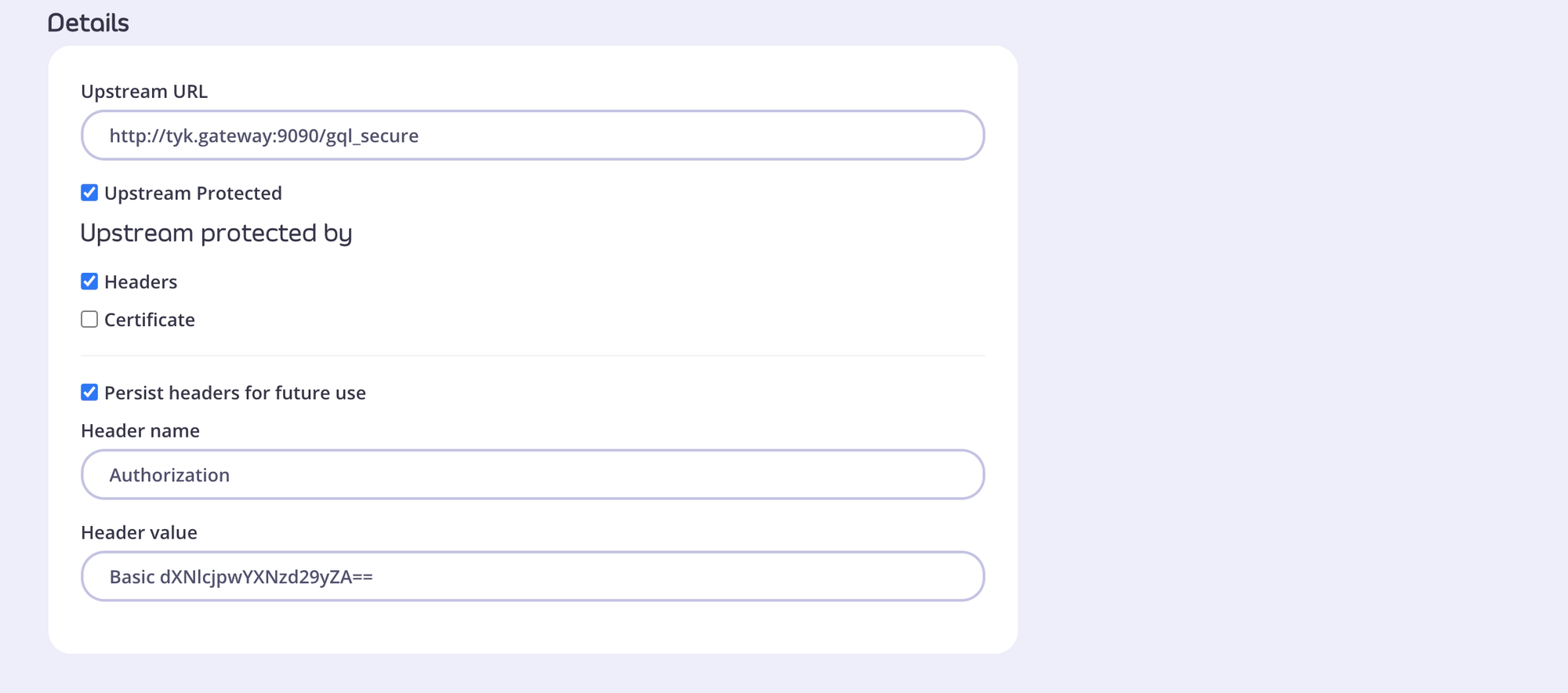

In the Create new API screen you have to tick the Upstream Protected option under your Upstream URL.

• From the Upstream protected by section choose the right option for your case: Headers or Certificate.

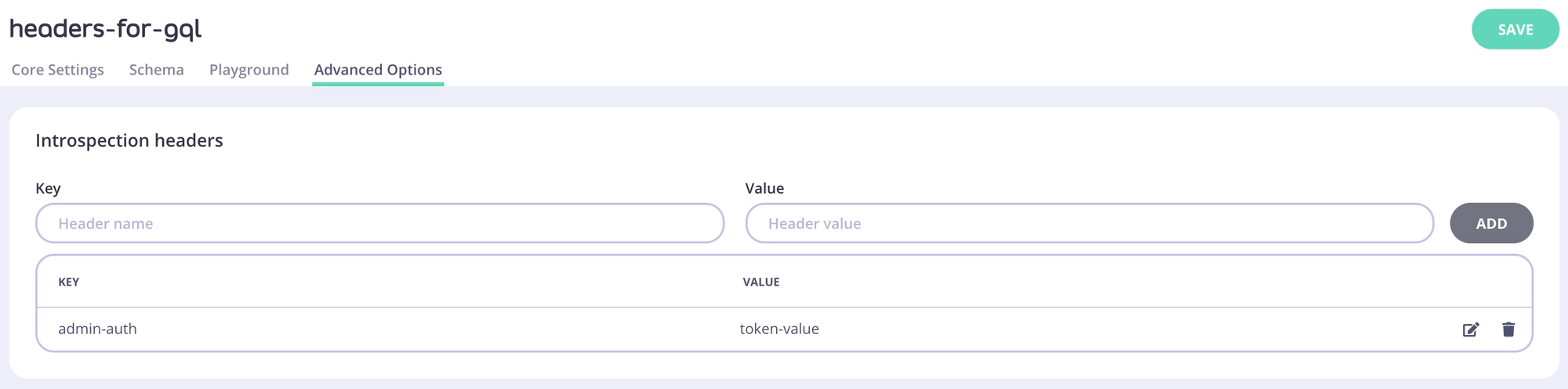

• Choosing Headers will allow you to add multiple key/value pairs in Introsopection headers section.
• You can also Persist headers for future use by ticking that option. This will save information you provided in case in the future your schema changes and you need to sync it again. To understand better where this information will be saved, go to GQL Headers. To read more about schema syncing go here.
• Choosing Certificate will allow you to provide Domain details and either Select certificate or Enter certificate ID.

Turning off introspection

The introspection feature should primarily be used as a discovery and diagnostic tool for development purposes.

Problems with introspection in production:

• It may reveal sensitive information about the GraphQL API and its implementation details.
• An attacker can discover potentially malicious operations.

You should note that if the Authentication Mode is Open(Keyless), GraphQL introspection is enabled and it cannot be turned off.

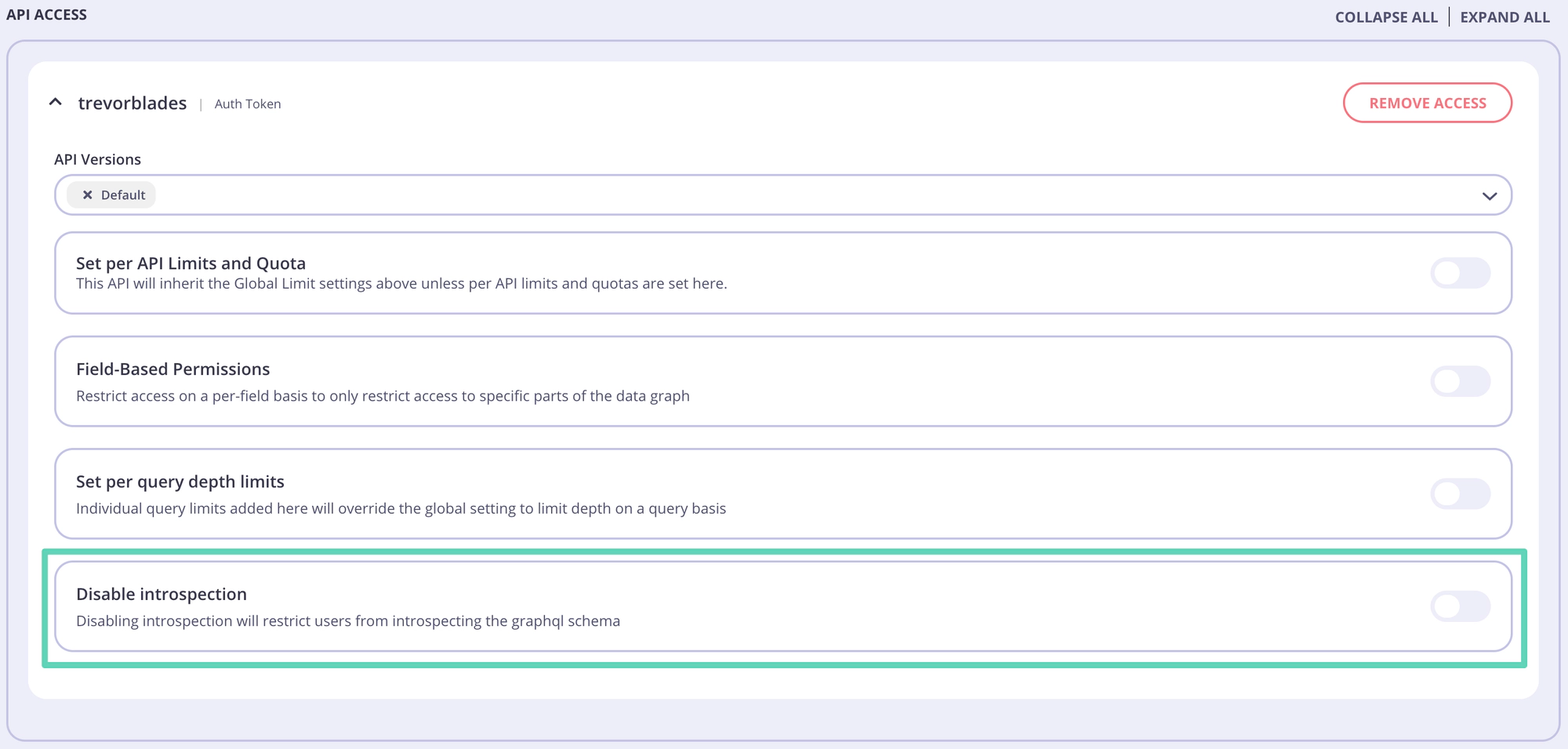

GraphQL introspection is enabled in Tyk by default. You can disable the introspection per key or security policy using:

• Tyk Dashboard
• Tyk Dashboard and Gateway API

{
    "access_rights": {
        "{API-ID}": {
            "api_id": "{API-ID}",
            "api_name": "{API-NAME}",
            "disable_introspection": true,
            "allowed_types": [],
            "restricted_types": []
        }
    }
}

{
    "error": "introspection is disabled"
}

Introspection also works for the Universal Data Graph.

Introspection Queries

Any GraphQL API can be introspected with the right introspection query. Here’s some examples on what introspection queries can look like and what information you can learn about the GraphQL service using them.

Introspecting all types

This query will respond with information about all types and queries defined in the schema. Additional information like name, description and kind will also be provided.

query {
 __schema {
	    types {
		  name
		  description
		  kind
		}
		queryType {
		  fields {
			name
			description
		  }
		}
   }
 }

Introspecting single type details

If you want to know more about a certain type in the schema, you can use the following query:

  query {
    __type(name: "{type name}") {
  	...FullType
    }
  }

  fragment FullType on __Type {
    kind
    name
    description
    fields(includeDeprecated: true) {
  	name
  	description
  	args {
  	  ...InputValue
  	}
  	type {
  	  ...TypeRef
  	}
  	isDeprecated
  	deprecationReason
    }

    inputFields {
  	...InputValue
    }

    interfaces {
  	...TypeRef
    }

    enumValues(includeDeprecated: true) {
  	name
  	description
  	isDeprecated
  	deprecationReason
    }

    possibleTypes {
  	...TypeRef
    }
  }

  fragment InputValue on __InputValue {
    name
    description
    type {
  	...TypeRef
    }
    defaultValue
  }

  fragment TypeRef on __Type {
    kind
    name
    ofType {
  	kind
  	name
  	ofType {
  	  kind
  	  name
  	  ofType {
  		kind
  		name
  		ofType {
  		  kind
  		  name
  		  ofType {
  			kind
  			name
  			ofType {
  			  kind
  			  name
  			  ofType {
  				kind
  				name
  			  }
  			}
  		  }
  		}
  	  }
  	}
    }
  }

Introspecting types associated with an interface

The query to introspect a single type can be used for any type, but you might prefer a simpler response for types such as interface. With this query you can get a list of objects that implements a specific interface.

query {
__type(name: "{interface name}") {
  name
  kind
  description
  possibleTypes {
    name
    kind
    description
  }
}
}

Introspecting ENUM values

An enum type defines a set of discrete values. With this query you can get a complete list of those values for a chosen enum.

query {
__type(name: "{enum name}") {
  name
  kind
  description
  enumValues {
    name
    description
  }
}
}

Introspecting query definitions

GraphQL requires queries to be defined in a special type Query in the schema. You can use the below introspection query to find out more about a query operations of the graph.

  query {
    __type(name: "Query") {
  	...QueryType
    }
  }

  fragment QueryType on __Type {
    fields {
  	name
  	description
  	type {
  		name
  		kind
  	}
  	args {
  	  name
  	  description
  	  type {
  		  name
  		  kind
  	  }
  	}
    }
  }

Introspecting mutation and subscription definitions

You should use the same introsopection query as you would for Query type, just change the name argument to Mutation or Subscription.

Full introspection

If you prefer to introspect GraphQL all at once, you can do that by sending this query:

    query IntrospectionQuery {
      __schema {

        queryType { name }
        mutationType { name }
        subscriptionType { name }
        types {
          ...FullType
        }
        directives {
          name
          description

          locations
          args {
            ...InputValue
          }
        }
      }
    }

    fragment FullType on __Type {
      kind
      name
      description

      fields(includeDeprecated: true) {
        name
        description
        args {
          ...InputValue
        }
        type {
          ...TypeRef
        }
        isDeprecated
        deprecationReason
      }
      inputFields {
        ...InputValue
      }
      interfaces {
        ...TypeRef
      }
      enumValues(includeDeprecated: true) {
        name
        description
        isDeprecated
        deprecationReason
      }
      possibleTypes {
        ...TypeRef
      }
    }

    fragment InputValue on __InputValue {
      name
      description
      type { ...TypeRef }
      defaultValue


    }

    fragment TypeRef on __Type {
      kind
      name
      ofType {
        kind
        name
        ofType {
          kind
          name
          ofType {
            kind
            name
            ofType {
              kind
              name
              ofType {
                kind
                name
                ofType {
                  kind
                  name
                  ofType {
                    kind
                    name
                  }
                }
              }
            }
          }
        }
      }
    }


Tyk also allows you to block introspection queries for security reasons if you wish to do so. More information on how to do that is provided here.

Validation

In order to prevent errors happening during request processing or sending invalid queries to the upstream Tyk supports the validation of GraphQL queries and schemas.

Query Validation

Tyk’s native GraphQL engine supports validating GraphQL queries based on the GraphQL Specification.

Both the GraphQL engine in front of your existing GraphQL API as well as any Universal Data Graph you build gets protected with a validation middleware.

This means, no invalid request will be forwarded to your upstream. The Gateway will catch the error and return it to the client.

Schema Validation

A broken schema can lead to undesired behaviors of the API including queries not being processed by the GraphQL middleware. As the search for the root cause for such a malfunction can be tedious, Tyk provides schema validation.

The schema validation will prevent you from saving or updating an API with a broken schema. This includes schemas breaking the following rules:

• No duplicated operation types (Query, Mutation, Subscription)
• No duplicated type names
• No duplicated field names
• No duplicated enum values
• No usage of unknown types

When using the Dashboard API the response for a broken schema will be a 400 Bad Request with a body containing the validation errors. For example:

{
  "Status": "Error",
  "Message": "Invalid GraphQL schema",
  "Meta":null,
  "Errors": [
    "field 'Query.foo' can only be defined once"
  ]
}

GraphQL APIs headers

Users can set up two kinds of headers when configuring GraphQL APIs:

• Introspection headers
• Request headers

Both types of headers can be set in Advanced Options tab in Tyk Dashboard.

Introspection headers

Tyk Dashboard can introspect any upstream GraphQL API and download a copy of the GQL schema. That schema will be displayed in Schema tab.

For protected upstreams, where authorization is required for introspection, Tyk allows to persist authorization headers in the GQL API configuration using Introspection headers.

Any header key/value pair defined in Introspection headers will only be used while making an introspection call from Tyk Dashboard to the upstream. Those headers will not be used while proxying requests from consumers to the upstream.

Introspection headers can also be configured in the raw API definition:

...
"graphql": {
      "execution_mode": "proxyOnly",
      "proxy": {
        "auth_headers": {
          "admin-auth": "token-value"
        }
      }
}

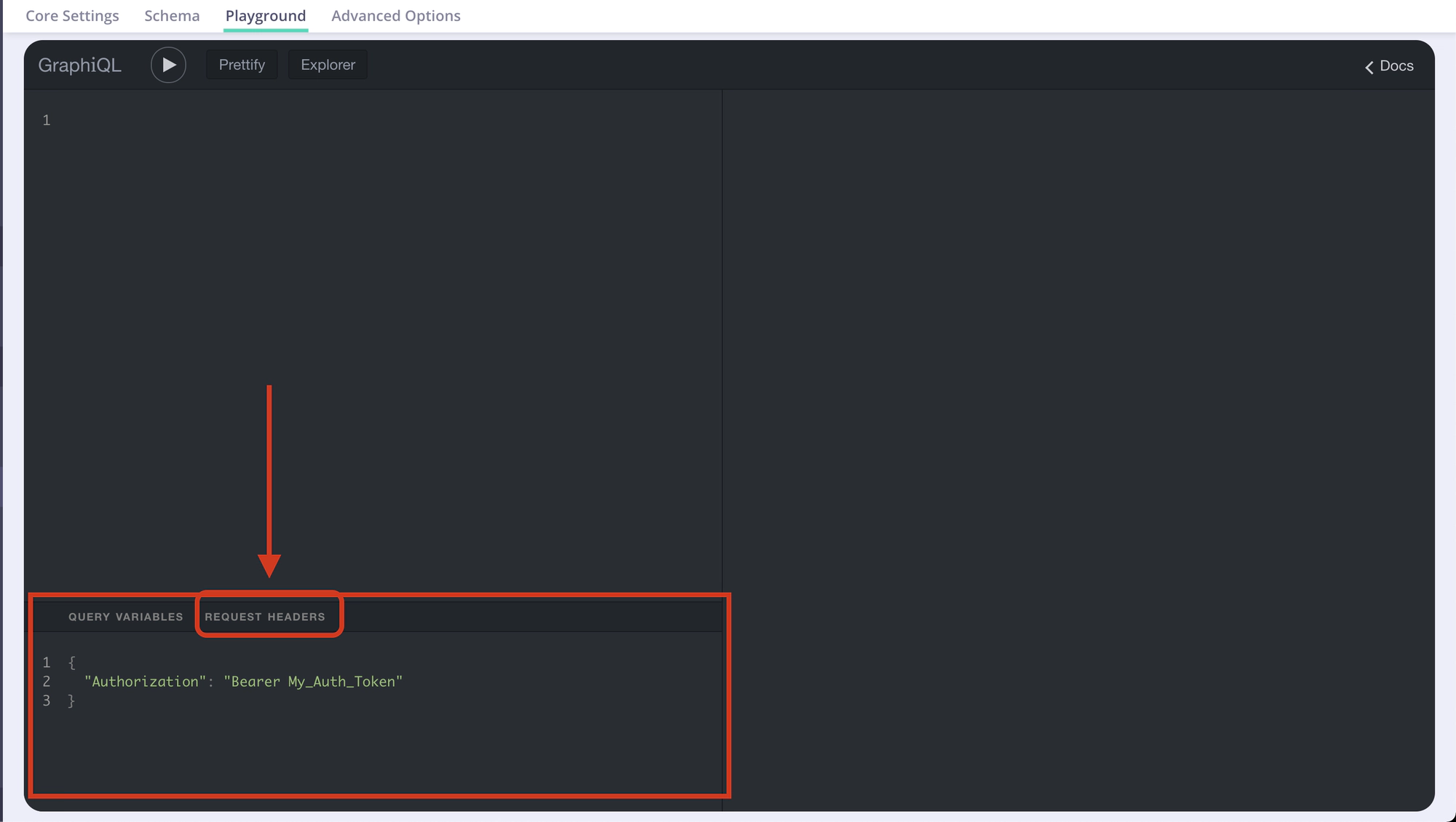

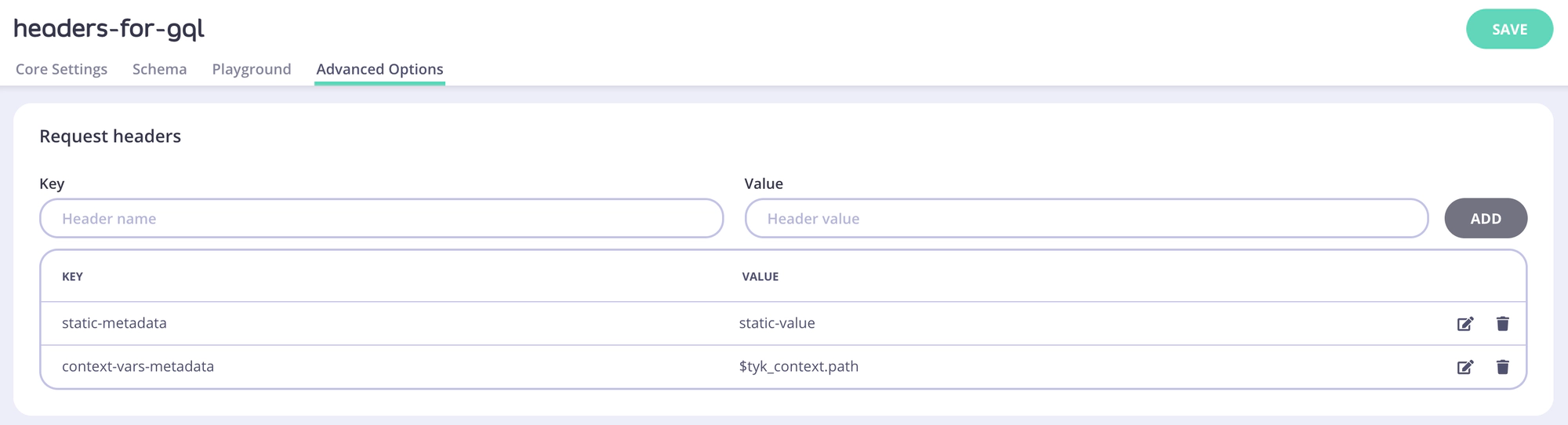

Request headers

It is possible to enrich any GQL request proxied through Tyk Gateway with additional information in the headers. For that purpose users should configure Request headers in Tyk Dashboard.

Request headers values can be defined as context variables. To know how to refer to request context variables check this page.

Any header key/value pair defined in Request headers will only be used to inject headers into requests proxied through the Gateway. It will not be used to introspect the upstream schema from Tyk Dashboard.

Request headers can also be configured in the raw API definition:

...
"graphql": {
      "execution_mode": "proxyOnly",
      "proxy": {
        "request_headers": {
          "context-vars-metadata": "$tyk_context.path",
          "static-metadata": "static-value"
        }
      }
}

Syncing GQL Schema

A GraphQL Proxy API keeps an own copy of the upstream GraphQL schema. This also means that when the upstream GraphQL schema changes, those changes need to be transfered to the proxy schema.

For that Tyk Dashboard always saves the timestamp of the last schema change when updating a GraphQL API. This information can be used to determine if the schema is out-dated and needs to be synced with upstream again. It can be found above the schema editor.

For syncing the schema just press the resync button.

If your upstream is protected then you need to make sure you provide Tyk with the authorization details to execute introspection query correctly. You can add those detail while creating GQL API or using Introspection headers later on.

Persisting GraphQL queries

Tyk Gateway 4.3.0 release includes a way to expose GraphQL queries as REST endpoints. For now, this can only be configured via the raw API definition, Tyk Dashboard support is coming soon.

How to persist GraphQL query

The ability to expose a GraphQL query as a REST endpoint can be enabled by adding the persist_graphql section of the extended_paths on a HTTP type in any API version you intend to be used to serve as the GraphQL query to REST endpoint proxy.

Here is a sample REST API proxy for the HTTP type API:

{
  "name": "Persisted Query API",
  "api_id": "trevorblades",
  "org_id": "default",
  "use_keyless": true,
  "enable_context_vars": true,
  "definition": {
    "location": "header",
    "key": "x-api-version"
  },
  "proxy": {
    "listen_path": "/trevorblades/",
    "target_url": "https://countries.trevorblades.com",
    "strip_listen_path": true
  }
}

The target URL should point to a GraphQL upstream although this is a REST proxy. This is important for the feature to work.

Adding versions

On its own, this isn’t particularly remarkable. To enable GraphQL to REST middleware, modify the Default version like so:

{
  "name": "Persisted Query API",
  "definition": {
    "location": "header",
    "key": "x-api-version"
  },
  ...
  "version_data": {
    "not_versioned": true,
    "default_version": "",
    "versions": {
      "Default": {
        "name": "Default",
        "expires": "",
        "paths": {
          "ignored": [],
          "white_list": [],
          "black_list": []
        },
        "use_extended_paths": true,
        "global_headers": {},
        "global_headers_remove": [],
        "global_response_headers": {},
        "global_response_headers_remove": [],
        "ignore_endpoint_case": false,
        "global_size_limit": 0,
        "override_target": "",
        "extended_paths": {
          "persist_graphql": [
            {
              "method": "GET",
              "path": "/getContinentByCode",
              "operation": "query ($continentCode: ID!) {\n    continent(code: $continentCode) {\n        code\n        name\n        countries {\n            name\n        }\n    }\n}",
              "variables": {
                "continentCode": "EU"
              }
            }
          ]
        }
      }
    }
  }
}

The vital part of this is the extended_paths.persist_graphql field. The persist_graphql object consists of three fields:

method: The HTTP method used to access that endpoint, in this example, any GET requests to <PROXY ENDPOINT>/getContinentByCode will be handled by the persist graphql middleware

path: The path the middleware listens to

operation: This is the GraphQL operation (query in this case) that is sent to the upstream.

variables: A list of variables that should be included in the upstream request.

If you run a request to your proxy, you should get a response similar to this:

{
    "data": {
        "continent": {
            "code": "EU",
            "name": "Europe",
            "countries": [
                {
                    "name": "Andorra"
                },
                ...
            ]
        }
    }
}

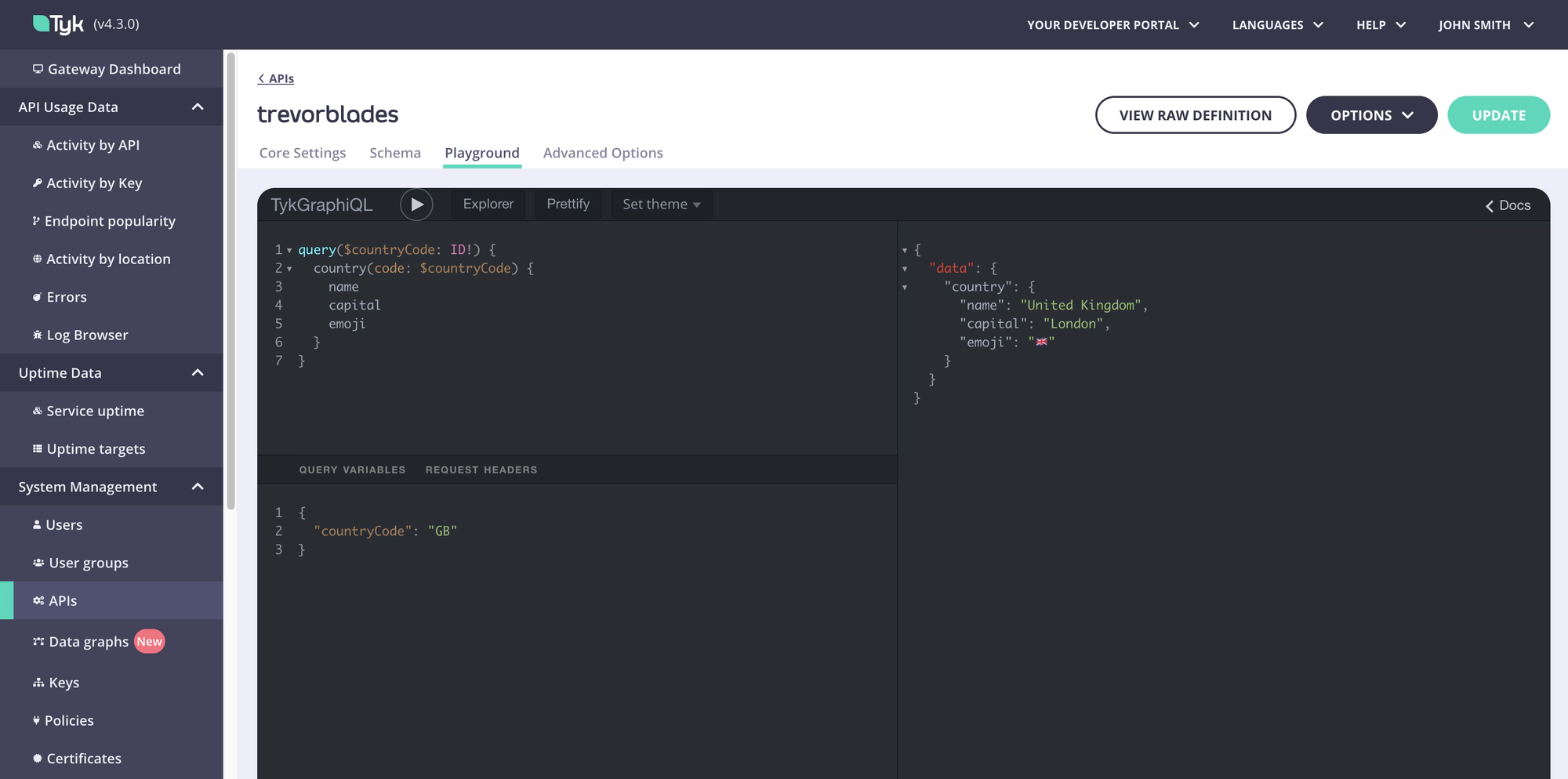

Dynamic variables

We have seen support for passing static variable values via the API definition, but there will be cases where we want to extract variables from the request header or URL. More information about available request context variables in Tyk can be found [here]({{(< ref “context-variables”>)}})

Below is an examples of using an incoming code header value as a variable in persist_graphql middleware configuration:

{
  "method": "GET",
  "path": "/getCountryByCode",
  "operation": "query ($countryCode: ID!) {\n   country(code: $countryCode) {\n        code\n        name\n        }\n}",
  "variables": {
    "countryCode": "$tyk_context.headers_Code"
  }
}

Making a request to that endpoint and providing header "code": "UK", should result in a response similar to this:

{
    "data": {
        "country": {
            "code": "UK",
            "name": "United Kingdom"
        }
    }
}

Similarly, you can also pass variables in the request URL. Modify your persist_graphql block to this:

{
  "method": "GET",
  "path": "/getCountryByCode/{countryCode}",
  "operation": "query ($countryCode: ID!) {\n   country(code: $countryCode) {\n        code\n        name\n        }\n}",
  "variables": {
    "countryCode": "$path.countryCode"
  }
}

If you now make a request to /getCountryByCode/NG you should get a result similar to this:

{
    "data": {
        "country": {
            "code": "NG",
            "name": "Nigeria"
        }
    }
}

Complexity Limiting

Depending on the GraphQL schema an operation can cause heavy loads on the upstream by using deeply nested or resource-expensive operations. Tyk offers a solution to this issue by allowing you to control query depth and define its max value in a policy or directly on a key.

Deeply nested query

Even if you have a simple GraphQL schema, that looks like this:

type Query {
  continents: [Continent!]!
}

type Continent {
  name: String!
  countries: [Country!]!
}

type Country {
  name: String!
  continent: Continent!
}

There is a potential risk, that a consumer will try to send a deeply nested query, that will put a lot of load on your upstream service. An example of such query could be:

query {
  continents {
    countries {
      continent {
        countries {
          continent {
            countries {
              contient {
                countries {
                  name
                }
              }
            }
          }
        }
      }
    }
  }
}

Query depth limit

Deeply nested queries can be limited by setting a query depth limitation. The depth of a query is defined by the highest amount of nested selection sets in a query.

Example for a query depth of 2:

{
  continents {
    name
  }
}

Example for a query depth of 3:

{
  continents {
    countries {
      name
    }
  }
}

When a GraphQL operation exceeds the query depth limit the consumer will receive an error response (403 Forbidden):

{
    "error": "depth limit exceeded"
}

Enable depth limits from the Dashboard

Query depth limitation can be applied on three different levels:

• Key/Policy global limits and quota section. (Global Limits and Quota) The query depth value will be applied on all APIs attached on a Key/Policy.
  1. Optional: Configure a Policy from System Management > Policies > Add Policy.
  2. From System Management > Keys > Add Key select a policy or configure directly for the key.
  3. Select your GraphQL API (marked as GraphQL). (if Policy is not applied on Key)
  4. Change the value for Query depth, from Global Limits and Quota by unchecking the Unlimited query depth checkmark and insert the maximum allowed query depth.

• API limits and quota. (Set per API Limits and Quota) This value will overwrite any value registered for query depth limitation on global Key/Policy level, and will be applied on all fields for Query and Mutation types defined within the API schema.
  1. Optional: Configure a Policy from System Management > Policies > Add Policy.
  2. From System Management > Keys > Add Key select a policy or configure directly for the key.
  3. Select your GraphQL API (marked as GraphQL). (if Policy is not applied on Key)
  4. Enable Set per API Limits and Quota section.
  5. Change the value for Query depth, from API level, by unchecking the Unlimited query depth checkmark and insert the maximum allowed query depth

• API per query depth limit. (Set per query depth limits) By setting a query depth limit value on a specific Query/Mutation type field, will take highest priority and all values set on first 2 steps will be overwritten.
  1. Optional: Configure a Policy from System Management > Policies > Add Policy.
  2. From System Management > Keys > Add Key select a policy or configure directly for the key.
  3. Select your GraphQL API (marked as GraphQL). (if Policy is not applied on Key)
  4. Enable Set per query depth limits section.
  5. Add as many queries you want to apply depth limitation on.

Enable depth limits using Tyk APIs

You can set the same query depth limits using the Tyk Gateway API (for open-source users) or Tyk Dashboard API. To make it easier we have Postman collections you can use.

Global query depth limit for Key/Policy

In the key/policy json you need to make sure this section has your desired max_query_depth set:

{...
   "rate": 1000,
    "per": 60,
    "max_query_depth": 5
...}

Per API depth limits

In the key/policy json you need to make sure that this section is set correctly:

{
  ...
  "access_rights_array": [
    {
      "api_name": "trevorblades",
      "api_id": "68496692ef5a4cb35a2eac907ec1c1d5",
      "versions": [
        "Default"
      ],
      "allowed_urls": [],
      "restricted_types": [],
      "allowed_types": [],
      "disable_introspection": false,
      "limit": {
        "rate": 1000,
        "per": 60,
        "throttle_interval": -1,
        "throttle_retry_limit": -1,
        "max_query_depth": 3,
        "quota_max": -1,
        "quota_renews": 0,
        "quota_remaining": 0,
        "quota_renewal_rate": -1,
        "set_by_policy": false
      },
      "field_access_rights": [],
      "allowance_scope": ""
    }
  ]
  ...
}

API per query depth limits

If you have more than one query in your schema and you want to set different depth limits for each of those, Tyk also allows you to do that. In this case you need to make sure, that field_access_rights per API are set correctly:

{
  ...
  "access_rights_array":[
    {
        "api_name":"trevorblades",
        "api_id":"68496692ef5a4cb35a2eac907ec1c1d5",
        "versions":[
          "Default"
        ],
        "allowed_urls":[],
        "restricted_types":[],
        "allowed_types":[],
        "disable_introspection":false,
        "limit":null,
        "field_access_rights":[
          {
              "type_name":"Query",
              "field_name":"continents",
              "limits":{
                "max_query_depth":3
              }
          },
          {
              "type_name":"Query",
              "field_name":"countries",
              "limits":{
                "max_query_depth":5
              }
          }
        ],
        "allowance_scope":""
    }
  ]
  ...
}

Field Based Permissions

You may want to allow different consumers access to your GraphQL API without exposing all data to them. So for example this could be a schema for a GraphQL API:

type Query {
  accounts: [Account!]
}

type Account {
  owner: String!
  number: ID!
  balance: Float!
}

For one type of consumer, it will be fine to query all data the schema exposes, while for another type of consumer it should not be allowed to retrieve the balance for example.

Field access can be restricted by setting up field based permissions in a policy or directly on a key.

When a field is restricted and used in a GraphQL operation, the consumer will receive an error response (400 Bad Request):

{
    "errors": [
        {
            "message": "field: balance is restricted on type: Account"
        }
    ]
}

Field based permissions with the list of allowed types

Field access can be restricted by setting up an allowed types list in a policy or directly on a key. If new fields are added to the GraphQL schema, you don’t need to update the field-based permissions. This is because the fields that are not in the list of allowed types are automatically access-restricted.

First, you need to learn how to create a security policy with the API or how to create an API Key with the API.

Once you learn how to utilize the API to create a security policy or key, you can use the following snippet:

{
    "access_rights": {
        "{API-ID}": {
            "api_id": "{API-ID}",
            "api_name": "{API-NAME}",
            "allowed_types": [
                {
                    "name": "Query",
                    "fields": ["accounts"]
                },
                {
                    "name": "Account",
                    "fields": ["owner"]
                }
            ]
        }
    }
}

With this configuration, a consumer can only access the field called the owner. When any other fields are used in a GraphQL operation, the consumer will receive an error response (400 Bad Request):

{
    "errors": [
        {
            "message": "field: balance is restricted on type: Account"
        }
    ]
}

It’s important to note that once you set a list of allowed types, Tyk will use this list to control access rights and disable the list of restricted types. The same behavior will occur if an asterisk operator is used to control access.

Allow or restrict all fields with the asterisk operator

You can allow or restrict all fields of a type by using an asterisk (*) operator. Any new fields of that type will be allowed or blocked by default. For example:

{
    "access_rights": {
        "{API-ID}": {
            "api_id": "{API-ID}",
            "api_name": "{API-NAME}",
            "allowed_types": [
                {
                    "name": "Query",
                    "fields": ["*"]
                },
                {
                    "name": "Account",
                    "fields": ["*"]
                }
            ]
        }
    }
}

With this configuration, the consumers are allowed to access all current and future fields of the Query and Account types. Please note that the asterisk operator does not work recursively. For example, in the example below, the asterisk operator only allows access to fields of the Query type. Fields of the Account type remain restricted.

{
    "access_rights": {
        "{API-ID}": {
            "api_id": "{API-ID}",
            "api_name": "{API-NAME}",
            "allowed_types": [
                {
                    "name": "Query",
                    "fields": ["*"]
                }
            ]
        }
    }
}

The asterisk operator also works for the list of restricted types:

{
    "access_rights": {
        "{API-ID}": {
            "api_id": "{API-ID}",
            "api_name": "{API-NAME}",
            "restricted_types": [
                {
                    "name": "Query",
                    "fields": ["accounts"]
                },
                {
                    "name": "Account",
                    "fields": ["*"]
                }
            ]
        }
    }
}

The configuration above restricts access to all fields of the Account type.

Please note that the list of allowed types overrides the list of restricted types.

Setup field based permissions in Dashboard

Restricted and allowed types and fields can also be set up via Tyk Dashboard.

1. Optional: Configure a Policy from System Management > Policies > Add Policy.
2. From System Management > Keys > Add Key select a policy or configure directly for the key.
3. Select your GraphQL API (marked as GraphQL).
4. Enable either Block list or Allow list. By default, both are disabled. It’s not possible to have both enabled at the same time - enabling one switch automatically disables the other.

Block list

By default all Types and Fields will be unchecked. By checking a Type or Field you will disallow to use it for any GraphQL operation associated with the key.

For example, the settings illustrated below would block the following:

• code and countries fields in Continent type.
• latt and longt fields in Coordinates type.

Allow list

By default all Types and Fields will be unchecked. By checking a Type or Field you will allow it to be used for any GraphQL operation associated with the key.

For example, the settings illustrated below would only allow the following:

• code field in Continent type.
• code and name fields in Language type.

Note that the Query type is unchecked, which indicates that all fields in Query type are unchecked. Subsequently, you will not be able to run any query.

GraphQL Federation

Overview

Federation Version Support

Tyk supports Federation v1

What is federation?

Ease-of-use is an important factor when adopting GraphQL either as a provider or a consumer. Modern enterprises have dozens of backend services and need a way to provide a unified interface for querying them. Building a single, monolithic GraphQL service is not the best option. It leads to a lot of dependencies, over-complication and is hard to maintain.

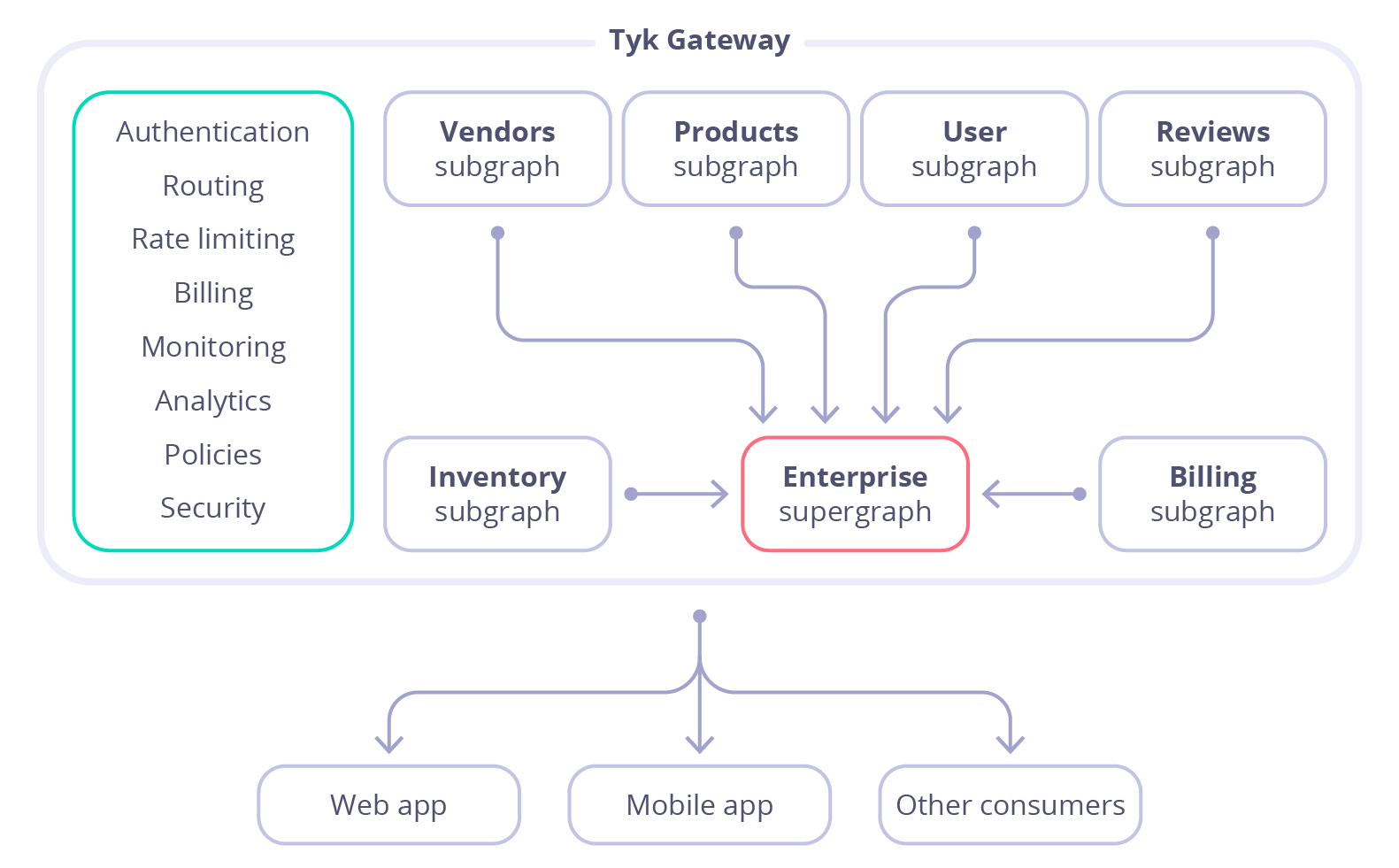

To remedy this, Tyk, with release 4.0 offers GraphQL federation that allows you to divide GQL implementation across multiple back-end services, while still exposing them all as a single graph for the consumers.

Subgraphs and supergraphs

Subgraph is a representation of a back-end service and defines a distinct GraphQL schema. It can be queried directly as a separate service or it can be federated into a larger schema of a supergraph.

Supergraph is a composition of several subgraphs that allows the execution of a query across multiple services in the backend.

Subgraphs examples

Users

extend type Query {
  me: User
}

type User @key(fields: "id") {
  id: ID!
  username: String!
}

Products

extend type Query {
  topProducts(first: Int = 5): [Product]
}

extend type Subscription {
  updatedPrice: Product!
  updateProductPrice(upc: String!): Product!
  stock: [Product!]
}

type Product @key(fields: "upc") {
  upc: String!
  name: String!
  price: Int!
  inStock: Int!
}

Reviews

type Review {
  body: String!
  author: User! @provides(fields: "username")
  product: Product!
}

extend type User @key(fields: "id") {
  id: ID! @external
  username: String! @external
  reviews: [Review]
}

extend type Product @key(fields: "upc") {
  upc: String! @external
  reviews: [Review]
}

Subgraph conventions

• A subgraph can reference a type that is defined by a different subgraph. For example, the Review type defined in the last subgraph includes an author field with type User, which is defined in a different subgraph.

• A subgraph can extend a type defined in another subgraph. For example, the Reviews subgraph extends the Product type by adding a reviews field to it.

• A subgraph has to add a @key directive to an object’s type definition so that other subgraphs can reference or extend that type. The @key directive makes an object type an entity.

Supergraph schema

After creating all the above subgraphs in Tyk, they can be federated in your Tyk Gateway into a single supergraph. The schema of that supergraph will look like this:

type Query {
  topProducts(first: Int = 5): [Product]
  me: User
}

type Subscription {
  updatedPrice: Product!
  updateProductPrice(upc: String!): Product!
  stock: [Product!]
}

type Review {
  body: String!
  author: User!
  product: Product!
}

type Product {
  upc: String!
  name: String!
  price: Int!
  inStock: Int!
  reviews: [Review]
}

type User {
  id: ID!
  username: String!
  reviews: [Review]
}

Creating a subgraph via the Dasboard UI

1. Log in to the Dashboard and go to APIs > Add New API > Federation > Subgraph.

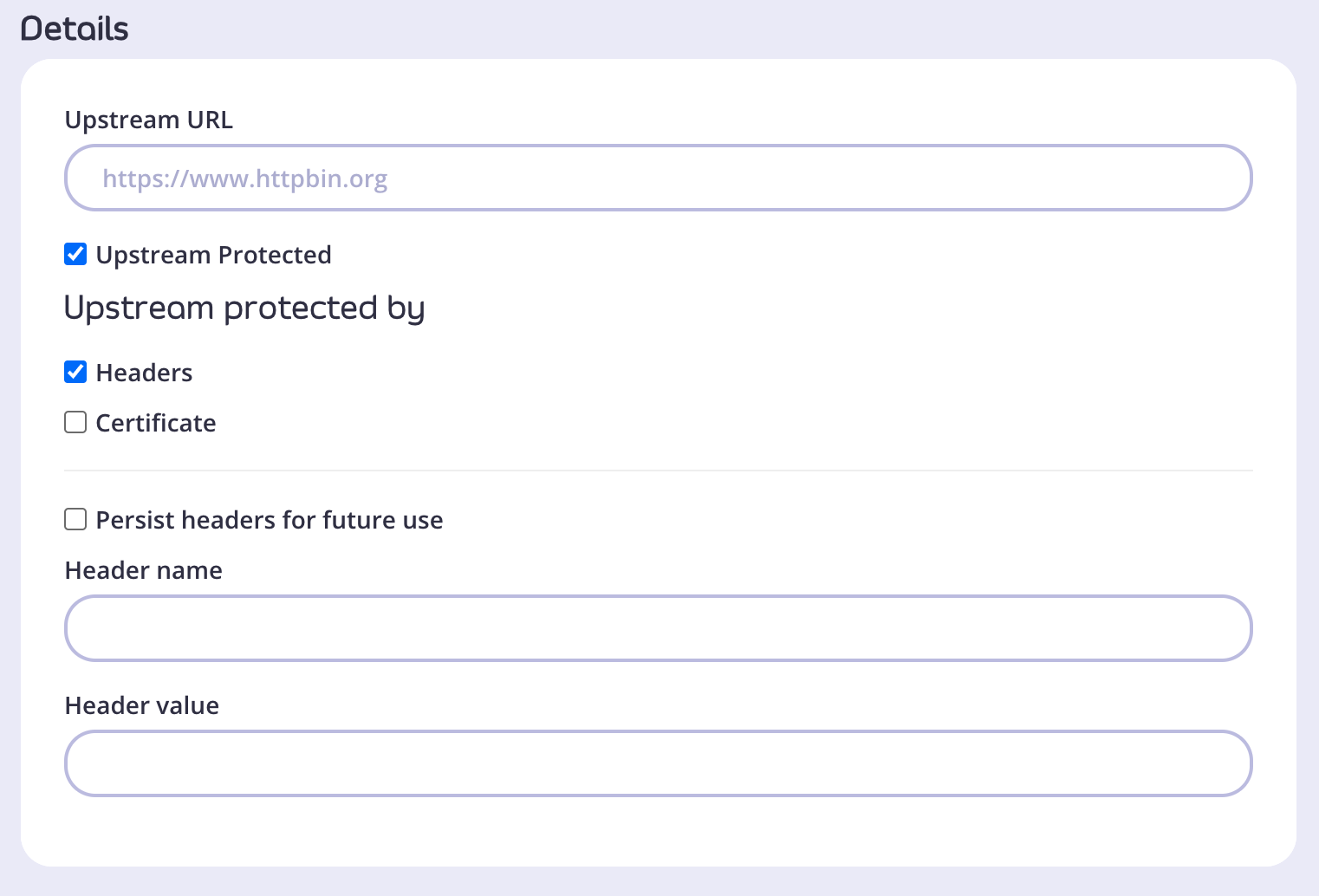

2. Choose a name for the subgraph and provide an upstream URL.

3. Go to Configure API and configure your subgraph just as you would any other API in Tyk.

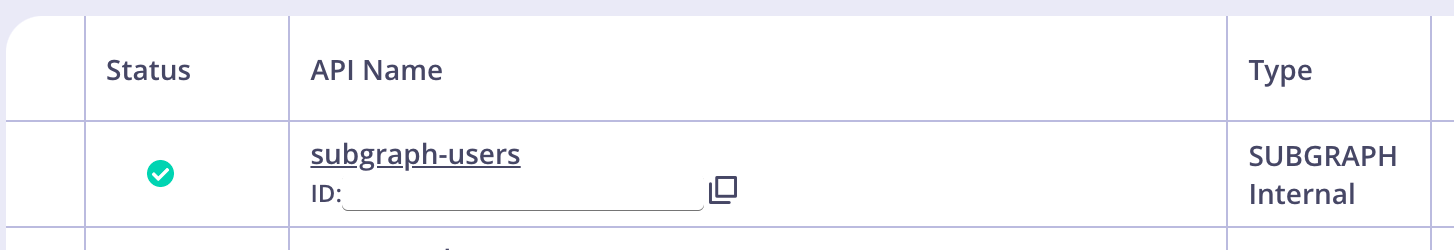

4. Once you have configured all the options click Save. The subgraph is now visible in the list of APIs.



Creating a supergraph via the Dasboard UI

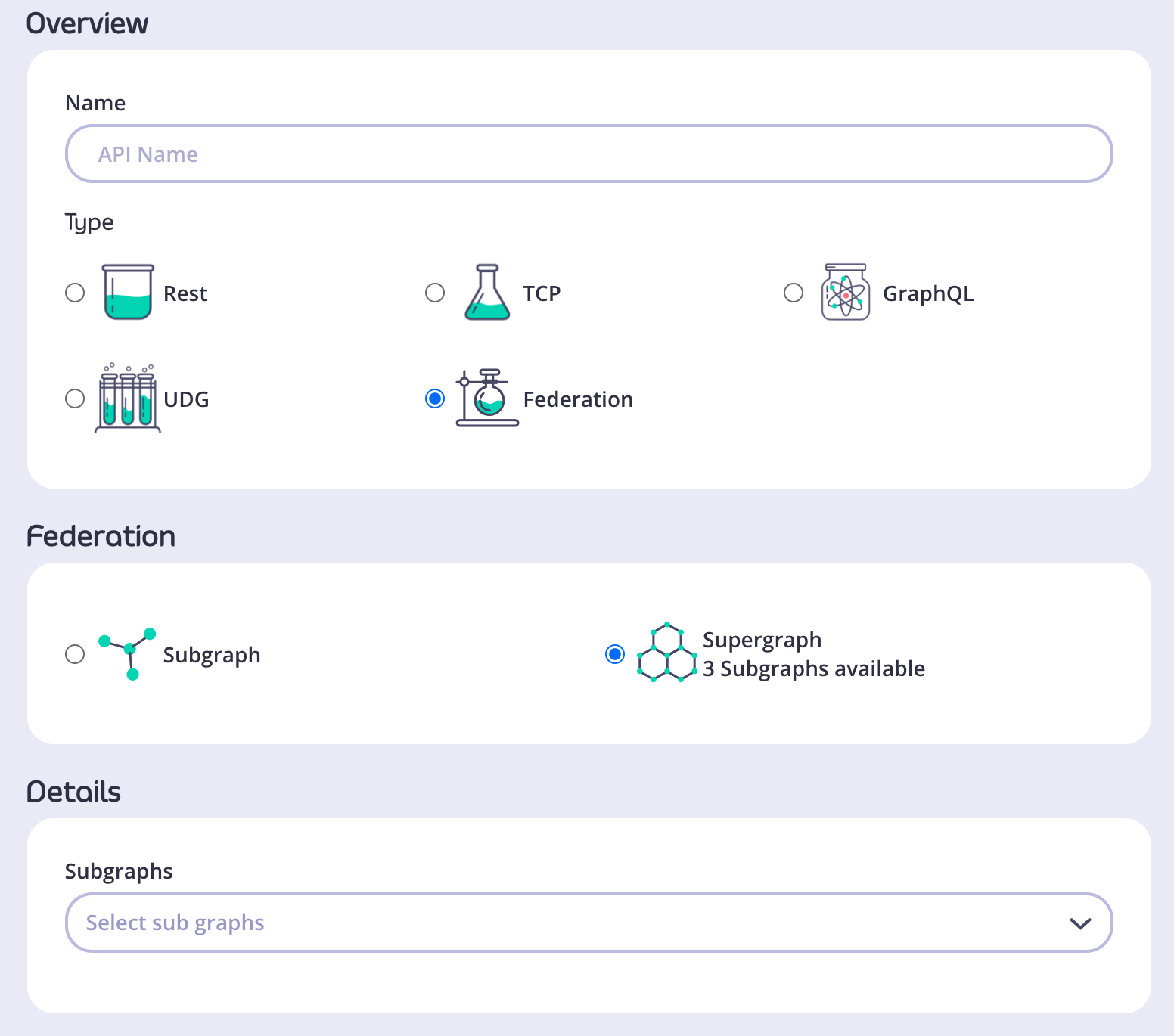

1. Log in to the Dashboard and go to APIs > Add New API > Federation > Supergraph.

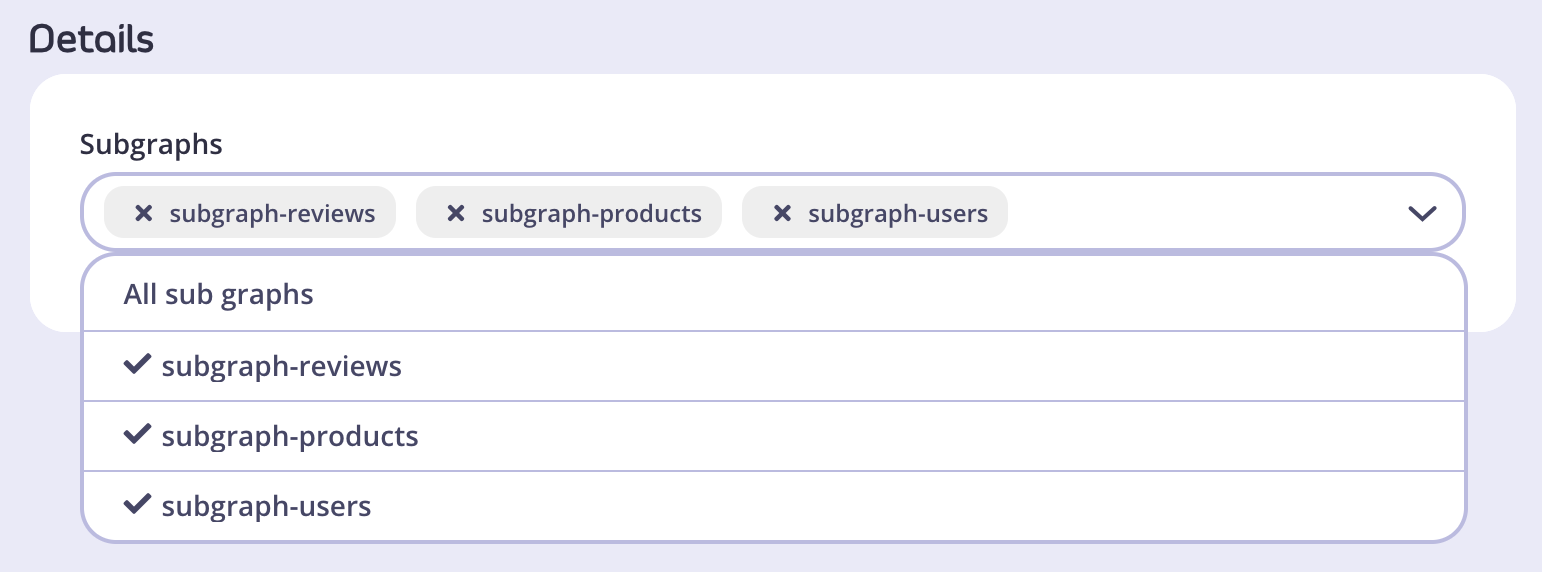

2. In the Details section select all the subgraphs that will be included in your supergraph.



3. Go to Configure API and configure your supergraph just as you would any other API in Tyk.

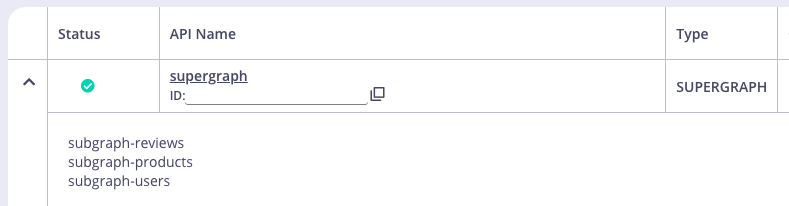

4. Once you configure all the options click Save. The supergraph is now available in your list of APIs.



Defining Headers

In v4.0 you can define global (Supergraph) headers. Global headers are forwarded to all subgraphs that apply to the specific upstream request.

Setting a Global Header

1. After creating your supergraph, open the API in your Dashboard.

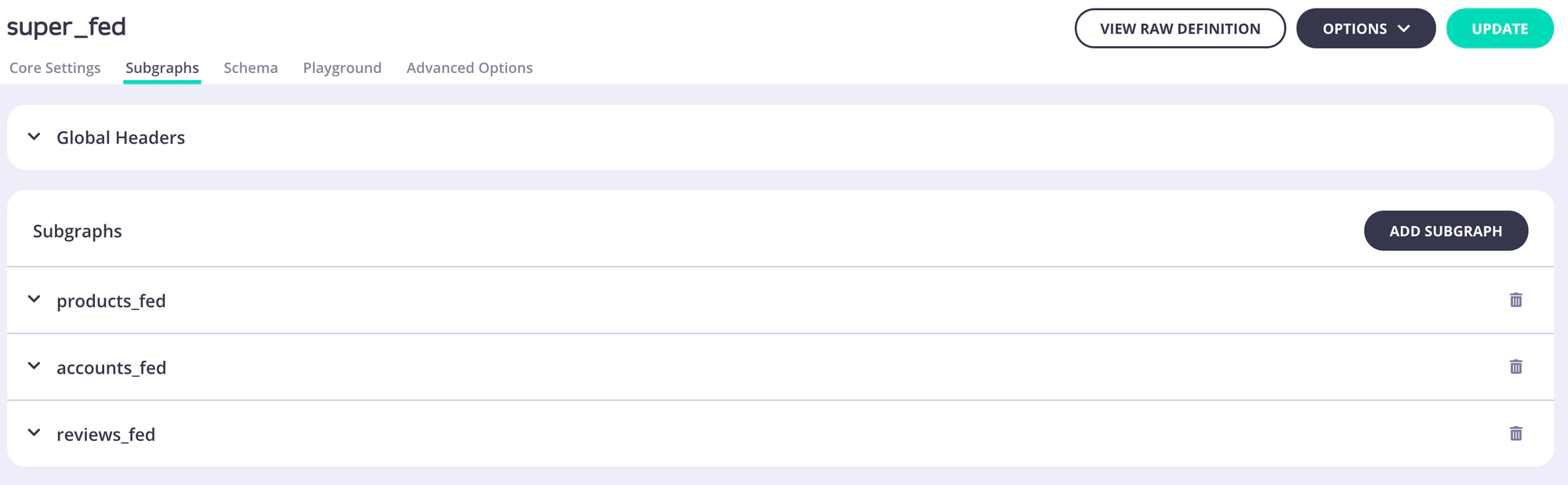

2. From the Subgraphs tab click Global Headers.

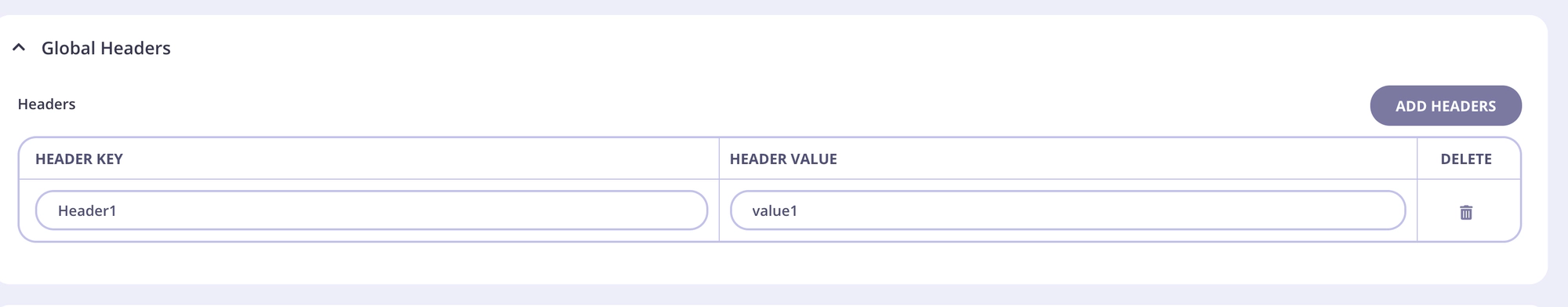

3. Enter your header name and value. You can add more headers by clicking Add Headers.



4. Click Update to save the header.

5. On the pop-up that is displayed, click Update API.

6. If you want to delete a global header, click the appropriate bin icon for it.

7. You can update your headers by repeating steps 2-5.

Entities

Defining the base entity

• Must be defined with the @key directive.
• The “fields” argument of the @key directive must reference a valid field that can uniquely identify the entity.
• Multiple primary keys are possible.

An example is provided below:

Subgraph 1 (base entity)

type MyEntity @key(fields: "id") @key(fields: "name") {
  id: ID!
  name: String!
}

Extending entities

Entities cannot be shared types (be defined in more than one single subgraph; see Entity stubs below).

The base entity remains unaware of fields added through extension; only the extension itself is aware of them.

Attempting to extend a non-entity with an extension that includes the @key directive or attempting to extend a base entity with an extension that does not include the @key directive will both result in errors.

The primary key reference should be listed as a field with the @external directive.

Below is an example extension for MyEntity (which was defined above in Subgraph 1):

Subgraph 2 (extension):

extend type MyEntity @key(fields: "id") {
  id: ID! @external
  newField: String!
}

Entity stubs

If one subgraph references a base entity (an entity defined in another subgraph) without adding new fields, that reference must be declared as a stub. In federation v1, stubs appear similar to extensions but do not add any new fields.

An entity stub contains the minimal amount of information necessary to identify the entity (referencing exactly one of the primary keys from the base entity regardless of whether there are multiple primary keys on the base entity).

The identifying primary key should feature the @external directive.

For example, a stub of MyEntity (which was defined above in Subgraph 1):

Subgraph 3 (stub):

extend type MyEntity @key(fields: "id") {
  id: ID! @external
}

What is a shared type?

Types that are identical by name and structure and feature in more than one subgraph are shared types.

Can I extend a shared type?

Subgraphs are normalized before federation. This means you can extend a type if the resolution of the extension after normalization is exactly identical to the resolution of the type after normalization in other subgraphs.

Unless the resolution of the extension in a single subgraph is exactly identical to all other subgraphs, extension is not possible.

Here is a valid example where both subgraphs resolve to identical enums after normalization:

Subgraph 1:

enum Example {
  A,
  B
}

extend enum Example {
  C
}

Subgraph 2:

enum Example {
  A,
  B,
  C
}

Here, the enum named Example in Subgraph 1 resolves to be identical to the enum named Example in Subgraph 2.

However, if we were to include Subgraph 3, which does not feature the “C” value, the enum is no longer identical in all 3 subgraphs. Consequently, federation would fail.

Subgraph 3:

enum Example {
  A,
  B
}

Extension Orphans

What is an extension orphan?

An extension orphan is an unresolved extension of a type after federation has completed. This will cause federation to fail and produce an error.

How could an extension orphan occur?

You may extend a type within a subgraph where the base type (the original definition of that type) is in another subgraph. This means that it is only after the creation of the supergraph that it can be determined whether the extension was valid. If the extension was invalid or was otherwise unresolved, an “extension orphan” would remain in the supergraph.

For example, the type named Person does not need to be defined in Subgraph 1, but it must be defined in exactly one subgraph (see Shared Types: extension of shared types is not possible, so extending a type that is defined in multiple subgraphs will produce an error).

Subgraph 1

extend type Person {
  name: String!
}

If the type named Person were not defined in exactly one subgraph, federation will fail and produce an error.

GraphQL WebSockets

Tyk supports GraphQL via WebSockets using the protocols graphql-transport-ws or graphql-ws between client and Tyk Gateway.

Before this feature can be used, WebSockets need to be enabled in the Tyk Gateway configuration. To enable it set http_server_options.enable_websockets to true in your tyk.conf file.

Connection: Upgrade
Upgrade: websocket
Sec-WebSocket-Key: <random key>
Sec-WebSocket-Version: 13
Sec-WebSocket-Protocol: graphql-transport-ws

{ "type": "connection_init" }

{ "id": "1", "type": "complete" }

{"id":"1","type":"subscribe","payload":{"query":"{ hello }"}}

{"id":"2","type":"subscribe","payload":{"query":"mutation SavePing { savePing }"}}

{"id":"3","type":"subscribe","payload":{"query":"subscription { countdown(from:10) }" }}

{"id":"3","type":"complete"}

Connection: Upgrade
Upgrade: websocket
Sec-WebSocket-Key: <random key>
Sec-WebSocket-Version: 13
Sec-WebSocket-Protocol: graphql-ws

{ "type": "connection_init" }

{"id":"1","type":"start","payload":{"query":"{ hello }"}}

{"id":"2","type":"start","payload":{"query":"mutation SavePing { savePing }"}}

{"id":"3","type":"start","payload":{"query":"subscription { countdown(from:10) }" }}

{"id":"3","type":"stop"}

Upstream connections

For setting up upstream connections (between Tyk Gateway and Upstream) please refer to the GraphQL Subscriptions Key Concept.

GraphQL Subscriptions

Tyk natively supports also GraphQL subscriptions, so you can expose your full range of GQL operations using Tyk Gateway. Subscriptions support was added in v4.0.0 in which graphql-ws protocol support was introduced.

With the release of Tyk v4.3.0 the number of supported subscription protocols has been extended.

In Tyk subscriptions are using the WebSocket transport for connections between the client and Gateway. For connections between Gateway and upstream WebSockets or SSE can be used.

Supported transports and protocols

Setting up subscription types via API definition

Subscription types or subscription transports/protocols are set inside the graphql section of the API definition.

Depending on whether you want to configure GraphQL proxy-only, UDG, or GraphQL Federation there are different places for the configuration option.

The values for subscription types are the same on all API types:

• graphql-ws
• graphql-transport-ws
• sse (Server-Sent Events)

GraphQL Proxy

{
  ...,
  "graphql": {
    ...,
    "proxy": {
      ...,
      "subscription_type": "graphql-ws"
    }
  }
}

Universal Data Graph

{
  ...,
  "graphql": {
    ...,
    "engine": {
      ...,
      "data_sources": [
        ...,
        {
          ...,
          "subscription_type": "sse"
        }
      ]
    }
  }
}

Federation

{
  ...,
  "graphql": {
    ...,
    "supergraph": {
      ...,
      "subgraphs": [
        ...,
        {
          ...,
          "subscription_type": "graphql-transport-ws"
        }
      ]
    }
  }
}

There is no need to enable subscriptions separately. They are supported alongside GraphQL as a standard. The only requirement for subscriptions to work is to enable WebSockets in your Tyk Gateway configuration file.

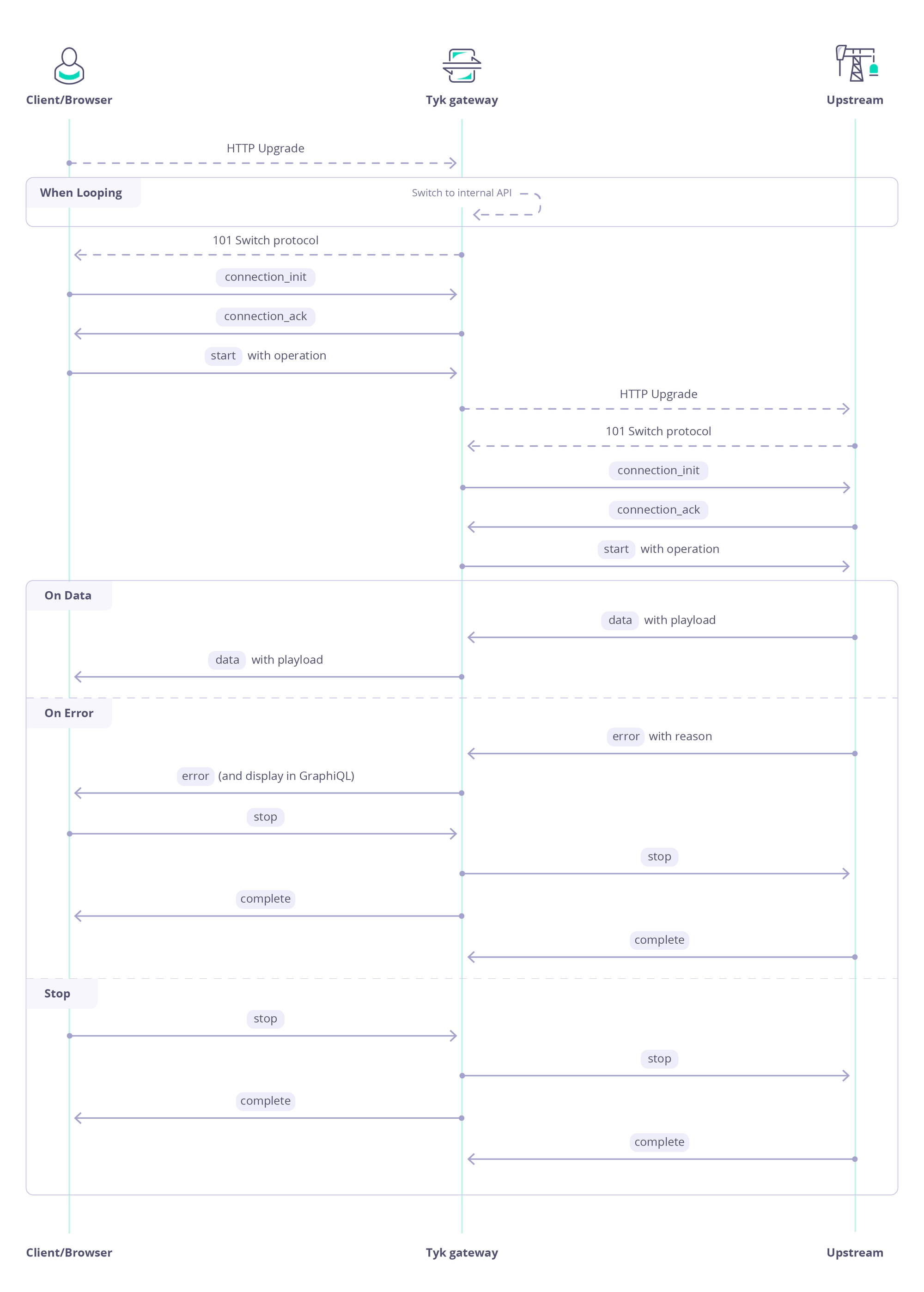

Here’s a general sequence diagram showing how subscriptions in Tyk work exactly:

GraphQL playground

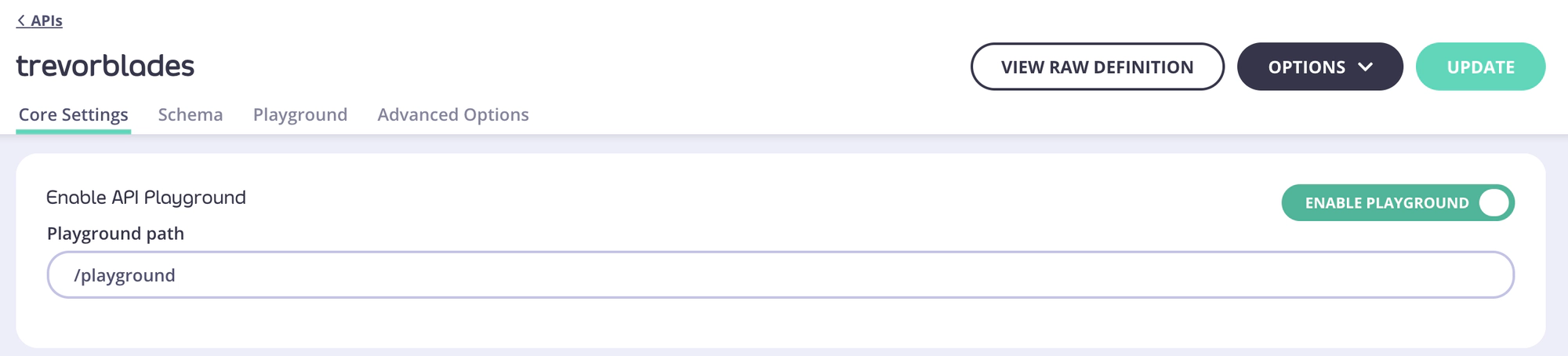

When you are creating or editing your GraphQL API, any change you make can be tested using Tyk Dashboard built-in GraphiQL Playground.

At the top of the Playground itself, you can switch between Dark and Light theme using the Set theme dropdown.

There’s also a built in Explorer to help with query building and a Prettify button that helps to make the typed out operation easier to read.

The GraphiQL try-out playground comes with a series of features by default, which can be very useful while configuring the API:

1. Syntax highlighting.
2. Intelligent type ahead of fields, arguments, types, and more.
3. Real-time error highlighting and reporting for queries and variables.
4. Automatic query and variables completion.
5. Automatically adds required fields to queries.
6. Documentation explorer, search, with markdown support.
7. Query History using local storage
8. Run and inspect query results using any promise that resolves JSON results. 9. HTTPS or WSS not required.
9. Supports full GraphQL Language Specification: Queries, Mutations, Subscriptions, Fragments, Unions, directives, multiple operations per query, etc

GraphQL Playgrounds in Tyk

Tyk offers you two types of Playgrounds, depending on who should be authorized to use them.

• Playground tab in API Designer, that’s only accessible via Tyk Dashboard and is always enabled. You need to log into the Tyk Dashboard to be able to use it.
• Public Playground that you can enable for any GraphQL API and that is accessible for any consumer interacting with your GQL API. This playground will follow all security rules you set for your GQL API - authentication, authorization, etc.

Enabling Public GraphQL Playground

...
"graphql": {
    "playground": {
      "enabled": true,
      "path": "/playground"
    }
  }
...

Query variables

You can pass query variables in two different ways, both are fully supported in Tyk Dashboard.

Using inline arguments in GraphiQL Playground

A query or mutation string in this case, would be written like in the example below and there would be no other requirements for executing an operation like this:

mutation createUser {
  createUser(input: {
      username: "test",
      email: "[email protected]",
      phone: "479332973",
      firstName: "David",
      lastName: "Test"
      }) {
    user {
        id
        username
        email
        phone
        firstName
        lastName
    }
  }
}

Using query variables in GraphiQL Playground

For complex sets of variables, you might want to split the above example into two parts: GQL operation and variables.

The operation itself would change to:

mutation createUser($input: CreateUserInput!) {
  createUser(input: $input) {
    user {
      id
      username
      email
      phone
      firstName
      lastName
    }
  }
}

The values for variables would need be provided in the Query variables section of the Playground like this:

{
  "input": {
    "username": "test",
    "email": "[email protected]",
    "phone": "479332973",
    "firstName": "David",
    "lastName": "Test"
  }
}

Headers

Debugging a GraphQL API might require additional headers to be passed to the requests while playing with the GraphiQL interface (i.e. Authorization header in case of Authentication Token protection over the API). This can be done using the dedicated headers tab in the Graphiql IDE.

You can also forward headers from your client request to the upstream data sources.

Logs

Besides the results displayed in the GraphiQL playground, Tyk also provides you with a full list of logs of the triggered request, which can help a lot when debugging the API functionality.

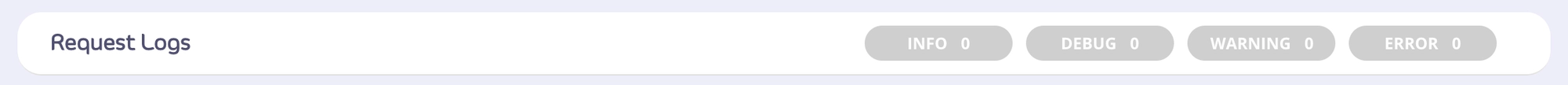

The Request Logs can be seen under the playground itself. When no logs are present, there will be no option to expand the logs, and the filter buttons (top right) will be disabled:

After creating and sending a query, the logs will automatically expand, and the filter buttons will display the number of logs for its respective level (category).

Contents of the logs

There are four levels (categories) of logs: Info, Debug, Warning, and Error, and each log belongs to one of these levels.

The first column of the table displays the color-coded “level” property of the log. A log should never be absent of a level. The second column displays the log “msg” (message) property, if any. The third column displays the “mw” (middleware) property, if any.

Expansion/collapse of Request Logs

The Request Logs can be expanded or collapsed, using the chevron on the left side to toggle these states.

Filter buttons and states

Filter buttons have two states: active and inactive; the default of which is active. A solid background color of the button indicates that a filter is active.

In the below picture, the info and error filters buttons are both active. If there are no logs for a particular level of log, the button will appear as a gray and disabled, as shown by the Warning filter button.

Here’s an example where there is at least one log, but all the filter buttons are in the inactive state. If the cursor (not shown) hovers over an inactive filter button, the button background will change to solid, and the tooltip will display “Show”.

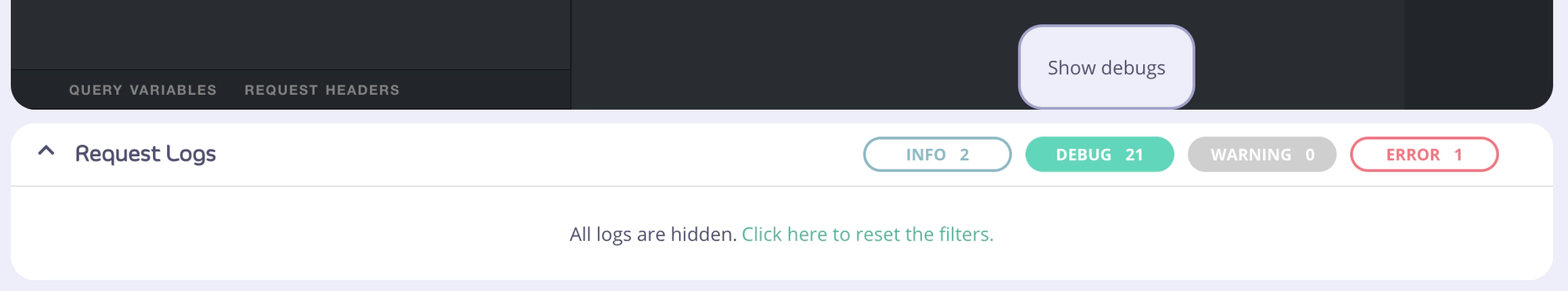

If all filter buttons are inactive, a message asking whether the user would like to reset all filters will display. Clicking this text will activate all available filters.

Migrating to 3.2

As of 3.2 GraphQL schema for Tyk API definitions (i.e api_definition.graphql) changed significantly, hence GraphQL API definitions created in previous beta versions are not supported via the UI and need to go through a manual migration.

The changes

• To improve performance now a single Data Source can be used to link to multiple fields instead of having an independent data source for every field hence graphql.type_field_configurations is now obsolete and new data sources can be defined under graphql.engine.data_sources (see example below).

• Data Source kind are REST or GraphQL regardless of your API being internal or not.

• In case of internal APIs that are accessed via tyk://scheme, the graphql.engine.data_sources[n].internal property is set to true.

• Each dataSources needs to be defined with a unique name graphql.engine.data_sources[n].name.

• Each field connected to the data source is expected to be configured for mapping under graphql.engine.field_configs regardless of it requiring mapping or not.

• It is important that all new GraphQL APIs have the version graphql.version property set to 2.

Examples

Old Data Source Config

"type_field_configurations": [
  {
    "type_name": "Query",
    "field_name": "pet",
    "mapping": {
      "disabled": true,
      "path": ""
    },
    "data_source": {
      "kind": "HTTPJSONDataSource",
      "data_source_config": {
        "url": "https://petstore.swagger.io/v2/pet/{{.arguments.id}}",
        "method": "GET",
        "body": "",
        "headers": [],
        "default_type_name": "Pet",
        "status_code_type_name_mappings": [
          {
            "status_code": 200,
            "type_name": ""
          }
        ]
      }
    }
  },
  {
    "type_name": "Query",
    "field_name": "countries",
    "mapping": {
      "disabled": false,
      "path": "countries"
    },
    "data_source": {
      "kind": "GraphQLDataSource",
      "data_source_config": {
        "url": "https://countries.trevorblades.com",
        "method": "POST"
      }
    }
  },
]

New Data Source Config

"engine": {
  "field_configs": [
    {
      "type_name": "Query",
      "field_name": "pet",
      "disable_default_mapping": true,
      "path": [
        ""
      ]
    },
    {
      "type_name": "Query",
      "field_name": "countries",
      "disable_default_mapping": false,
      "path": [
        "countries"
      ]
    },
  ],
  "data_sources": [
    {
      "kind": "REST",
      "name": "PetStore Data Source",
      "internal": false,
      "root_fields": [
        {
          "type": "Query",
          "fields": [
            "pet"
          ]
        }
      ],
      "config": {
        "url": "https://petstore.swagger.io/v2/pet/{{.arguments.id}}",
        "method": "GET",
        "body": "",
        "headers": {},
      }
    },
    {
      "kind": "GraphQL",
      "name": "Countries Data Source",
      "internal": false,
      "root_fields": [
        {
          "type": "Query",
          "fields": [
            "countries"
          ]
        }
      ],
      "config": {
        "url": "https://countries.trevorblades.com",
        "method": "POST",
        "body": ""
      }
    }
  ]
},

Example of new graphql definition

"graphql" : {
  "schema": "type Mutation {\n  addPet(name: String, status: String): Pet\n}\n\ntype Pet {\n  id: Int\n  name: String\n  status: String\n}\n\ntype Query {\n  default: String\n}\n",
  "enabled": true,
  "engine": {
    "field_configs": [
      {
        "type_name": "Mutation",
        "field_name": "addPet",
        "disable_default_mapping": true,
        "path": [""]
      },
      {
        "type_name": "Pet",
        "field_name": "id",
        "disable_default_mapping": true,
        "path": [""]
      },
      {
        "type_name": "Query",
        "field_name": "default",
        "disable_default_mapping": false,
        "path": ["default"]
      }
    ],
    "data_sources": [
      {
        "kind": "REST",
        "name": "Petstore",
        "internal": false,
        "root_fields": [
          {
            "type": "Mutation",
            "fields": ["addPet"]
          }
        ],
        "config": {
          "url": "https://petstore.swagger.io/v2/pet",
          "method": "POST",
          "body": "{\n  \"name\": \"{{ .arguments.name }}\",\n  \"status\": \"{{ .arguments.status }}\"\n}",
          "headers": {
            "qa": "{{ .request.header.qa }}",
            "test": "data"
          },
        }
      },
      {
        "kind": "REST",
        "name": "Local Data Source",
        "internal": false,
        "root_fields": [
          {
            "type": "Pet",
            "fields": ["id"]
          }
        ],
        "config": {
          "url": "http://localhost:90909/graphql",
          "method": "HEAD",
          "body": "",
          "headers": {},
        }
      },
      {
        "kind": "GraphQL",
        "name": "asd",
        "internal": false,
        "root_fields": [
          {
            "type": "Query",
            "fields": ["default"]
          }
        ],
        "config": {
          "url": "http://localhost:8200/{{.arguments.id}}",
          "method": "POST",
        }
      }
    ]
  },
  "execution_mode": "executionEngine",
  "version": "2",
  "playground": {
    "enabled": false,
    "path": ""
  },
  "last_schema_update": "2021-02-16T15:05:27.454+05:30"
}
