URL Rewriting

Last updated: 6 minutes read.

Overview

URL rewriting is a very useful feature when translating an outbound API interface to the internal structure of your services.

To rewrite a URL with Tyk, you must specify the components of the URL to capture, and then the order in which to re-assemble the captured components.

Unlike other web servers, Tyk uses a wide match to capture the URL and then a fixed regex to handle the restructuring. So as with other middleware components you must set a path to match on.

The rewriting functionality was significantly extended in Tyk Gateway v2.5 and Tyk Dashboard v1.5, allowing you to add conditional rewriting logic based on multiple rules: checking the URL, body, headers or session metadata. See the Advanced Rewrites section for more details.

Rewrite a URL with the API Definition

To rewrite a URL with the API Definition, you must add a new object to the extended_paths section of an API definition:

"url_rewrites": [{
  "path": "match/me",
  "method": "GET",
  "match_pattern": "(\w+)/(\w+)",
  "rewrite_to": "my/service?value1=$1&value2=$2"
}],
  • path: The path to match, this can contain wildcards, so to match all sub-resources under match/, you could use match/{id}. The wildcard {id} is transformed into a wide regex ((.*)) to ensure that everything possible is captured. This is then discarded. The name of the group is irrelevant, it is only for your reference.

  • method: The method to match.

  • match_pattern: This is the actual capture group to generate. This is a pure regex, in this case we are capturing two word groups.

  • rewrite_to: Each capture group you specify in match_pattern is designated with an index, and then made available in the rewrite_to template. Here $n will map against each value found in the capture group, so in the above example, the rewrite will be:

my/service?value1=match&value2=me

This can also include a new hostname, but you must specify the transport, e.g.

https://my-new-target-host.com/my/service?value1=match&value2=me

Rewrite a URL with the Endpoint Designer

To rewrite a URL using the Dashboard, you can use the same values are defined in the API Definition options, just set them in the Endpoint Designer instead for your path.

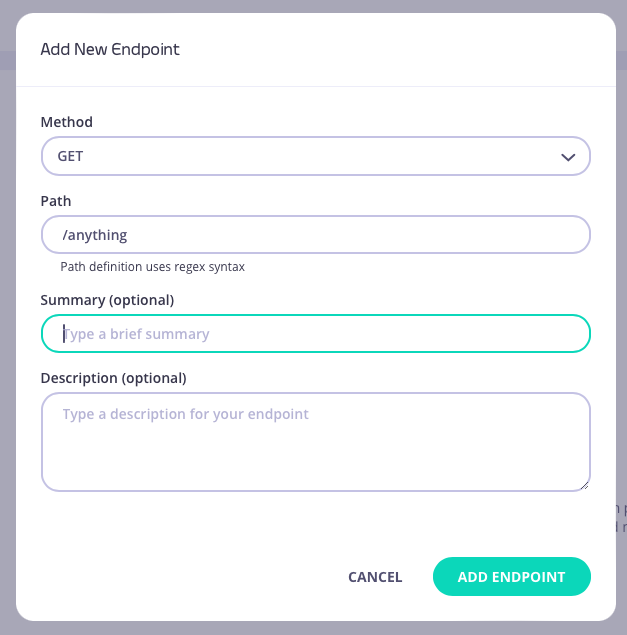

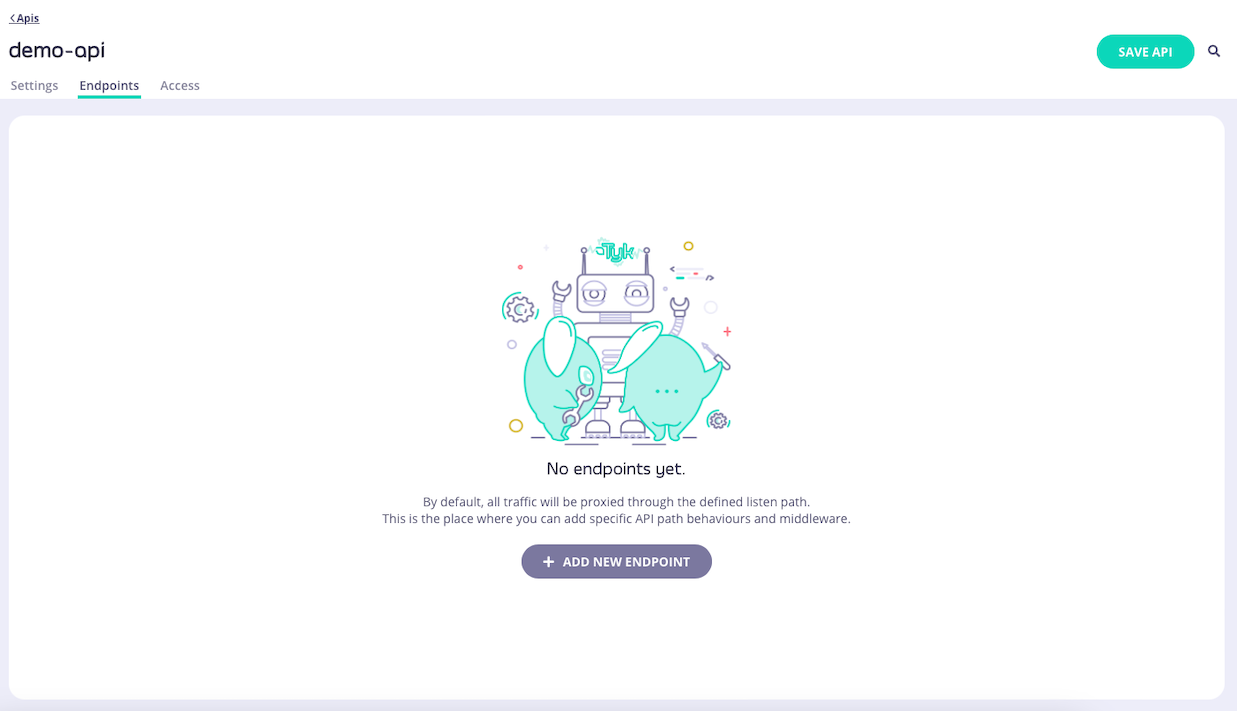

Step 1: Add an Endpoint for the Path

From the Endpoint Designer add an endpoint that matches the path you want to rewrite. Select the URL Rewrite plugin.

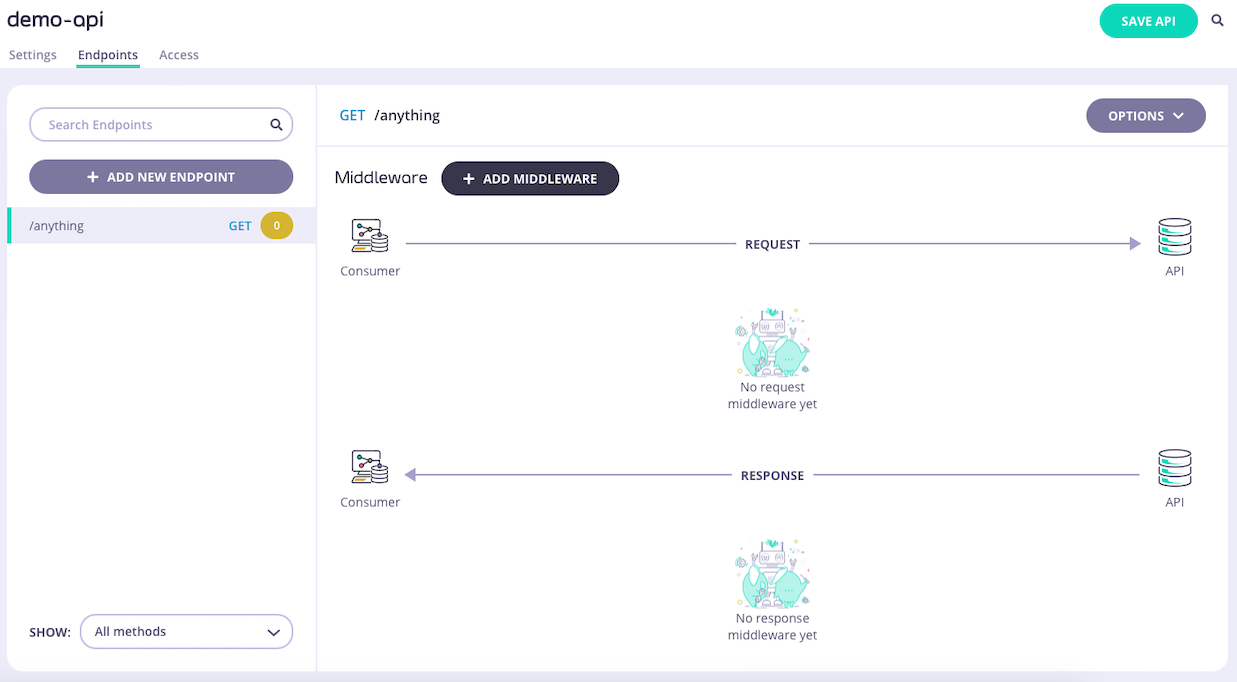

Endpoint designer

Step 2: Configure the URL Rewrite Plugin

Add the regex capture groups and the new URL to the relevant sections.

URL rewrite configuration

Step 3: Save the API

Use the save or create buttons to save the changes and make the URL rewrite active.

Encoded Characters

Tyk’s URL re-writing capability supports the use of encoded characters in both the rewriting rules and the provided URL.

If the URL contains encoded characters, Tyk will first attempt to match the encoded form as provided (e.g. %2D), if there is no match then the decoded form (e.g. -) will be checked.

Note

Tyk does not check all combinations of encoded and decoded characters in the same string (so my-test%2Durl will only be checked as my-test%2Durl and my-test-url, it will not be checked against my%2Dtest%2Durl or my%2Dtest-url).

Context Variables

Tyk supports the injection of context variables into the regex using the $tyk_context. namespace instead of the numeric index. This was introduced in Tyk Gateway v2.2.

For more details see Context Variables

Meta Data

Tyk supports the injection of metadata from a Tyk Session Object linked to a token into your URL Rewrite commands. In a similar way to the context variables, the values are in a reserved namespace: $tyk_meta.FIELDNAME. This can be especially useful if you wish to incorporate custom query string parameters into a URL structure. This was introduced in Tyk Gateway v2.3.

Advanced Rewriting

There are plenty of cases when path based rewriting is not enough. To cover this, starting from Tyk Gateway v2.5 and Dashboard v1.5, you have been able to define complex conditional rewrites.

To make it work you should set the triggers field, defining rules. If there is no trigger match, the rewrite will fallback to the parent rewrite_to, but if either of the other two are triggered, the rewrite target is changed.

Additionally, each trigger also sets a context variable for each match it finds. These context vars can then be used in the rewrites. Trigger contexts take the format: $tyk_context.trigger-{n}-{name}-{i} where n is the trigger index in the array, name is the regexp matcher name and i is the index of that match (since query strings and headers can be arrays of values).

Note

When using header_matches in the trigger, the name is the normalised form of the header name.

{
  "url_rewrites": [
    {
      "match_pattern": "/foo/bar/baz",
      "method": "GET",
      "path": "/foo/bar/baz",
      "rewrite_to": "/foo/bar/baz",
      "triggers": [
        {
          "on": "any",
          "options": {
            "query_val_matches": {
              "culprit": {
                "match_rx": "kronk"
                }
              }
            },
            "rewrite_to": "/fooble/barble/bazble?victim=$tyk_context.trigger-0-culprit-0"
        },
        {
          "on": "any",
          "options": {
            "query_val_matches": {
                "culprit": {
                    "match_rx": "yzma"
                }
              }
            },
            "rewrite_to": "/foozle/barzle/bazzle?victim=$tyk_context.trigger-1-culprit-0"
        }
      ]
    }
  ]
}

The Trigger functionality supports:

  • Header matches — header_matches
  • Query string variable/value matches — query_val_matches
  • Path part matches, i.e. components of the path itself - path_part_matches
  • Session metadata values — session_meta_matches
  • Payload matches — payload_matches
  • Matching by request, by IP Address or JWT scope - request_context_matches

All of the triggers above, except payload_matches, have the same structure, shown in the example above. payload_matches requires defining only with regexp like this: "payload_matches": { "match_rx": "regexp" }.

For each trigger, the trigger can either use the on: any or on: all formatting. For any, if any one of the options in the trigger is true, the rewrite rule is fired. for all, all the options must be satisfied. This is limited to triggers, not groups of triggers. These will be evaluated one by one.

Additionally you also mix multiple matches in the same trigger. In the example below, it checks if the HTTP request has X-Enable-Beta with value true, AND if user key meta info has beta_enabled field set to true. If both matches are true, it will proxy the user to another upstream, like beta environment.

"triggers": [
  {
  "on": "all",
  "options": {
    "header_val_matches": {
      "X-Enable-Beta": {
        "match_rx": "true"
      }
    },
    "session_meta_matches": {
      "beta_enabled": {
        "match_rx": "true"
      }
    }
  },
  "rewrite_to": "https://beta.upstream.com/feature"
  }
]

Header Match Example

You can route inbound API requests to Tyk to various upstream hosts or endpoints based on the presence and content of a header. Suppose you have a header in the format of store-id:1234. Depending on the value of store-id you might wish to change the target URL.

For example, if you have the following curl request:

curl --location --request GET 'http://tyk-gateway.localhost/' \
--header 'store-id: 1234'

Using the Advanced URL Rewrite functionality, you could route this request to http://tyk-gateway.1234.localhost/
The following match requires the presence of the header store-id and the regular expression ^\\d{4}$ matches exactly 4 digits.
Subsequently, we use the $tyk_context.trigger-0-Store-Id-0 notation to reference the header store-id and the first regex match to inject the header into our target URL.

"triggers": [
  {
    "on": "all",
    "options": {
      "header_matches": {
        "store-id": {
          "match_rx": "^\\d{4}$",
          "reverse": false
        }
      },
    },
    "rewrite_to": "http://tyk-gateway.$tyk_context.trigger-0-Store-Id-0.localhost/"
  }

Using the Endpoint Designer

You can define advanced URL rewrites using the Tyk Dashboard as well, by using the Create Advanced Trigger option from the URL Rewriter plugin. You will see a screen like this:

URL rewrite add trigger

When triggers are added, you can edit or remove them inside the Advanced URL rewrite section:

URL rewrite list trigger
