Overview

We are excited to introduce our new product, Tyk Streams! Tyk Streams is a powerful new feature in the Tyk API management platform that enables organizations to securely expose, manage and monetize real-time event streams and asynchronous APIs.

With Tyk Streams, you can easily connect to event brokers and streaming platforms, such as Apache Kafka, and expose them as managed API endpoints to internal and external consumers.

The purpose of Tyk Streams is to provide a unified platform for managing both synchronous APIs (such as REST and GraphQL) and asynchronous APIs, in addition to event-driven architectures. This allows organizations to leverage the full potential of their event-driven systems while maintaining the same level of security, control and visibility they expect from their API management solution.

How Tyk Streams Enables Async API Support?

Tyk Streams seamlessly integrates with the Tyk API Gateway, allowing you to manage asynchronous APIs and event streams alongside your existing synchronous APIs. It provides a range of capabilities to support async API management, including:

• Protocol Mediation: Tyk Streams can mediate between different asynchronous protocols and API styles, such as WebSocket, Server-Sent Events (SSE) and Webhooks. This allows you to expose your event streams in a format that is compatible with your consumers’ requirements.
• Security: Apply the same security policies and controls to your async APIs as you do to your synchronous APIs. This includes features like authentication and authorization.
• Transformations: Transform and enrich your event data on the fly using Tyk’s powerful middleware and plugin system. This allows you to adapt your event streams to meet the needs of different consumers.
• Analytics: Monitor the usage and performance of your async APIs with detailed analytics and reporting. Gain insights into consumer behavior and system health.
• Developer Portal: Publish your async APIs to the Tyk Developer Portal, providing a centralised catalog for discovery, documentation and subscription management.

Configuration as Code

Tyk Streams configuration natively integrates with Tyk OAS (our OpenAPI format for APIs), enabling configuration-as-code approach. This allows async API definitions to be version-controlled, collaborated on and deployed using GitOps workflows.

{
  "openapi": "3.0.3",
  "info": {
    "title": "test-api",
    "version": "1.0.0"
  },
  …
  "x-tyk-streaming": {
    "streams": {
      "test": {
        "input": {
          "kafka": {
            "addresses": ["TODO"],
            "topics": ["foo", "bar"],
            "consumer_group": "foogroup"
          }
        },
        "output": {
          "http_server": {
            "consumer_group": "$tyk_context.request_ip",
            "ws_path": "/subscribe"
          }
        }
      }
    }
  }
  …
}

Configuring Async APIs via Dashboard UI

The Tyk Dashboard provides a user-friendly interface for defining and managing async APIs. You can easily specify event broker details, subscribe to specific topics or channels, configure security policies, transformations and other API management capabilities.

Comparison to Other Products

While some API management platforms offer basic support for async APIs and event-driven architectures, Tyk Streams stands out by providing a comprehensive and flexible solution:

• Extensive protocol support: Tyk Streams supports event brokers and protocols out of the box, including Kafka, WebSockets, Server-Sent Events (SSE).
• Powerful mediation capabilities: Tyk Streams allows you to transform and enrich event data, enabling protocol mediation and compatibility with diverse client requirements.
• Seamless integration: Async APIs are managed alongside synchronous APIs within the Tyk platform, providing a unified developer portal, consistent security policies and centralised analytics.
• Flexibility and scalability: Tyk Streams can be deployed in various architectures, from simple single-node setups to large-scale distributed deployments and can handle high-throughput event processing scenarios.

By leveraging Tyk Streams, organizations can unlock the full potential of their event-driven architectures while benefiting from the robust API management capabilities of the Tyk platform.

To effectively use Tyk Streams for managing async APIs, it’s important to first understand the terminology and key concepts

Getting started

Our first release of Tyk Streams is now available, and we’d love for you to try it out. Click the button to sign up and take it for a spin:

Use Cases

Tyk Streams brings full lifecycle API management to asynchronous APIs and event-driven architectures. It provides a comprehensive set of capabilities to secure, transform, monitor and monetize your async APIs.

Security

Tyk Streams supports all the authentication and authorization options available for traditional synchronous APIs. This ensures that your async APIs are protected with the same level of security as your REST, GraphQL, and other API types.

• Authentication: Tyk supports multiple authentication methods for async APIs, including:

  • Token-based authentication (e.g., JWT, OAuth 2.0)
  • Basic authentication
  • Custom authentication plugins

• Authorization: Tyk enables fine-grained access control for async APIs based on policies and user roles. You can define granular permissions for specific topics, events or message types.

Transformations and Enrichment

Tyk Streams allows you to transform and enrich the messages flowing through your async APIs. You can modify message payloads, filter events, combine data from multiple sources and more.

• Transformation: Use Tyk’s powerful middleware and plugin system to transform message payloads on the fly. You can convert between different data formats (e.g., JSON to XML), filter fields, or apply custom logic.
• Enrichment: Enrich your async API messages with additional data from external sources. For example, you can lookup customer information from a database and append it to the message payload.

Analytics and Monitoring

Tyk provides comprehensive analytics and monitoring capabilities for async APIs. You can track usage metrics, monitor performance, and gain visibility into the health of your event-driven systems. Tyk captures detailed analytics data for async API usage, including message rates, latency, and error counts. This data can be exported to popular analytics platforms like Prometheus, OpenTelemetry, and StatsD.

Monetization

Tyk Streams enables you to monetize your async APIs by exposing them through the Developer Portal. Developers can discover, subscribe to and consume your async APIs using webhooks or streaming subscriptions.

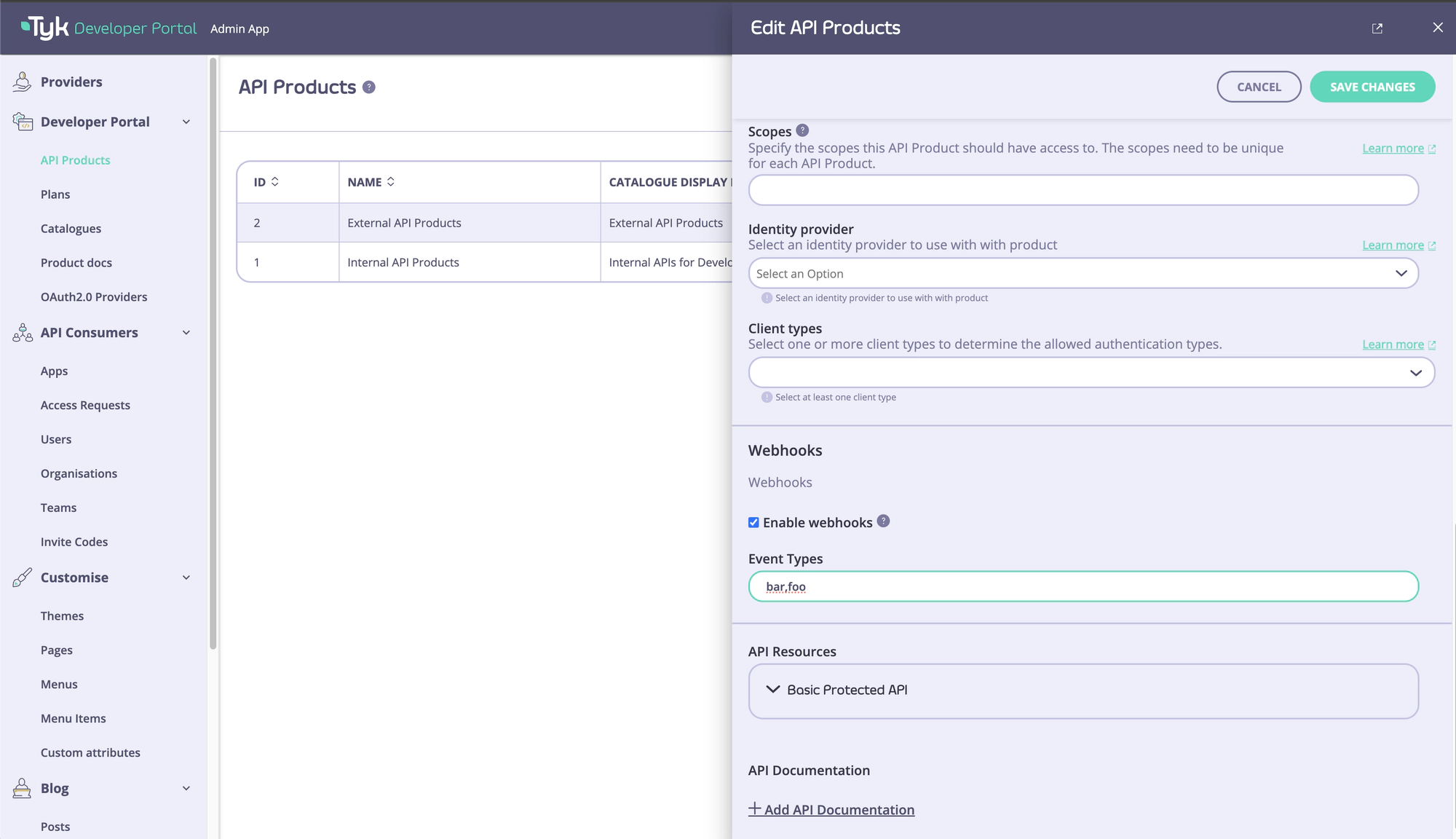

• Developer Portal Integration: Async APIs can be published to the Tyk Developer Portal, allowing developers to browse, subscribe, and access documentation. Developers can manage their async API subscriptions just like traditional APIs.

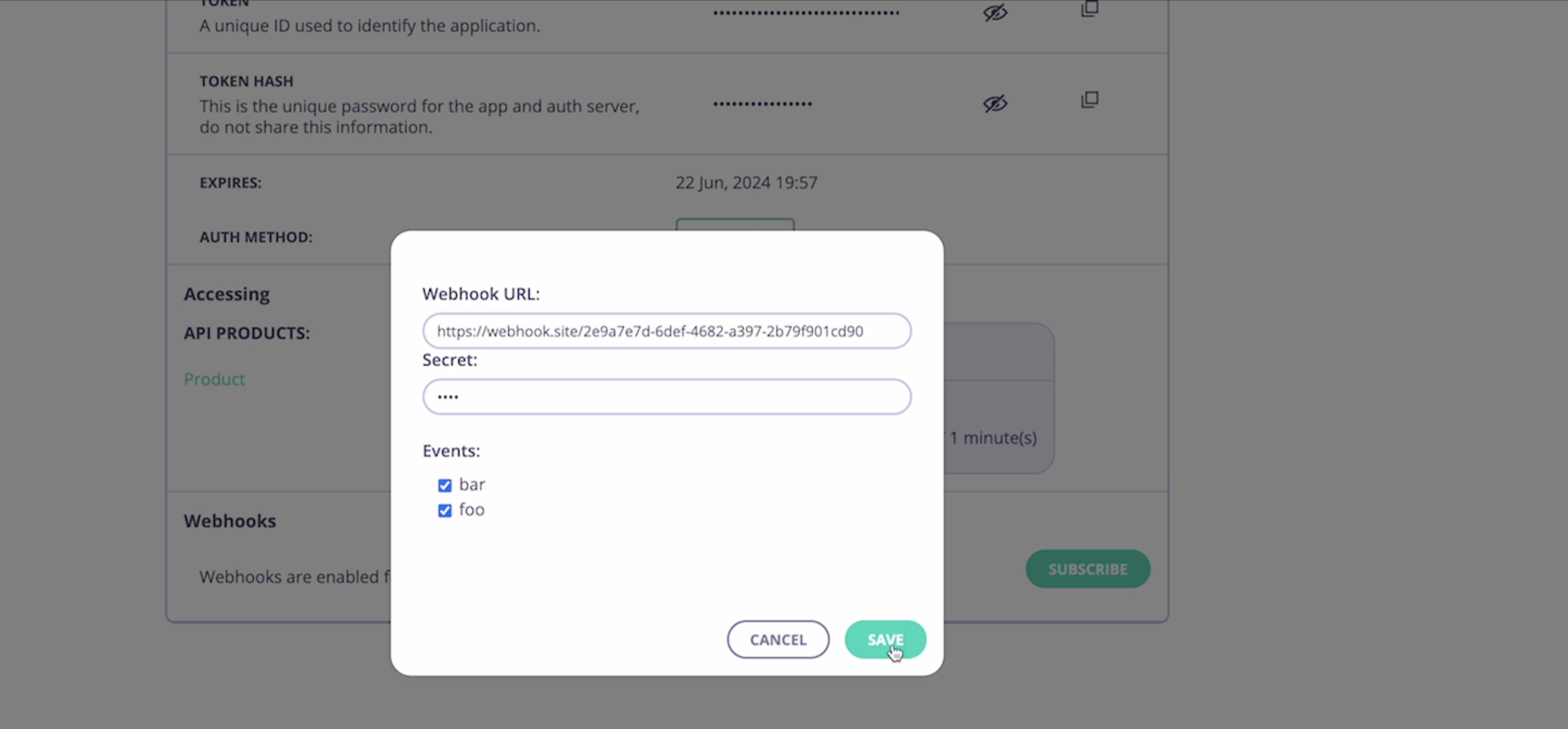

• Webhooks: Tyk supports exposing async APIs as webhooks, enabling developers to receive event notifications via HTTP callbacks. Developers can configure their webhook endpoints and subscribe to specific events or topics.

With Tyk Streams, you can easily monetize your async APIs, provide a seamless developer experience, and manage the entire lifecycle of your event-driven architecture.

Complex Event Processing

Tyk Streams allows you to perform complex event processing on streams of events in real-time. You can define custom processing logic to:

• Filter events based on specific criteria
• Aggregate and correlate events from multiple streams
• Enrich events with additional data from other sources
• Detect patterns and sequences of events
• Trigger actions or notifications based on event conditions

Here’s an example of a Tyk Streams configuration that performs complex event processing, specifically it creates a new event stream, which filters high-value orders and enriches them with customer email addresses, by making an additional HTTP request.

input:
  kafka:
    addresses:
      - "localhost:9092" # Replace with actual Kafka broker addresses
    consumer_group: my-group
    topics:
      - orders
output:
  http_server:
    allowed_verbs:
      - GET
    path: /high-value-orders
pipeline:
  processors:
    - bloblang: |
        root = if this.order_value > 1000 {
          this
        } else {
          deleted()
        }
    - branch:
        processors:
          - http:
              headers:
                Content-Type: application/json
              url: http://customer-api.local/emails
              verb: POST
        request_map: |-
          root = {
            "customer_id": this.customer_id
          }
        result_map: root.customer_email = this.customer_email
    - bloblang: |
                root = this.merge({ "high_value_order": true })

In this example:

• Tyk Streams Setup: Consumes events from a Kafka topic called orders.
• Processor Block Configuration: Utilizes a custom Bloblang script that performs the following operations:
  • Filters orders, only processing those with a value greater than 1000.
  • Enriches the high-value orders by retrieving the customer ID and email from a separate data source.
  • Adds a new high_value_order flag to each qualifying event.
• Output Handling: Processed high-value order events are exposed via a WebSocket stream at the endpoint /high-value-orders.

Legacy Modernization

Tyk Streams can help you modernise legacy applications and systems by exposing their functionality as async APIs. This allows you to:

• Decouple legacy systems from modern consumers
• Enable real-time, event-driven communication with legacy apps
• Gradually migrate away from legacy infrastructure

Here’s an example of exposing a legacy application as an async API using Tyk Streams:

input:
  http_client:
    url: "http://legacy-app/orders"
    verb: GET
    rate_limit: "60s"
pipeline:
  processors:
    - bloblang: |
        root.order_id = this.id
        root.total = this.total
        root.timestamp = this.timestamp
output:
  kafka:
    addresses: ["localhost:9092"]
    topic: "orders"

In this configuration:

• Tyk Streams periodically polls the legacy /orders REST endpoint every 60 seconds
• The processor transforms the legacy response format into a simplified event structure
• The transformed events are published to a Kafka topic called orders, which can be consumed by modern applications

Async API Orchestration

Tyk Streams enables you to orchestrate multiple async APIs and services into composite event-driven flows. You can:

• Combine events from various streams and sources
• Implement complex routing and mediation logic between async APIs
• Create reactive flows triggered by event conditions
• Fanout events to multiple downstream consumers

Here’s an example async API orchestration with Tyk Streams:

input:
  broker:
    inputs:
      - kafka:
          addresses: ["localhost:9092"]
          topics: ["stream1"]
          consumer_group: "group1"
      - kafka:
          addresses: ["localhost:9092"]
          topics: ["stream2"]
          consumer_group: "group2"
pipeline:
  processors:
    - switch:
        cases:
          - check: 'meta("kafka_topic") == "stream1"'
            processors:
              - bloblang: |
                  root.type = "event_from_stream1"
                  root.details = this
              - branch:
                  processors:
                    - http:
                        url: "http://api1.example.com/process"
                        verb: POST
                        body: '${! json() }'
                  result_map: 'root.api1_response = this'
          - check: 'meta("kafka_topic") == "stream2"'
            processors:
              - bloblang: |
                  root.type = "event_from_stream2"
                  root.details = this
              - branch:
                  processors:
                    - http:
                        url: "http://api2.example.com/analyze"
                        verb: POST
                        body: '${! json() }'
                  result_map: 'root.api2_response = this'
    - bloblang: 'root = if this.type == "event_from_stream1" && this.api1_response.status == "ok" { this } else if this.type == "event_from_stream2" && this.api2_response.status == "ok" { this } else { deleted() }'
output:
  broker:
    pattern: "fan_out"
    outputs:
      - kafka:
          addresses: ["localhost:9092"]
          topic: "processed_stream1"
          client_id: "tyk_fanout1"
      - kafka:
          addresses: ["localhost:9092"]
          topic: "processed_stream2"
          client_id: "tyk_fanout2"
      - http_client:
          url: "https://webhook.site/unique-id"
          verb: POST
          body: '${! json() }'

1. Input Configuration
   • Uses a broker to combine events from two different Kafka topics, stream1 and stream2, allowing for the integration of events from various streams.
2. Complex Routing and Processing
   • A switch processor directs messages based on their origin (differentiated by Kafka topic metadata).
   • Each stream’s messages are processed and conditionally sent to different APIs.
   • Responses from these APIs are captured and used to further decide on message processing.
3. Reactive Flows
   • Conditions based on API responses determine if messages are forwarded or discarded, creating a flow reactive to the content and success of API interactions.
   • Fanout to Multiple Consumers:
   • The broker output with a fan_out pattern sends processed messages to multiple destinations: two different Kafka topics and an HTTP endpoint, demonstrating the capability to distribute events to various downstream consumers.

These are just a few examples of the advanced async API scenarios made possible with Tyk Streams. The platform provides a flexible and extensible framework to design, deploy and manage sophisticated event-driven architectures.

Configure Streams API using dashboard

Overview

This page provides a detailed guide for creating, configuring, and securing a Streams API using the Dashboard UI. Follow these steps to set up real-time streaming with authentication and access control.

Prerequisites

Before you begin, make sure you have:

• Access to the Dashboard.
• Permissions to create APIs, policies, and keys.
• A clear understanding of your streaming input, processing, and output requirements.

Create a Streams API

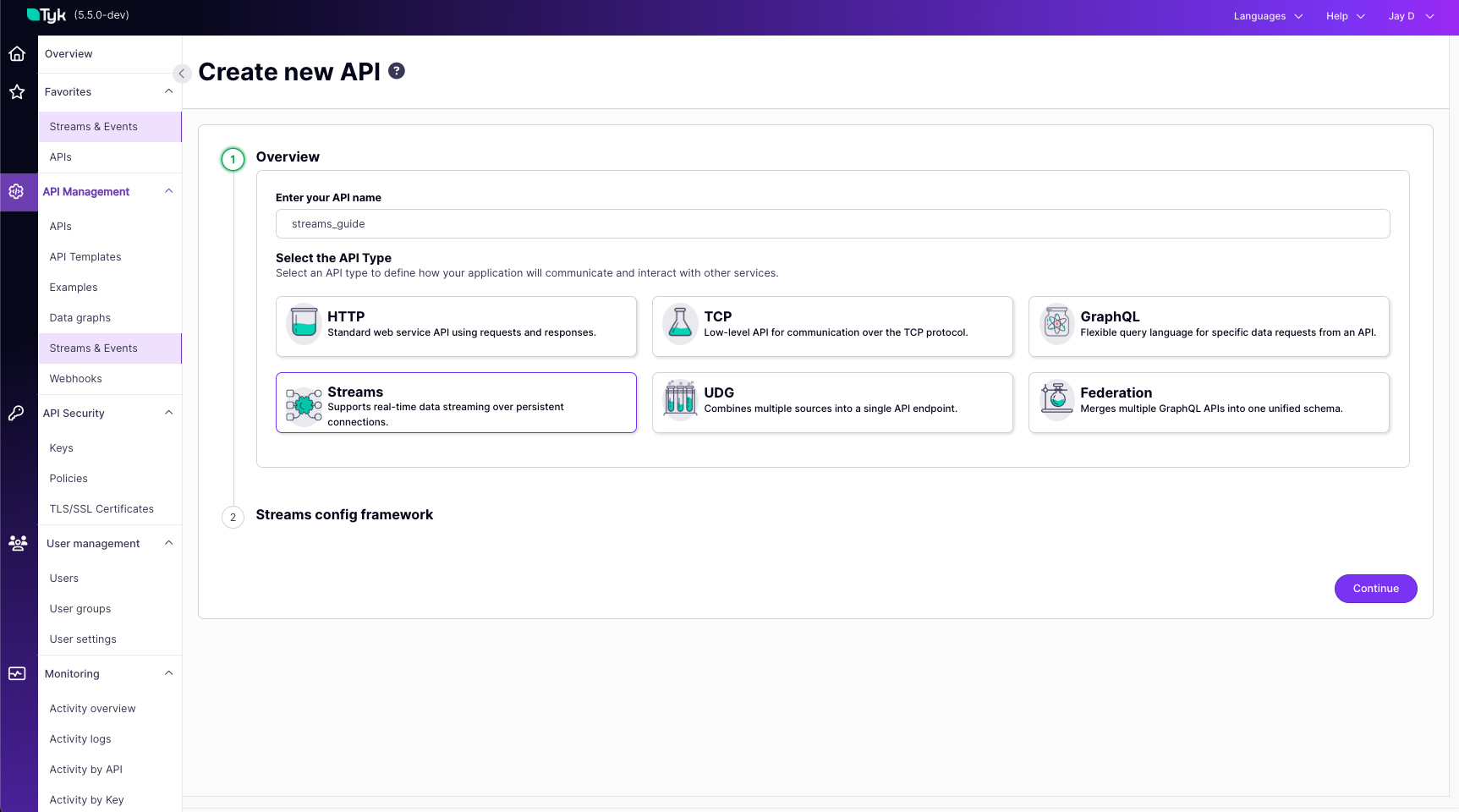

Step 1: Define API Name and Type

1. Click on Streams & Events from the sidebar. This will open a form for creating the Streams API.






2. Enter a unique API name, select the Streams option, and click Continue.

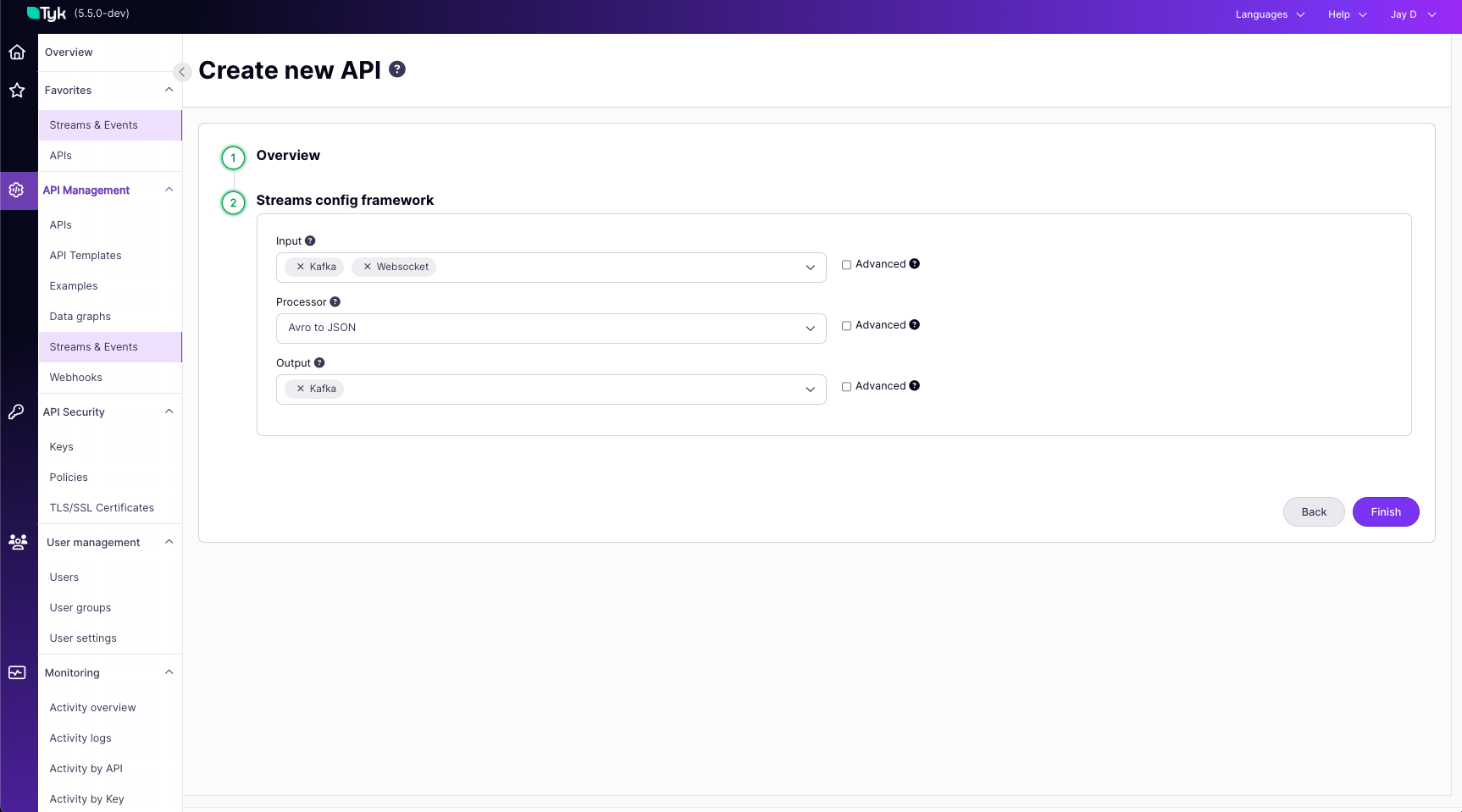

Step 2: Configure API Inputs, Processors, and Outputs

1. On the next screen, configure your Streams API:

   • Input: Select one or more data sources.
   • Processor: Choose a single processor for handling the data.
   • Output: Define one or more output destinations.
   • For manual configuration, enable the Advanced checkbox to create a custom YAML template.



2. Click Finish to proceed to the API Details page.

Step 3: Review and Finalize API Details

1. On the API Details page, review the auto-generated YAML configuration.




2. Configure additional settings:

   • Authentication: Choose an authentication mechanism (e.g., API Key, OAuth2).
   • Gateway Status: Set to Active or Disabled.
   • Access: Select Internal (restricted) or External (public) access.

3. Click Save API.

   • The API is now created, and a unique API ID is assigned.
   • The API will appear in the APIs listing screen.

Access the Streams API

Step 1: Create a Policy

1. Navigate to Policies in the sidebar and click Add Policy.

2. Select the newly created Streams API.

3. Configure the following:

   • Limits: Define Rate Limiting, Throttling, and Usage Quota.
   • Configuration: Provide a policy name and set a key expiration interval.



4. Click Create Policy to save.

Step 2: Generate a Key

1. Go to Keys from the sidebar and click Add Key.

2. On the key creation page:

   • Select the newly created policy under the Access Rights tab.

   • Review the applied limits for the API.

3. Click Create Key.

   • A popup will display the Key Hash and Key ID.

   • Use the Key ID to access the protected Streams API.

Summary

By completing the steps outlined above, you will have:

• A functional Streams API with real-time data delivery capabilities.
• Policies and keys for authentication and access control.

You can now use the Key ID to securely access the API for your applications.

Glossary

Event

An event represents a significant change or occurrence within a system, such as a user action, a sensor reading, or a data update. Events are typically lightweight and contain minimal data, often just a unique identifier and a timestamp.

Stream

A stream is a continuous flow of events ordered by time. Streams allow for efficient, real-time processing and distribution of events to multiple consumers.

Publisher (or Producer)

A publisher is an application or system that generates events and sends them to a broker or event store for distribution to interested parties.

Subscriber (or Consumer)

A subscriber is an application or system that expresses interest in receiving events from one or more streams. Subscribers can process events in real-time or store them for later consumption.

Broker

A broker is an intermediary system that receives events from publishers, stores them, and forwards them to subscribers. Brokers decouple publishers from subscribers, allowing for scalable and flexible event-driven architectures.

Topic (or Channel)

A topic is a named destination within a broker where events are published. Subscribers can subscribe to specific topics to receive relevant events.

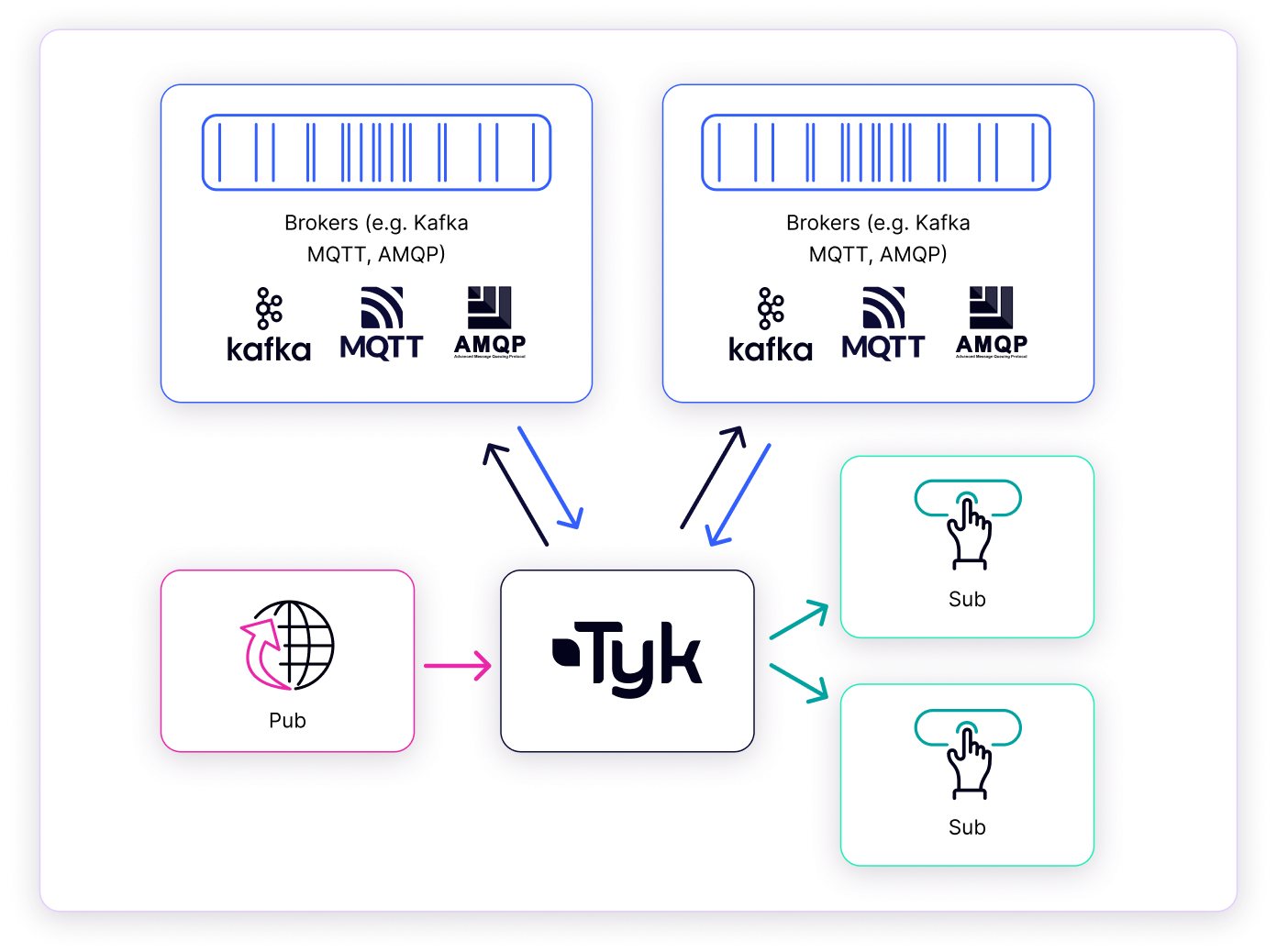

Tyk Streams seamlessly integrates with the Tyk API Gateway to provide a unified platform for managing both synchronous and asynchronous APIs. This section will provide an overview of the architecture, integration points, and key capabilities. Please consult the glossary for explanations of key terminology.

Tyk Streams is natively integrated as part of Tyk API Gateway and has no third-party dependencies.

Key components in the architecture of Tyk Streams:

• Tyk API Gateway: The core API management platform that handles API requests, applies policies, and routes requests to the appropriate backend services.
• Tyk Streams: An extension to the Tyk API Gateway that enables support for asynchronous APIs and event-driven architectures.
• Event Brokers: External systems such as Apache Kafka, MQTT brokers, or WebSocket servers that produce and consume events.
• Backend Services: The underlying services and systems that expose APIs or consume events.

Key Concepts

Tyk Streams as middleware in Tyk API Gateway

Tyk Streams operates as middleware within the Tyk API Gateway, providing the following functionalities:

• Middleware: Tyk Streams introduces new middleware components that handle async-specific functionality such as protocol mediation, event transformations, and pub/sub messaging.
• API Definitions: Tyk Streams is configured using the standard Tyk OAS format, including additional fields tailored for async protocols and event configurations.
• Analytics: Async API traffic is captured and reported via Prometheus, OpenTelemetry or StatsD, providing visibility into usage, performance, and errors.

Connectors and Protocol Mediation

Tyk Streams provides out-of-the-box connectors for popular event brokers and async protocols, including:

• Apache Kafka
• MQTT
• RabbitMQ
• Solace
• RedPanda
• AMQP
• WebSocket
• Server-Sent Events (SSE)
• Webhooks

In addition to the native protocol support, Tyk Streams offers powerful protocol mediation capabilities. This allows you to expose async APIs using different protocols than the backend event broker, making it easier to support a diverse client requirements.

For example, you can:

• Expose a Kafka topic as a WebSocket API
• Convert MQTT messages to HTTP webhooks
• Bridge between different async protocols (e.g., Kafka to MQTT)

Deployment Considerations

When deploying Tyk Streams, understanding its scaling and performance capabilities, as well as its high availability features, is crucial for ensuring a robust and efficient API infrastructure.

Scaling and Performance

Tyk Streams is fully embedded within the Tyk Gateway, enabling seamless scaling and high performance. As your API traffic grows, Tyk Streams scales effortlessly alongside your Tyk Gateway instances. No additional configuration or separate infrastructure is required.

Key benefits of this embedded architecture include:

• Unified scaling: Tyk Streams inherits the scaling capabilities of Tyk Gateway, ensuring optimal performance as your API workload increases.
• Efficient resource utilization: By leveraging the same infrastructure as Tyk Gateway, Tyk Streams minimizes resource overhead and simplifies deployment.
• Seamless integration: Tyk Streams works seamlessly with existing Tyk Gateway deployments, requiring no changes to your current architecture.

High Availability

Tyk Streams ensures reliable message delivery across a cluster of Tyk Gateway instances. Whether clients connect through a load balancer or directly to individual gateway nodes, Tyk Streams guarantees that messages are delivered to each connected consumer.

Under the hood, Tyk Streams utilizes Redis Streams for efficient and reliable message distribution within the Tyk Gateway cluster. This enables:

• Fault tolerance: If a gateway node fails, clients connected to other nodes continue to receive messages uninterrupted.
• Load balancing: Messages are evenly distributed across the gateway cluster, ensuring optimal performance and resource utilization.
• Message persistence: Redis Streams provides durability, allowing messages to be persisted and replayed if necessary.

By leveraging the high availability features of Tyk Gateway and Redis Streams, Tyk Streams delivers a robust and resilient solution for managing and distributing async API messages in production environments.

With Tyk Streams, you can confidently deploy and scale your async APIs, knowing that messages will be reliably delivered to consumers across your Tyk Gateway cluster.

Developer Portal Integration

Tyk Streams seamlessly integrates with the Tyk Developer Portal, enabling developers to easily discover, subscribe to, and consume async APIs and event streams. This section covers how to publish async APIs to the developer portal, provide documentation and enable developers to subscribe to events and streams.

Publishing Async APIs to the Developer Portal

Publishing async APIs to the Tyk Developer Portal follows a similar process to publishing traditional synchronous APIs. API publishers can create API products that include async APIs and make them available to developers through the portal.

To publish an async API:

• In the Tyk Dashboard, create a new API and define the async API endpoints and configuration.
• Associate the async API with an API product.
• Publish the API product to the Developer Portal.
• Copy code

Async API Documentation

Providing clear and comprehensive documentation is crucial for developers to understand and effectively use async APIs. While Tyk Streams does not currently support the AsyncAPI specification format, it allows API publishers to include detailed documentation for each async API.

When publishing an async API to the Developer Portal, consider including the following information in the documentation:

• Overview and purpose of the async API
• Supported protocols and endpoints (e.g., WebSocket, Webhook)
• Event types and payloads
• Subscription and connection details
• Example code snippets for consuming the async API
• Error handling and troubleshooting guidelines

Enabling Developers to Subscribe to Events and Streams

Tyk Streams provides a seamless way for developers to subscribe to events and streams directly from the Developer Portal. API publishers can enable webhook subscriptions for specific API products, allowing developers to receive real-time updates and notifications. To enable webhook subscriptions for an API product:

1. In the Tyk Developer Portal, navigate to the API product settings.
2. Enable the “Webhooks” option and specify the available events for subscription.
3. Save the API product settings.

Once webhook subscriptions are enabled, developers can subscribe to events and streams by following these steps:

• In the Developer Portal, navigate to the My Apps page.
• Select the desired app.
• In the “Webhooks” section, click on “Subscribe”.
• Provide the necessary details:
  • Webhook URL: The URL where the event notifications will be sent.
  • HMAC Secret: Provide a secret key used to sign the webhook messages for authentication.
  • Events: Select the specific events to subscribe to.
• Save the subscription settings.
• Copy code

To configure the async API stream for webhook subscriptions, use the following output configuration in your API definition:

outputs:
  - portal_webhook:
      event_type: bar
      portal_url: http://localhost:3001
      secret: <portal-api-secret>

Replace with the actual secret key used for signing the webhook messages.

By enabling webhook subscriptions, developers can easily integrate real-time updates and notifications from async APIs into their applications, enhancing the overall developer experience and facilitating seamless communication between systems.

With Tyk Streams and the Developer Portal integration, API publishers can effectively manage and expose async APIs, while developers can discover, subscribe to, and consume event streams effortlessly, enabling powerful real-time functionality in their applications.
