GraphQL Subscriptions

Introduction

Subscriptions is new functionality added in version 4.0.0 In simple terms subscriptions are a way to push data from the server to the clients that choose to listen to real-time messages from the server.

In Tyk subscriptions are using the WebSocket transport for connections between the client and Gateway. For connections between Gateway and upstream WebSockets or SSE can be used.

Supported transports and protocols

Transport	Protocol
WebSockets	graphql-ws (default, no longer maintained)
WebSockets	graphql-transport-ws
HTTP	Server-Sent Events (SSE)

Setting up subscription types via API definition

Subscription types or subscription transports/protocols are set inside the graphql section of the API definition.

Depending on whether you want to configure GraphQL proxy-only, UDG, or GraphQL Federation there are different places for the configuration option.

The values for subscription types are the same on all API types:

graphql-ws
graphql-transport-ws
sse (Server-Sent Events)

GraphQL Proxy

{
  ...,
  "graphql": {
    ...,
    "proxy": {
      ...,
      "subscription_type": "graphql-ws"
    }
  }
}

Universal Data Graph

{
  ...,
  "graphql": {
    ...,
    "engine": {
      ...,
      "data_sources": [
        ...,
        {
          ...,
          "subscription_type": "sse"
        }
      ]
    }
  }
}

Federation

{
  ...,
  "graphql": {
    ...,
    "supergraph": {
      ...,
      "subgraphs": [
        ...,
        {
          ...,
          "subscription_type": "graphql-transport-ws"
        }
      ]
    }
  }
}

Note

Connections between client and Gateway currently only supports WebSockets/graphql-ws. See GraphQL WebSockets for more information.

Note

If the upstream subscription api is protected please enable the authentication via query params to pass header through.

Subscriptions schema

The Subscription type always defines the top-level fields that consumers can subscribe to. For example:

type Subscription {
  reviewCreated: Post
}

The reviewCreated field will be updated each time a new review is published. Publishing a new review means a Post is created on the backend and then pushed to the subscribing consumers.

Consumers can subscribe to the reviewCreated field by sending the following query to the server:

subscription Reviews {
  reviewCreated {
    author
    date
    review
  }
}

Enabling subscriptions

There is no need to enable subscriptions separately. They are supported alongside with GraphQL as a standard. The only requirement for subscriptions to work is to enable WebSockets in your Tyk Gateway configuration file.

How do subscriptions work in Tyk?

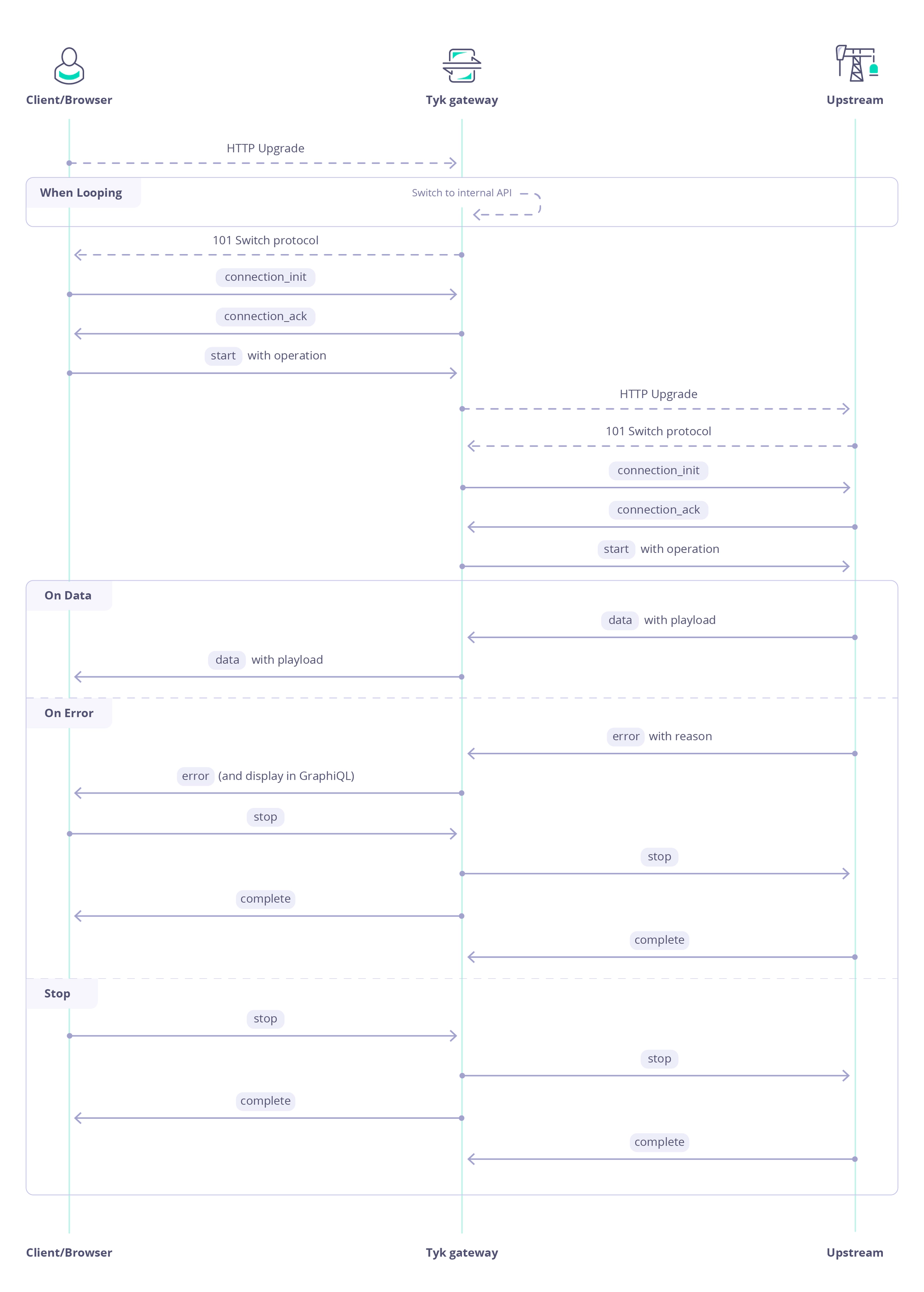

Tyk Subscriptions workflow

How we are ahead of everyone else

With Tyk, subscriptions are supported in federation as well. With version 4.0 you can federate GraphQL APIs that support subscriptions. Federating subscriptions means that events pushed to consumers can be enriched with information from other federated graphs without any additional work to get it working.

Example of federation with subscriptions

We have 3 graphs that provide information about:

Users
Products
Reviews

Users

The Users service lists users who can add their reviews for different products:

extend type Query {
  me: User
}

type User @key(fields: "id") {
  id: ID!
  username: String!
}

Products

The Products service contains a list of products offered where Product price and stock is implemented as a subscription:

extend type Query {
  topProducts(first: Int = 5): [Product]
}

extend type Subscription {
  updatedPrice: Product!
  updateProductPrice(upc: String!): Product!
  stock: [Product!]
}

type Product @key(fields: "upc") {
  upc: String!
  name: String!
  price: Int!
  inStock: Int!
}

Reviews

The Reviews service holds all the opinions of users about certain products:

type Review {
  body: String!
  author: User! @provides(fields: "username")
  product: Product!
}

extend type User @key(fields: "id") {
  id: ID! @external
  username: String! @external
  reviews: [Review]
}

extend type Product @key(fields: "upc") {
  upc: String! @external
  reviews: [Review]
}

With Tyk’s implementation of subscriptions and federation it is possible to create a subscription that’s enriched with data from other federated graphs:

subscription {
updatedPrice{
  upc
  price
  name
  reviews {
    body
    author {
      username
      }
    }
  }
}

The price value will be pushed to consumers each time an item is sold, but the message will be enriched with data from the other subgraphs.

Setting up subscription types via API definition

Subscription types or subscription transports/protocols are being set inside the graphql section of the API definition.

Depending on whether you want to configure GraphQL proxy-only, UDG, or GraphQL Federation there are different places for the configuration option.

The values for subscription types are the same on all API types:

Subscription Type	Value inside API definition
WebSocket `graphql-ws`	`"graphql-ws"`
	`""`
	omitted key and value
WebSocket `graphql-transport-ws`	`"graphql-transport-ws"`
Server-Sent Events (SSE)	`"SSE"`

GraphQL proxy-only

e.g. SSE

execution_mode should be proxyOnly
set subscription_type inside of proxy to a supported value

{
  ...
  "graphql": {
      "schema": "type Query {\n  hello: String!\n}\n\ntype Subscription {\n  countdown(from: Int!): Int!\n}",
      "enabled": true,
      "engine": {
        "field_configs": [],
        "data_sources": []
      },
      "type_field_configurations": [],
      "execution_mode": "proxyOnly",
      "proxy": {
        "auth_headers": {},
        "subscription_type": "sse"
      },
      "subgraph": {
        "sdl": ""
      },
      "supergraph": {
        "subgraphs": [,
        "merged_sdl": "",
        "global_headers": {},
        "disable_query_batching": false
      },
      "version": "2",
      "playground": {
        "enabled": false,
        "path": ""
      },
      "last_schema_update": "2022-10-20T11:45:56.252+02:00"
    },
}

Federation Subgraph

e.g. WebSocket graphql-transport-ws

execution_mode should be subgraph
set subscription_type inside of proxy to a supported value

{
  ...
  "graphql": {
      "schema": "directive @external on FIELD_DEFINITION\n\ndirective @requires(fields: _FieldSet!) on FIELD_DEFINITION\n\ndirective @provides(fields: _FieldSet!) on FIELD_DEFINITION\n\ndirective @key(fields: _FieldSet!) on OBJECT | INTERFACE\n\ndirective @extends on OBJECT\n\nscalar _Any\n\nunion _Entity = Product\n\nscalar _FieldSet\n\ntype _Service {\n  sdl: String\n}\n\ntype Entity {\n  findProductByUpc(upc: String!): Product!\n}\n\ntype Product {\n  upc: String!\n  name: String!\n  price: Int!\n  inStock: Int!\n}\n\ntype Query {\n  topProducts(first: Int = 5): [Product]\n  _entities(representations: [_Any!]!): [_Entity]!\n  _service: _Service!\n}\n\ntype Subscription {\n  updatedPrice: Product!\n  updateProductPrice(upc: String!): Product!\n  stock: [Product!]\n}\n",
      "enabled": true,
      "engine": {
        "field_configs": [],
        "data_sources": []
      },
      "type_field_configurations": [],
      "execution_mode": "subgraph",
      "proxy": {
        "auth_headers": {},
        "subscription_type": "graphql-transport-ws"
      },
      "subgraph": {
        "sdl": "extend type Query {\n    topProducts(first: Int = 5): [Product]\n}\n\nextend type Subscription {\n    updatedPrice: Product!\n    updateProductPrice(upc: String!): Product!\n    stock: [Product!]\n}\n\ntype Product @key(fields: \"upc\") {\n    upc: String!\n    name: String!\n    price: Int!\n    inStock: Int!\n}"
      },
      "supergraph": {
        "subgraphs": [],
        "merged_sdl": "",
        "global_headers": {},
        "disable_query_batching": false
      },
      "version": "2",
      "playground": {
        "enabled": false,
        "path": ""
      },
      "last_schema_update": "2021-10-25T13:28:10.688+02:00"
    },
}

Federation Supergraph

e.g. SSE for external upstream

execution_mode should be supergraph
set subscirption_type of external subgraph entity to a supported value

{
  ...
  "graphql": {
      "schema": "type Query {\n  me: User\n  topProducts(first: Int = 5): [Product]\n}\n\ntype Subscription {\n  updatedPrice: Product!\n  updateProductPrice(upc: String!): Product!\n  stock: [Product!]\n}\n\ntype User {\n  id: ID!\n  username: String!\n  reviews: [Review]\n}\n\ntype Product {\n  upc: String!\n  name: String!\n  price: Int!\n  inStock: Int!\n  reviews: [Review]\n}\n\ntype Review {\n  body: String!\n  author: User!\n  product: Product!\n}",
      "enabled": true,
      "engine": {
        "field_configs": [],
        "data_sources": []
      },
      "type_field_configurations": [],
      "execution_mode": "supergraph",
      "proxy": {
        "auth_headers": {},
        "subscription_type": ""
      },
      "subgraph": {
        "sdl": ""
      },
      "supergraph": {
        "updated_at": "2021-10-25T13:31:16.481+02:00",
        "subgraphs": [
          {
            "api_id": "",
            "name": "sub-users",
            "url": "https://users.external-upstream.fake/query",
            "sdl": "extend type Query {\n    me: User\n}\n\ntype User @key(fields: \"id\") {\n    id: ID!\n    username: String!\n}\n",
            "headers": null,
            "subscription_type": "sse"
          },
          {
            "api_id": "834af5ae65114eef78fd55851ae3c17e",
            "name": "sub-products",
            "url": "tyk://sub-products",
            "sdl": "extend type Query {\n    topProducts(first: Int = 5): [Product]\n}\n\nextend type Subscription {\n    updatedPrice: Product!\n    updateProductPrice(upc: String!): Product!\n    stock: [Product!]\n}\n\ntype Product @key(fields: \"upc\") {\n    upc: String!\n    name: String!\n    price: Int!\n    inStock: Int!\n}",
            "headers": null,
          },
          {
            "api_id": "5924fd3b332e43a87c235e43b52eda52",
            "name": "sub-reviews",
            "url": "tyk://sub-reviews",
            "sdl": "type Review {\n    body: String!\n    author: User! @provides(fields: \"username\")\n    product: Product!\n}\n\nextend type User @key(fields: \"id\") {\n    id: ID! @external\n    username: String! @external\n    reviews: [Review]\n}\n\nextend type Product @key(fields: \"upc\") {\n    upc: String! @external\n    reviews: [Review]\n}\n",
            "headers": null,
          }
        ],
        "merged_sdl": "type Query {\n  me: User\n  topProducts(first: Int = 5): [Product]\n}\n\ntype Subscription {\n  updatedPrice: Product!\n  updateProductPrice(upc: String!): Product!\n  stock: [Product!]\n}\n\ntype User {\n  id: ID!\n  username: String!\n  reviews: [Review]\n}\n\ntype Product {\n  upc: String!\n  name: String!\n  price: Int!\n  inStock: Int!\n  reviews: [Review]\n}\n\ntype Review {\n  body: String!\n  author: User!\n  product: Product!\n}",
        "global_headers": {},
        "disable_query_batching": false
      },
      "version": "2",
      "playground": {
        "enabled": false,
        "path": ""
      },
      "last_schema_update": "2021-10-25T13:31:16.481+02:00"
    },
}

Universal Data Graph

e.g. WebSocket graphql-ws

execution_mode should be executionEngine
set subscription_type of the data_soruces.config entry to a supported value

"graphql": {
      "schema": "type Query {\n  hello: String!\n  sse: Boolean!\n  tws: Boolean!\n}\n\ntype Subscription {\n  countdown(from: Int!): Int!\n}",
      "enabled": true,
      "engine": {
        "field_configs": [
          {
            "type_name": "Subscription",
            "field_name": "countdown",
            "disable_default_mapping": false,
            "path": [
              "countdown"
            ]
          }
        ],
        "data_sources": [
          {
            "kind": "GraphQL",
            "name": "graphql-ws-data-source",
            "internal": false,
            "root_fields": [
              {
                "type": "Query",
                "fields": [
                  "hello",
                  "tws"
                ]
              },
              {
                "type": "Subscription",
                "fields": [
                  "countdown"
                ]
              }
            ],
            "config": {
              "url": "http://localhost:4001/graphql",
              "method": "POST",
              "headers": {},
              "default_type_name": "String",
              "subscription_type": "graphql-ws"
            }
          }
        ]
      },
      "type_field_configurations": [],
      "execution_mode": "executionEngine",
      "proxy": {
        "auth_headers": {},
        "subscription_type": ""
      },
      "subgraph": {
        "sdl": ""
      },
      "supergraph": {
        "subgraphs": [],
        "merged_sdl": "",
        "global_headers": {},
        "disable_query_batching": false
      },
      "version": "2",
      "playground": {
        "enabled": false,
        "path": ""
      },
      "last_schema_update": "2022-10-13T10:27:40.972+02:00"
    },
