Rate Limiting

Introduction

API rate limiting is a technique that allows you to control the rate at which clients can consume your APIs and is one of the fundamental aspects of managing traffic to your services. It serves as a safeguard against abuse, overloading, and denial-of-service attacks by limiting the rate at which an API can be accessed. By implementing rate limiting, you can ensure fair usage, prevent resource exhaustion, and maintain system performance and stability, even under high traffic loads.

What is rate limiting?

Rate limiting involves setting thresholds for the maximum number of requests that can be made within a specific time window, such as requests per second, per minute, or per day. Once a client exceeds the defined rate limit, subsequent requests may be delayed, throttled, or blocked until the rate limit resets or additional capacity becomes available.

When might you want to use rate limiting?

Rate limiting may be used as an extra line of defense around attempted denial of service attacks. For instance, if you have load-tested your current system and established a performance threshold that you would not want to exceed to ensure system availability and/or performance then you may want to set a global rate limit as a defense to ensure it hasn’t exceeded.

Rate limiting can also be used to ensure that one particular user or system accessing the API is not exceeding a determined rate. This makes sense in a scenario such as APIs which are associated with a monetization scheme where you may allow so many requests per second based on the tier in which that consumer is subscribed or paying for.

Of course, there are plenty of other scenarios where applying a rate limit may be beneficial to your APIs and the systems that your APIs leverage behind the scenes.

How does rate limiting work?

At a basic level, when rate limiting is in use, Tyk Gateway will compare the incoming request rate against the configured limit and will block requests that arrive at a higher rate. For example, let’s say you only want to allow a client to call the API a maximum of 10 times per minute. In this case, you would apply a rate limit to the API expressed as “10 requests per 60 seconds”. This means that the client will be able to successfully call the API up to 10 times within any 60 second interval (or window) and after for any further requests within that window, the user will get an HTTP 429 (Rate Limit Exceeded) error response stating the rate limit has been exceeded.

Tyk’s rate limiter is configured using two variables:

• rate which is the maximum number of requests that will be permitted during the interval (window)
• per which is the length of the interval (window) in seconds

So for this example you would configure rate to 10 (requests) and per to 60 (seconds).

Rate limiting scopes: API-level vs key-level

Rate limiting can be applied at different scopes to control API traffic effectively. This section covers the two primary scopes - API-level rate limiting and key-level rate limiting. Understanding the distinctions between these scopes will help you configure appropriate rate limiting policies based on your specific requirements.

API-level rate limiting

API-level rate limiting aggregates the traffic coming into an API from all sources and ensures that the overall rate limit is not exceeded. Overwhelming an endpoint with traffic is an easy and efficient way to execute a denial of service attack. By using a API-level rate limit you can easily ensure that all incoming requests are within a specific limit so excess requests are rejected by Tyk and do not reach your service. You can calculate the rate limit to set by something as simple as having a good idea of the maximum number of requests you could expect from users of your API during a period. You could alternatively apply a more scientific and precise approach by considering the rate of requests your system can handle while still performing at a high-level. This limit may be easily determined with some performance testing of your service under load.

Key-level rate limiting

Key-level rate limiting is more focused on controlling traffic from individual sources and making sure that users are staying within their prescribed limits. This approach to rate limiting allows you to configure a policy to rate limit in two ways:

• key-level global limit limiting the rate of calls the user of a key can make to all APIs authorized by that key
• key-level per-API limit limiting the rate of calls the user of a key can make to specific individual APIs
• key-level per-endpoint limit limiting the rate of calls the user of a key can make to specific individual endpoints of an API

These guides include explanation of how to configure key-level rate limits when using API Keys and Security Policies.

Which scope should I use?

The simplest way to figure out which level of rate limiting you’d like to apply can be determined by asking a few questions:

• do you want to protect your service against denial of service attacks or overwhelming amounts of traffic from all users of the API? You’ll want to use an API-level rate limit!
• do you have a health endpoint that consumes very little resource on your service and can handle significantly more requests than your other endpoints? You’ll want to use an API-level per-endpoint rate limit!
• do you want to limit the number of requests a specific user can make to all APIs they have access to? You’ll want to use a key-level global rate limit!
• do you want to limit the number of requests a specific user can make to specific APIs they have access to? You’ll want to use a key-level per-API rate limit.
• do you want to limit the number of requests a specific user can make to a specific endpoint of an API they have access to? You’ll want to use a key-level per-endpoint rate limit.

Applying multiple rate limits

When multiple rate limits are configured, they are assessed in this order (if applied):

1. API-level per-endpoint rate limit (configured in API definition)
2. API-level rate limit (configured in API definition)
3. Key-level per-endpoint rate limit (configured in access key)
4. Key-level per-API rate limit (configured in access key)
5. Key-level global rate limit (configured in access key)

Combining multiple policies configuring rate limits

If more than one policy defining a rate limit is applied to a key then Tyk will apply the highest request rate permitted by any of the policies that defines a rate limit.

If rate and per are configured in multiple policies applied to the same key then the Gateway will determine the effective rate limit configured for each policy and apply the highest to the key.

Given, policy A with rate set to 90 and per set to 30 seconds (3rps) and policy B with rate set to 100 and per set to 10 seconds (10rps). If both are applied to a key, Tyk will take the rate limit from policy B as it results in a higher effective request rate (10rps).

Rate limiting algorithms

Different rate limiting algorithms are employed to cater to varying requirements, use cases and gateway deployments. A one-size-fits-all approach may not be suitable, as APIs can have diverse traffic patterns, resource constraints, and service level objectives. Some algorithms are more suited to protecting the upstream service from overload whilst others are suitable for per-client limiting to manage and control fair access to a shared resource.

Tyk offers the following rate limiting algorithms:

1. Distributed Rate Limiter: recommended for most use cases, implements the token bucket algorithm
2. Redis Rate Limiter: implements the sliding window log algorithm
3. Fixed Window Rate Limiter: implements the fixed window algorithm

When the rate limits are reached, Tyk will block requests with an HTTP 429 (Rate Limit Exceeded) response.

Distributed Rate Limiter

The Distributed Rate Limiter (DRL) is the default rate limiting mechanism in Tyk Gateway. It is implemented using a token bucket implementation that does not use Redis. In effect, it divides the configured rate limit between the number of addressable gateway instances.

The characteristics of DRL are:

• a rate limit of 100 requests/min with 2 gateways yields 50 requests/min per gateway
• unreliable at low rate limits where requests are not fairly balanced

DRL can face challenges in scenarios where traffic is not evenly distributed across gateways, such as with sticky sessions or keepalive connections. These conditions can lead to certain gateways becoming overloaded while others remain underutilized, compromising the effectiveness of configured rate limiting. This imbalance is particularly problematic in smaller environments or when traffic inherently favors certain gateways, leading to premature rate limits on some nodes and excess capacity on others.

DRL will be used automatically unless one of the other rate limit algorithms are explicitly enabled via configuration.

It’s important to note that this algorithm will yield approximate results due to the nature of the local rate limiting, where the total allowable request rate is split between the gateways; uneven distribution of requests could lead to exhaustion of the limit on some gateways before others.

Redis Rate Limiter

This algorithm implements a sliding window log algorithm and can be enabled via the enable_redis_rolling_limiter configuration option.

The characteristics of the Redis Rate Limiter (RRL) are:

• using Redis lets any gateway respect a cluster-wide rate limit (shared counter)
• a record of each request, including blocked requests that return HTTP 429, is written to the sliding log in Redis
• the log is constantly trimmed to the duration of the defined window
• requests are blocked if the count in the log exceeds the configured rate limit

An important behavior of this rate limiting algorithm is that it blocks access to the API when the rate exceeds the rate limit and does not let further API calls through until the rate drops below the specified rate limit. For example, if the configured rate limit is 3000 requests/minute the call rate would have to be reduced below 3000 requests/minute for a whole minute before the HTTP 429 responses stop and traffic is resumed. This behavior is called spike arrest.

The complete request log is stored in Redis so resource usage when using this rate limiter is high. This algorithm will use significant resources on Redis even when blocking requests, as it must maintain the request log, mostly impacting CPU usage. Redis resource usage increases with traffic therefore shorter per values are recommended to limit the amount of data being stored in Redis.

If you wish to avoid spike arrest behavior but the DRL is not suitable, you might use the Fixed Window Rate Limiter algorithm.

You can configure Rate Limit Smoothing to manage the traffic spike, allowing time to increase upstream capacity if required.

The Redis Sentinel Rate Limiter reduces latency for clients, however increases resource usage on Redis and Tyk Gateway.

Rate Limit Smoothing

Rate Limit Smoothing is an optional mechanism of the RRL that dynamically adjusts the request rate limit based on the current traffic patterns. It helps in managing request spikes by gradually increasing or decreasing the rate limit instead of making abrupt changes or blocking requests excessively.

This mechanism uses the concept of an intermediate current allowance (rate limit) that moves between an initial lower bound (threshold) and the maximum configured request rate (rate). As the request rate approaches the current current allowance, Tyk will emit an event to notify you that smoothing has been triggered. When the event is emitted, the current allowance will be increased by a defined increment (step). A hold-off counter (delay) must expire before another event is emitted and the current allowance further increased. If the request rate exceeds the current allowance then the rate limiter will block further requests, returning HTTP 429 as usual.

As the request rate falls following the spike, the current allowance will gradually reduce back to the lower bound (threshold).

Events are emitted and adjustments made to the current allowance based on the following calculations:

• when the request rate rises above current allowance - (step * trigger), a RateLimitSmoothingUp event is emitted and current allowance increases by step.
• when the request rate falls below allowance - (step * (1 + trigger)), a RateLimitSmoothingDown event is emitted and current allowance decreases by step.

Configuring rate limit smoothing

When Redis Rate Limiter is in use, rate limit smoothing is configured with the following options within the smoothing object alongside the standard rate and per parameters:

• enabled (boolean) to enable or disable rate limit smoothing
• threshold is the initial rate limit (current allowance) beyond which smoothing will be applied
• step is the increment by which the current allowance will be increased or decreased each time a smoothing event is emitted
• trigger is a fraction (typically in the range 0.1-1.0) of the step at which point a smoothing event will be emitted as the request rate approaches the current allowance
• delay is a hold-off between smoothing events and controls how frequently the current allowance will step up or down (in seconds).

Rate Limit Smoothing is configured using the smoothing object within access keys and policies. For API-level rate limiting, this configuration is within the access_rights[*].limit object.

An example configuration would be as follows:

    "smoothing": {
      "enabled": true,
      "threshold": 5,
      "trigger": 0.5,
      "step": 5,
      "delay": 30
    }

Redis Sentinel Rate Limiter

The Redis Sentinel Rate Limiter option will:

• write a sentinel key into Redis when the request limit is reached
• use the sentinel key to block requests immediately for per duration
• requests, including blocked requests, are written to the sliding log in a background thread

This optimizes the latency for connecting clients, as they don’t have to wait for the sliding log write to complete. This algorithm exhibits spike arrest behavior the same as the basic Redis Rate Limiter, however recovery may take longer as the blocking is in effect for a minimum of the configured window duration (per). Gateway and Redis resource usage is increased with this option.

This option can be enabled using the following configuration option enable_sentinel_rate_limiter.

To optimize performance, you may configure your rate limits with shorter window duration values (per), as that will cause Redis to hold less data at any given moment.

Performance can be improved by enabling the enable_non_transactional_rate_limiter. This leverages Redis Pipelining to enhance the performance of the Redis operations. Please consult the Redis documentation for more information.

Please consider the Fixed Window Rate Limiter algorithm as an alternative, if Redis performance is an issue.

Fixed Window Rate Limiter

The Fixed Window Rate Limiter will limit the number of requests in a particular window in time. Once the defined rate limit has been reached, the requests will be blocked for the remainder of the configured window duration. After the window expires, the counters restart and again allow requests through.

• the implementation uses a single counter value in Redis
• the counter expires after every configured window (per) duration.

The implementation does not smooth out traffic bursts within a window. For any given rate in a window, the requests are processed without delay, until the rate limit is reached and requests are blocked for the remainder of the window duration.

When using this option, resource usage for rate limiting does not increase with traffic. A simple counter with expiry is created for every window and removed when the window elapses. Regardless of the traffic received, Redis is not impacted in a negative way, resource usage remains constant.

This algorithm can be enabled using the following configuration option enable_fixed_window_rate_limiter.

If you need spike arrest behavior, the Redis Rate Limiter should be used.

Dynamic algorithm selection based on request rate

The Distributed Rate Limiter (DRL) works by distributing the rate allowance equally among all gateways in the cluster. For example, with a rate limit of 1000 requests per second and 5 gateways, each gateway can handle 200 requests per second. This distribution allows for high performance as gateways do not need to synchronize counters for each request.

DRL assumes an evenly load-balanced environment, which is typically achieved at a larger scale with sufficient requests. In scenarios with lower request rates, DRL may generate false positives for rate limits due to uneven distribution by the load balancer. For instance, with a rate of 10 requests per second across 5 gateways, each gateway would handle only 2 requests per second, making equal distribution unlikely.

It’s possible to configure Tyk to switch automatically between the Distributed Rate Limiter and the Redis Rate Limiter by setting the drl_threshold configuration.

This threshold value is used to dynamically switch the rate-limiting algorithm based on the volume of requests. This option sets a minimum number of requests per gateway that triggers the Redis Rate Limiter. For example, if drl_threshold is set to 2, and there are 5 gateways, the DRL algorithm will be used if the rate limit exceeds 10 requests per second. If it is 10 or fewer, the system will fall back to the Redis Rate Limiter.

See DRL Threshold for details on how to configure this feature.

Rate Limiting Layers

You can protect your upstream services from being flooded with requests by configuring rate limiting in Tyk Gateway. Rate limits in Tyk are configured using two parameters: allow rate requests in any per time period (given in seconds).

As explained in the Rate Limiting Concepts section, Tyk supports configuration of rate limits at both the API-Level and Key-Level for different use cases.

The API-Level rate limit takes precedence over Key-Level, if both are configured for a given API, since this is intended to protect your upstream service from becoming overloaded. The Key-Level rate limits provide more granular control for managing access by your API clients.

Configuring the rate limiter at the API-Level

If you want to protect your service with an absolute limit on the rate of requests, you can configure an API-level rate limit. You can do this from the API Designer in Tyk Dashboard as follows:

1. Navigate to the API for which you want to set the rate limit
2. From the Core Settings tab, navigate to the Rate Limiting and Quotas section
3. Ensure that Disable rate limiting is not selected
4. Enter in your Rate and Per (seconds) values
5. Save/Update your changes

Tyk will now accept a maximum of Rate requests in any Per period to the API and will reject further requests with an HTTP 429 Too Many Requests error.

Check out the following video to see this being done.

Configuring the rate limiter at the Key-Level

If you want to restrict an API client to a certain rate of requests to your APIs, you can configure a Key-Level rate limit via a Security Policy. The allowance that you configure in the policy will be consumed by any requests made to APIs using a key generated from the policy. Thus, if a policy grants access to three APIs with rate=15 per=60 then a client using a key generated from that policy will be able to make a total of 15 requests - to any combination of those APIs - in any 60 second period before receiving the HTTP 429 Too Many Requests error.

You can configure this rate limit from the API Designer in Tyk Dashboard as follows:

1. Navigate to the Tyk policy for which you want to set the rate limit
2. Ensure that API(s) that you want to apply rate limits to are selected
3. Under Global Limits and Quota, make sure that Disable rate limiting is not selected and enter your Rate and Per (seconds) values
4. Save/Update the policy

Setting up a Key-Level Per-API rate limit

If you want to restrict API clients to a certain rate of requests for a specific API you will also configure the rate limiter via the security policy. However this time you’ll assign per-API limits. The allowance that you configure in the policy will be consumed by any requests made to that specific API using a key generated from that policy. Thus, if a policy grants access to an API with rate=5 per=60 then three clients using keys generated from that policy will each independently be able to make 5 requests in any 60 second period before receiving the HTTP 429 Too Many Requests error.

You can configure this rate limit from the API Designer in Tyk Dashboard as follows:

1. Navigate to the Tyk policy for which you want to set the rate limit
2. Ensure that API that you want to apply rate limits to is selected
3. Under API Access, turn on Set per API Limits and Quota
4. You may be prompted with “Are you sure you want to disable partitioning for this policy?”. Click CONFIRM to proceed
5. Under Rate Limiting, make sure that Disable rate limiting is not selected and enter your Rate and Per (seconds) values
6. Save/Update the policy

Check out the following video to see this being done.

Setting up a key-level per-endpoint rate limit

To restrict the request rate for specific API clients on particular endpoints, you can use the security policy to assign per-endpoint rate limits. These limits are set within the policy and will be #enforced for any requests made to that endpoint by clients using keys generated from that policy.

Each key will have its own independent rate limit allowance. For example, if a policy grants access to an endpoint with a rate limit of 5 requests per 60 seconds, each client with a key from that policy can make 5 requests to the endpoint in any 60-second period. Once the limit is reached, the client will receive an HTTP 429 Too Many Requests error.

If no per-endpoint rate limit is defined, the endpoint will inherit the key-level per-API rate limit or the global rate limit, depending on what is configured.

You can configure per-endpoint rate limits from the API Designer in Tyk Dashboard as follows:

1. Navigate to the Tyk policy for which you want to set the rate limit
2. Ensure that API that you want to apply rate limits to is selected
3. Under API Access -> Set endpoint-level usage limits click on Add Rate Limit to configure the rate limit. You will need to provide the rate limit and the endpoint path and method.
4. Save/Update the policy

Setting Rate Limits in the Tyk Community Edition Gateway (CE)

Configuring the rate limiter at the (Global) API-Level

Using the global_rate_limit field in the API definition you can specify the API-level rate limit in the following format: {"rate": 10, "per": 60}.

An equivalent example using Tyk Operator is given below:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

apiVersion: tyk.tyk.io/v1alpha1
kind: ApiDefinition
metadata:
  name: httpbin-global-rate-limit
spec:
  name: httpbin-global-rate-limit
  use_keyless: true
  protocol: http
  active: true
  proxy:
    target_url: http://httpbin.org
    listen_path: /httpbin
    strip_listen_path: true
  # setting a global rate-limit for the API of 10 requests per 60 seconds
  global_rate_limit:
    rate: 10
    per: 60

Configuring the rate limiter on the session object

All actions on the session object must be done via the Gateway API.

1. Ensure that allowance and rate are set to the same value: this should be number of requests to be allowed in a time period, so if you wanted 100 requests every second, set this value to 100.

2. Ensure that per is set to the time limit. Again, as in the above example, if you wanted 100 requests per second, set this value to 1. If you wanted 100 requests per 5 seconds, set this value to 5.

Can I disable the rate limiter?

Yes, the rate limiter can be disabled for an API Definition by selecting Disable Rate Limits in the API Designer, or by setting the value of disable_rate_limit to true in your API definition.

Alternatively, you could also set the values of Rate and Per (Seconds) to be 0 in the API Designer.

Can I set rate limits by IP address?

Not yet, though IP-based rate limiting is possible using custom pre-processor middleware JavaScript that generates tokens based on IP addresses. See our Middleware Scripting Guide for more details.

Rate Limiting by API

Tyk Classic API Definition

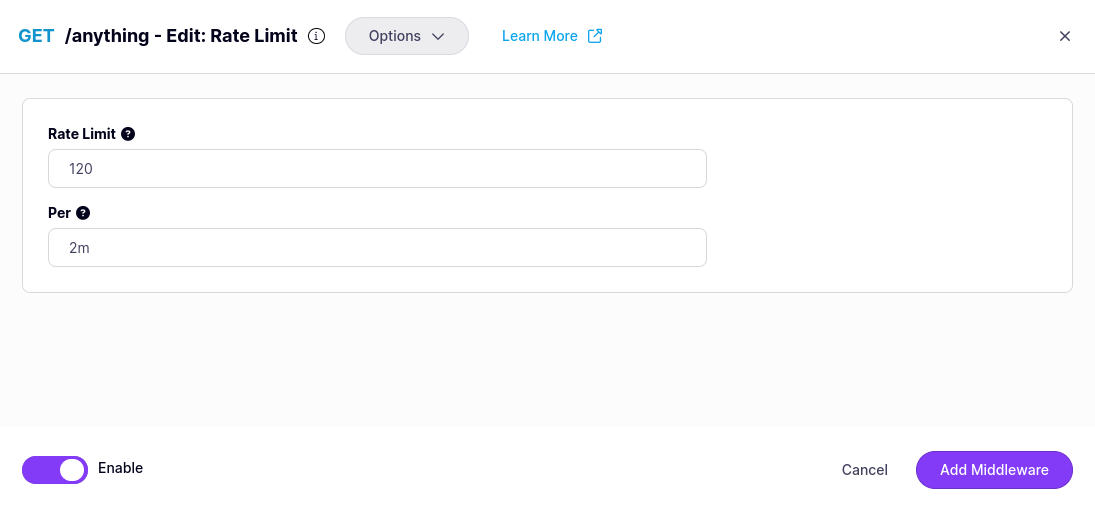

The per-endpoint rate limit middleware allows you to enforce rate limits on specific endpoints. This middleware is configured in the Tyk Classic API Definition, either via the Tyk Dashboard API or in the API Designer.

To enable the middleware, add a new rate_limit object to the extended_paths section of your API definition.

The rate_limit object has the following configuration:

• path: the endpoint path
• method: the endpoint HTTP method
• enabled: boolean to enable or disable the rate limit
• rate: the maximum number of requests that will be permitted during the interval (window)
• per: the length of the interval (window) in seconds

You can set different rate limits for various endpoints by specifying multiple rate_limit objects.

Simple endpoint rate limit

For example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

{
    "use_extended_paths": true,
    "extended_paths": {
        "rate_limit": [
            {
                "path": "/anything",
                "method": "GET",
                "enabled": true,
                "rate": 60,
                "per": 1
            }
        ]
    }
}

In this example, the rate limit middleware has been configured for HTTP GET requests to the /anything endpoint, limiting requests to 60 per second.

Advanced endpoint rate limit

For more complex scenarios, you can configure rate limits for multiple paths. The order of evaluation matches the order defined in the rate_limit array. For example, if you wanted to limit the rate of POST requests to your API allowing a higher rate to one specific endpoint you could configure the API definition as follows:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

{
    "use_extended_paths": true,
    "extended_paths": {
        "rate_limit": [
            {
                "path": "/user/login",
                "method": "POST",
                "enabled": true,
                "rate": 100,
                "per": 1
            },
            {
                "path": "/.*",
                "method": "POST",
                "enabled": true,
                "rate": 60,
                "per": 1
            }
        ]
    }
}

In this example, the first rule limits POST requests to /user/login to 100 requests per second (rps). Any other POST request matching the regex pattern /.* will be limited to 60 requests per second. The order of evaluation ensures that the specific /user/login endpoint is matched and evaluated before the regex pattern.

The per-endpoint rate limit middleware allows you to enforce rate limits on specific endpoints. This middleware is configured in the Tyk OAS API Definition, either via the Tyk Dashboard API or in the API Designer.

If you’re using the legacy Tyk Classic APIs, then check out the Tyk Classic page.

Tyk OAS API Definition

The design of the Tyk OAS API Definition takes advantage of the operationId defined in the OpenAPI Document that declares both the path and method for which the middleware should be added. Endpoint paths entries (and the associated operationId) can contain wildcards in the form of any string bracketed by curly braces, for example /status/{code}. These wildcards are so they are human-readable and do not translate to variable names. Under the hood, a wildcard translates to the “match everything” regex of: (.*).

The rate limit middleware (rateLimit) can be added to the operations section of the Tyk OAS Extension (x-tyk-api-gateway) in your Tyk OAS API Definition for the appropriate operationId (as configured in the paths section of your OpenAPI Document).

The rateLimit object has the following configuration:

• enabled: enable the middleware for the endpoint
• rate: the maximum number of requests that will be permitted during the interval (window)
• per: the length of the interval (window) in time duration notation (e.g. 10s)

Simple endpoint rate limit

For example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

{
    "components": {},
    "info": {
        "title": "example-rate-limit",
        "version": "1.0.0"
    },
    "openapi": "3.0.3",
    "paths": {
        "/status/200": {
            "get": {
                "operationId": "status/200get",
                "responses": {
                    "200": {
                        "description": ""
                    }
                }
            }
        }
    },
    "x-tyk-api-gateway": {
        "info": {
            "name": "example-rate-limit",
            "state": {
                "active": true
            }
        },
        "upstream": {
            "url": "http://httpbin.org/"
        },
        "server": {
            "listenPath": {
                "value": "/example-rate-limit/",
                "strip": true
            }
        },
        "middleware": {
            "operations": {
                "status/200get": {
                    "rateLimit": {
                        "enabled": true,
                        "rate": 60,
                        "per": "1s"
                    }
                }
            }
        }
    }
}

In this example, a rate limit has been configured for the GET /status/200 endpoint, limiting requests to 60 per second.

The configuration above is a complete and valid Tyk OAS API Definition that you can import into Tyk to try out the Per-endpoint Rate Limiter middleware.

Advanced endpoint rate limit

For more complex scenarios, you can configure rate limits for multiple paths. The order of evaluation matches the order that endpoints are defined in the paths section of the OpenAPI description. For example, if you wanted to limit the rate of POST requests to your API allowing a higher rate to one specific endpoint you could configure the API definition as follows:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65

{
    "components": {},
    "info": {
        "title": "advanced-rate-limit",
        "version": "1.0.0"
    },
    "openapi": "3.0.3",
    "paths": {
        "/user/login": {
            "post": {
                "operationId": "user/loginpost",
                "responses": {
                    "200": {
                        "description": ""
                    }
                }
            }
        },
        "/{any}": {
            "post": {
                "operationId": "anypost",
                "responses": {
                    "200": {
                        "description": ""
                    }
                }
            }
        }
    },
    "x-tyk-api-gateway": {
        "info": {
            "name": "advanced-rate-limit",
            "state": {
                "active": true
            }
        },
        "upstream": {
            "url": "http://httpbin.org/"
        },
        "server": {
            "listenPath": {
                "value": "/advanced-rate-limit/",
                "strip": true
            }
        },
        "middleware": {
            "operations": {
                "user/loginpost": {
                    "rateLimit": {
                        "enabled": true,
                        "rate": 100,
                        "per": "1s"
                    }
                },
                "anypost": {
                    "rateLimit": {
                        "enabled": true,
                        "rate": 60,
                        "per": "1s"
                    }
                }
            }
        }
    }
}

In this example, the first rule limits requests to the POST /user/login endpoint to 100 requests per second (rps). Any other POST request to an endpoint path that matches the regex pattern /{any} will be limited to 60 rps. The order of evaluation ensures that the specific POST /user/login endpoint is matched and evaluated before the regex pattern.

The configuration above is a complete and valid Tyk OAS API Definition that you can import into Tyk to try out the Per-endpoint Rate Limiter middleware.

Configuring the middleware in the API Designer

Configuring per-endpoint rate limits for your API endpoints is easy when using the API Designer in the Tyk Dashboard, simply follow these steps:

1. Add an endpoint

   From the API Designer add an endpoint that matches the path and method to which you want to apply the middleware.







2. Select the Rate Limit middleware

   Select ADD MIDDLEWARE and choose Rate Limit from the Add Middleware screen.



3. Configure the middleware

   You must provide the path to the compiled plugin and the name of the Go function that should be invoked by Tyk Gateway when the middleware is triggered.



4. Save the API

   Select ADD MIDDLEWARE to save the middleware configuration. Remember to select SAVE API to apply the changes.

Rate Limiting with Tyk Streams

A rate limit is a strategy for limiting the usage of a shared resource across parallel components in a Tyk Streams instance, or potentially across multiple instances. They are configured as a resource:

rate_limit_resources:
  - label: foobar
    local:
      count: 500
      interval: 1s

And most components that hit external services have a field rate_limit for specifying a rate limit resource to use. For example, if we wanted to use our foobar rate limit with a HTTP request:

input:
  http_client:
    url: TODO
    verb: GET
    rate_limit: foobar

By using a rate limit in this way we can guarantee that our input will only poll our HTTP source at the rate of 500 requests per second.

Local

The local rate limit is a simple X every Y type rate limit that can be shared across any number of components within the pipeline but does not support distributed rate limits across multiple running instances of Tyk Streams.

# Config fields, showing default values
label: ""
local:
  count: 1000
  interval: 1s

Configuration Fields

count

The maximum number of requests to allow for a given period of time.

Type: int
Default: 1000

interval

The time window to limit requests by.

Type: string
Default: "1s"

Request Quotas

A quota is similar to a rate limit, as it allows a certain number of requests through in a time period. However traditionally these periods are much longer, For example, if you would like to have a user only have 10,000 requests to the API per month, you can create a key that has no rate limiting but will disallow access once the quota is empty. Tyk will automatically reset the quota if the time limit on reset has been exceeded.

How do Quotas Work?

Quotas in Tyk use a decrementing counter in the token’s session object to measure when to block inbound requests.

How do Quotas Renew?

In Tyk, most things are event-driven, the same goes for quotas. Since all quotas have a reset time limit, they do not “reset” on a specific date (e.g. 1st of the month), instead they “reset” on or after a date has passed, and only when the key is actively being used. This means that the period can “move” if the token is only partially active.

Why is the Quota System Like This?

In a system with 1,000,000 tokens, managing timers to watch and monitor each token is extremely expensive and inefficient. So in order to keep quotas sane and not clutter up the DB with unnecessary timers, quotas are event-driven.

It is possible to have monthly quotas that set on a specific date, using the Tyk Gateway API it is possible to reset known token quotas periodically using an external timer.

Can I Disable Quotas?

Yes you can - to disable the quota middleware in an API definition, select the Disable Quotas option in the API designer, or set the value of disable_quota to true in your API Definition.

Set a Quota with the Dashboard

1. Add a Key from the System Management > Keys menu.

2. Ensure the new key has access to the APIs you wish it work with by selecting the API from Access Rights > Choose API. Turn the Set per API Limits and Quota options on.

3. From the Usage Quotas section, set the Max Requests per period - this is the maximum number of requests that are allowed to pass through the proxy during the period.

4. Set the Quota resets every drop down to the period you would like the quota to be active for. If the pre-sets do not meet your requirements, the quota period can be set using the session object method and the REST API.

5. The Remaining requests for period field displays how many more times the API can be requested for the quota set.

1. Save the token, it will be created instantly.

Set a Quota with the Session Object

In order to set a quota for a token:

1. Ensure that quota_max is set to the maximum amount of requests that a user is allowed to make in a time period.
2. Ensure quota_remaining is set to the same value as quota_max, this is the value that will decrement on each request (failed or successful).
3. Set the quota_renewal_rate to the value, in seconds, of when the quota should renew. For example, if you would like it to renew every 30 days, you would have 2592000 seconds (((60*60) * 24) * 30 = 2592000).

Request Throttling

Controlling and Limiting Traffic

Tyk supports controlling and limiting traffic for throttling and spike arrest use cases. Spike arrest sets a limit on the number of requests that can be processed within a specified time interval. If the incoming request rate exceeds this limit, then excess requests are throttled to ensure availability of the API server.

From v2.8, when hitting quota or rate limits, the Gateway can automatically queue and auto-retry client requests.

Throttling can be configured at a key or policy level via the following two fields:

1. throttle_interval: Interval (in seconds) between each request retry.
2. throttle_retry_limit: Total request retry number.

Can I disable Request Throttling?

Yes, you can. If you set throttle_interval and throttle_retry_limit values to smaller than 0, the feature will not work. The default value is -1 and means it is disabled by default.

Set Request Throttling with the Dashboard

1. At the key level: From System Management > Keys > Add Key or open an existing key. Or At the policy level: From System Management > Policies > Add Policy or open an existing policy.

2. Ensure the new key or policy has access to the APIs you wish it work with by selecting the API from Access Rights > Add Access Rule and click Add.

3. From the Throttling section, select the Throttle interval and the Throttle retry limit values.

4. Save the token/policy.

Set Request Throttling in the object

Get the policy object with GET /api/portal/policies/ or the key’s session object via GET /api/apis/{API-ID}/keys/ and then set two fields, throttle_interval and throttle_retry_limit in the object and create a new object or update the exsiting one.
