Audit Trail in Tyk AI Studio - Tyk Documentation

Availability

Edition	Deployment Type
Enterprise	Self-Managed, Hybrid

The audit trail is available from v2.2.0. The Community Edition records nothing. Its audit API endpoints return 403 with the title Enterprise Feature.

Overview

The audit trail is an append-only record of the actions on the AI Studio management API, and of some background actions. Each record shows:

Who did the action, and how they authenticated.
When they did it, and from which IP address.
Which object the action changed.
If the action was successful.
For a change, which fields changed, with their old and new values.

Use the audit trail to investigate an incident. You can also use it to see the history of an object, such as an LLM, an App, or a user. The design follows the Tyk Dashboard audit log. If you already use Tyk Dashboard audit records, the field names are similar. The audit trail does not record LLM proxy traffic. For proxy traffic, refer to Analytics. For governance events from filter scripts, refer to Compliance Events. To send configuration changes to an external system when they occur, use Webhooks.

What AI Studio Records

AI Studio records one entry for each request to the management paths: /api/v1/*, /common/*, /auth/*, /oauth/*, /api/sso*, and /analytics/*.

Recorded by default	Not recorded by default
Every `POST`, `PUT`, `PATCH`, and `DELETE` request. For example: create, update, delete, activate, reload, and approve.	`GET` requests. To record them, set `AUDIT_RECORD_READS=true`. A `GET` request that AI Studio refuses with `403` is always recorded.
Authentication events: login, logout, failed login, registration, password reset, and email verification.	Chat and agent message traffic. The chat history already keeps this content.
SSO login start and callback. OAuth authorize, token, and consent requests.	Notification polling, plugin asset delivery, and streaming endpoints.
Refused and failed requests (`401`, `403`, `404`, and `5xx`), with the error message. A handler panic is recorded as `500`.	LLM proxy traffic and Edge Gateway data plane traffic.

Actions on Edge Gateways through the management API, such as a configuration push or an edge deletion, are recorded.

Records Without an HTTP Request

Some actions do not come from a request to the management API. AI Studio records these actions too. In the Enterprise Edition, background workers write records with the method SYSTEM and the user email system. The user name shows which worker wrote the record:

User Name	What AI Studio Records
Team budgets	A Team reaches 80% or 100% of its budget. When the budget blocks the Apps of the Team, the action is “Team budget exceeded, team Apps blocked”. Refer to Alerts for Team Budgets.
Webhook worker	A webhook delivery goes to the dead letters. To also record successful deliveries, set `WEBHOOKS_AUDIT_DELIVERIES=true`.
Tyk MCP worker	Changes from the Tyk Dashboard sync and the MCP credential broker. For example, an MCP server is imported, updated, or unpublished, or an MCP credential is minted, suspended, or revoked.

When a plugin changes the governance state of an App, AI Studio writes a record with the method RPC. The user name is plugin: <plugin name>.

How AI Studio Writes Records

AI Studio writes records after the request completes, outside the request path:

AI Studio puts each record in an in-memory queue (AUDIT_QUEUE_SIZE).
A background worker writes the queued records in batches.
If the queue is full, AI Studio drops the record and counts it. It does not block the request. The Audit trail page shows a warning with the number of dropped records. AI Studio also logs audit: write queue full, dropped N record(s) so far for the first dropped record and for every 100th. To detect lost records, alert on this log message.
On a graceful shutdown, AI Studio writes all queued records. If the process stops suddenly, the queued records are lost.

A slow database does not slow down administrator actions.

Record Fields

Field	Description
`id`	The database identifier of the record.
`req_id`	The request identifier. AI Studio uses a valid inbound `X-Request-ID` header. If there is none, it creates an identifier. AI Studio returns the value in the `X-Request-ID` header of each recorded response, so a client can quote it.
`timestamp`	The start time of the request, in UTC.
`ip`	The client IP address.
`user`, `user_id`, `user_name`	The authenticated user. For a failed login, `user` is the email that the visitor entered, and `user_id` is `0`.
`auth_method`	How the user authenticated: `session` (browser) or `api_key`. It is empty for requests without authentication, such as a failed login.
`user_agent`	The user agent of the client.
`action`	A readable name of the action. For example: `Update LLM`, `Delete User`, `Login Failed`, or `SSO Login`.
`method`, `url`, `route`	The HTTP method, the full request URI, and the route template, for example `/api/v1/llms/:id`. For a record without an HTTP request, the method is `SYSTEM` or `RPC`. Refer to Records Without an HTTP Request.
`status`	The HTTP response status.
`resource_type`, `resource_id`, `resource_name`	The object of the action, for example `llm`, `12`, and `gpt-4-prod`. AI Studio reads the name from the object, so a deleted object stays identifiable.
`diff`	The changed fields. Refer to Diffs.
`error`	The error message, when the request failed.
`duration_ms`	The time that the handler took, in milliseconds.
`request_dump`, `response_dump`	The redacted headers and body of the request and the response. AI Studio fills these fields only when `AUDIT_DETAILED_RECORDING=true`.

For a failed login, user contains the text that the visitor entered, with a maximum of 255 characters. It can contain typing errors, or addresses that do not exist. Treat this value as untrusted input when you review or export records.

Diffs

When an action changes an object that has a database row, AI Studio reads the row before and after the action. The diff field contains the columns that changed:

{
  "name":    { "old": "gpt-4",  "new": "gpt-4-turbo" },
  "api_key": { "old": "[REDACTED]", "new": "[REDACTED]" }
}

For an update, the diff contains only the columns that changed.
For a create, the diff contains all columns, with old set to null.
For a delete, the diff contains all columns, with new set to null. The last configuration of a deleted object stays in the audit trail.
The diff does not include created_at, updated_at, deleted_at, session tokens, or heartbeat timestamps.
If a diff is larger than AUDIT_MAX_BODY_BYTES, AI Studio removes the largest fields first. It lists the removed fields in _truncated_fields.

Redaction

AI Studio does not store secret values in the audit trail. A changed secret still shows as changed, with the value [REDACTED].

Columns and JSON keys: AI Studio redacts a column or JSON key when its name contains one of these fragments: password, secret, api_key, apikey, token, auth_key, authkey, conn_string, connstring, private_key, privatekey, passphrase, credentials, client_key, access_key, authorization, or cookie. The match is not case-sensitive.
Nested values: AI Studio also redacts secrets inside JSON columns, such as plugin configuration and SSO profile settings.
Secrets: AI Studio always redacts the value column of Secrets.
Headers: In detailed recording, AI Studio masks the Authorization, Proxy-Authorization, Cookie, Set-Cookie, X-CSRF-Token, X-API-Key, and X-Auth-Token headers.

To redact more fields, add fragments to AUDIT_REDACT_KEYS. To mask more headers, add names to AUDIT_REDACT_HEADERS. You cannot remove the built-in rules.

Configuration

Set these environment variables on the AI Studio server. For the full reference, refer to AI Studio Environment Variables.

Variable	Default	Description
`AUDIT_ENABLED`	`true`	Turns recording on or off.
`AUDIT_STORE_TYPE`	`db`	Where AI Studio stores records: `db`, `file`, or `both`. Only `db` and `both` make records available in the console and the API.
`AUDIT_FILE_PATH`	`./data/audit/audit.log`	The log file for the `file` and `both` store types. In a container, mount this path on a volume.
`AUDIT_FILE_FORMAT`	`json`	The format of the log file: `json` (one object on each line) or `text` (one line for each record). The `text` format does not escape all fields. For a SIEM or another automated reader, use `json`.
`AUDIT_DETAILED_RECORDING`	`false`	Also stores the redacted headers and body of each request and response. This increases storage a lot.
`AUDIT_RECORD_READS`	`false`	Also records `GET` requests. The admin console reads data frequently, so this adds many records.
`AUDIT_RETENTION_DAYS`	`90`	AI Studio deletes database records that are older than this value. It checks one time each hour. `0` keeps records forever.
`AUDIT_MAX_BODY_BYTES`	`65536`	The maximum size of each stored diff, request dump, and response dump.
`AUDIT_QUEUE_SIZE`	`4096`	The size of the in-memory queue for records that AI Studio did not write yet.
`AUDIT_REDACT_KEYS`	Empty	A comma-separated list of more key fragments to redact, for example `ssn,customer_ref`.
`AUDIT_REDACT_HEADERS`	Empty	A comma-separated list of more headers to mask in detailed recording, for example `X-Tenant-Key`.

Detailed recording makes each record larger. Plan your retention period and database storage for this. If you keep long-term evidence in the file store, archive the log file outside AI Studio.

Forward Records to a SIEM

To send records to a SIEM, set these values:

AUDIT_STORE_TYPE=both
AUDIT_FILE_FORMAT=json

Then, collect the log file with your log forwarder. Each line is one complete record. The records also stay available in the console.

View the Audit Trail

To view the audit trail, go to Governance > Audit trail in the admin console. You need the audit:read permission. Refer to User Management. The page shows records with the newest first. It has these features:

A date range, a text search, and filters for user, action, resource type, HTTP method, status, and authentication method.
Summary tiles for the date range: recorded actions, failed actions (4xx and 5xx), and distinct users. A fourth tile shows the retention period.
A row for each record that you can expand. The row shows the request ID, route, resource, error, field changes, and the dumps, when detailed recording is on.
CSV and JSON export of the filtered records. An export contains a maximum of 50,000 records. In a CSV export, AI Studio escapes cells that start with =, +, -, @, a tab, or a carriage return. This stops a spreadsheet from running the value as a formula.

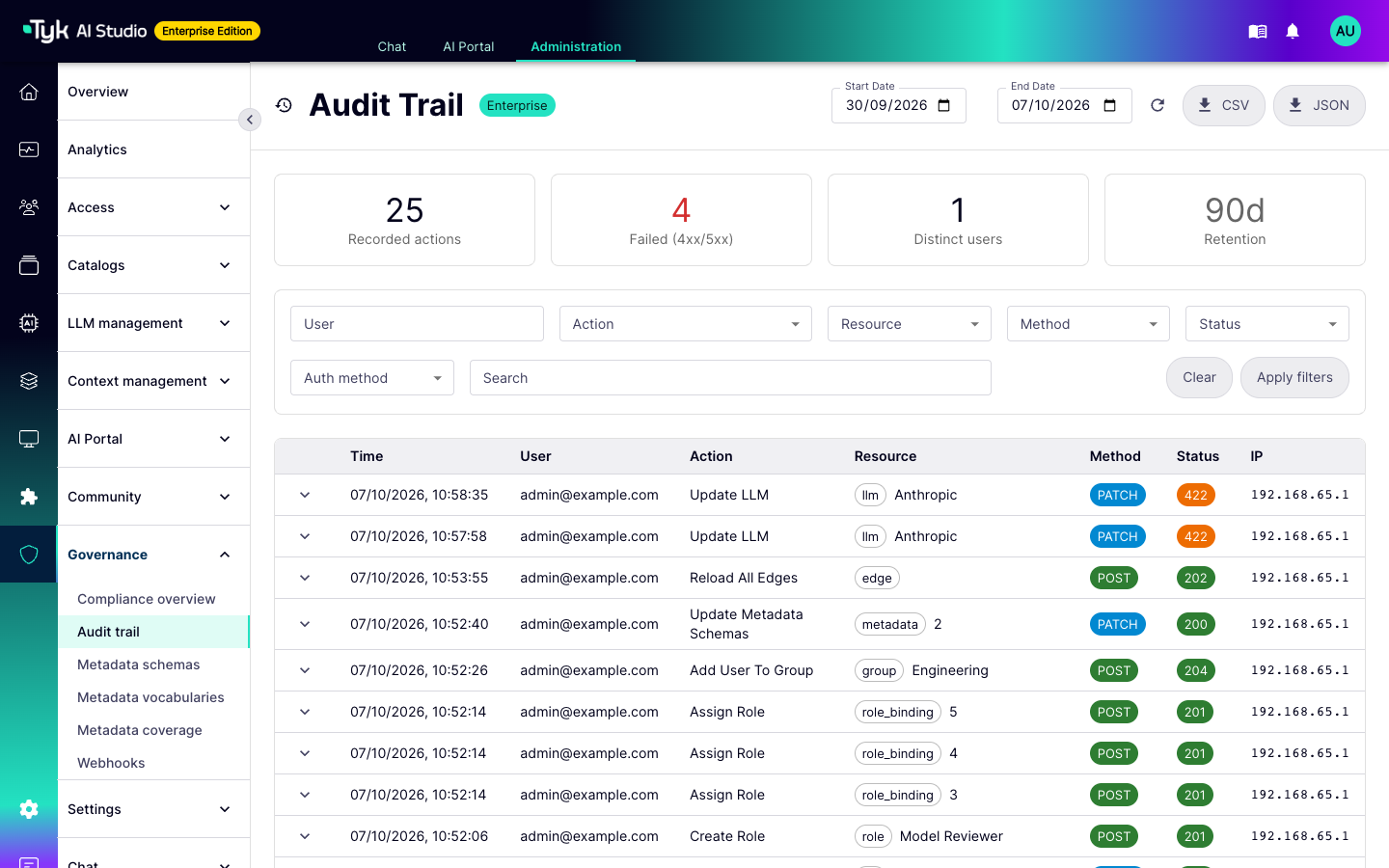

Audit trail page with summary tiles, filters, and records

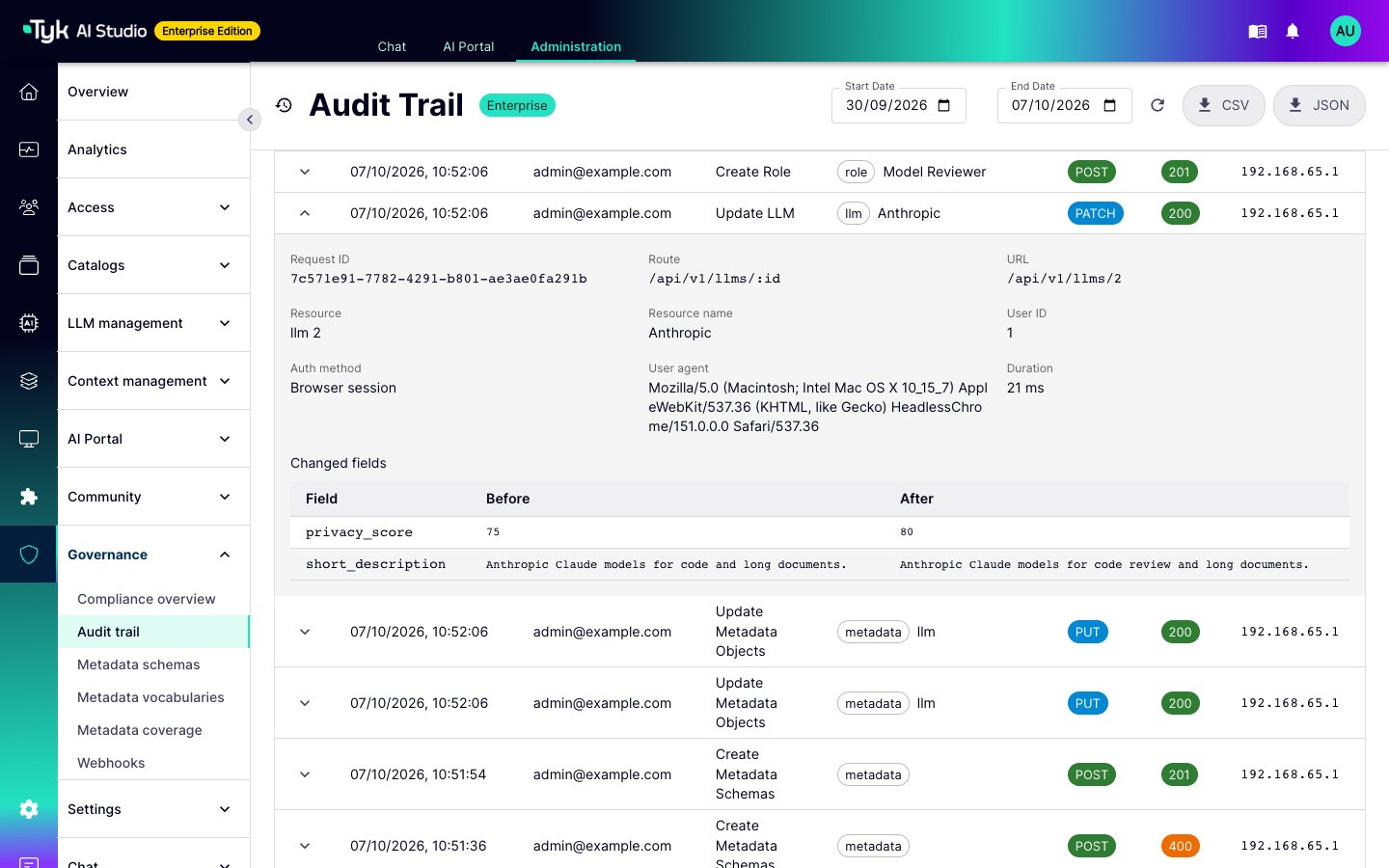

Expanded audit record with the changed fields of an LLM

The page shows records only when AI Studio stores them in the database. With AUDIT_STORE_TYPE=file, read the records from the log file.
