What is Certificate Authentication?

Certificate Authentication is a client authentication method introduced in Tyk 5.12.0 that replaces the legacy Dynamic mTLS feature. This method provides enhanced security and flexibility for API authentication using client certificates.

​
Evolution from Dynamic mTLS

Certificate Authentication has evolved from Dynamic mTLS through the enforcement of the mutual TLS handshake and the disallowing of authentication using a token. Only the registered client certificate can now be used to authenticate with the Gateway. This change was introduced because Dynamic mTLS treated the certificate as optional and did not enforce the mTLS handshake. Mutual TLS was not enforced if only the token was presented in the request, reducing the security of the Dynamic mTLS authentication method. For more details, see the problem with Dynamic mTLS. If you are currently using Dynamic mTLS, no change is required to your API definition to use Certificate Authentication. When using Tyk OAS APIs, the legacy configuration (x-tyk-api-gateway.server.authentication.securitySchemes.authToken.enableClientCertificate) is still supported (though marked as deprecated in favor of a new, cleaner configuration). When using Tyk Classic APIs, there is no change to the configuration in the API definition (auth_configs.authToken.useCertificate).
The legacy mode (where the token can be used to authenticate with Tyk) is available via the Gateway configuration option allow_unsafe_dynamic_mtls_token.

​
How does Certificate Authentication work?

Certificate Authentication uses X.509 client certificates to authenticate API requests. It relies upon a one-to-one mapping between API clients and client certificates. When a client makes a request:
  1. The client presents their certificate during the mTLS handshake
  2. If the client is successfully authenticated, Tyk checks the client certificate against a list of authorized certificates (the “dynamic allow list”)
  3. If a match is found, authorization proceeds as usual, based on the content of the linked session and any policies applied to it
Each client certificate must be pre-registered with the Tyk Certificate Store and a session state object created for each in the temporal storage (Redis) to create the dynamic allow list. This list is dynamic because certificate-linked session objects (and hence clients) can be added to or removed from the list without making any change to the API definition. This is in contrast to the static allow list approach where the list of authorized certificates is stored in the API definition.

​
Configuring your API to use Certificate Authentication

The Gateway must be configured to use TLS for the hosted API interface.
Certificate Auth is configured within the Tyk Vendor Extension by adding the certificateAuth object within the server.authentication section and enabling authentication.
x-tyk-api-gateway:
  server:
    authentication:
      enabled: true
      certificateAuth:
        enabled: true
There are no additional configuration options for this authentication method. The client must present their certificate in the usual manner for the mTLS handshake, for example:
    curl --cert client_cert.pem --key client_key.pem https://my-gateway/my-api/
Note that the HTTPS protocol must be used.

​
Using Tyk Classic

As noted in the Tyk Classic API documentation, you can select Certificate Authentication using the auth_configs.authToken.useCertificate option.

​
Using Tyk Dashboard to Configure Certificate Authentication

Using the Tyk Dashboard, you can configure the Certificate Auth method from the Server section in the API Designer by enabling Authentication and selecting Certificate Authentication from the drop-down: Selecting Certificate Authentication in the Tyk OAS API Designer

​
Registering Certificate Authentication User Credentials

The dynamic allow list comprises session state objects in the Gateway’s temporal storage (typically Redis) that reference the client certificates that should be accepted.
  1. First you must register the client certificate with the Tyk Certificate Store and note the certificate ID that is assigned.
  2. Next you create a key, providing the certificate ID in the certificate field of the session object payload.
    • Tyk Gateway API: POST /tyk/keys/create
    • Tyk Dashboard API: POST /api/keys/create
  3. Tyk will create a session object with the Redis key containing the certificate ID, which forms part of the dynamic allow list.
    • The Redis key is formed from a combination of the Organization ID and Certificate ID
    • Deleting this object (key) will remove the certificate from the allow list, restricting access to any client presenting that certificate

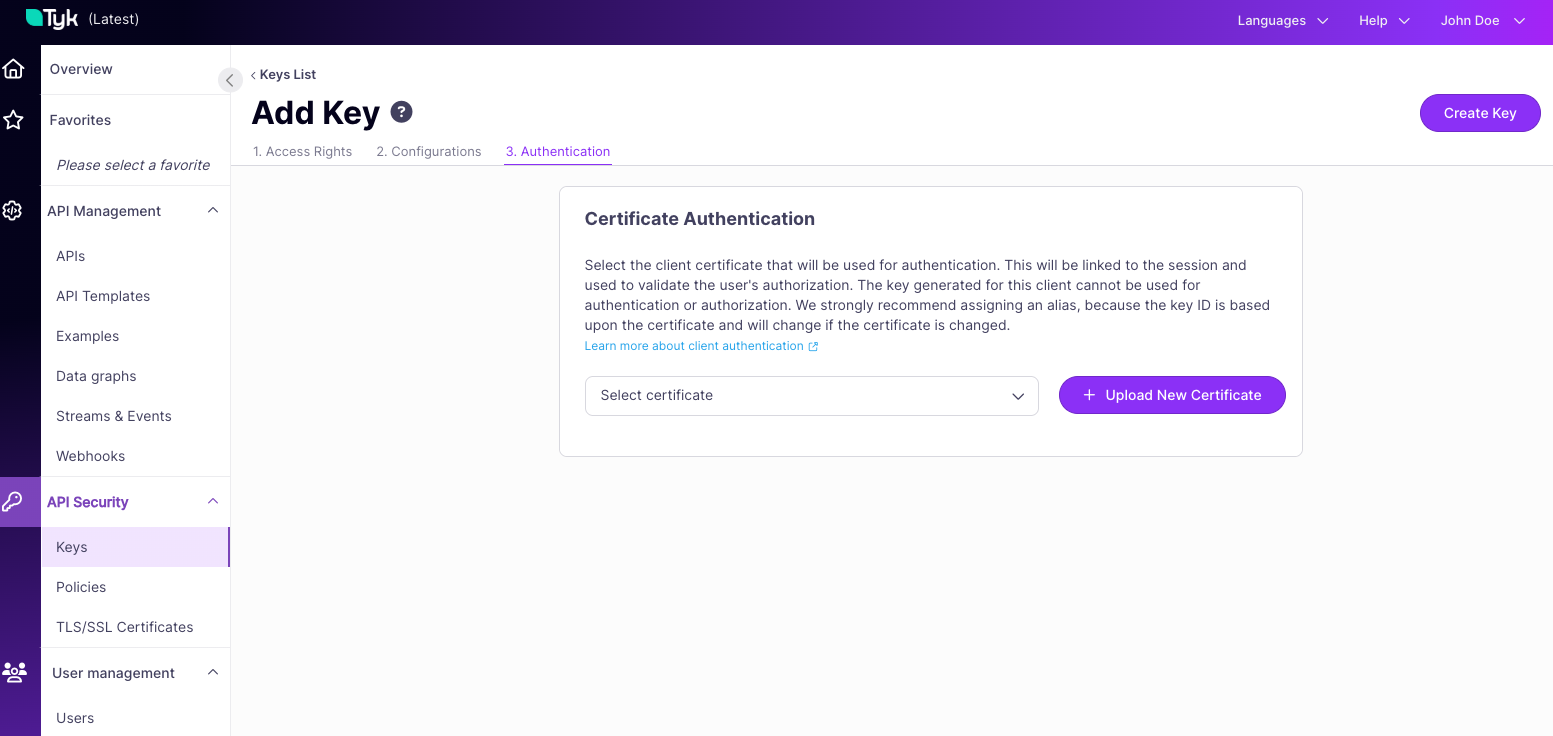

From the Tyk Dashboard UI, if you create a key that grants access to an API secured with a dynamic allow list, the Authentication tab will be displayed, where you can select the client certificate from the Tyk Certificate Store. Associating a client certificate with an API for Certificate Authentication
