Availability

The OAuth2 Client Credentials plugin is an Enterprise auth plugin for Edge Gateways. It authenticates requests that carry a JWT access token from an external identity provider (IdP), such as Microsoft Entra ID, Okta, or Auth0. It then maps each token to an AI Studio App. Use it for machine clients, such as background jobs, services, and AI agents. These clients get a short-lived token from your IdP with the OAuth 2.0 client credentials grant. They do not need an App key. You control and revoke their access in the IdP. The App still controls their budget and which LLMs, tools, and data sources they can use. The plugin can also create an App for a new client automatically, from a template App. You decide if a person must approve each new App. This page describes version 1.3.1 of the plugin.

​
Requirements

  • AI Studio Enterprise Edition v2.2.1 or later, with an Enterprise license that includes the OAuth2 client credentials feature.
  • At least one Edge Gateway. The plugin authenticates requests on Edge Gateways only. The embedded gateway of AI Studio does not run auth plugins. It accepts App keys and refuses plugin tokens on every endpoint.
  • HTTPS access from the Edge Gateways to the JWKS endpoint of each IdP. The Edge Gateways fetch the signing keys themselves.

​
How It Works

  1. A client gets an access token from the IdP with the client credentials grant.
  2. The client sends the token as Authorization: Bearer <token> to an Edge Gateway endpoint that has the plugin in its authentication plugin list.
  3. The plugin finds the identity provider whose issuer matches the iss claim of the token. It checks the signature with the keys of the IdP. It also checks the audience, the expiry, and the other required claims.
  4. The plugin reads the tenant ID and the client ID from the token. It then finds the App that is bound to this provider, tenant, and client.
  5. AI Studio applies the usual checks to that App. The App must be active, it must have access to the endpoint, and it must be within its budget.
The plugin accepts tokens signed with RS256, RS384, RS512, ES256, ES384, or ES512. It refuses HMAC-signed tokens, unsigned tokens, and tokens without an expiry. When the plugin refuses a token, the caller gets 401 with the message invalid credential. The caller does not see the reason. The Edge Gateway log shows it. If the App is inactive, the caller gets 403. If the Edge Gateway cannot ask the plugin, for example because the plugin did not load, the caller gets 503. The Edge Gateway never uses App keys in place of a plugin that failed.

​
Endpoints That the Plugin Protects

From v2.2.1, you can attach auth plugins to these endpoints:
  • LLMs, in the plugin list of the LLM. The list applies on /llm/, /ai/, the unified /v1 endpoint, /anthropic/, and /router/.
  • Data sources, tools, Model Routers, Semantic Routers, and custom endpoint plugins, in the Authentication plugins section of their detail page.

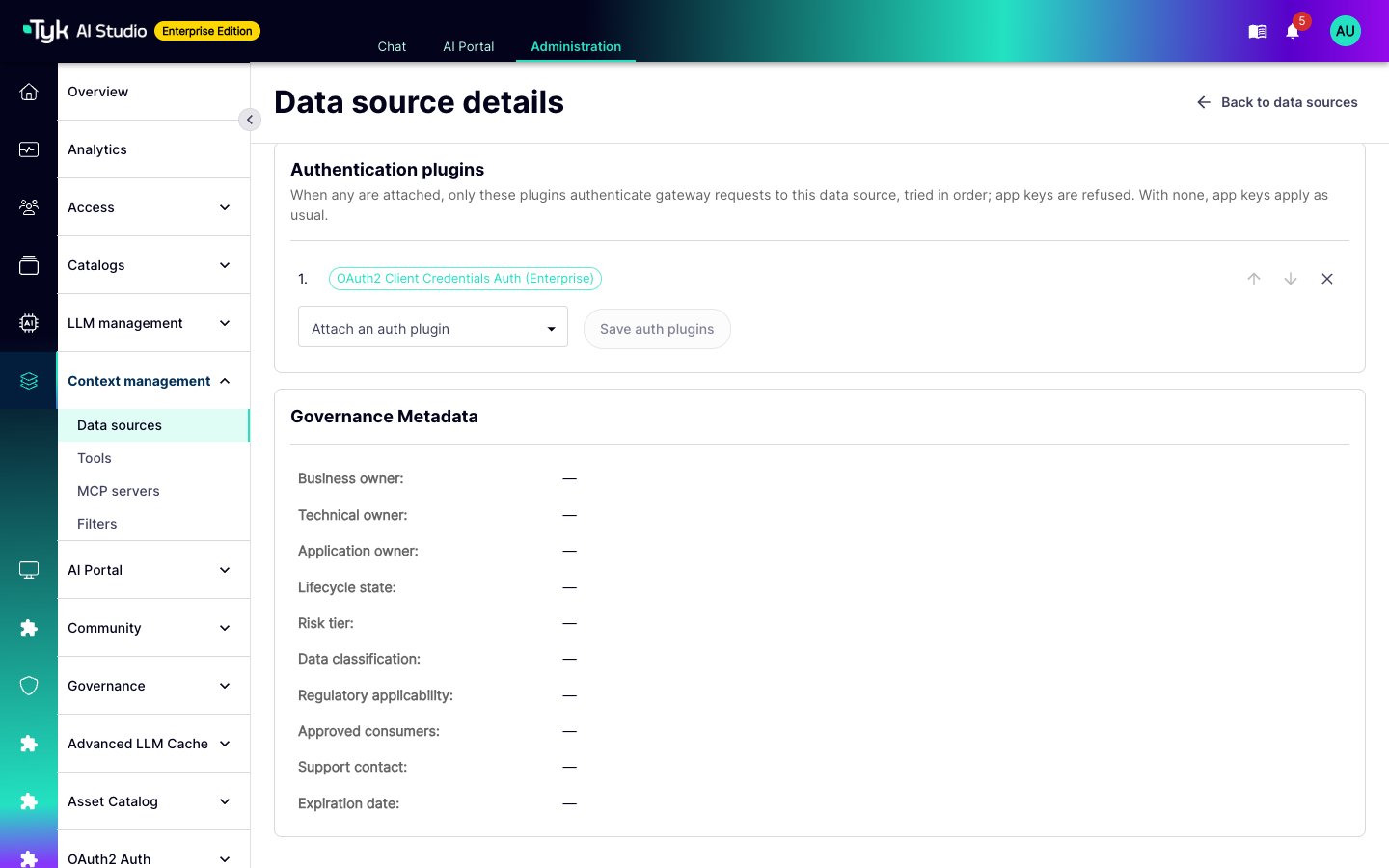

When an endpoint has auth plugins, only these plugins authenticate its requests on Edge Gateways. The Edge Gateways refuse App keys for that endpoint. Refer to Attach an Auth Plugin to Other Endpoints. Data source detail page with the OAuth2 Client Credentials plugin in the Authentication plugins list
If you deactivate an auth plugin, its endpoints accept App keys again. An endpoint is protected only while its plugin is active.

​
Install the Plugin

  1. In the admin console, go to Plugins > Marketplace.
  2. Find OAuth2 Client Credentials Auth (Enterprise) and install it. If the marketplace does not show version 1.3.1, add the plugin with the OCI command oci://docker.tyk.io/studio-plugins/oauth2-client-credentials:1.3.1. Refer to Deployment Options.
  3. Approve the service scopes that the plugin requests. The plugin reads and updates Apps, stores its binding table, and sends notifications. The approval mode also needs the apps.lifecycle and notifications.write scopes. When you upgrade from version 1.2, AI Studio asks you to approve these new scopes.
  4. Make sure that the plugin is active. The admin sidebar then shows an OAuth2 Auth section, with the Identity Providers and App OAuth2 Settings pages.

​
Add an Identity Provider

  1. Go to OAuth2 Auth > Identity Providers, and click Add Provider.
  2. Enter the settings of the provider.
  3. Optionally, click Test Connection. AI Studio checks the OIDC discovery document and the JWKS endpoint. The Edge Gateways still need their own access to the JWKS endpoint.
  4. Save the provider.

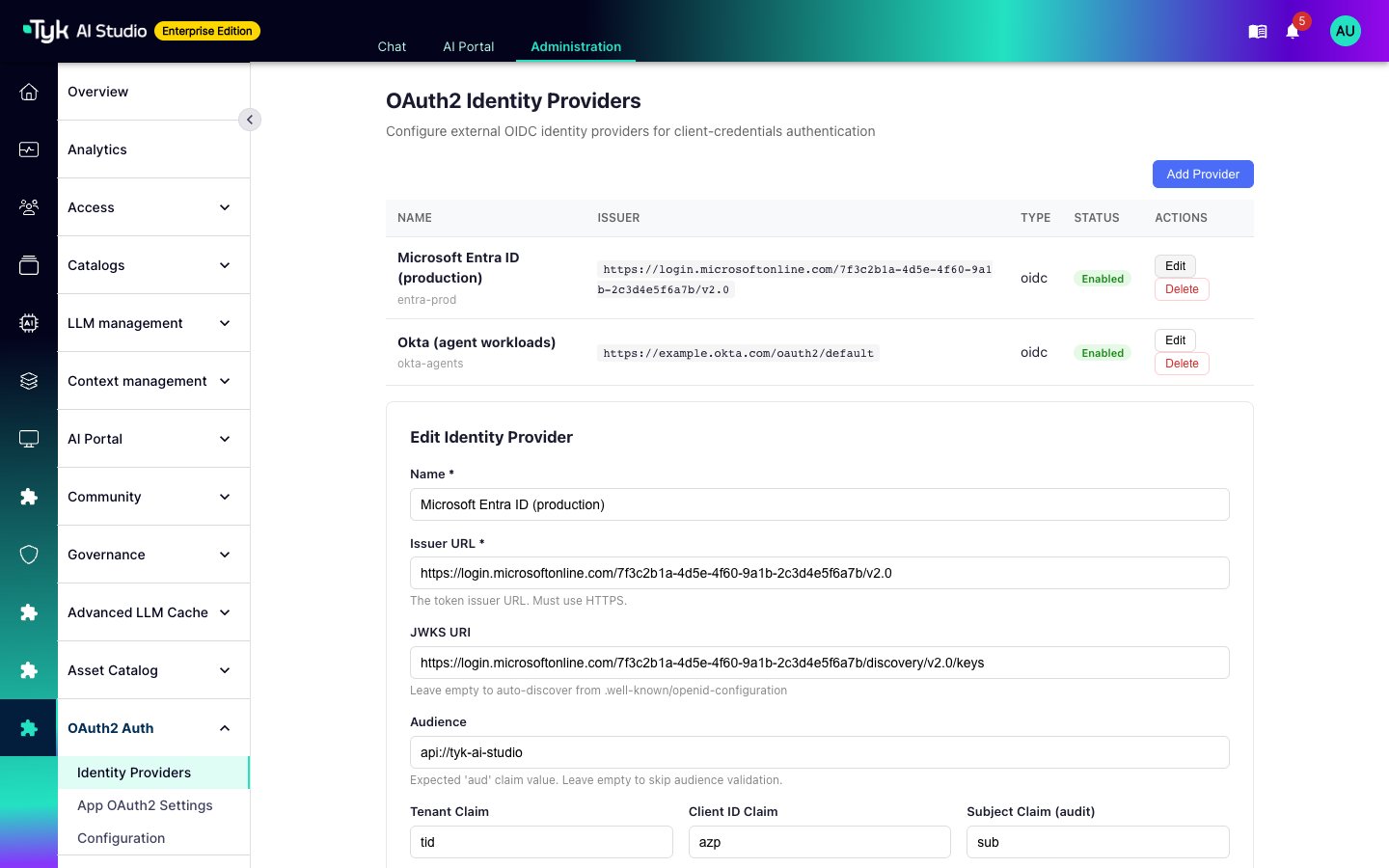

OAuth2 Identity Providers page with an Entra ID provider and an Okta provider, and the Edit Identity Provider form The token must contain the tenant claim and the client claim, or the plugin refuses it. If your IdP does not issue a tenant claim, set Tenant Claim to a claim that is always present, such as iss. The tenant ID is then the same for all clients of the provider, so the client ID alone identifies a client. To read a nested claim, use a dot, for example tenant.id. Many providers can use the same issuer. The plugin then tries each of them, and the audience selects the correct one. A provider that fails validation never authenticates a token. For example, a provider with a plain HTTP issuer. The list shows it as Invalid: not active.

​
Bind an App to a Client

A binding connects one client of one provider to one App. The plugin identifies a client by three values: the provider, the tenant ID, and the client ID.
  1. Go to OAuth2 Auth > App OAuth2 Settings.
  2. Click Configure next to the App.
  3. Select the Identity Provider, and enter the Tenant ID and the Client ID from the IdP.
  4. Click Save.

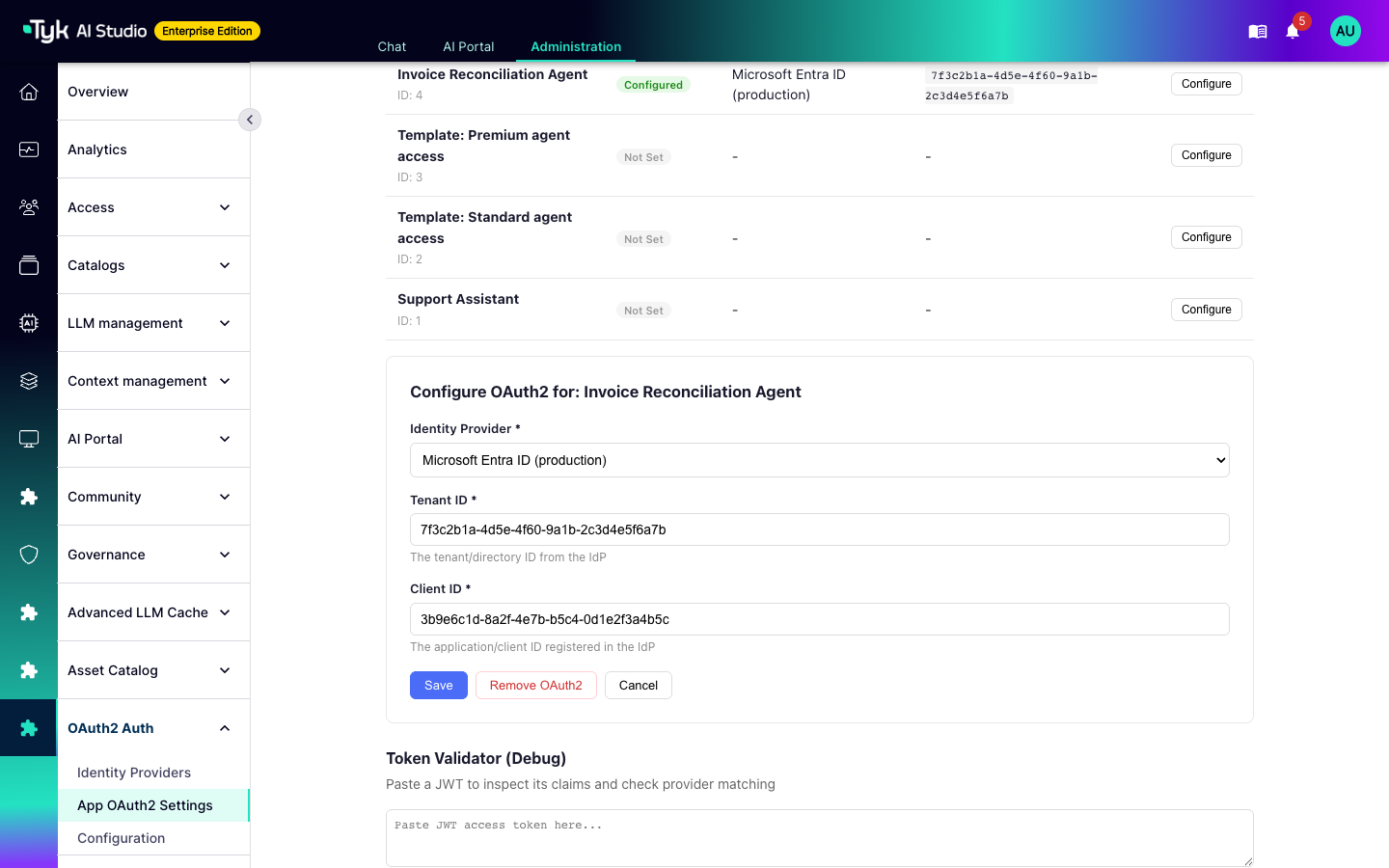

App OAuth2 Settings page with the binding form for the Invoice Reconciliation Agent App A client can belong to one App only. AI Studio refuses a binding for a client that another App already has. If two Apps claim the same client, for example after a direct metadata change, the plugin does not authenticate the client at all. The App list shows the client as Conflict. To remove a binding, open the App and click Remove OAuth2.

​
Bindings on Edge Gateways

AI Studio builds a binding table from the active Apps and sends it to every connected Edge Gateway:
  • A new binding, an unbinding, or a deactivated App takes effect in about 2 seconds.
  • An Edge Gateway that missed a change gets the table again within 60 seconds.
  • An Edge Gateway keeps its last table when it restarts, so a revoked client stays revoked.
An Edge Gateway also needs the App itself. A new App gets to the Edge Gateways with the next configuration push.

​
Create Apps Automatically

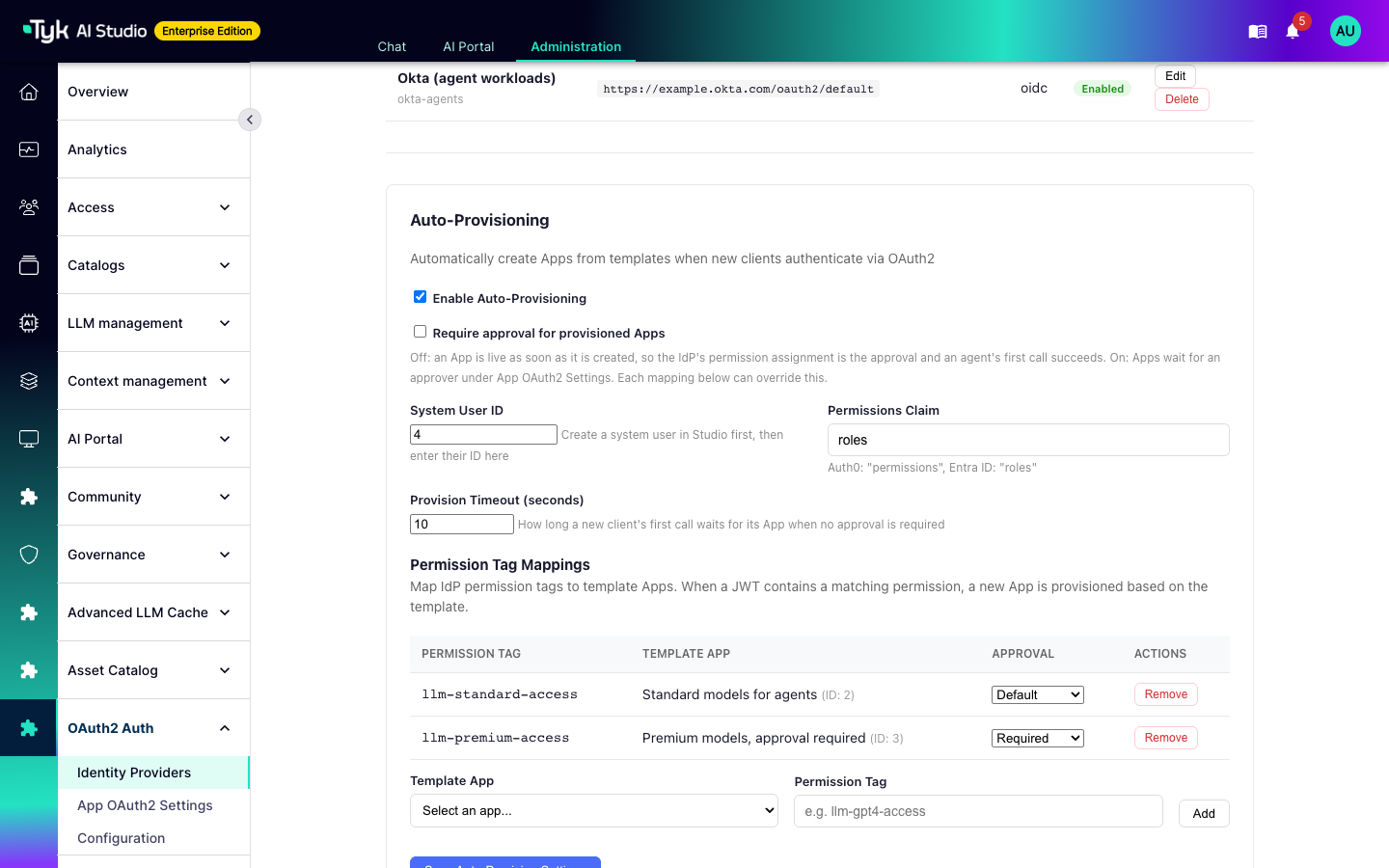

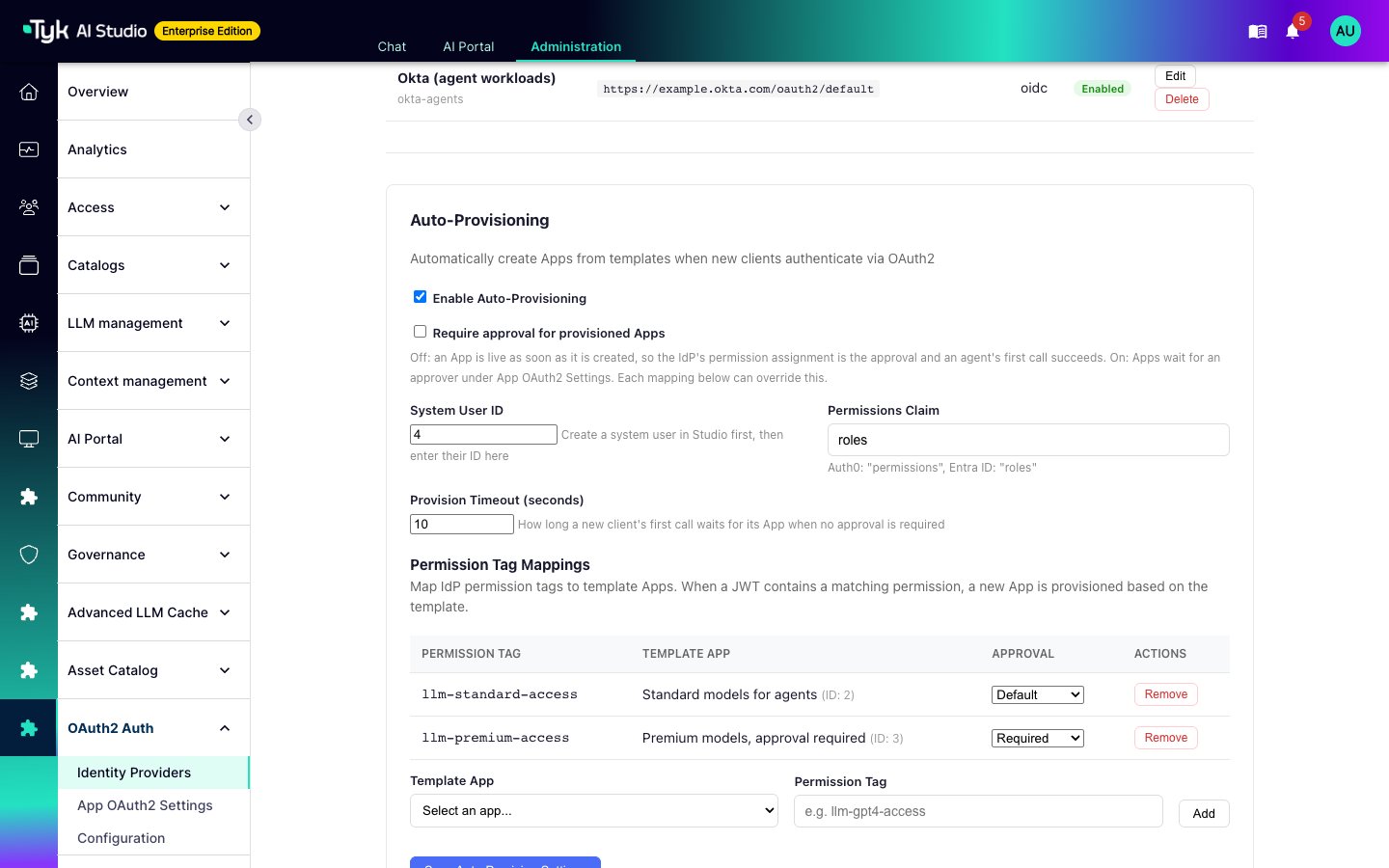

With auto-provisioning, the IdP controls which clients get an App. You map IdP permission tags to template Apps one time. When a client with no binding sends a valid token, the plugin reads the permission tags in the token. If a tag matches a mapping, AI Studio creates an App for the client. Auto-Provisioning section with two permission tag mappings, one that follows the default approval setting and one that requires approval To set it up:
  1. Create the template Apps. A template App holds the LLMs, tools, data sources, and monthly budget that a new client gets.
  2. Create a user to own the new Apps, and note the user ID.
  3. Go to OAuth2 Auth > Identity Providers, and scroll to Auto-Provisioning.
  4. Select Enable Auto-Provisioning.
  5. Enter the System User ID and the Permissions Claim. Entra ID puts app roles in roles. Auth0 uses permissions.
  6. Under Permission Tag Mappings, select a Template App, enter the Permission Tag, and click Add. Add one mapping for each tag.
  7. Click Save Auto-Provision Settings.
The permissions claim can be a list of strings or a string of values separated by spaces. Each mapping needs a unique tag. If the settings are not valid, for example without a system user, the plugin turns off auto-provisioning and logs an error. A new App gets:
  • The LLMs, tools, and data sources of all the templates that the token matches.
  • The largest monthly budget of those templates.
  • The system user as its owner.
  • The name Auto: <template name> [<start of client ID>].
The new App does not get the Model Routers, Semantic Routers, or MCP servers of the template.

​
Approval

You decide if a person must approve each new App:
  • Approval not required (default): The App is active as soon as AI Studio creates it. The assignment of the permission in the IdP is the approval. The first call of the client waits for the App, up to the Provision Timeout. The default is 10 seconds, and the range is 3 to 30 seconds. AI Studio then serves the call. Make sure that the request timeout of the client is longer than the provision timeout.
  • Approval required: AI Studio creates the App inactive and marks it as pending. It notifies administrators one time for each client. The plugin refuses the client with 401 until someone approves the App. The Edge Gateway asks AI Studio again for that client at most every 10 minutes.
Select Require approval for provisioned Apps to require approval for all mappings. To override this setting for one mapping, set its Approval to Required or Not required. If any mapping that matches the token requires approval, the App needs approval. For example, approve standard models automatically, and require approval for premium models. To approve or reject an App:
  1. Optionally, open the App in Apps and check its owner, grants, and budget.
  2. Go to OAuth2 Auth > App OAuth2 Settings. The Pending approvals list shows the waiting Apps.
  3. Click Approve or Reject.

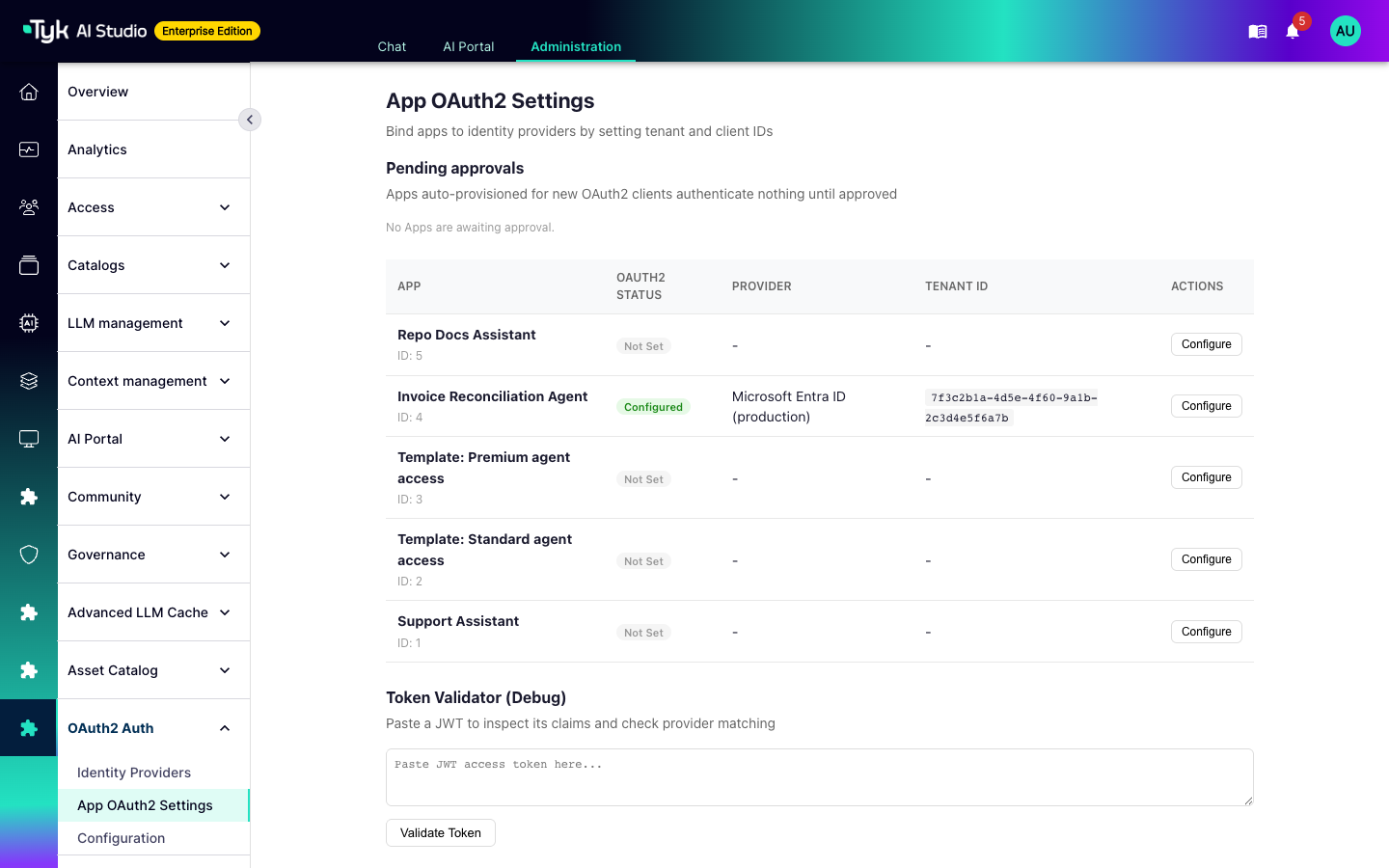

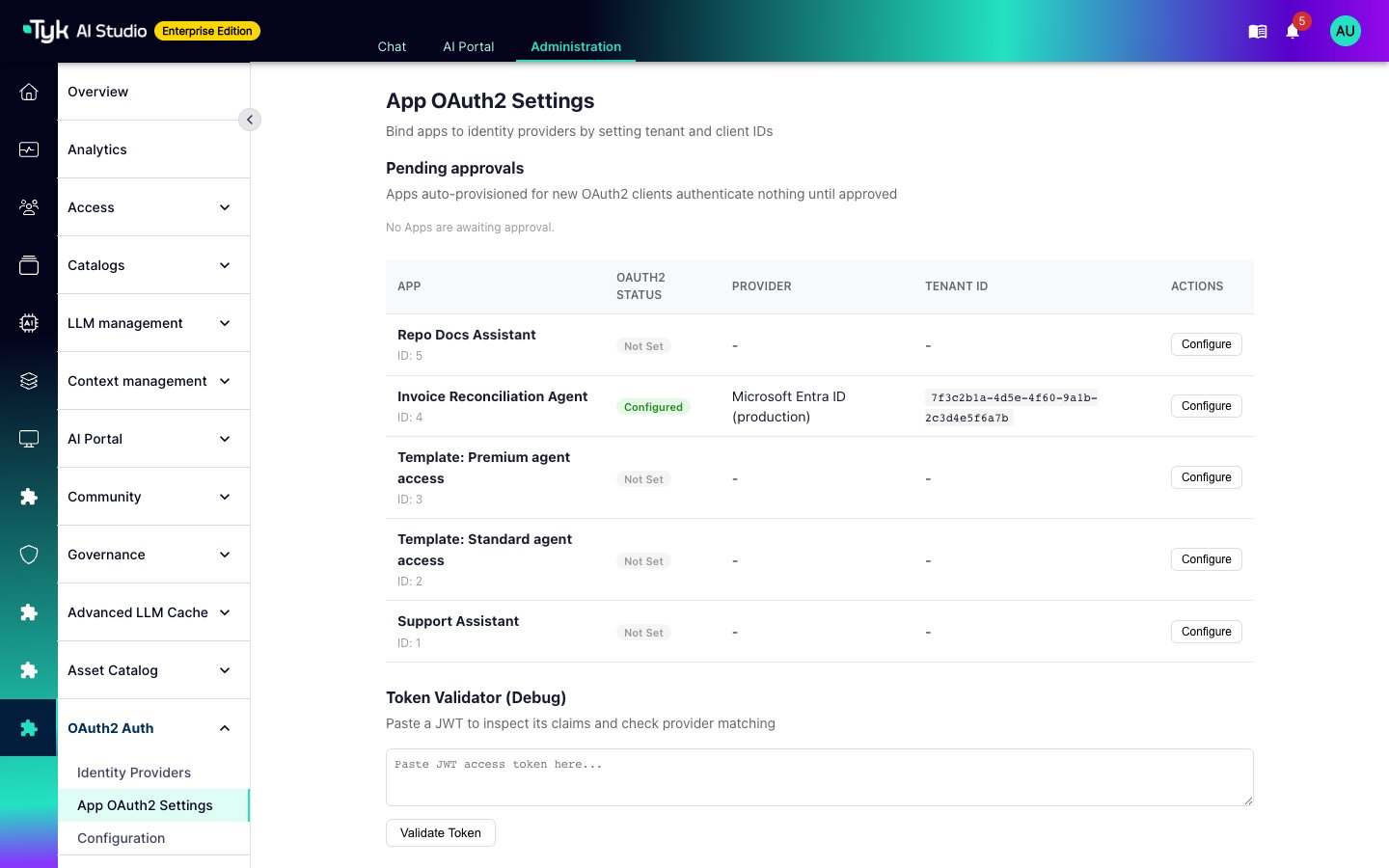

When you approve an App, AI Studio activates it and sends it to the Edge Gateways. The client can then authenticate within seconds. If you activate a pending App on the Apps page, this also approves it. When you reject an App, AI Studio deletes it. App OAuth2 Settings page with the Pending approvals section and the list of Apps with their OAuth2 status

​
Approval Fails Closed

  • AI Studio deactivates a new App before it writes the binding. A pending App is never active. If AI Studio cannot deactivate the App, it deletes the App and refuses the client.
  • AI Studio decides on approval from the permissions and templates that created the App. A later token with fewer permissions does not approve the App. This is true when the App holds the grants of a template that requires approval.
  • If AI Studio cannot activate an App when you approve it, the App stays in the pending list.
  • If you turn off approval later, AI Studio approves a waiting App on the next request of its client. This happens only when no mapping that created the App requires approval. If you removed one of those mappings, the App waits for a person.

​
Who Made the Call

The plugin sends two values to the Edge Gateway for audit:
  • For (on_behalf_of): The value of the subject claim of the provider. By default, this is sub.
  • Agent (acting_agent): The acting agent. For a delegated token (RFC 8693), this is act.sub. Otherwise it is azp, then client_id, then the client ID of the binding.
AI Studio stores these values with the proxy log and the chat record. The proxy-log tables on the App and LLM pages show them. They are for audit only. The binding decides the App, and the App owner stays the user_id of the request. Refer to Delegated Identity in Proxy Logs.

​
Check a Token

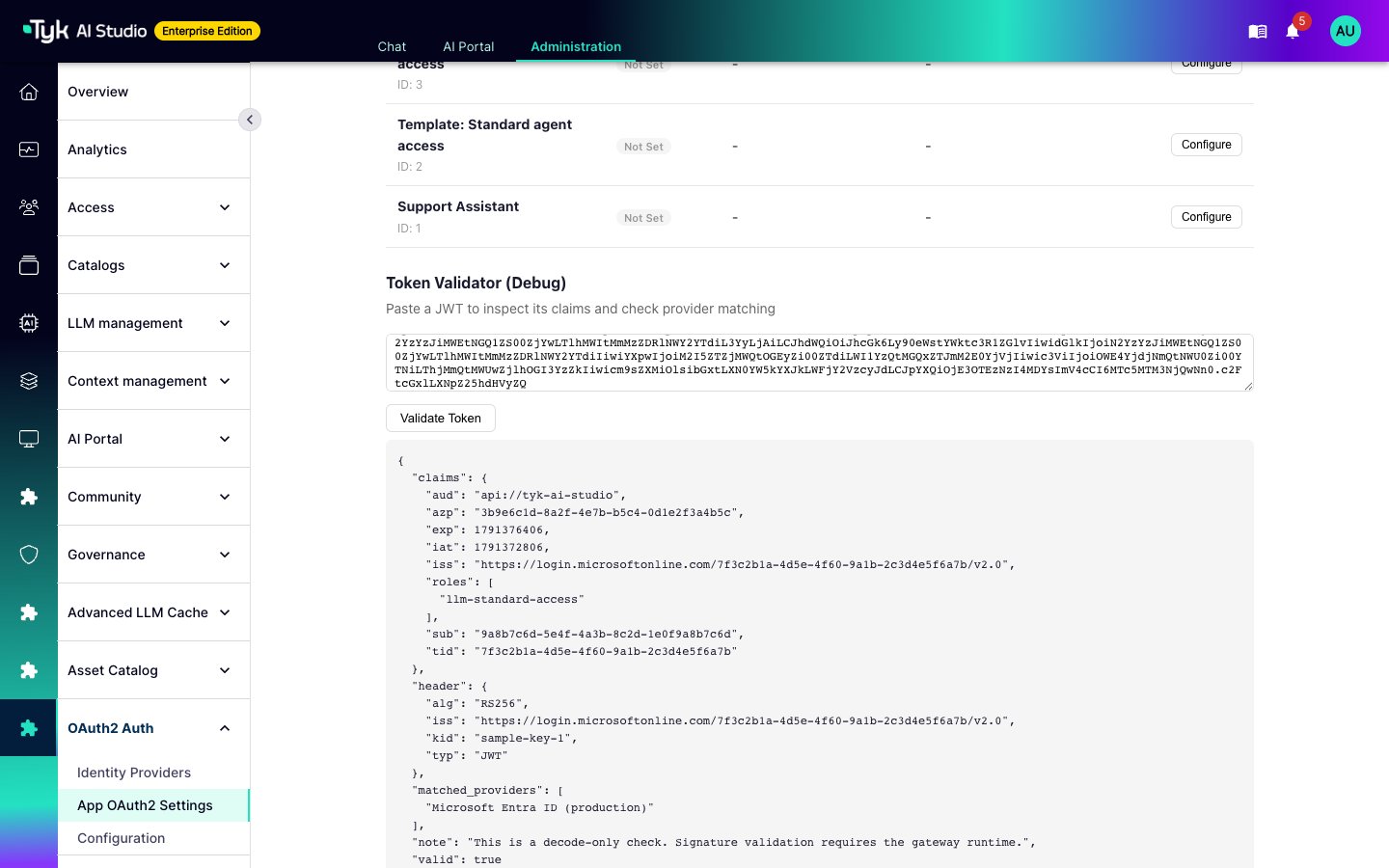

To see the claims of a token, go to OAuth2 Auth > App OAuth2 Settings. Paste the token in Token Validator (Debug), and click Validate Token. The result shows the header, the claims, and the providers whose issuer matches. This check only decodes the token. It does not check the signature. Only the Edge Gateway checks the signature. Token Validator showing the decoded claims of a sample Entra ID token and the matched provider

​
Permissions

The plugin has its own row in the Plugins group of the role editor, with the key plugin:com.tyk.enterprise.oauth2-client-credentials. Refer to Plugin Permissions.
  • read opens the OAuth2 Auth pages.
  • The plugin does not declare read-only methods. For this reason, the pages need write to load and save providers, mappings, bindings, and approvals.
To attach the plugin to an endpoint, a user also needs write on that endpoint, for example llms or datasources.

​
Configuration

Go to OAuth2 Auth > Configuration to change the settings that the two pages do not show.

​
Signing Keys

The Edge Gateway does not wait for the cache time when the IdP rotates its keys. If a token uses a key ID that is not in the cache, the Edge Gateway fetches the keys again. It does this at most every 5 minutes for each JWKS URI. If a fetch fails, the Edge Gateway continues to use the keys that it already has. If it has no key for the token, it refuses the token.
