Semantic caching is a feature of the Advanced LLM Cache plugin. It returns a cached LLM response when a new prompt has the same meaning as an earlier prompt. The words do not have to be identical. For example, “How do I reset my password?” can get the cached answer to “how can I reset my password”. A cache hit does not go to the LLM vendor. This makes the response faster, and it costs no tokens. Semantic caching gives the most hits for repeated questions, such as the questions that a support bot or a documentation assistant gets. Semantic caching is off by default. This page describes version 1.2.1 of the plugin.

​
How Semantic Caching Works

The plugin runs in the gateway that serves the LLM request. This is the embedded gateway of AI Studio or an Edge Gateway. For each request to an LLM that has the plugin, the plugin does these steps:
  1. It looks for an exact match first. If the same request is in the cache, the plugin returns the cached response.
  2. If there is no exact match, the plugin checks if the request can use a semantic match. Refer to Requests That Use Exact Matching Only.
  3. The plugin sends the last user message to an embedding model. The model returns a vector that represents the meaning of the message.
  4. The plugin compares the vector with the vectors of cached prompts in the same partition. It uses cosine similarity. Refer to What Must Match.
  5. If the best score is the similarity threshold or more, the plugin returns the cached response of that prompt. The default threshold is 0.95.
  6. If there is no match, the request goes to the LLM. When the response arrives, the plugin stores it one time, for exact matches and semantic matches. Both use the same time to live (TTL).
The plugin does not store error responses. When a client asks for a streamed response, the plugin replays a cached response as server-sent events. When Cache Streaming Responses is on (the default), the plugin also stores streamed responses.

​
What Must Match

A semantic match can only come from the same partition. A request and a cached prompt are in the same partition only when all these items are the same:
  • The App
  • The LLM vendor and the endpoint path
  • The model
  • The system prompt
  • The earlier turns of the conversation
  • If the request declares tools or not
  • The output settings, such as response_format, max_tokens, stop, top_p, seed, and the reasoning settings
  • The temperature, rounded to one decimal place
  • The embedding model
With the default Namespaces setting on the General tab, the plugin uses the App as its cache namespace. Thus, a hit never goes to a different App. The plugin compares only the last user message by meaning. Everything else must be identical.

​
Requests That Use Exact Matching Only

The plugin does not try a semantic match for these requests. They still get exact matches.
  • The request contains tool calls or tool results.
  • The request contains images, files, or other content that is not text.
  • The conversation has more user turns than Max Conversation Depth. The default is 1, so only single-question requests can get a semantic match.
  • The request declares tools, and Skip Requests With Tools is on (the default).
  • The temperature is more than Max Temperature, if you set one.
  • The last user message is longer than 8,000 characters.
  • The last turn is not a user message.
  • The App opted out, or the request sent the header X-Cache: exact-only. Refer to Turn Off Semantic Matching for an App or a Request.

​
When the Embedding Model Fails

Semantic caching fails open. If the embedding call fails or takes longer than the timeout, the request continues as a normal cache miss. The request still goes to the LLM. The default timeout is 3,000 ms. When you save the semantic settings, or after a configuration push, the plugin opens a connection to the embedding model in the background. This prevents a timeout on the first request. If the embedding of a prompt times out, the plugin embeds the prompt again in the background, with a longer timeout. It then stores the response for semantic matches. The plugin does a maximum of four of these background embeddings at a time.

​
Exact Matching and Semantic Matching

The marketplace has two cache plugins: The Advanced LLM Cache is based on the community plugin. It adds semantic caching, the Redis backend, failover to stale responses, TTL policies, bypass rules, and audit logging. Semantic caching needs an Enterprise license with the Advanced LLM Cache feature. Without this license, the plugin uses only its community features: exact matching with the memory backend. The Semantic tab then shows “Semantic caching requires an enterprise license”.

​
Choose the Traffic for Semantic Caching

An embedding captures the topic of a prompt. It does not capture word order or direction. Two prompts that ask for opposite things can get a higher score than two prompts that mean the same thing. The plugin documentation shows these scores for the nomic-embed-text model: The unit conversion pair scores higher than the real rewording. No threshold can separate them, so the second prompt gets the answer to the first one. Use these rules:
  • Enable semantic caching for question and answer traffic, such as support and documentation questions.
  • Opt out the Apps whose prompts differ by numbers, word order, or negation.
  • After you enable it, examine the X-Cache-Similarity header and the semantic hits in the audit log.
  • Each embedding model gives different scores. When you change the model, examine the threshold again.

​
Set Up Semantic Caching

​
Install the Plugin

  1. In the admin console, go to Plugins > Marketplace.
  2. Find Advanced LLM Cache and install version 1.2.1. You can also add the plugin with the OCI command oci://docker.tyk.io/studio-plugins/advanced-llm-cache:1.2.1. Refer to Deployment Options.
  3. Approve the service scopes that the plugin requests.
  4. Make sure that the plugin is active. The admin sidebar then shows an Advanced LLM Cache section.

​
Attach the Plugin to an LLM

The plugin caches only the LLMs that it is attached to.
  1. Go to LLM management > LLM providers and edit the LLM.
  2. In the Plugins section, select Advanced LLM Cache (Enterprise).
  3. Save the LLM.

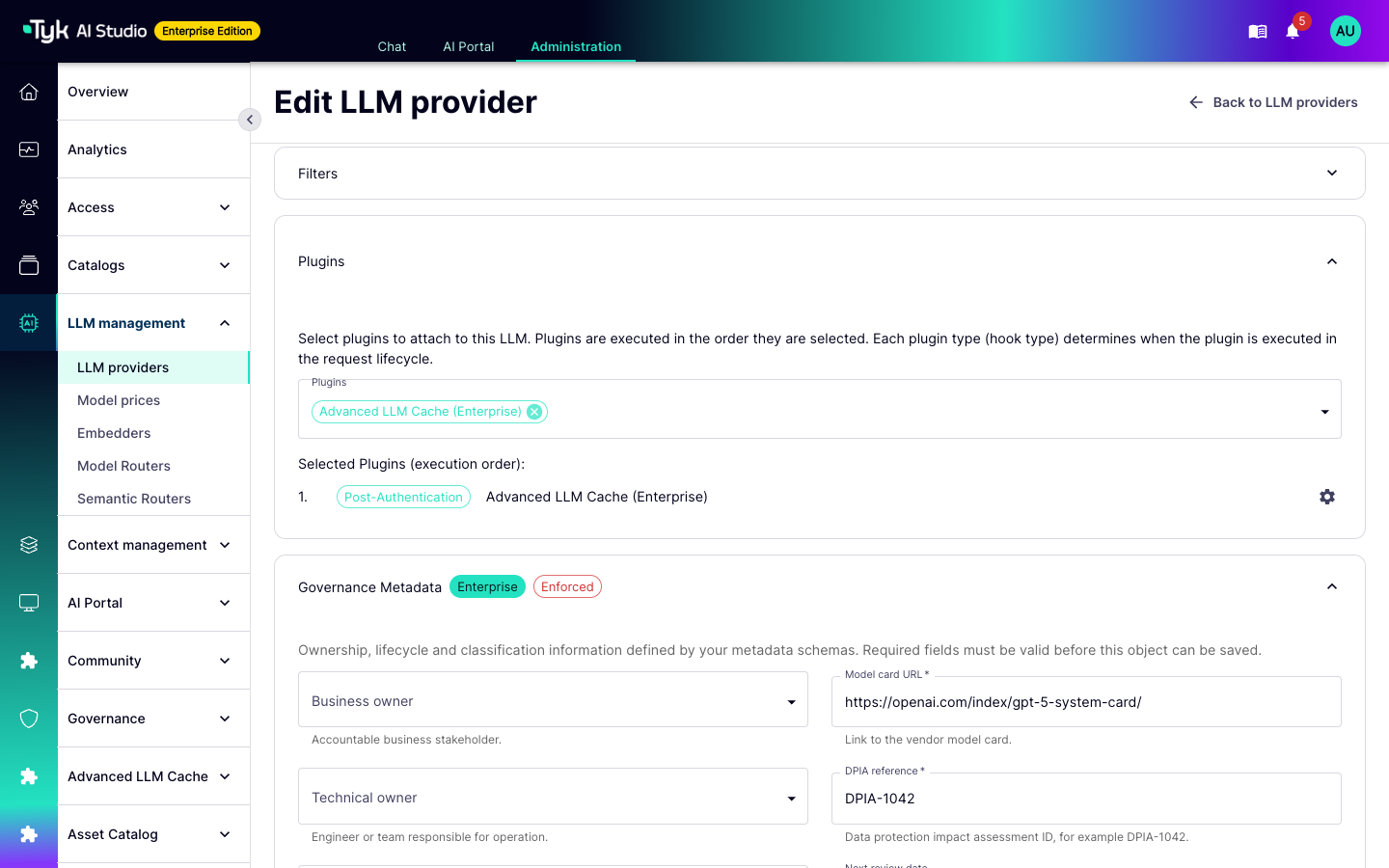

Plugins section of an LLM provider with the Advanced LLM Cache plugin attached as a Post-Authentication plugin

​
Enable Semantic Caching

  1. Go to Advanced LLM Cache > Configuration and select the Semantic tab.
  2. Turn on Enable Semantic Caching.
  3. Set the matching rules. Refer to Semantic Settings.
  4. In the Embedding Provider section, set the embedding model. Then select Test Embedder to make sure that the plugin can get a vector from it.
  5. Select Save Configuration.
  6. Push the configuration to your Edge Gateways.

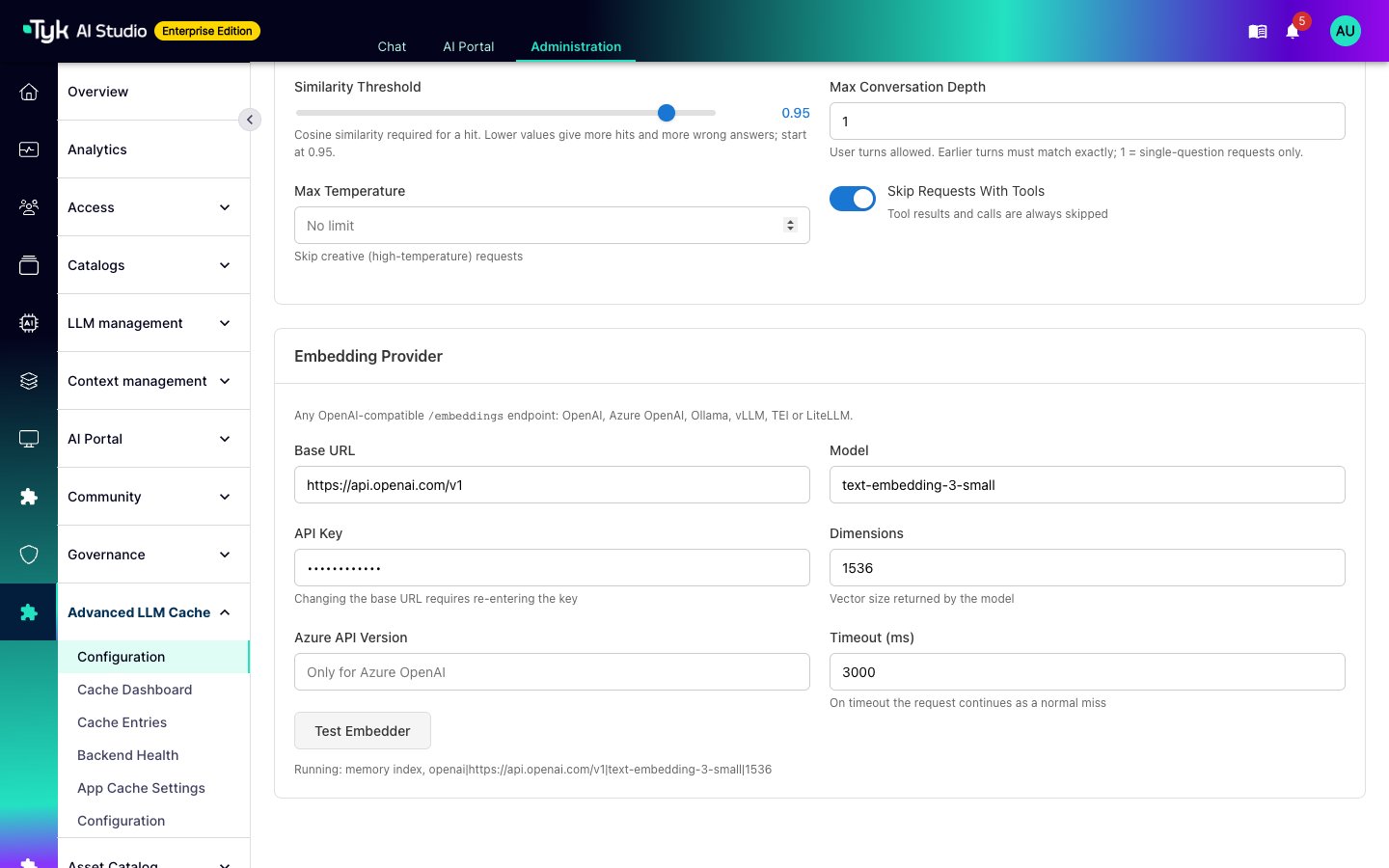

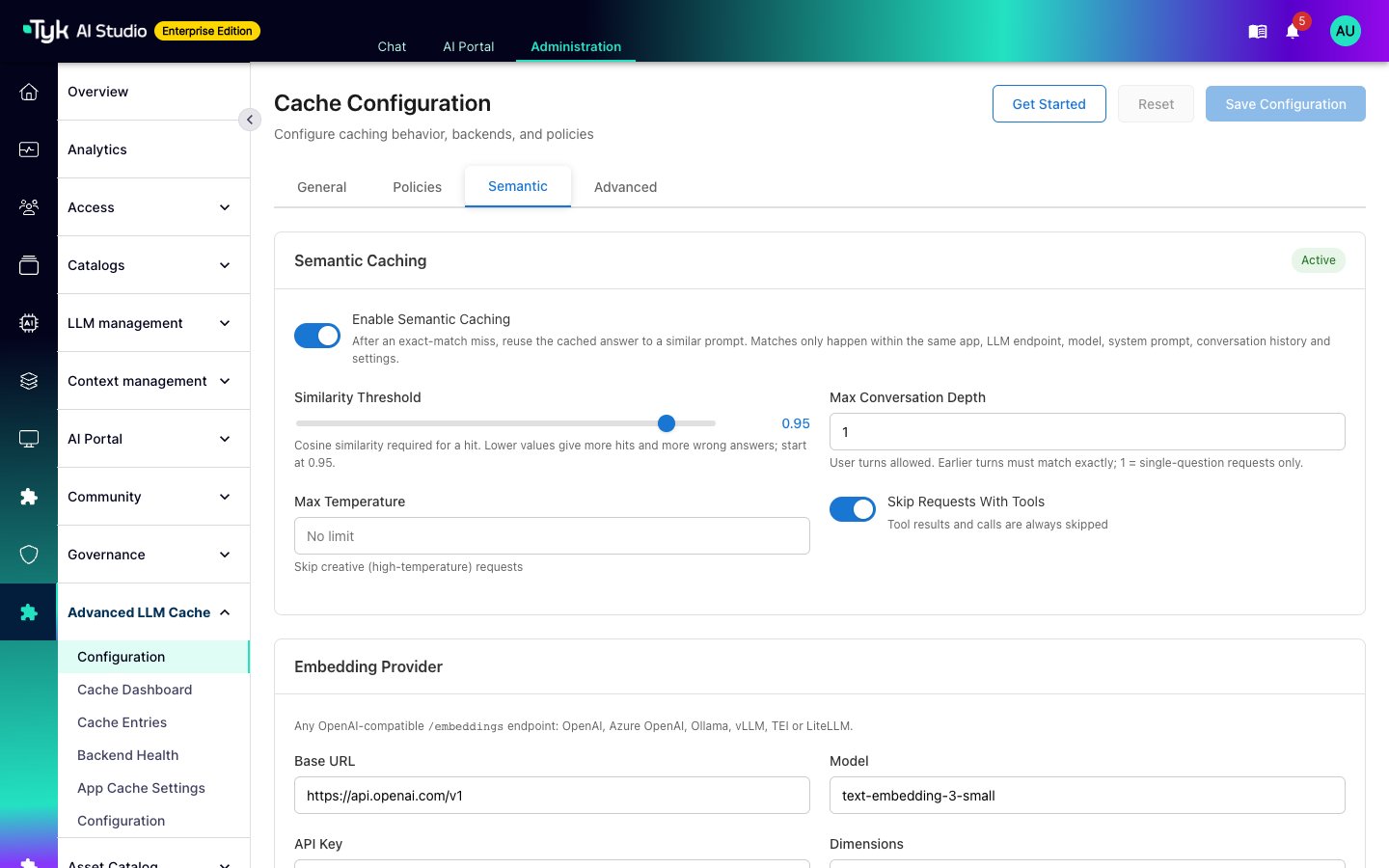

Semantic tab of the Advanced LLM Cache configuration with semantic caching enabled and a similarity threshold of 0.95 When semantic caching runs, the badge at the top of the tab shows Active. Below Test Embedder, the tab shows the index type and the embedding model. If semantic caching cannot start, the tab shows the reason. Embedding Provider section with an OpenAI embedding model, the Test Embedder button, and the running memory index

​
Semantic Settings

​
Embedding Provider Settings

The plugin uses its own embedding settings. It does not use the Embedders that you define in LLM management. You can use any OpenAI-compatible /embeddings endpoint, for example OpenAI, Azure OpenAI, Ollama, vLLM, TEI, or LiteLLM. The plugin sends the last user message of each eligible request to this endpoint. Prompts can contain personal or confidential data. Use an embedding provider that is approved for the data in your prompts, or a self-hosted model.

​
Where the Vectors Are Stored

The plugin stores the vectors with the cache backend that you select in Backend Configuration on the General tab.
  • Memory: Each gateway keeps its own cache and vector index. The index holds a maximum of 100,000 vectors. When it is full, the plugin removes the oldest vectors first.
  • Redis: The gateways share the cache and the vectors. The Redis server must have the query engine: Redis 8 or later, Redis Stack, or a managed Redis with search. The plugin creates one vector index for each embedding model.
Semantic caching does not work with Redis 7 without the query engine, or with Redis cluster mode. In these cases, exact caching continues to work. The Semantic tab shows the reason.

​
Turn Off Semantic Matching for an App or a Request

To give an App exact matches only:
  1. Go to Advanced LLM Cache > App Cache Settings.
  2. Select Edit for the App.
  3. Select Exact matches only (disable semantic caching), and then select Save Settings.

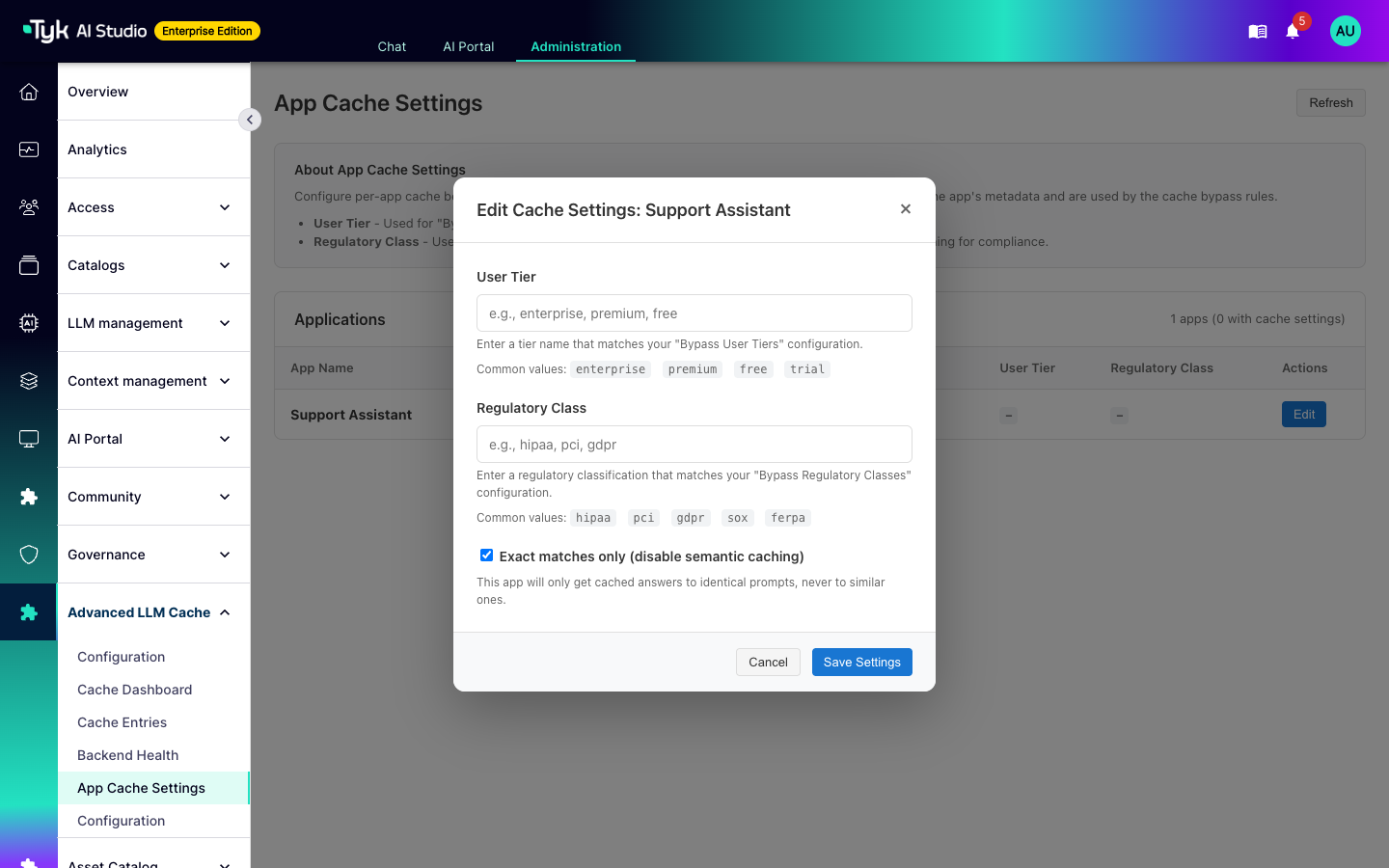

The plugin stores this setting in the App metadata as semantic_cache with the value off. Edit Cache Settings dialog for the Support Assistant App with the Exact matches only option selected A client can also control the cache for one request with the X-Cache request header:
  • X-Cache: exact-only uses exact matching only.
  • X-Cache: bypass does not use the cache for the request, and does not store the response.

​
Check the Cache Results

The plugin adds these headers to the response:
  • X-Cache-Status: HIT, MISS, or BYPASS.
  • X-Cache-Match: exact or semantic, on a hit.
  • X-Cache-Similarity: the cosine similarity of a semantic hit, for example 0.9712.
The headers come back on the /llm/ endpoints, on the OpenAI-compatible /ai/ endpoints, and on the unified /v1 endpoint. The Cache Dashboard page shows the number of semantic hits and the semantic match rate, with the other cache statistics. When you enable Audit Logging on the Advanced tab, the plugin records each semantic hit with match=semantic and the similarity score. The plugin writes this log to stdout, a file, or syslog. It is not part of the AI Studio audit trail.
