After securing your MCP proxy, the next step is controlling what each consumer can do. Role-based access control (RBAC) in Tyk MCP lets you give different agents different views of the same proxy, without creating separate proxy definitions. A policy bound to a key determines which tools that agent can invoke. This guide creates two roles on the Mock MCP Server:
  • Reader: can only call get_users, get_posts, get_products, and get_analytics
  • Admin: can call all 15 tools
You’ll create a policy for each role, issue role-specific keys, then use MCP Inspector to verify that each key sees exactly the tools it is permitted to access.

​
How it works

Tyk policies control consumer access at two levels relevant to this guide: Primitive access: restricts which specific tools a consumer can invoke. When a key’s policy includes an allowed list for tools, Tyk enforces it on both tools/call (blocking disallowed tool invocations) and tools/list (filtering the response so the agent only sees tools it can use). The upstream server is never reached for blocked calls. Proxy access: determines which MCP proxies the key can reach at all. Both keys in this guide point at the same proxy URL. The difference in behavior comes entirely from the policies applied to each key. For the complete policy reference, see MCP policies.

​
Before you begin

  • The Mock MCP Server running on http://localhost:7878. Set up in the quickstart.
  • An MCP proxy named Mock MCP Server with authentication enabled. See How to secure an MCP proxy.
  • Node.js 18 or later (to run MCP Inspector)
  • A Dashboard user account with policy management permissions

​
Instructions

​
Step 1: Create the Reader policy

  1. In the Tyk Dashboard sidebar, click Policies, then click Add Policy.

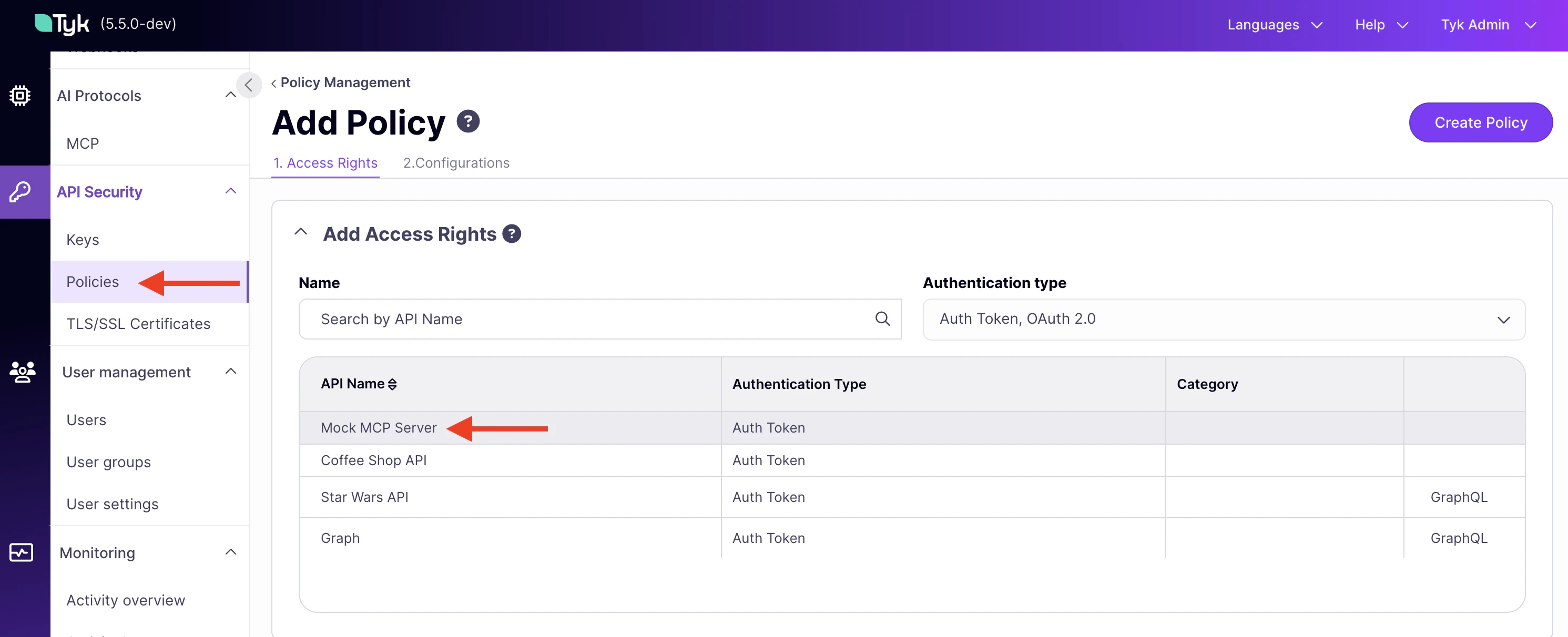

  2. On the Access Rights tab, find Mock MCP Server in the API list and click it to add it. Select Mock MCP Server from the API list
  3. Scroll to Primitive based access within the Mock MCP Server panel and add each permitted tool:
    • Click Add, enter get_users, set Type to Tool, and set the status to Allowed. Click Add.
    • Repeat for get_posts, get_products, and get_analytics.

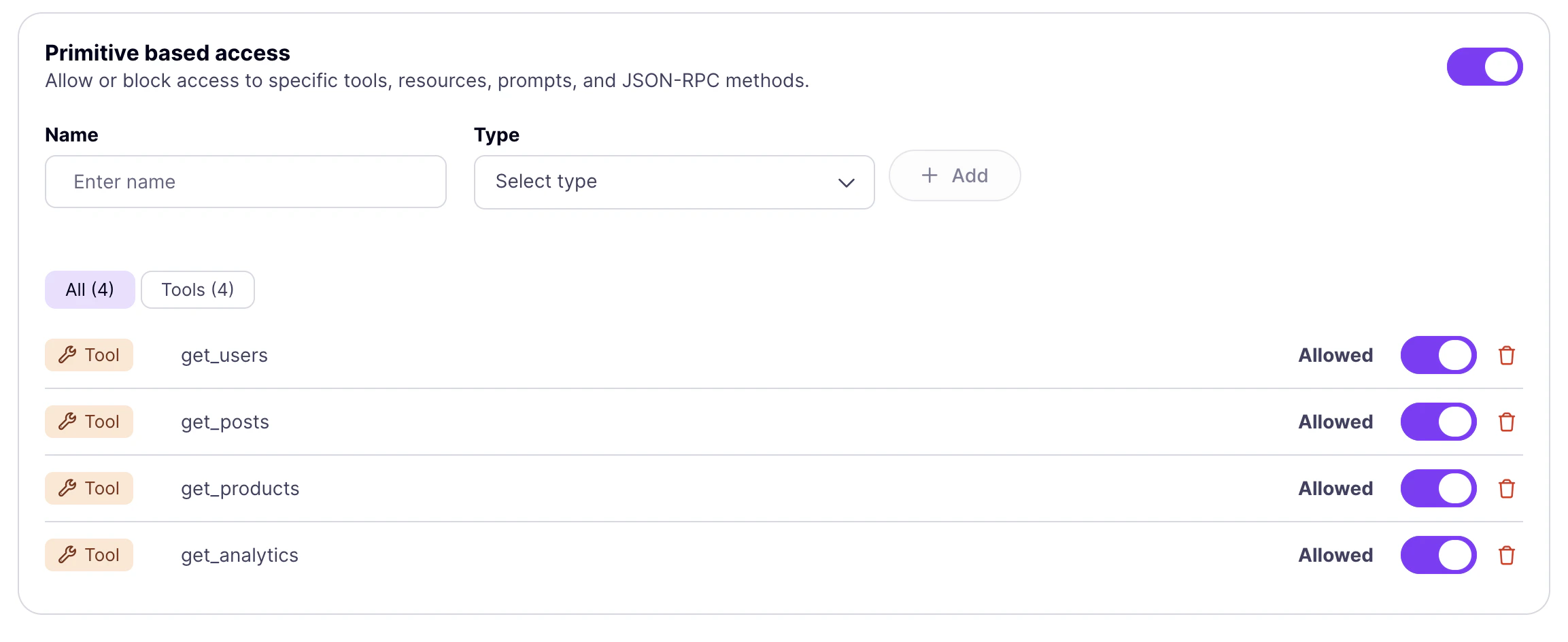

    Primitive based access configuration Once you add any tool with Allowed status, Tyk treats the list as an explicit allowlist: any tool not in the list is blocked for keys on this policy.
  4. Click the Configurations tab and set:
    • Policy Name: Reader
    • Policy State: Active

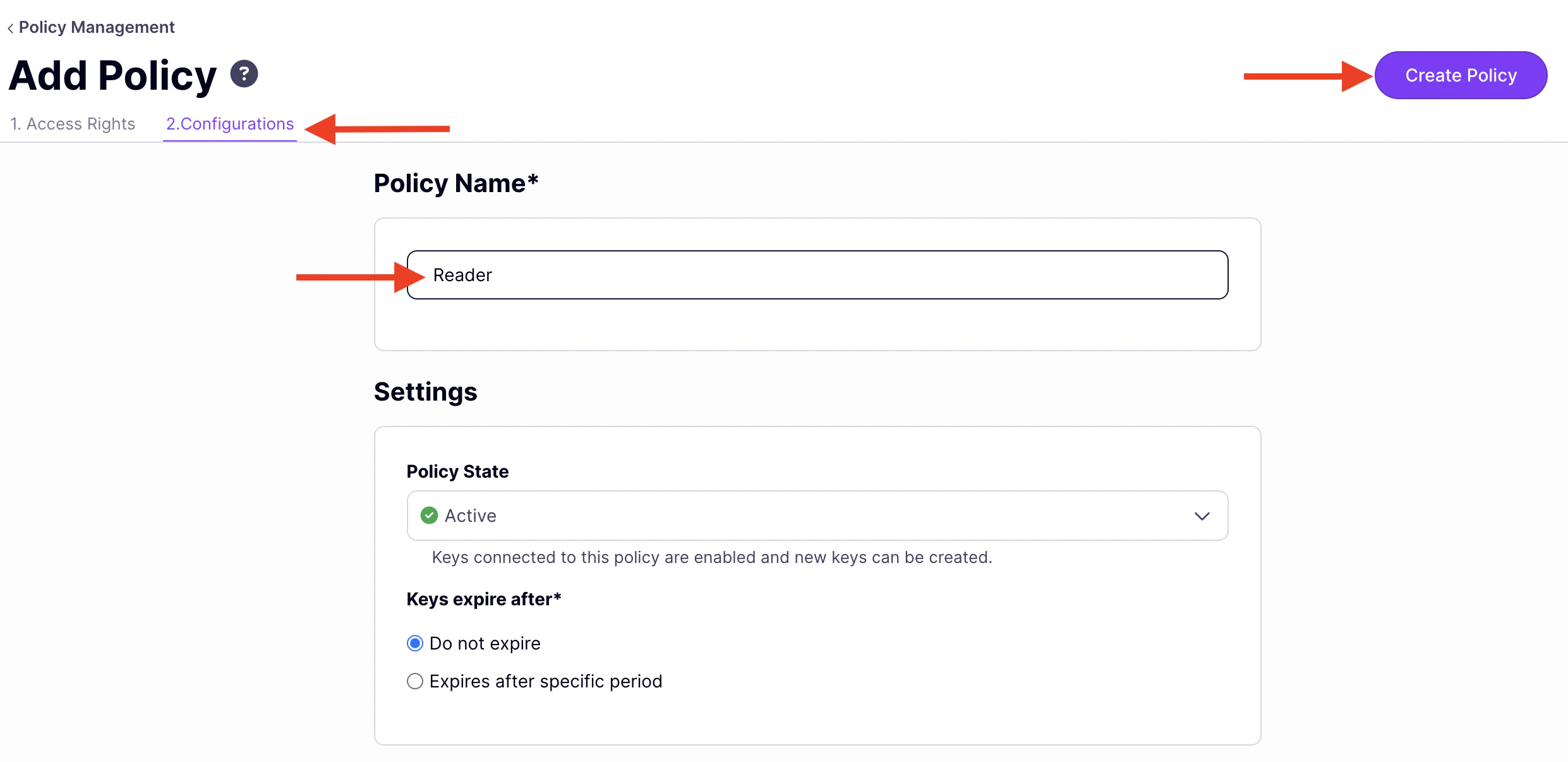

  5. Click Create Policy. Reader policy configuration

​
Step 2: Create the Admin policy

The Admin policy grants unrestricted tool access. Omitting the Primitive based access entries means all tools are accessible.
  1. Click Add Policy.
  2. On the Access Rights tab, add Mock MCP Server.
  3. Click the Configurations tab and set:
    • Policy Name: Admin
    • Policy State: Active
  4. Click Create Policy.

​
Step 3: Issue role-specific keys

  1. In the Dashboard sidebar, click Keys, then Add Key.

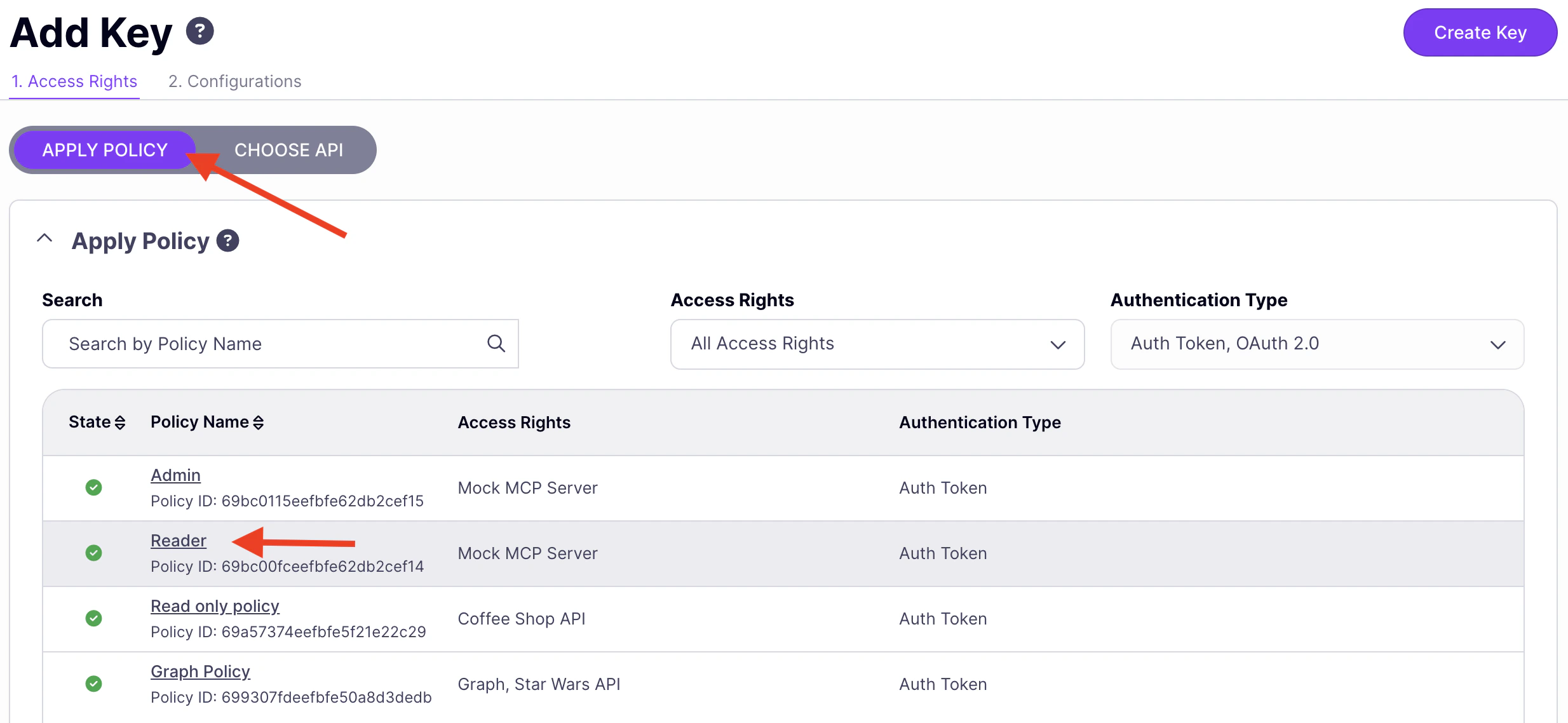

  2. Under Access rights, click Apply Policy and select Reader. Apply Reader policy to key

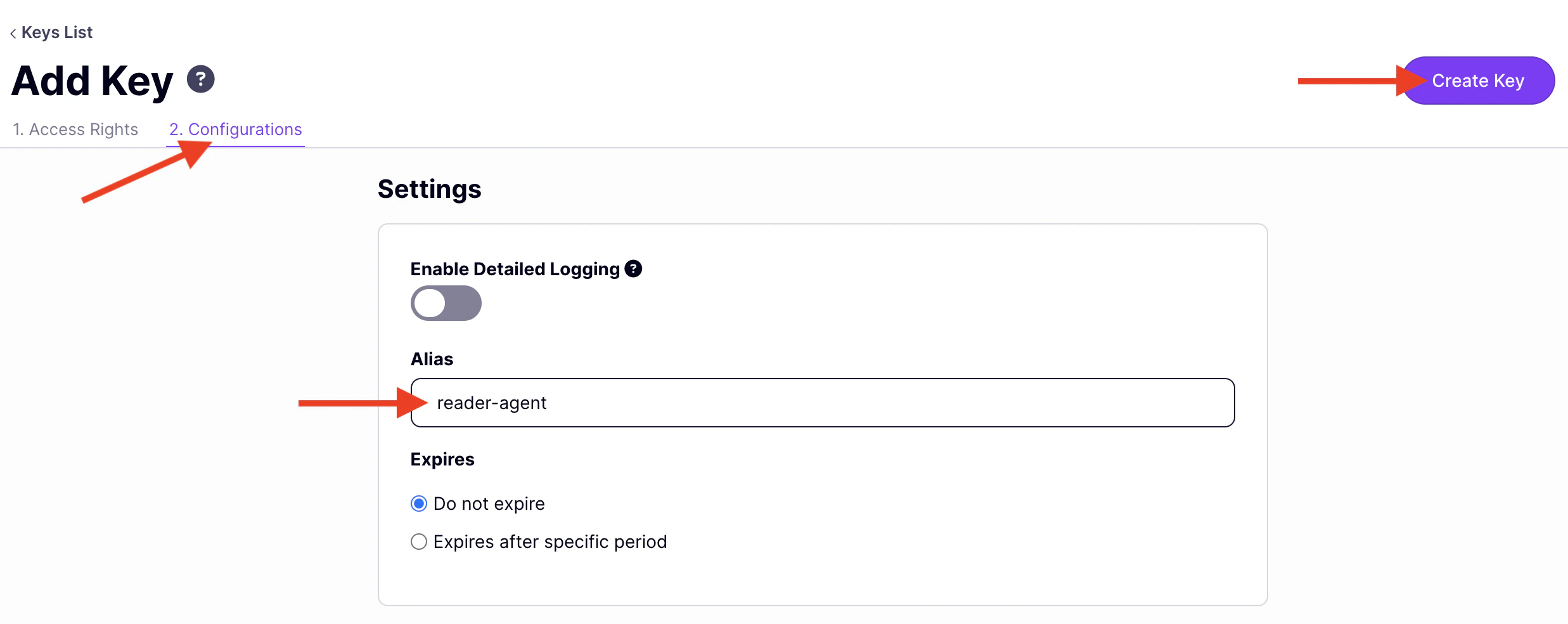

  3. Click the Configurations tab and set an Alias such as reader-agent. Set alias and create key
  4. Click Create Key and copy the key.
  5. Repeat steps 1–4 to issue a second key, selecting Admin as the policy and admin-agent as the alias.

​
Step 4: Verify in MCP Inspector

  1. Start MCP Inspector:
    npx @modelcontextprotocol/inspector
  2. Open the URL printed in your terminal.

​
Test the Reader key

  1. Set Transport Type to Streamable HTTP.
  2. Set URL to your MCP endpoint (find it under MCP Proxy URL in the proxy designer, then append /mcp).
  3. Add a header: Authorization = Bearer {reader-api-key} and click Connect.
  4. Click the Tools tab. You will see exactly four tools: get_users, get_posts, get_products, and get_analytics. Tyk has filtered the tools/list response based on the Reader policy’s allowed list.
  5. Select get_users and click Run. It succeeds.

​
Test the Admin key

  1. Click Disconnect. Replace the key in the Authorization header with your Admin key and click Connect.
  2. Click the Tools tab. All 15 Mock MCP Server tools appear. The Admin policy applies no tool restrictions.
Both keys connect to the same proxy at the same URL. The difference in tool availability is driven entirely by the policy.
