Request Context Variables

Context variables are extracted from the request at the start of the middleware chain. These values can be very useful for later transformation of request data, for example, in converting a form POST request into a JSON PUT request or to capture an IP address as a header.

Context variables must be enabled for your API to access them in transformation middleware. See Enabling Context Variables for configuration instructions.

Available Context Variables

Variable name	Description
`request_data`	If the inbound request contained any query data or form data, it will be available in this object. For the header injector Tyk will format this data as `key:value1,value2,valueN;key:value1,value2` etc.
`path_parts`	The components of the path, split on `/`. These values should be in the format of a comma delimited list.
`token`	The inbound raw token of this user (if bearer tokens are being used).
`path`	The path that is being requested.
`remote_addr`	The client’s IP address.
`request_id`	Allows the injection of request correlation ID (for example X-Request-ID)
`tyk_trace_id`	When OpenTelemetry tracing is enabled on Tyk Gateway, this contains the OpenTelemetry trace ID allocated to the request.
`jwt_claims_CLAIMNAME`	If JWT tokens are being used, then each claim in the JWT is available in this format to the context processor. `CLAIMNAME` is case sensitive so use the exact claim.
`cookies_COOKIENAME`	If there are cookies, then each cookie is available in context processor in this format. `COOKIENAME` is case sensitive so use the exact cookie name and replace any `-` in the cookie name with `_`.
`headers_HEADERNAME`	Request headers are accessed using the following format: Convert the first letter in each word of an incoming header to Capital Case and replace any `-` in the `HEADERNAME` name with `_`. For example, to get the value stored in `test-header`, the syntax would be `$tyk_context.headers_Test_Header`.

From Tyk Gateway 5.13.0, the current session’s rate limit and quota data are available from the following context variables:

Variable name	Description
`rate_limit_limit`	Number of requests that can be sent in the rate limit period
`rate_limit_remaining`	Number of requests remaining in the current rate limit period
`rate_limit_reset`	Timestamp for next rate limit period reset (Unix time)
`quota_limit`	Number of requests that can be sent in the quota period
`quota_remaining`	Number of requests remaining in the current quota period
`quota_reset`	Timestamp for next quota period reset (Unix time)

Middleware That Can Use Context Variables

Context variables are exposed in five middleware plugins but are accessed differently depending on the caller:

Middleware	Syntax
URL Rewriter	`$tyk_context.CONTEXTVARIABLES`
Request Header Transform	`$tyk_context.CONTEXTVARIABLES`
Response Header Transform	`$tyk_context.CONTEXTVARIABLES`
Request Body Transform	`{{ ._tyk_context.CONTEXTVARIABLES }}`
Response Body Transform	`{{ ._tyk_context.CONTEXTVARIABLES }}`

Request Body Transform and Response Body Transform can fully iterate through list indices within context data. For example, calling {{ index ._tyk_context.path_parts 0 }} in the Go Template exposes the first entry in the path_parts list.URL Rewriter, Request Header Transform, and Response Header Transform cannot iterate through list indices.

In Tyk OAS API definitions, add these middlewares under x-tyk-api-gateway.middleware:

Global level (x-tyk-api-gateway.middleware.global): applied across all endpoints in the API.
Operation level (x-tyk-api-gateway.middleware.operations.<operationId>): transformRequestHeaders, transformResponseHeaders, transformRequestBody, transformResponseBody, or urlRewrite, applied to a specific endpoint operation.

If using Tyk Classic APIs, add these middlewares under version_data.versions.<version_name>:

Global level (applies to all paths in the version): global_headers / global_response_headers.
Path level: extended_paths.transform_headers, extended_paths.transform_response_headers, extended_paths.transform, extended_paths.transform_response, or extended_paths.url_rewrites.

Example Use of Context Variables

Examples of the Syntax to Use with Available Context Variables

The following example adds context variables to request headers sent to the upstream. The upstream in this example echoes received request headers back in its response body, which is how the resulting values appear below.

"x-remote-addr": "$tyk_context.remote_addr",
"x-token": "$tyk_context.token",
"x-jwt-sub": "$tyk_context.jwt_claims_sub",
"x-part-path": "$tyk_context.path_parts",
"x-jwt-pol": "$tyk_context.jwt_claims_pol",
"x-cookie": "$tyk_context.cookies_Cookie_Context_Var",
"x-cookie-sensitive": "$tyk_context.cookies_Cookie_Case_sensitive",
"x-my-header": "$tyk_context.headers_My_Header",
"x-path": "$tyk_context.path",
"x-request-data": "$tyk_context.request_data",
"x-req-id": "$tyk_context.request_id",
"x-trace-id": "$tyk_context.tyk_trace_id"

Context Variable Values in the Response

The values below are from the upstream’s echoed response, not values Tyk returns directly to the API client.

"My-Header": "this-is-my-header",
"User-Agent": "PostmanRuntime/7.4.0",
"X-Cookie": "this-is-my-cookie",
"X-Cookie-Sensitive": "case-sensitive",
"X-Jwt-Pol": "5bca6a739afe6a00017eb267",
"X-Jwt-Sub": "john.doe@test.com",
"X-My-Header": "this-is-my-header",
"X-Part-Path": "context-var-example,anything",
"X-Path": "/context-var-example/anything",
"X-Remote-Addr": "127.0.0.1",
"X-Req-Id": "e3e99350-b87a-4d7d-a75f-58c1f89b2bf3",
"X-Request-Data": "key1:val1;key2:val2",
"X-Token": "5bb2c2abfb6add0001d65f699dd51f52658ce2d3944d3d6cb69f07a2",
"X-Trace-Id": "4bf92f3577b34da6a3ce929d0e0e4736"

Enabling Context Variables

Tyk OAS

In Tyk OAS APIs, context variables are enabled by default when creating or importing an API. This is an API-wide setting under x-tyk-api-gateway.middleware.global.contextVariables.enabled

Dashboard
Operator
API Definition

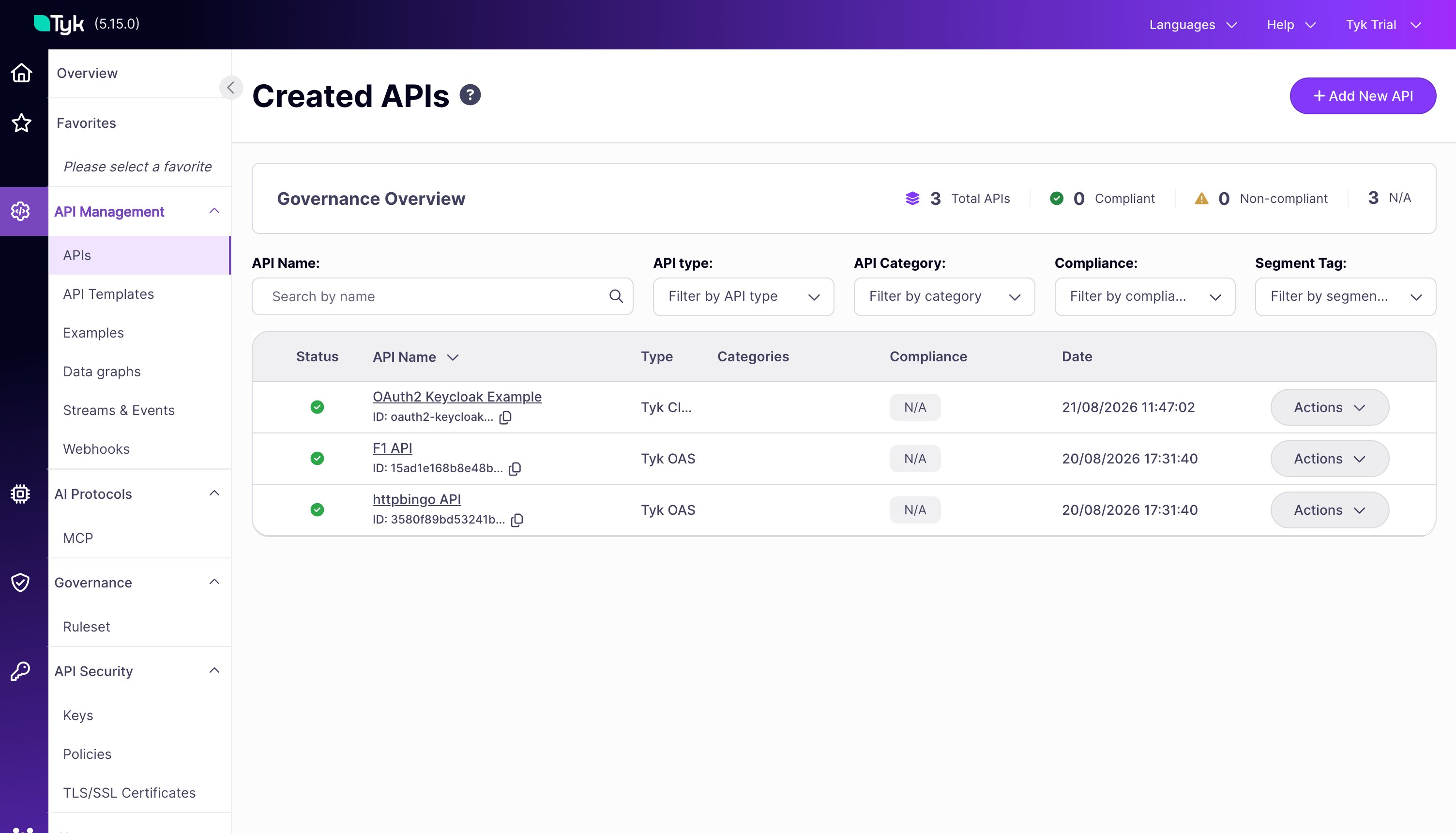

In the Tyk Dashboard, select APIs from the API Management menu.
Select your Tyk OAS API.
Select the Settings tab.

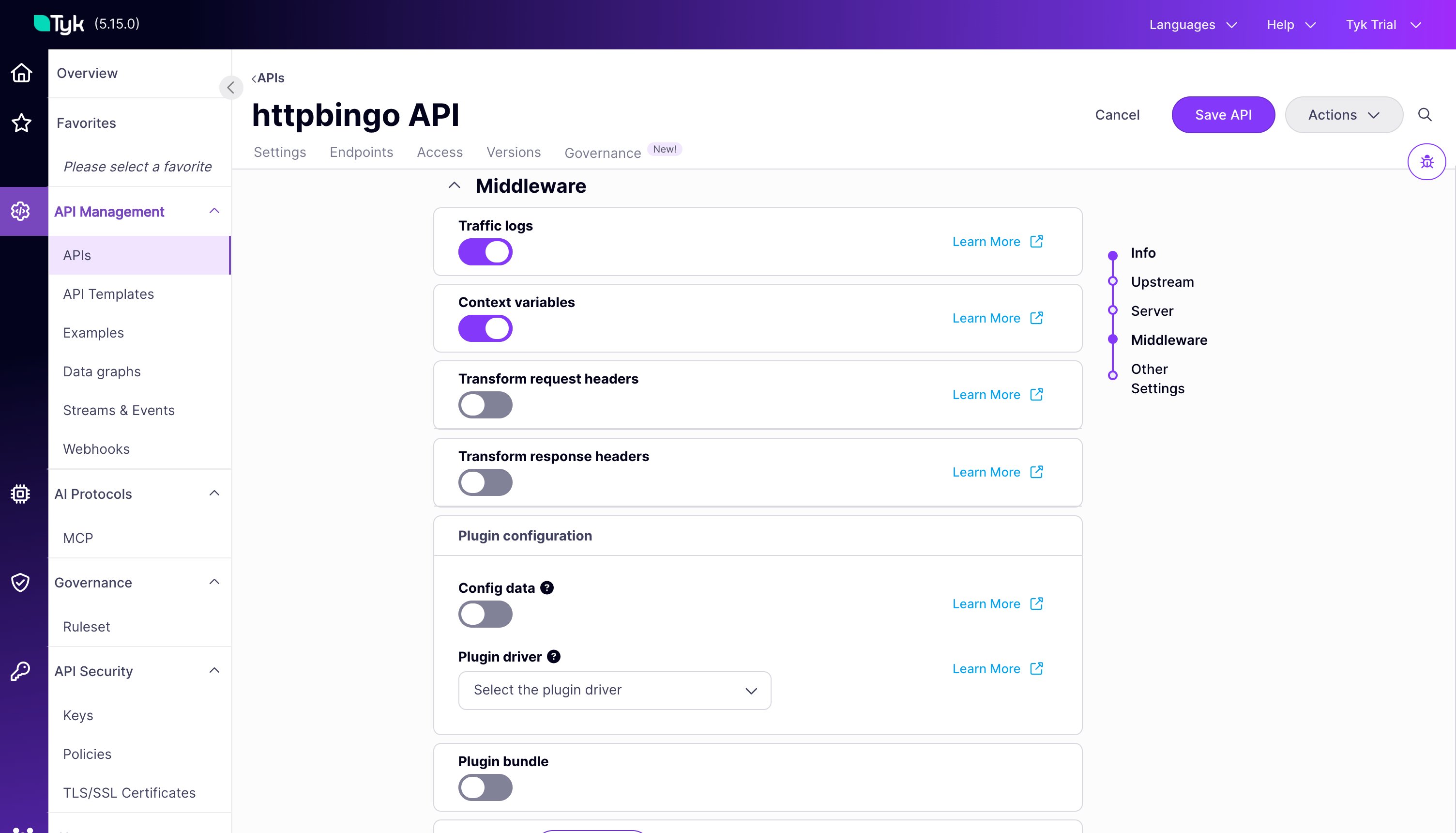

Scroll down to the Middleware section and toggle Context variables to On.
Click Save API.

When using Tyk Operator with TykOasApiDefinition, set x-tyk-api-gateway.middleware.global.contextVariables.enabled to true in the OpenAPI specification stored in the ConfigMap referenced by the custom resource:

apiVersion: v1
kind: ConfigMap
metadata:
  name: httpbin-oas
  namespace: default
data:
  openapi.json: |-
    {
      "openapi": "3.0.3",
      "info": {
        "title": "httpbin",
        "version": "1.0.0"
      },
      "paths": {},
      "x-tyk-api-gateway": {
        "info": {
          "name": "httpbin",
          "state": {
            "active": true
          }
        },
        "upstream": {
          "url": "http://httpbin.org"
        },
        "server": {
          "listenPath": {
            "value": "/httpbin",
            "strip": true
          }
        },
        "middleware": {
          "global": {
            "contextVariables": {
              "enabled": true
            }
          }
        }
      }
    }
---
apiVersion: tyk.tyk.io/v1alpha1
kind: TykOasApiDefinition
metadata:
  name: httpbin
  namespace: default
spec:
  tykOAS:
    configmapRef:
      name: httpbin-oas
      namespace: default
      keyName: openapi.json

In your Tyk OAS API definition file, enable context variables under x-tyk-api-gateway.middleware.global.contextVariables.enabled:

{
  "x-tyk-api-gateway": {
    "middleware": {
      "global": {
        "contextVariables": {
          "enabled": true
        }
      }
    }
  }
}

Tyk Classic

If using Tyk Classic APIs, context variables are disabled by default and must be explicitly enabled (enable_context_vars: true).

Dashboard
Operator
API Definition

In the Tyk Dashboard, select APIs from the System Management menu.
Select your Tyk Classic API.
Select the Advanced Options tab and select Enable context variables.
Click Update.

When using Tyk Operator with Tyk Classic ApiDefinition custom resources, set spec.enable_context_vars to true:

apiVersion: tyk.tyk.io/v1alpha1
kind: ApiDefinition
metadata:
  name: httpbin
spec:
  name: httpbin
  use_keyless: true
  protocol: http
  active: true
  enable_context_vars: true
  proxy:
    target_url: http://httpbin.org
    listen_path: /httpbin
    strip_listen_path: true

If you are not using Tyk Dashboard, add the field enable_context_vars at the root level of your API definition file and set it to true:

{
  "name": "httpbin",
  "enable_context_vars": true
}
