JWT and Keycloak with Tyk

Overview

This guide will walk you through securing your APIs with JWTs via Keycloak.

Prerequisites

A Keycloak installation

  • A Tyk Self-Managed or Cloud installation

Create an application in Keycloak

  1. Access your Keycloak admin dashboard.
  2. Navigate to the Administration console.

Navigate to Keycloak Administration console

  1. Create a Keycloak realm from the top left-hand side dropdown.

Create Keycloak Realm

  1. Create a Keycloak client.

Create Client

Create Client

  • Enter the necessary client details.

Add client details

Add client details

  • Enable client authentication and Service account roles under Authentication flow

Update client permissions

Update client permissions

  • Set the redirection URL rules.

Add redirection URL rules

Add redirection URL rules

  • Save.

Example client

  1. Retrieve client secret from the Credentials tab under the client you just created.

Retrieve client secret

Retrieve client secret

  1. Generate your JWT using curl. This is the token will use to access your services through the Tyk Gateway. You can choose to generate your JWT by using either of the following methods. Make sure to replace the KEYCLOAK prefixed parameters with the appropriate values.

    • Password Grant Type
    curl -L --insecure -s -X POST 'https://KEYCLOAK_URL/realms/KEYCLOAK_REALM/protocol/openid-connect/token' \
       -H 'Content-Type: application/x-www-form-urlencoded' \
       --data-urlencode 'client_id=KEYCLOAK_CLIENT_ID' \
       --data-urlencode 'grant_type=password' \
       --data-urlencode 'client_secret=KEYCLOAK_SECRET' \
       --data-urlencode 'scope=openid' \
       --data-urlencode 'username=KEYCLOAK_USERNAME' \
       --data-urlencode 'password=KEYCLOAK_PASSWORD'

    • Client Credentials Grant Type
    curl -L --insecure -s -X POST 'https://KEYCLOAK_URL/realms/KEYCLOAK_REALM/protocol/openid-connect/token' \
       -H 'Content-Type: application/x-www-form-urlencoded' \
       --data-urlencode 'client_id=KEYCLOAK_CLIENT_ID' \
       --data-urlencode 'grant_type=client_credentials' \
       --data-urlencode 'client_secret=KEYCLOAK_SECRET'


    A typical response will look something like the following:

    {
       "access_token" : "eyJhbGciOiJSUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICJ6MXp6bWw0SmNFd3FBdnBWdEFmV1dGS01hMWppYjR1MlFEM3lzaU81VVJrIn0.eyJleHAiOjE2ODQxNzIxNTUsImlhdCI6MTY4NDE3MTg1NSwianRpIjoiNTkzYzQ4NDUtNDZkZC00MDczLWIxYjktM2Y4NjkxNWE5MmFiIiwiaXNzIjoiaHR0cHM6Ly9sb2NhbGhvc3Q6NzAwMS9yZWFsbXMvand0Iiwic3ViIjoiOTcxNWQ5NzQtMTE1Yi00OWRmLWEyMzUtYzA5MjM2OTVhNDcyIiwidHlwIjoiQmVhcmVyIiwiYXpwIjoia2V5Y2xvYWstand0Iiwic2Vzc2lvbl9zdGF0ZSI6IjRhYWM5M2ZlLTZmNWItNDMyNS05MjlhLTE5MDM5NjY3ZjQ3YiIsImFjciI6IjEiLCJhbGxvd2VkLW9yaWdpbnMiOlsiLyoiXSwic2NvcGUiOiJvcGVuaWQgcHJvZmlsZSBlbWFpbCIsInNpZCI6IjRhYWM5M2ZlLTZmNWItNDMyNS05MjlhLTE5MDM5NjY3ZjQ3YiIsImVtYWlsX3ZlcmlmaWVkIjp0cnVlLCJuYW1lIjoiSm9obiBEb2UiLCJwcmVmZXJyZWRfdXNlcm5hbWUiOiJkZWZhdWx0QGV4YW1wbGUuY29tIiwiZ2l2ZW5fbmFtZSI6IkpvaG4iLCJmYW1pbHlfbmFtZSI6IkRvZSIsImVtYWlsIjoiZGVmYXVsdEBleGFtcGxlLmNvbSJ9.bLEmcjNwU50wQkCiwmU66mCigifn6Qi_9siiTVnNTY9Ju2UiilAFH5c_uZsiQNKkdZ3eOFKjMxP1eeRmPooWIXZa9jMEVra6Aja_2nAm8zzxQhRXtu21bfwMGwkFIjey7i2oQg__CKzNnCby0XarkAlyFZoAxGxIvKyKUvi2geSUDly7tjl0-B5Pc6OChcDYG1bOw963bX3p516xH9DTj8YXh6rvbCqSbIrWi5zuQTXpKlaJnp4Ub5c-VrKQuU2xnqV0BmPwd80i83U0qolXxy8y8uBVlaH69cXgZs_Ak050P0SdLqC-GfWm9c0JCKhj_qw0rSfHDiZA1S2UgrwVYg","expires_in":300,"refresh_expires_in":1800,"refresh_token":"eyJhbGciOiJIUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICIwNTIxMmU4My1jODE3LTQxZmUtYWIxNi0zMTMyMGEyZDY4ODcifQ.eyJleHAiOjE2ODQxNzM2NTUsImlhdCI6MTY4NDE3MTg1NSwianRpIjoiYWY4NTNjZWQtZTExYy00YzlhLWEwMWUtNDliODRhYzFkYWUwIiwiaXNzIjoiaHR0cHM6Ly9sb2NhbGhvc3Q6NzAwMS9yZWFsbXMvand0IiwiYXVkIjoiaHR0cHM6Ly9sb2NhbGhvc3Q6NzAwMS9yZWFsbXMvand0Iiwic3ViIjoiOTcxNWQ5NzQtMTE1Yi00OWRmLWEyMzUtYzA5MjM2OTVhNDcyIiwidHlwIjoiUmVmcmVzaCIsImF6cCI6ImtleWNsb2FrLWp3dCIsInNlc3Npb25fc3RhdGUiOiI0YWFjOTNmZS02ZjViLTQzMjUtOTI5YS0xOTAzOTY2N2Y0N2IiLCJzY29wZSI6Im9wZW5pZCBwcm9maWxlIGVtYWlsIiwic2lkIjoiNGFhYzkzZmUtNmY1Yi00MzI1LTkyOWEtMTkwMzk2NjdmNDdiIn0.xxpghrnDPG6cXZdc1dDd7jFCoNABuXMqshY6PVkA_io","token_type":"Bearer","id_token":"eyJhbGciOiJSUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICJ6MXp6bWw0SmNFd3FBdnBWdEFmV1dGS01hMWppYjR1MlFEM3lzaU81VVJrIn0.eyJleHAiOjE2ODQxNzIxNTUsImlhdCI6MTY4NDE3MTg1NSwiYXV0aF90aW1lIjowLCJqdGkiOiIzNGI4NGM2ZS0yZWZmLTRjOWEtOTJkYi02YTkyZDY4YWJlNGEiLCJpc3MiOiJodHRwczovL2xvY2FsaG9zdDo3MDAxL3JlYWxtcy9qd3QiLCJhdWQiOiJrZXljbG9hay1qd3QiLCJzdWIiOiI5NzE1ZDk3NC0xMTViLTQ5ZGYtYTIzNS1jMDkyMzY5NWE0NzIiLCJ0eXAiOiJJRCIsImF6cCI6ImtleWNsb2FrLWp3dCIsInNlc3Npb25fc3RhdGUiOiI0YWFjOTNmZS02ZjViLTQzMjUtOTI5YS0xOTAzOTY2N2Y0N2IiLCJhdF9oYXNoIjoibUVRMGFfMFNkdklkNDNJejI2NGlsdyIsImFjciI6IjEiLCJzaWQiOiI0YWFjOTNmZS02ZjViLTQzMjUtOTI5YS0xOTAzOTY2N2Y0N2IiLCJlbWFpbF92ZXJpZmllZCI6dHJ1ZSwibmFtZSI6IkpvaG4gRG9lIiwicHJlZmVycmVkX3VzZXJuYW1lIjoiZGVmYXVsdEBleGFtcGxlLmNvbSIsImdpdmVuX25hbWUiOiJKb2huIiwiZmFtaWx5X25hbWUiOiJEb2UiLCJlbWFpbCI6ImRlZmF1bHRAZXhhbXBsZS5jb20ifQ.kPb0NADSHVXei34wQkxnxEapbVwGrFyK_fvLdnVoXCwXx54BzDDXkClneoKXfQBXeamEDA2JoMZxmEEQN9qRyBws6GuCI4zEUYGwTgwr71WPp0BundZpOAoGnyFmEc3-tPkKq--lk9lAV8AVj9ukDXRpaV4wN3N0yu6FQtx2je0pAbQN17WDT8Nkl9woGYVUCiZtD2nYUdVzxFuMFpFjefh5JmQj0KayfX-Q4fEx_hR31_t-tjsN_827OPROnzsBZDN8-mbgMoGg-iwy2r7KD3TVa0auJ2D9CjWjzfNTeMDsomgPxYs9GSGkWpI0o_-xGGaakk4or4PGXJBK2FWzwA",
       "not-before-policy": 0,
       "session_state": "4aac93fe-6f5b-4325-929a-19039667f47b",
       "scope": "openid profile email"
    }


Create your API in Tyk

  1. Log in to your Tyk Dashboard.
  2. Create a new HTTP API (the default http://httpbin.org upstream URL is fine.)

Create a new HTTP API

  • Scroll to the Authentication mode section and select JWT from the list.
  • Select RSA public Key as JWT Signing method.
  • Add your JSON Web Key Sets (JWKS) URL in the Public Key box. This can be found through the well-known config endpoint or is typically https://KEYCLOAK_URL/realms/KEYCLOAK_REALM/protocol/openid-connect/certs.
  • Add an Identity Source and Policy Field Name. The defaults of sub and pol are fine.
  • Click on the update button to save API

Create API

Create API

  1. Create a policy to manage access to your API.

    • Navigate to the Policies section on the left-hand side menu.
    • Click on Add Policy on the top +right-hand side of your screen.
    • Select your API from the Add API Access Rights list

Select API for Security Policy

  • Click on the Configurations tab and choose a policy name and TLL.

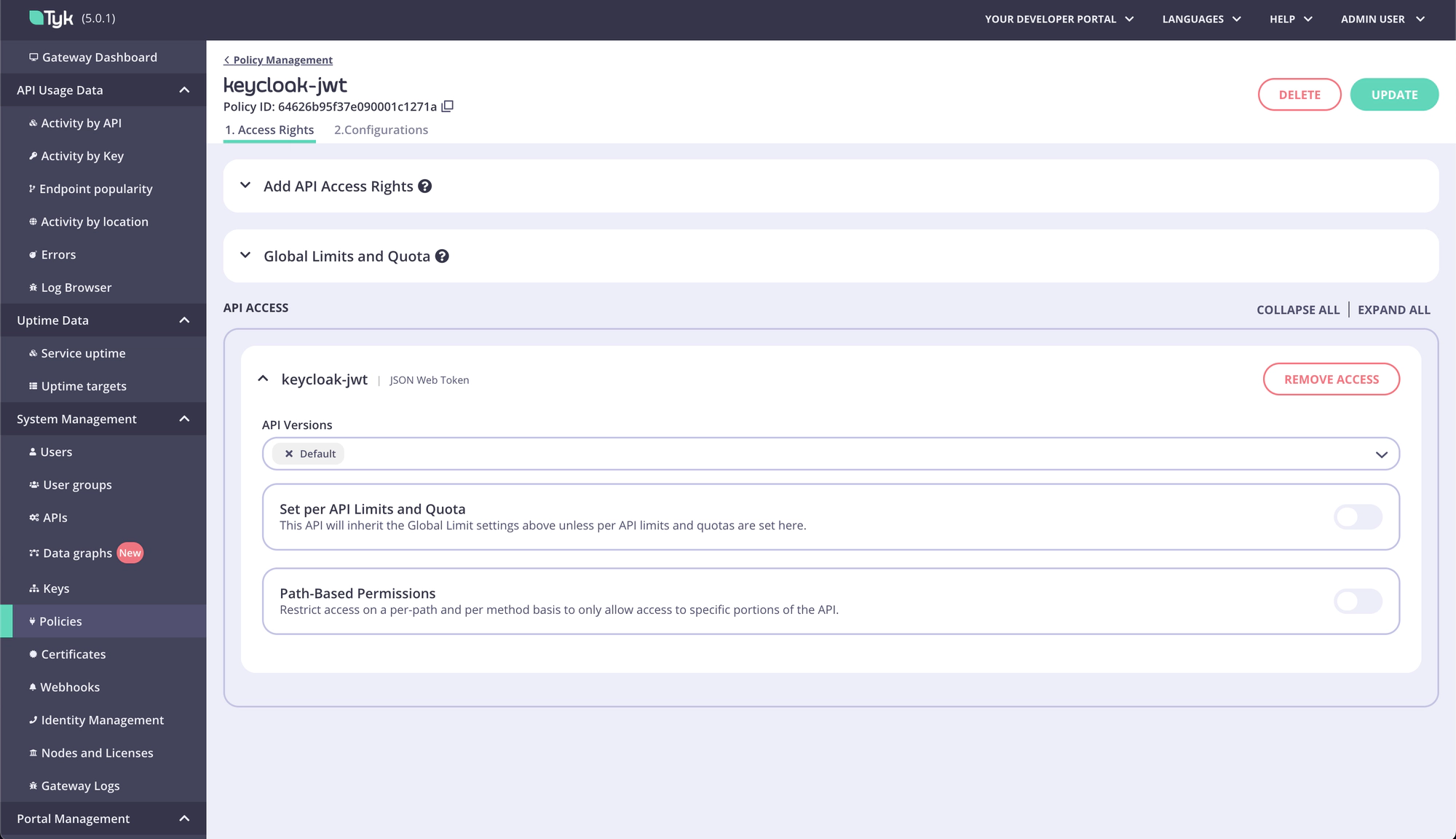

Create API Security Policy

API Security Policy Result

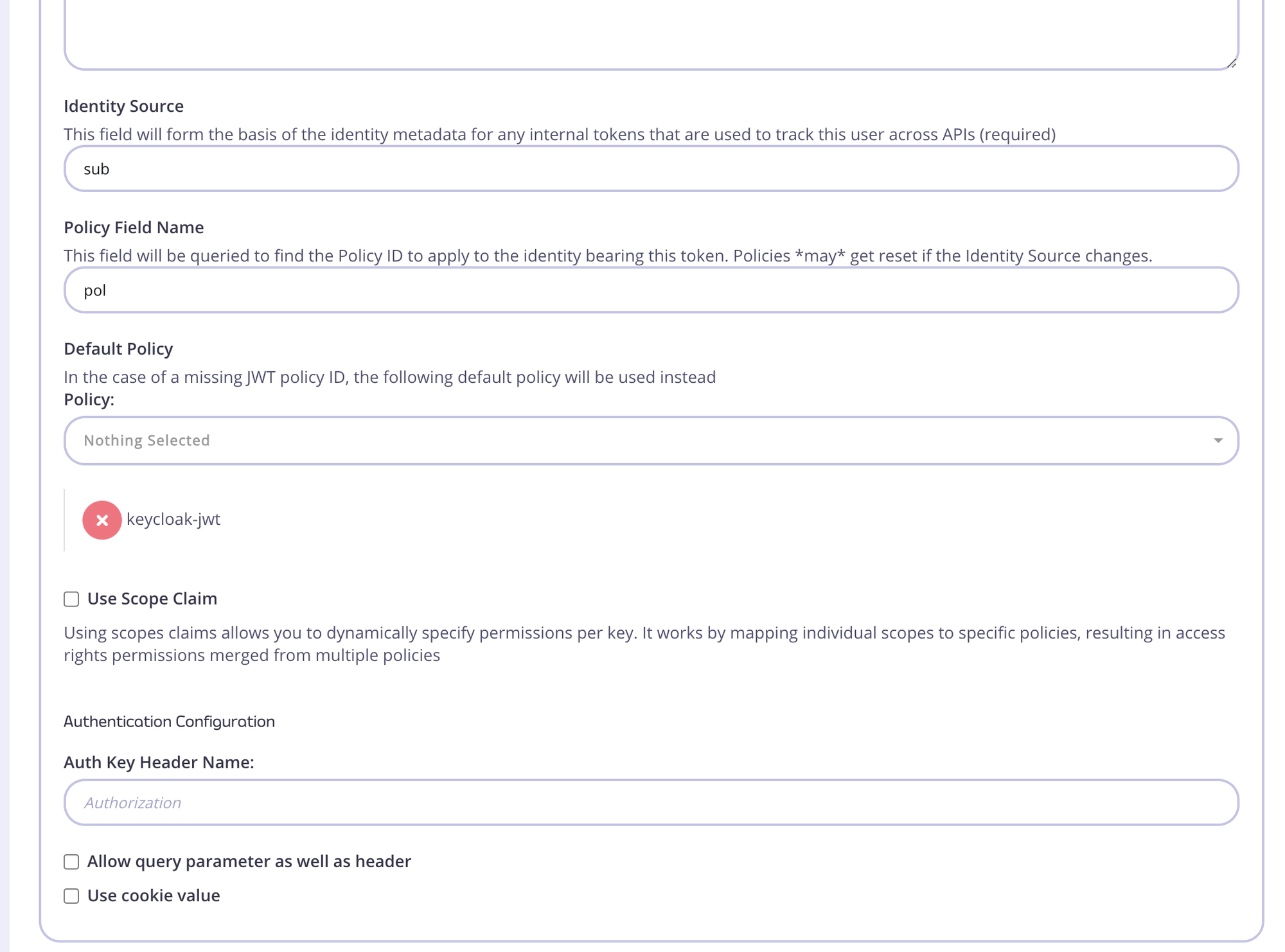

  1. Add default policy to API

Add default policy to API

Add default policy to API

  1. Test access to API using curl

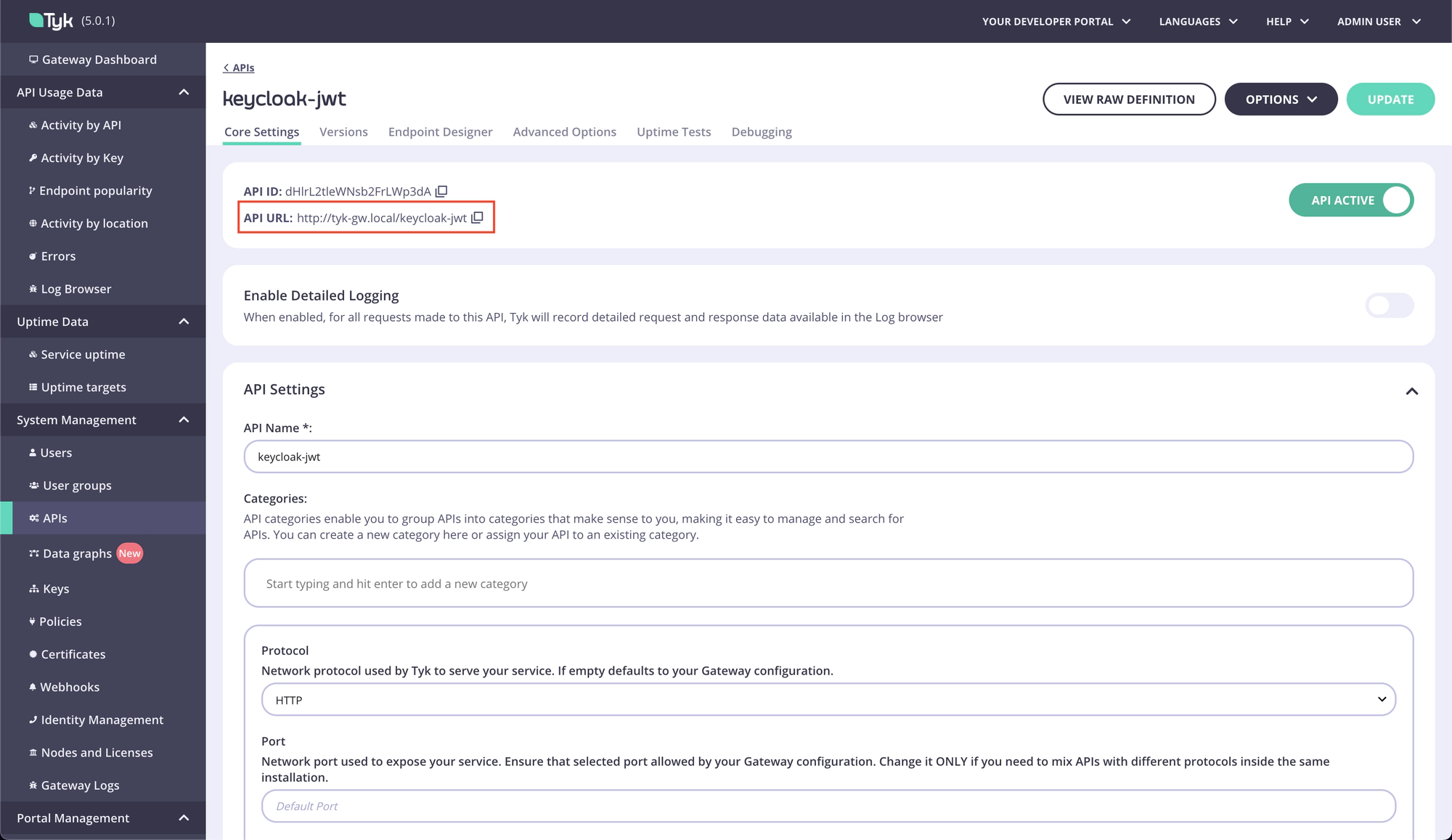

    • Retrieve API URL

Add default Policy to API

Add default Policy to API

  • Test with curl. Make sure to replace TOKEN with the JWT you recieved from the curl earlier.
curl 'http://tyk.gateway.local/keycloak-jwt/get' \
 	-H "Authorization: Bearer TOKEN"

Running in k8s

If you are looking to POC this functionality in k8s you can run a fully worked-out example using our tyk-k8s-demo library. You can read more here.
