Secrets Management

Tyk AI Studio provides a secure mechanism for storing and managing sensitive information, such as API keys, passwords, authentication tokens, or other credentials required by various platform configurations.

Purpose

The Secrets Management system aims to:

• Prevent Exposure: Avoid hardcoding sensitive values directly in configuration files or UI fields.
• Centralize Management: Provide a single place to manage and update credentials.
• Enhance Security: Store sensitive data encrypted at rest.

Core Concepts

• Secret: A named key-value pair where the ‘key’ is the Variable Name used for reference, and the ‘value’ is the actual sensitive data (e.g., an API key string).

• Encryption:

  • Secret values are encrypted at rest within Tyk AI Studio’s storage.
  • The encryption and decryption process relies on a key derived from the TYK_AI_SECRET_KEY environment variable set when running the Tyk AI Studio instance.
  • CRITICAL: The TYK_AI_SECRET_KEY must be kept confidential and managed securely. Loss of this key will render existing secrets unusable. Changing the key will require re-entering all secrets.

• Reference Syntax: Secrets are referenced within configuration fields (like API key fields in LLM or Tool setups) using a specific syntax:

  $SECRET/VariableName


  Replace VariableName with the exact name given to the secret when it was created (e.g., $SECRET/OPENAI_API_KEY, $SECRET/JIRA_AUTH_TOKEN).

• Runtime Resolution: When a configuration uses a field containing a secret reference (e.g., $SECRET/MY_KEY):

  1. The configuration itself stores the $SECRET/MY_KEY string, not the actual secret value.
  2. Only when the system needs the actual value at runtime (e.g., the Proxy preparing a request for an LLM, or a Tool calling its external API), Tyk AI Studio retrieves the encrypted secret value, decrypts it using the TYK_AI_SECRET_KEY, and injects the plain text value into the operation.
  3. The decrypted value is typically used immediately and not persisted further.

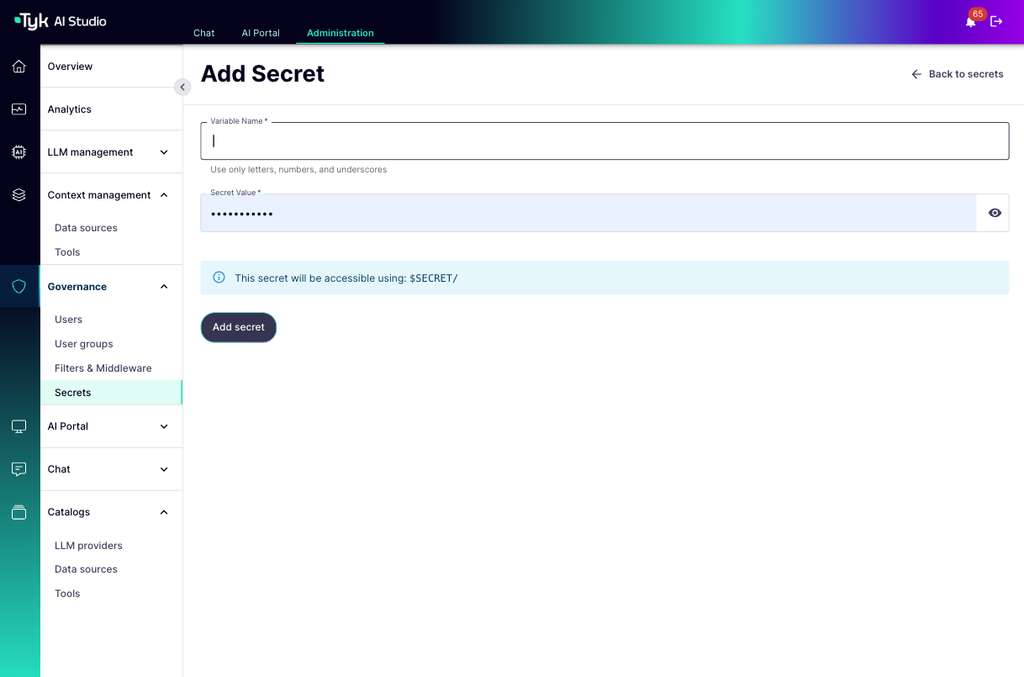

Creating & Managing Secrets (Admin)

Administrators manage secrets via the Tyk AI Studio UI or API:

1. Navigate to the Secrets management section.

2. Create a new secret by providing:

   • Variable Name: A unique identifier (letters, numbers, underscores) used in the $SECRET/VariableName reference.
   • Secret Value: The actual sensitive string (e.g., sk-abc123xyz...).

3. Save the secret. It is immediately encrypted and stored.



Secrets can be updated or deleted as needed. Updating a secret value will automatically apply the new value wherever the $SECRET/VariableName reference is used, without needing to modify the configurations themselves.

Usage Examples

Secrets are commonly used in:

• LLM Configurations: Storing API keys for providers like OpenAI, Anthropic, Google Vertex AI, etc.
  • Example: In the API Key field for an OpenAI configuration: $SECRET/OPENAI_API_KEY
• Tool Configurations: Storing API keys, authentication tokens (Bearer, Basic Auth), or other credentials needed to interact with the external API the tool represents.
  • Example: In a field for a custom header for a JIRA tool: Authorization: Basic $SECRET/JIRA_BASIC_AUTH_TOKEN
• Data Source Configurations: Storing API keys or connection credentials for vector databases (e.g., Pinecone, Milvus) or embedding service providers.
  • Example: In the API Key field for a Pinecone vector store: $SECRET/PINECONE_API_KEY

Security Considerations

• Protect TYK_AI_SECRET_KEY: This is the master key for secrets. Treat it with the same level of security as database passwords or root credentials. Use environment variable management best practices.
• Principle of Least Privilege: Grant administrative access (which includes secrets management) only to trusted users.
• Regular Rotation: Consider policies for regularly rotating sensitive credentials by updating the Secret Value in Tyk AI Studio.
