Tyk Enterprise Developer Portal

What is Enterprise Developer Portal?

The Tyk Enterprise Developer Portal is the most flexible and straightforward way for API providers to publish, monetize and drive the adoption of APIs. It provides a full-fledged CMS-like system that enables you to serve all stages of API adoption: from customization the look and feel to exposing APIs and enabling third-party developers to register and use your APIs.

The Tyk Enterprise Developer Portal enables you to:

• Completely customize look and feel of the portal.
• Combine multiple APIs into API product and supply them with OpenAPI documentation and tutorials.
• Create multiple organizations and teams to segment your developer audience.
• Create multiple API catalogs to tailor visibility of API products and plans to different audiences.
• Integrate with the most popular Identity providers via Dynamic client registration.
• Fully control the flow of the developer sign-up and enrollment.

Where does it fit?

Tyk Developer Portal enables multiple instances of Tyk Manager, also referred to as a Provider because we will soon include other API Managers and Gateways! Each provider provides a list of Policies, APIs and Keys. In turn, when the API consumer makes a request and it is approved, the Portal issues a provisioning request to the relevant control plane to issue a key.

Developer Portal Concepts

This section provides an overview of the most common concepts for the Developer Portal. When starting out with the Developer Portal, we recommend reading this through, ensuring you have a basic understanding of what these terms refer to.

API Products

An API product is usually a grouping of API resources which have a value proposition to the API consumer. For example a ‘Weather API’ might bundle current weather with historical and forecasted weather APIs.

API Plans

A plan is a way for API providers to create multiple quotas and/or rate limiting options for API consumers. It could be based on price, or commercial agreements with the API consumer.

Provisioning Request

When an external api-consumer requests access to subscribe to a plan, a provisioning request will be sent to the portal admin, to either approve it or reject it.

Apps

An app can be viewed as a simple wrapper for one or more sets of access credentials issued to an API-consumer. Multiple requests can be added into one single app. Users can manage those credentials (e.g. rotate keys) from this app section.

Access Credentials

This is the unified naming for any API Keys, Tokens or Secrets provisioned for a specific app.

API Consumers

API consumers are all external portal users/developers that are consuming and requesting access to APIs.

This section includes:

• Users: Individual external API consumers
• Teams: Groups of API consumers
• Organizations: Grouping teams of API consumers

Here is a potential set-up

Catalogs

Catalogs enable the publishing API products and plans based on visibility and access requirements. The catalog can be set to public or private. As an admin you can customize the audience of a private catalog at a team level, allowing you to create completely custom catalogs if needed.

Here’s an example of how you could set up catalogs for the users above:

Admin users

The internal users of the admin app.

Developer Portal

When referring to the Developer Portal, we’re referring to the portal website in which external developers (what we refer to as API-consumers) can browse, view and request access to APIs.

Using a policy in Tyk Self-Managed to create your API product

To create an API Product you need to create a policy which enforces only Access rights.

Using a policy in Tyk Self-Managed to create your plan

To create an API Product you need to create a policy which enforces only quota and rate limit.

Getting Started with Portal

To get started with the Enterprise Developer portal, you need to accomplish four steps:

1. Connect to a provider (Tyk Self Managed)
2. Create and import API Products and Plans in your Tyk Self Managed Instance
3. Create catalogs and developer audiences
4. Publish API Products and Plans to the Developer portal so that API consumers can access them

After the last step, you can start serving APIs to your developer audience.

Install Developer Portal

Refer the install guide.

Connect to a Provider

The first step in getting started with the developer portal is to connect the portal to a provider. Currently, the Tyk Enterprise Developer Portal supports only the Tyk Dashboard as an API Provider, with the ability to connect multiple instances of the Tyk Dashboard to the portal. When the connection is established, the portal will import policies as API Products to the portal. The Getting started guide explains how to set up a policy and import it to the portal.

Prerequisites

• A Tyk Self-Managed installation
• The Enterprise portal installed.
• A login for the portal admin app.

Steps for Configuration

1. Go to the provider section in the portal admin dashboard
2. Click Add provider
3. Add your provider details

Field	Description
Name	This is an internal reference to the provider.
Provider type (disabled)	This refers to the type of provider; however, the only supported provider at this stage is Tyk Self-Managed.
URL	The URL refers to the provider host URL for your Tyk Self-Managed installation. Within the Tyk instance, the URL can be simply copied.
Gateway URL	The gateway URL refers to the URL that the portal developers will use for requesting queries and accessing credentials.
Secret	The Secret can be fetched from the Tyk Self-Managed / Tyk analytics dashboard. The procedure is as follows: Go to the Tyk Dashboard. Navigate to Users. Select a user with the permissions you want to bring on to the portal. You can find the secret under API Access Credentials. (Optional). You can find the organization id listed under Organization ID if your use case requires this. Please note that the Portal will share the same permissions that the user selected to provide the secret.
Organization ID	The org id is required in order to connect to your installation as a provider. It can be found in the user profile within the Tyk Dashboard.
Policy tags	This is an optional field that can be used to define which policies from Tyk will be imported to the portal. If a tag is defined here, it needs to also be defined in the Policy section in the Tyk Dashboard. If this field is left empty in both this provider section and in the policies within Tyk, then all policies will be imported from the Tyk instance. How to include the label in the policy section inside Tyk, is explained in Publish API Products and plans for the public-facing portal.

4. Save your changes

How to find the Secret and Org ID inside your Tyk Dashboard?

1. Select Users from the System Management section.
2. In the users list, click Edit for your user.
3. The Secret is the Tyk Dashboard API Access Credentials. The Organization ID is underneath Reset key.



4. Select APIs from the System Management section.
5. From the Actions menu for your API, select Copy API ID.

Create API Products and Plans

There are two ways of creating API Products and Plans in the Developer Portal:

1. Automatically create an API Product or Plan in the Developer Portal by importing it from Tyk when synchronising the provider.
2. Manually create an API Product or Plan in the Developer Portal. (Only from version 1.13.0)

Prerequisites

• A Tyk Self-Managed installation
• Tyk Self-Managed added as a provider
• Have APIs created in your Tyk installation.

Import API Product and Plan

When integrating with Tyk, the Tyk policies will be imported into the Developer Portal. Depending on the configuration that’s been set in the policy section, the policy will either be imported as an API Product or a Plan. For further details check the portal key concepts document.

Create and Import an API Product from Tyk

API Products are partitioned policies that provide an ACL but not quota/rate limits. The following steps explain how to create and import an API product from Tyk, assuming you have one or more APIs already created:

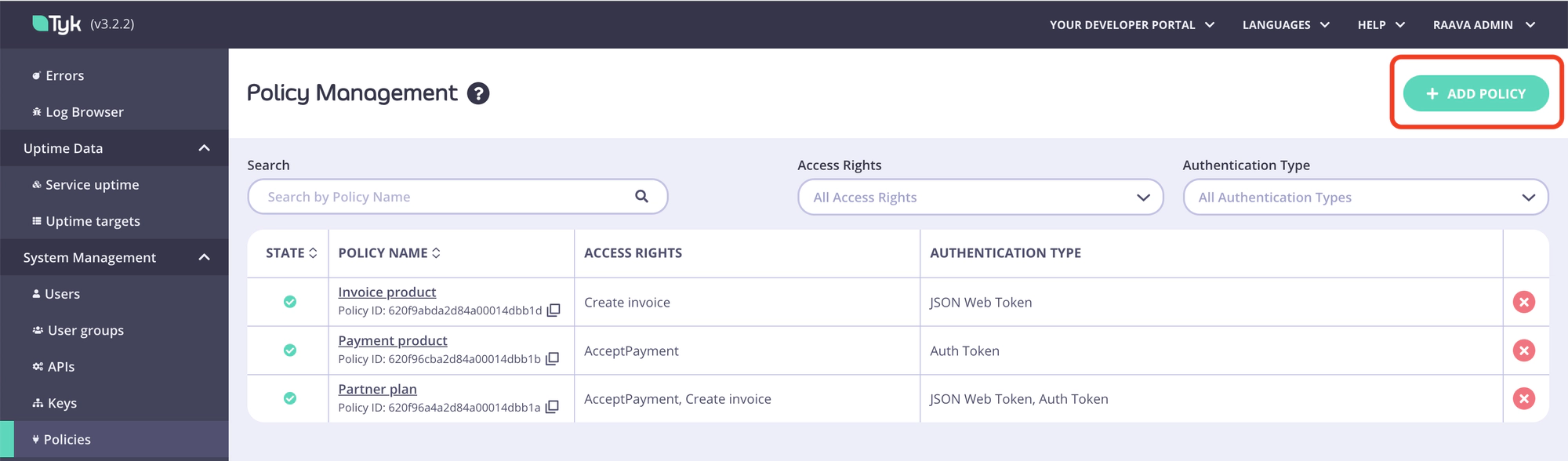

1. From your Tyk Self-Managed installation, go to Policies and click Add policy.

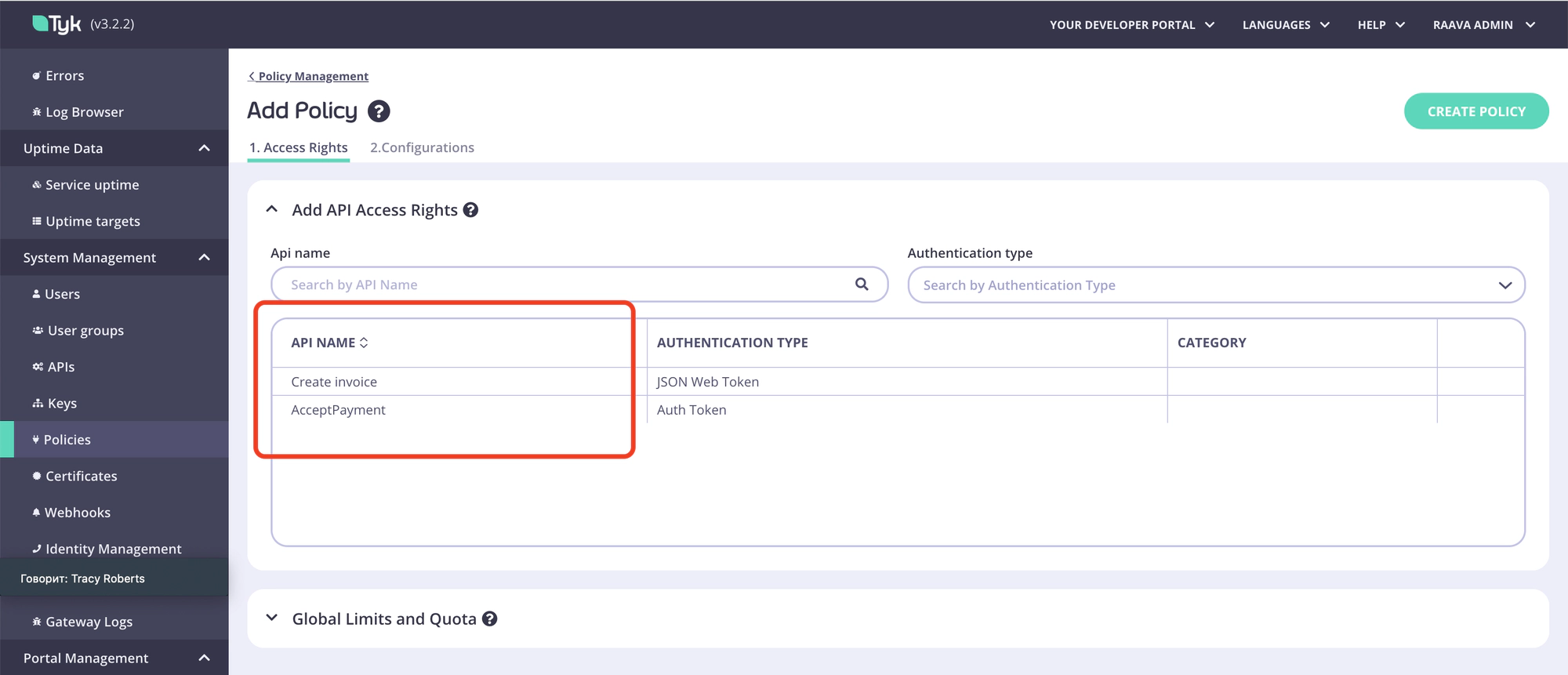

2. Select which APIs you want to add to your API product.



3. From the Access Rights drop-down list, select one or more APIs to include in your policy.

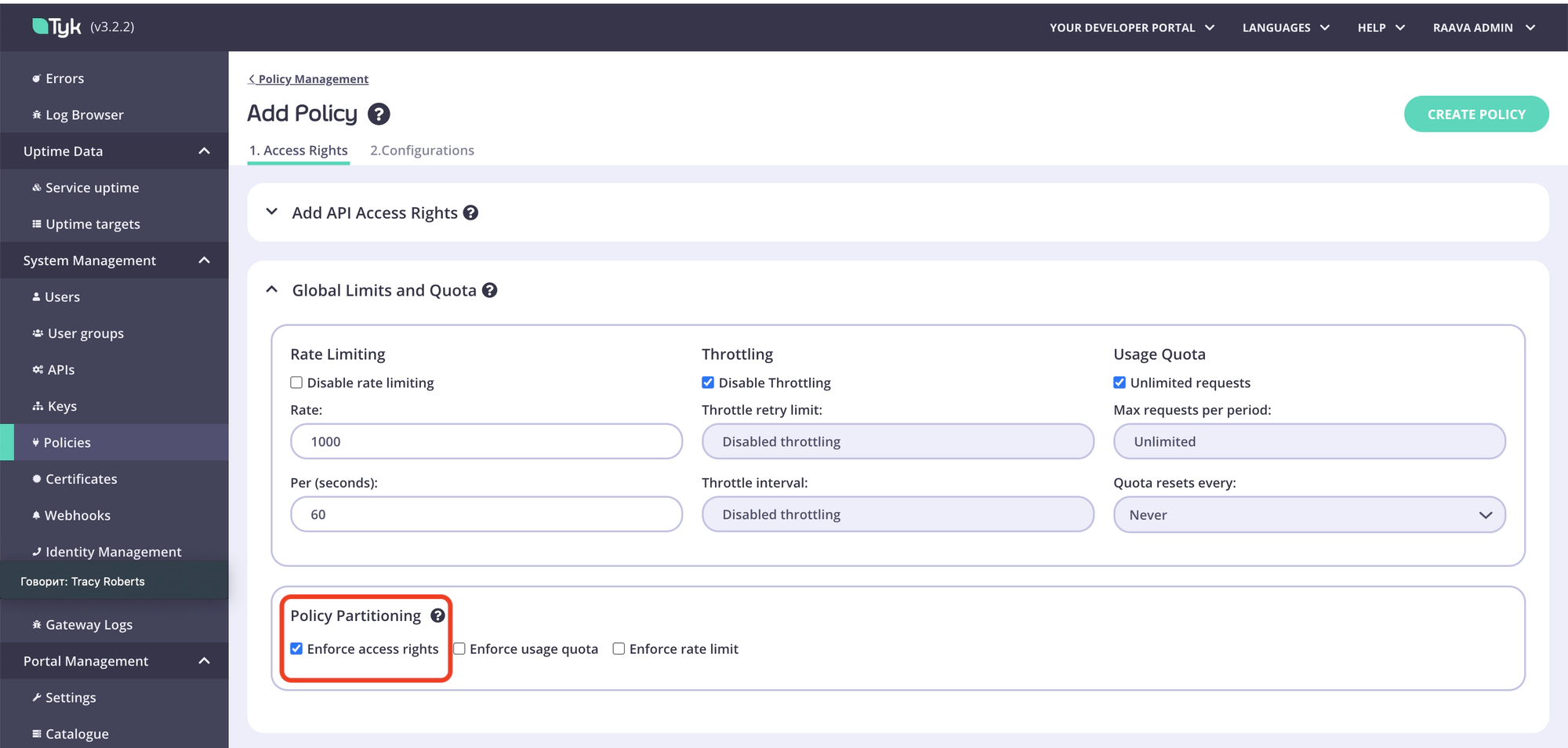

4. Under Global limits and Quota, select Enforce access rights. Ensure Enforce usage quota and Enforce rate limit are not selected.



5. From the Configurations tab, add the information needed under name and settings.

6. From the Tags tab, a tag can be added to tell the portal this should be imported. If you have specified a specific label in the Provider section within the Developer portal when adding Tyk, the way the portal would know which Policies to import can be specified here.



7. To import the API Products into the Developer portal, from the Tyk Portal admin app, click Synchronise.



Create and Import Plans from Tyk

Plans are policies that implement rate limit or quota, or both, but do NOT include the ACL. To create a Plan for the developer portal, follow the same steps as for creating an API Product. However, within the Global limits and quota in the Policies, configure the policy as follows:

1. From your Tyk Self-Managed installation, go to Policies and click Add policy.



2. Select an API. Please note that this a required field. The purpose of the policy explained in this guide is to control allowance, so you can select any API here.

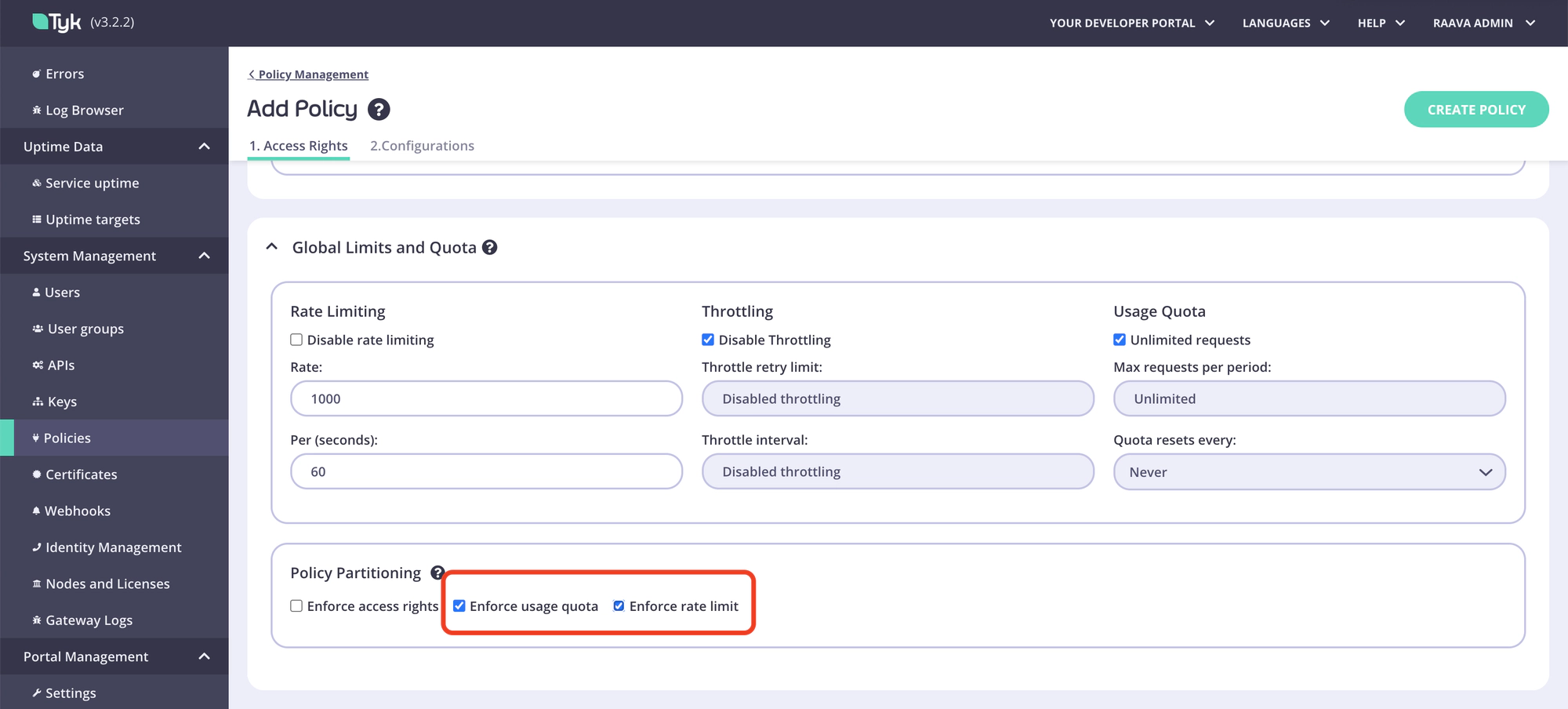

3. Under Global limits and Quota, select Enforce usage quota and Enforce rate limit. Ensure Disable rate-limiting and Unlimited requests are not selected so you can set these limits.

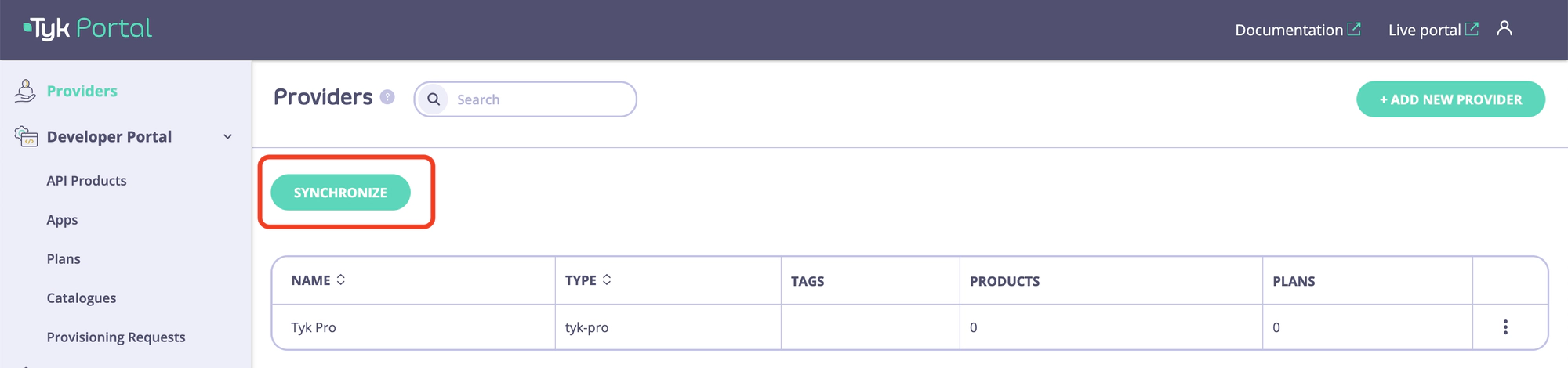

4. Click Synchronise to import the plans into the Developer portal, from the Tyk Portal admin app.



Manually Create API Product and Plan

From version 1.13.0, the Developer Portal allows you to create API Products and Plans from the portal dashboard for admins. When manually creating an API Product or Plan, the corresponding policy will be created in the Tyk Self-Managed selected provider.

Create API Product

When creating an API Product in the Developer Portal, a partitioned policy that provides an ACL but not quota/rate limits will be created in the Tyk Self-Managed selected provider. The following steps explain how to create an API Product in the Developer Portal:

1. From the Tyk Portal admin app, go to API Products and click Add new API Product.

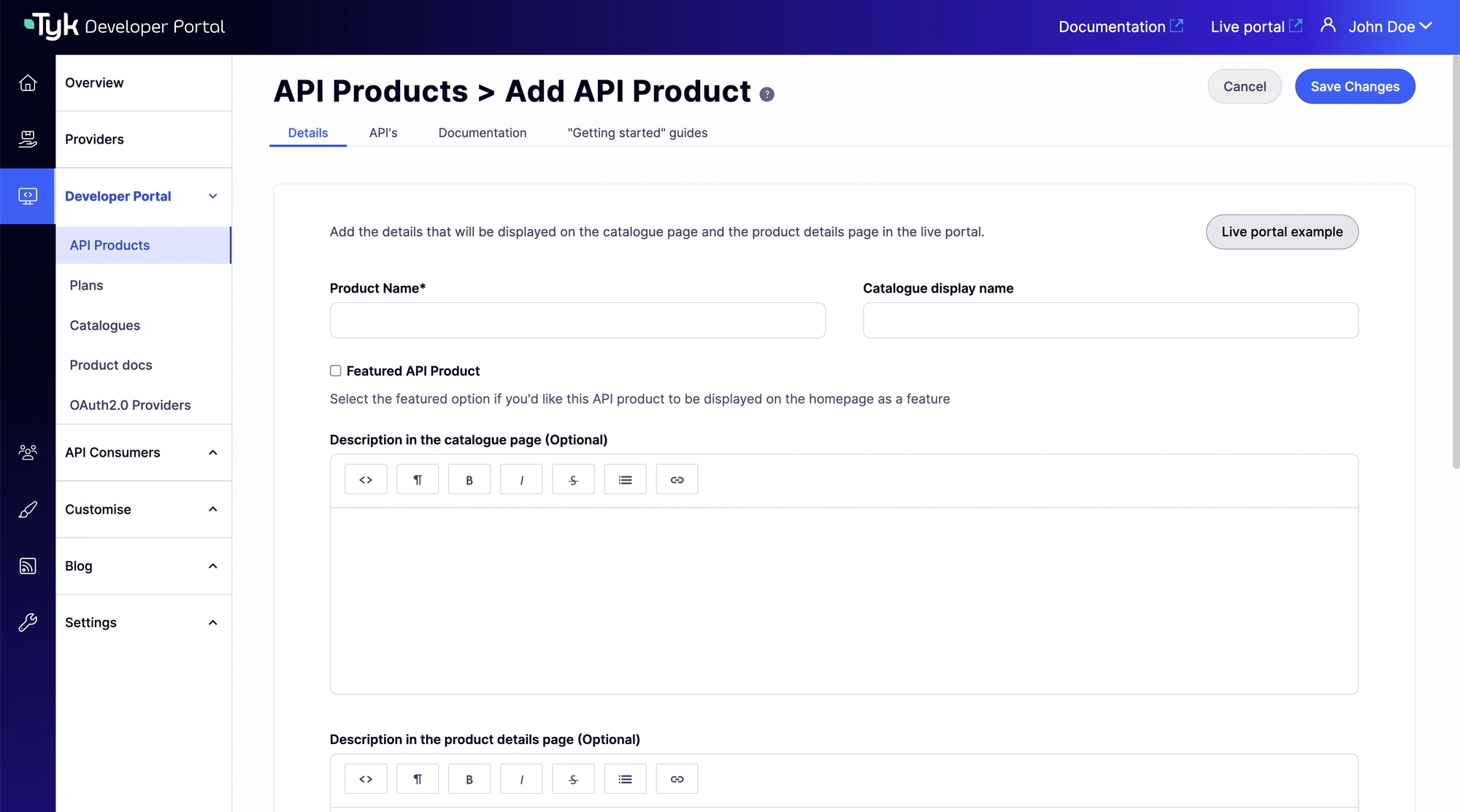

2. Select a unique name for the API Product and complete the product details for customization in the Details tab. The product name will be the name assigned to the created policy in the Tyk Self-Managed selected provider

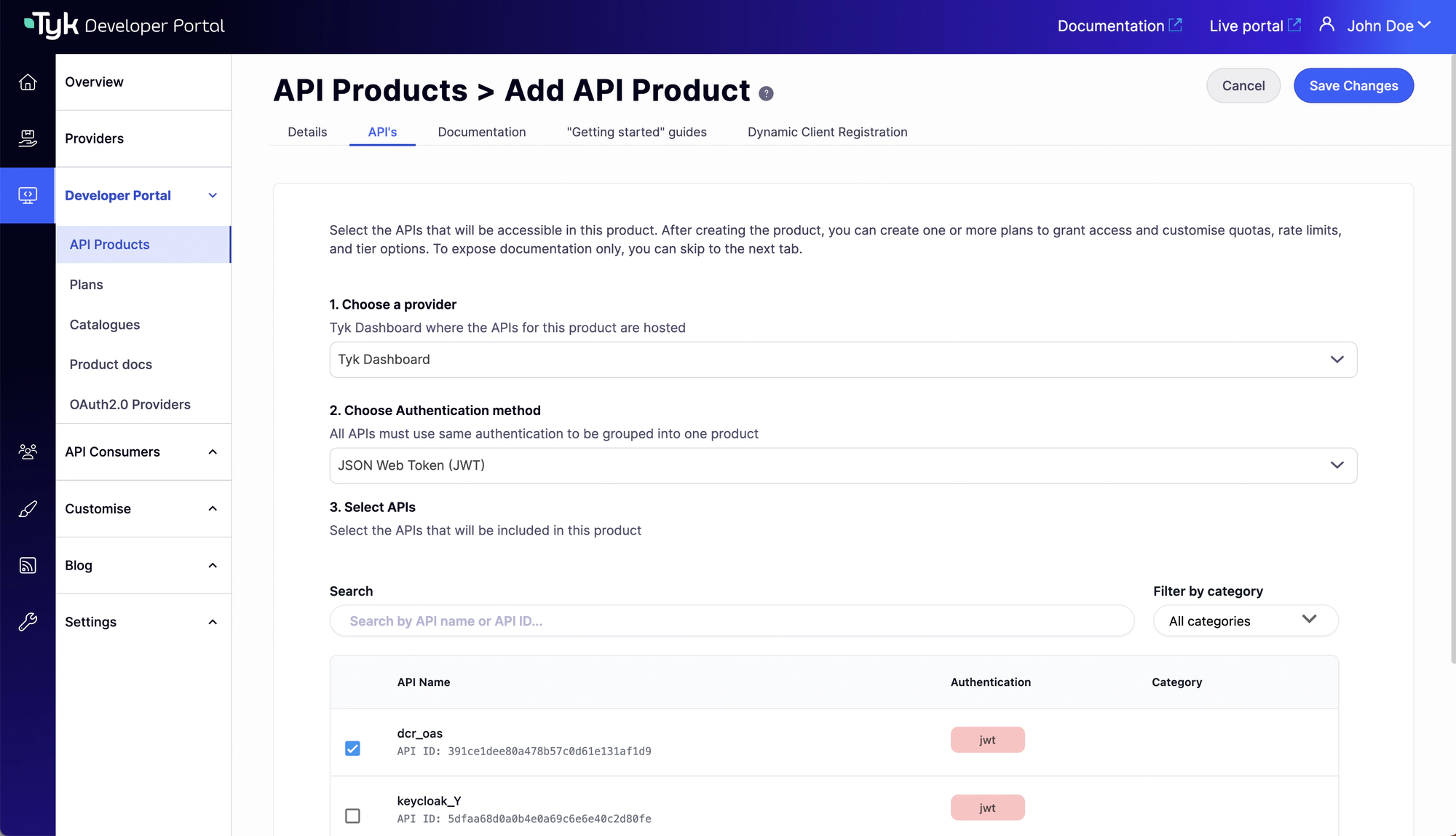

3. Select Provider, Authentication, and APIS in the API’s tab.

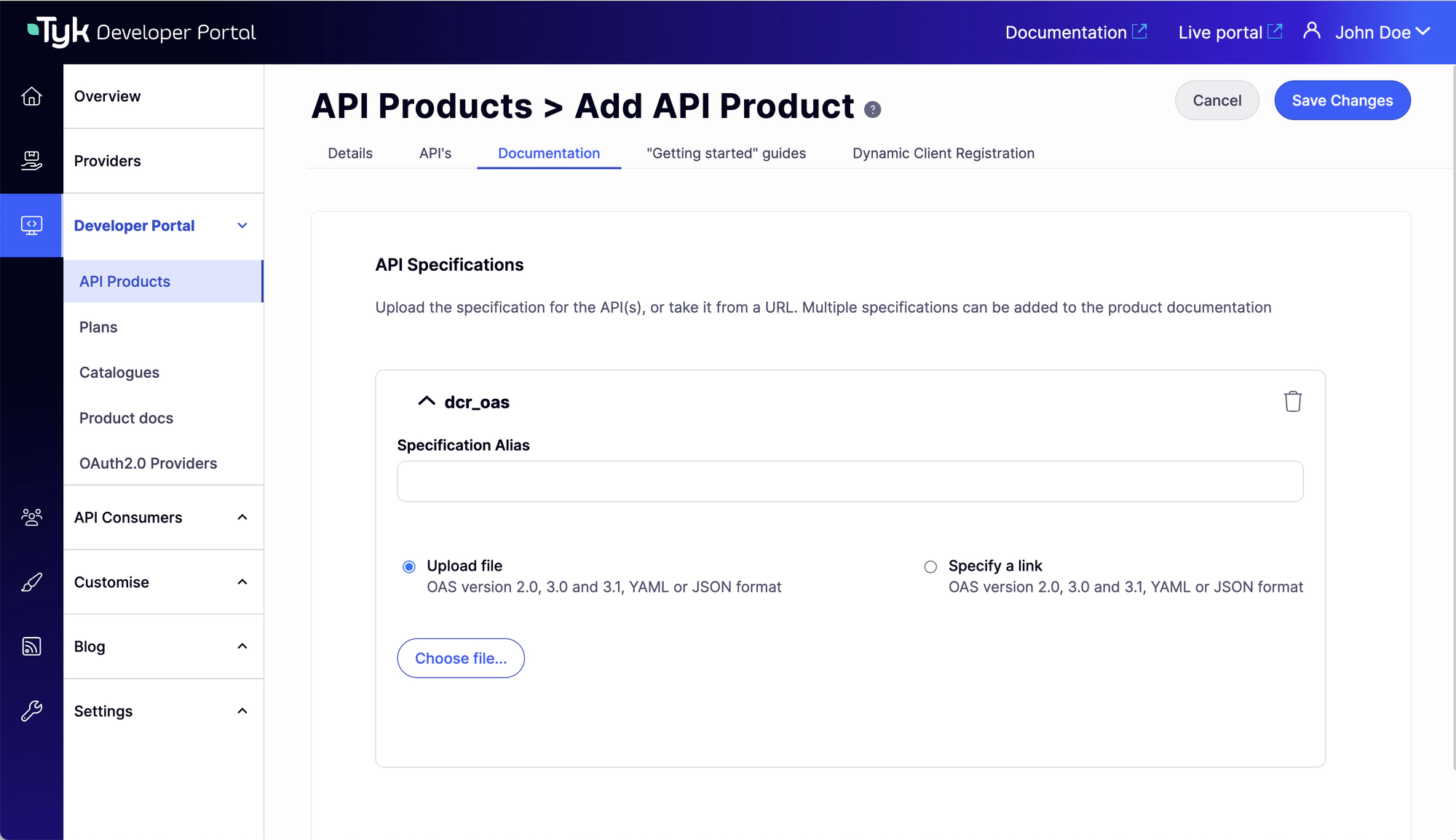

4. Add API specifications in the Documentation tab.

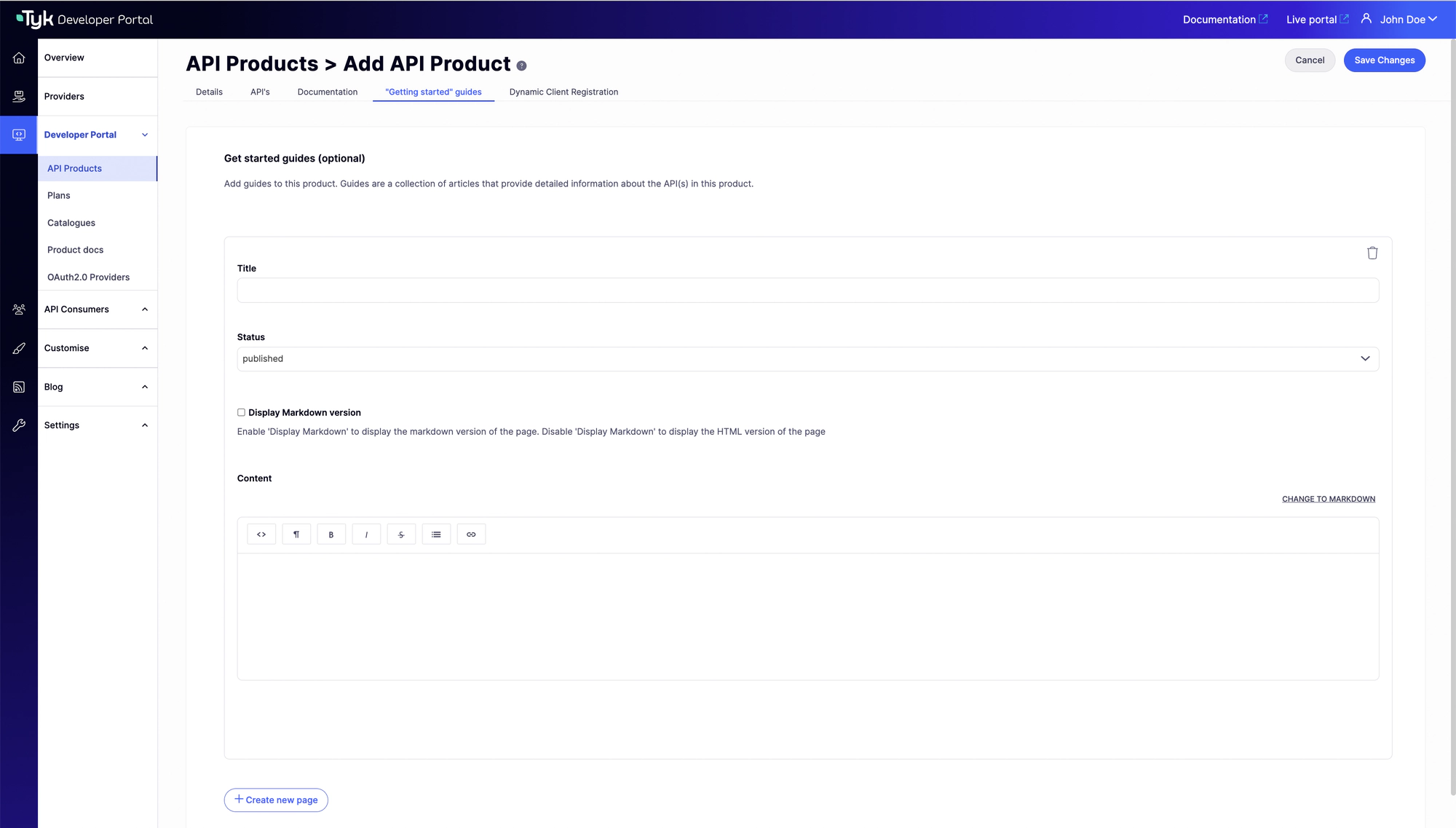

5. Add Product Guides in the “Getting Started” guides tab.

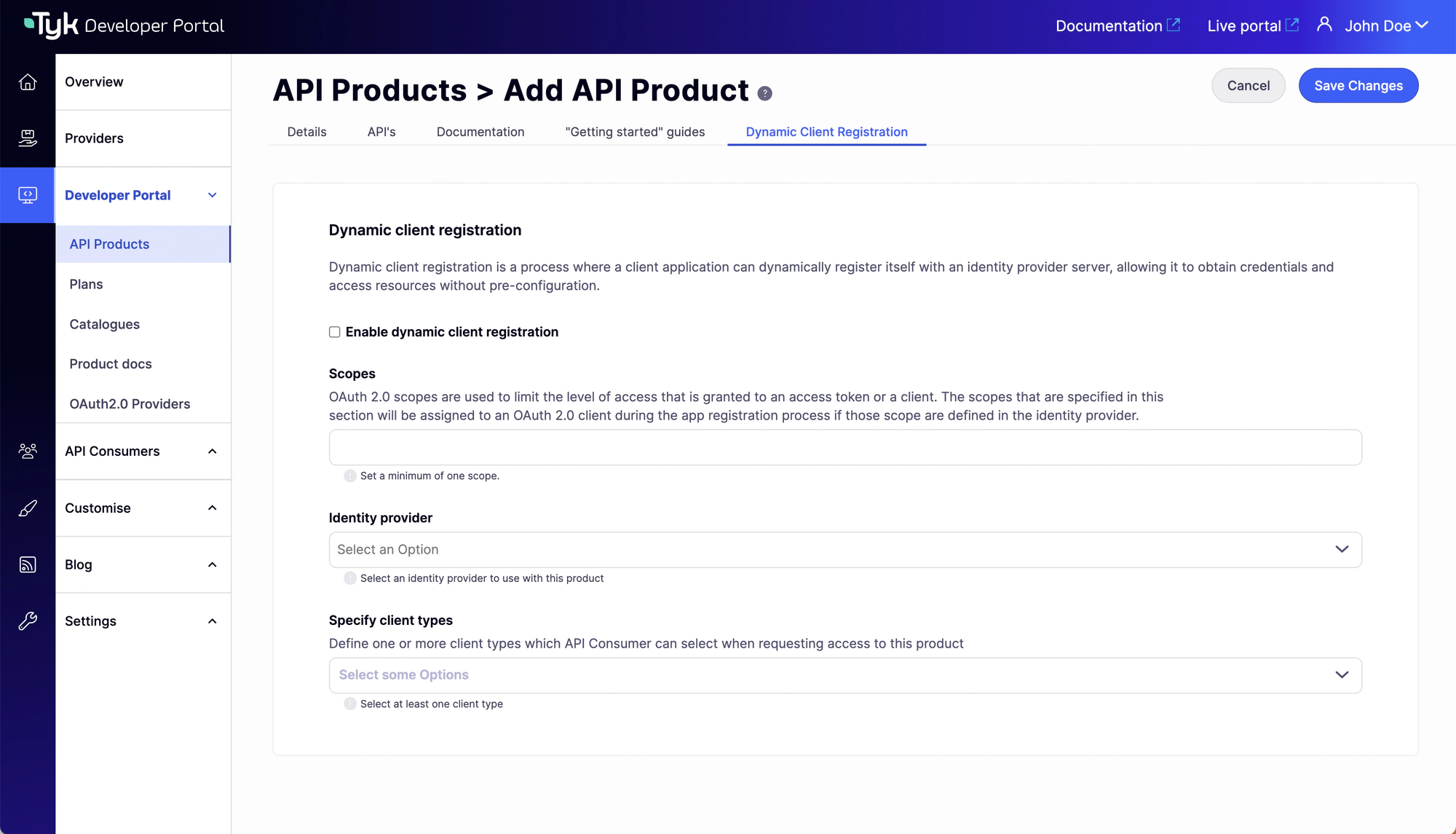

6. Complete DCR settings in the Dynamic Client Registration tab (Only for JWT selected APIs).



7. Save changes.

Create Plan

When creating a Plan in the Developer Portal, a partitioned policy that implements rate limit or quota, or both, but do NOT include the ACL will be created in the Tyk Self-Managed selected provider. The following steps explain how to create a Plan in the Developer Portal:

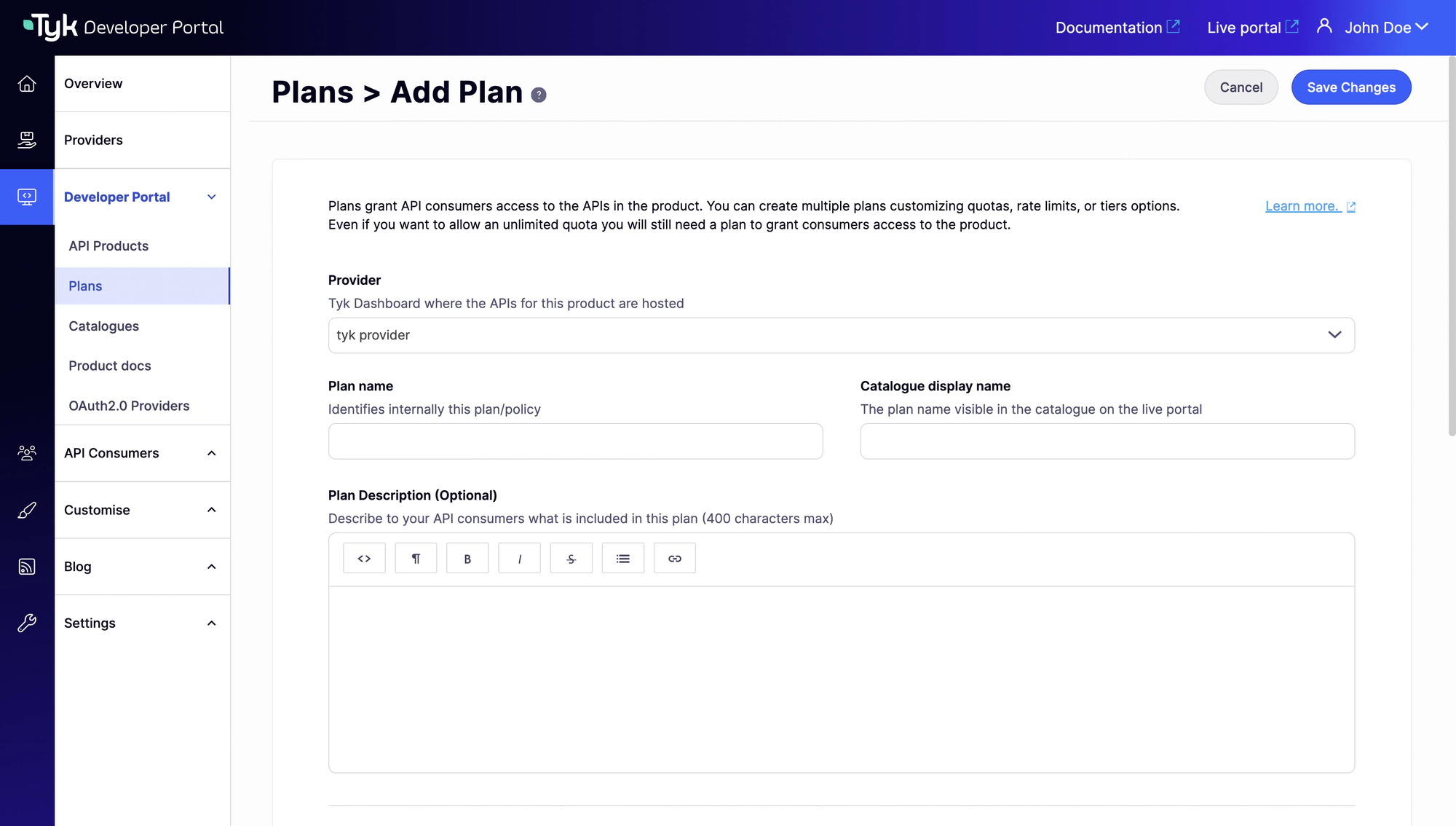

1. From the Tyk Portal admin app, go to Plans and click Add new Plan.



2. Choose a Provider and a unique Name for the plan. The plan name will be the name assigned to the created policy in the Tyk Self-Managed selected provider.

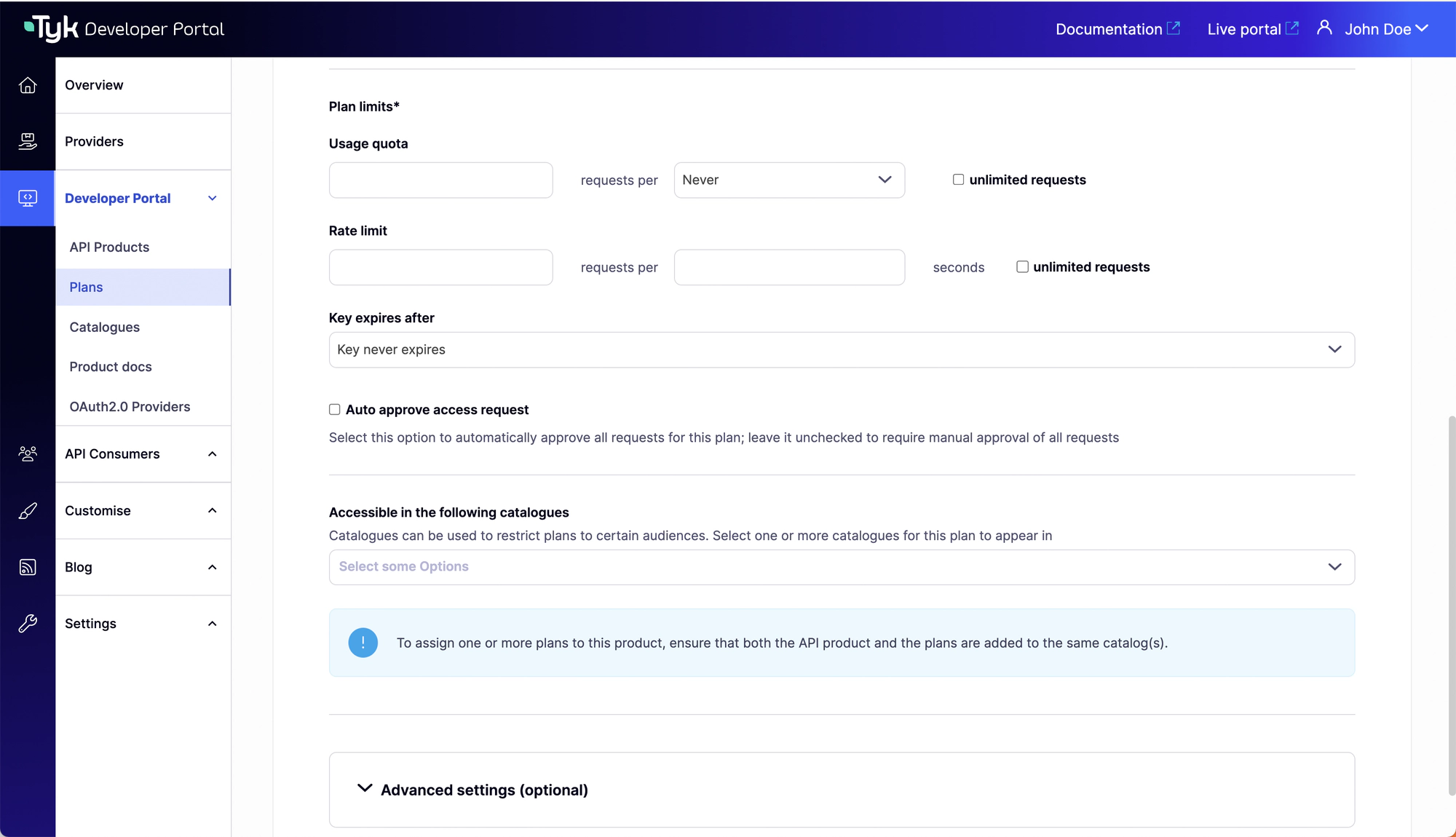

3. Complete Plan limits. Select Usage quota, Rate limit, and Key expiration for the plan.

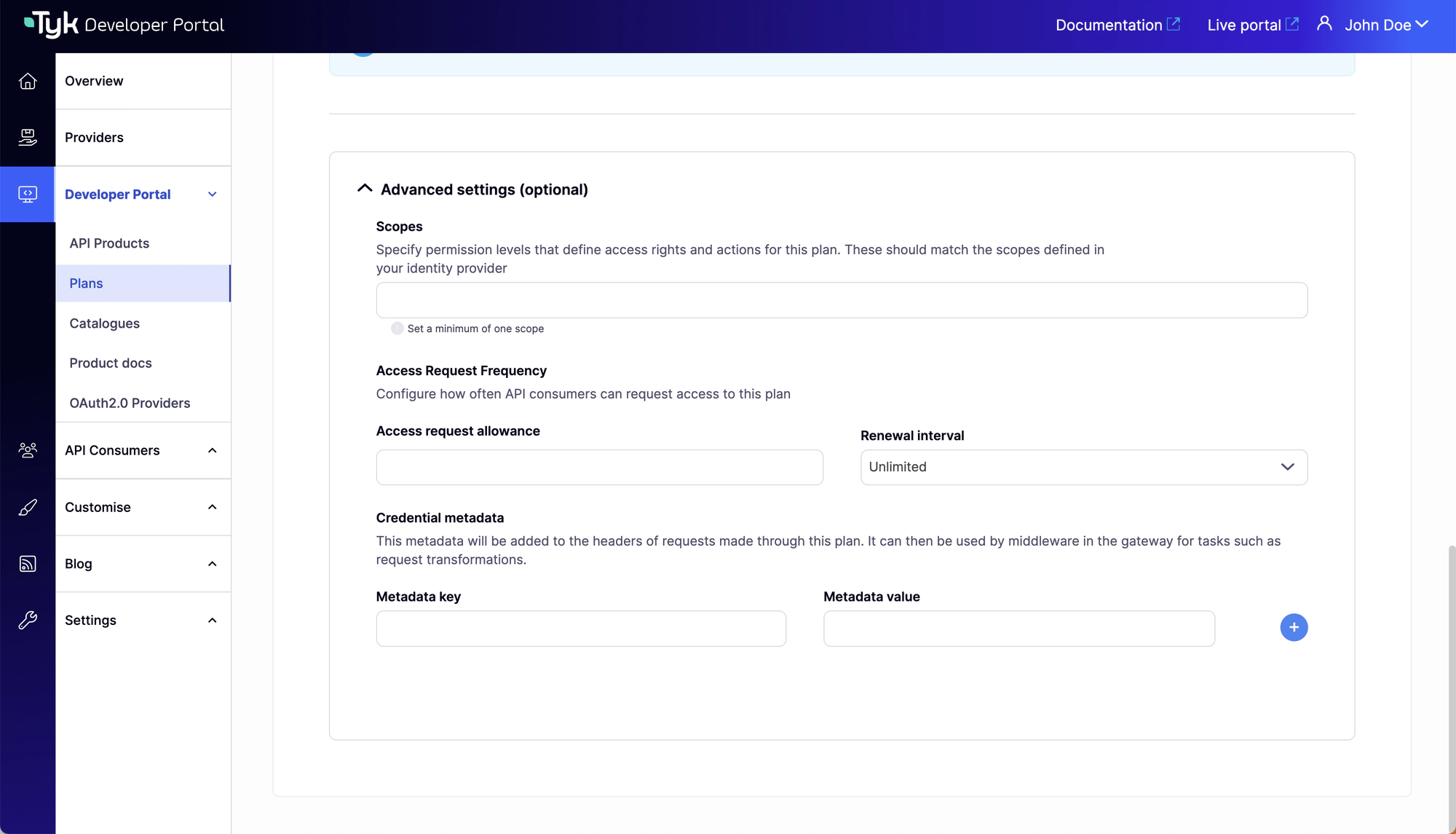

4. Complete Advanced settings (optional). Set Scopes (for DCR), Access Request Frequency, and Credential metadata for the plan.



5. Save changes.

Publish API Products and Plans

In this section, you will learn how to publish the API products and plans to the public-facing portal so that API Consumers can access them.

Prerequisites

• A Tyk Self-Managed installation
• Tyk Self-Managed added as a provider
• Created and imported API Products and Plans from Tyk

Publish an API product

Follow these steps below how to publish an API Product to a catalog:

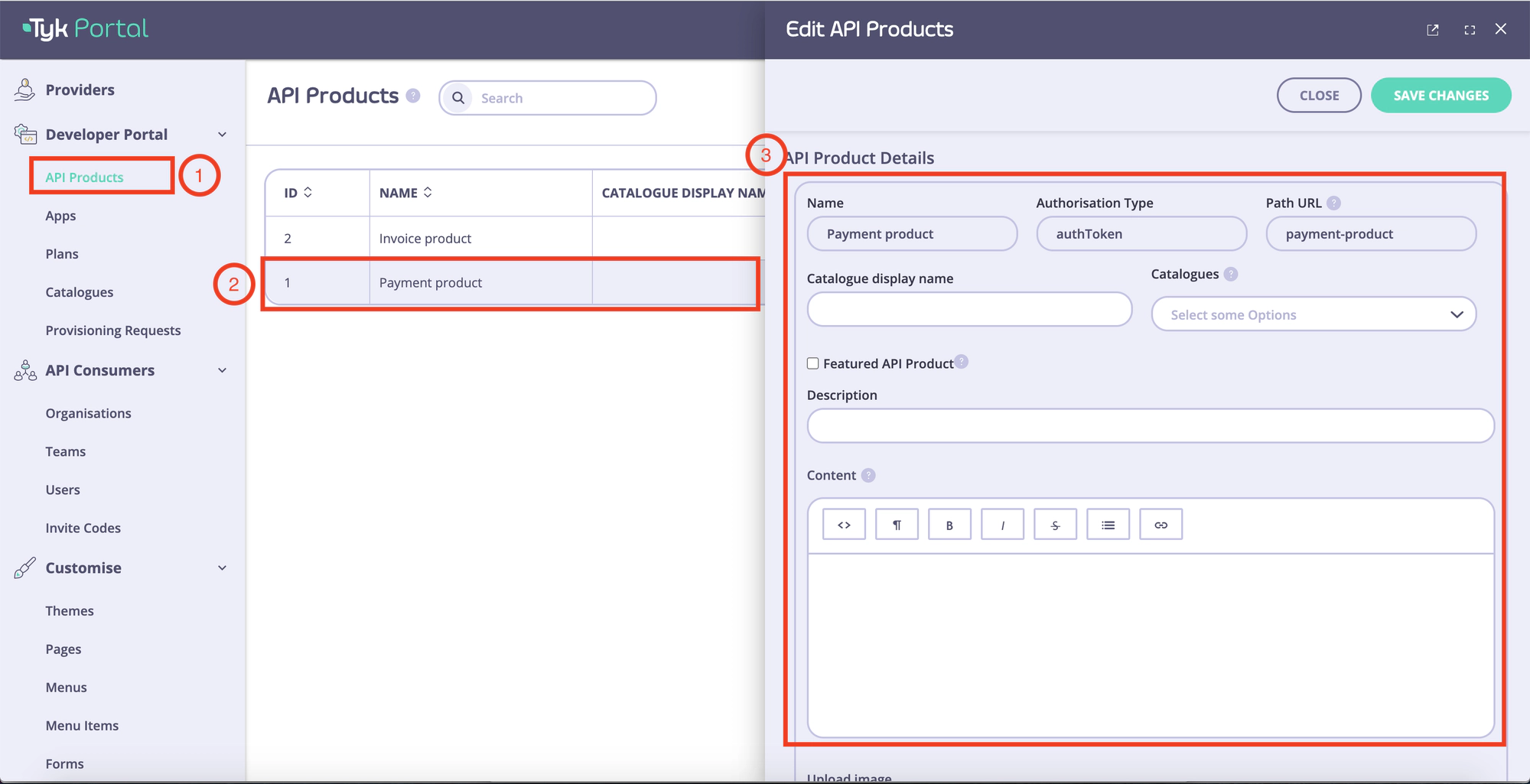

1. From the API Product section, Click an API product to open the details.



2. Edit the metadata as needed.

Field	Description
Catalog display name	This is the name that will be displayed in the external catalog.
Featured API Product	Tick this option if you want the API Product to appear on the homepage under “Featured products”.
Description	Short description about what this API Product is.
Content	This section appears on the API Product overview page, the rich text editor enables you to add more information about the API Product e.g. use cases, features, etc.
Image	An image can be added to the API Product. Supported formats are JPG and PNG.
Organization ID	The org id is required in order to connect to Tyk as a provider. It can be found in the user profile within the Tyk Dashboard.
Catalogs	Select an existing catalog that this product should be available from.
App registration configs	An experimental feature, it works only for oAuth2.0-enabled APIs
API resources	This section lists all APIs available within this product, you can add OAS documentation for each API.

3. Select a catalog to publish the API product. If you want to create a custom catalog.



4. Navigate to Catalogs to view the available catalog.



   s

Publish a Plan

In order for developers to be able to request access to an API Product and retrieve credentials, a minimum of one plan needs to be available within the same catalog as the API Product.

Follow these steps below to knowhow to publish a plan:

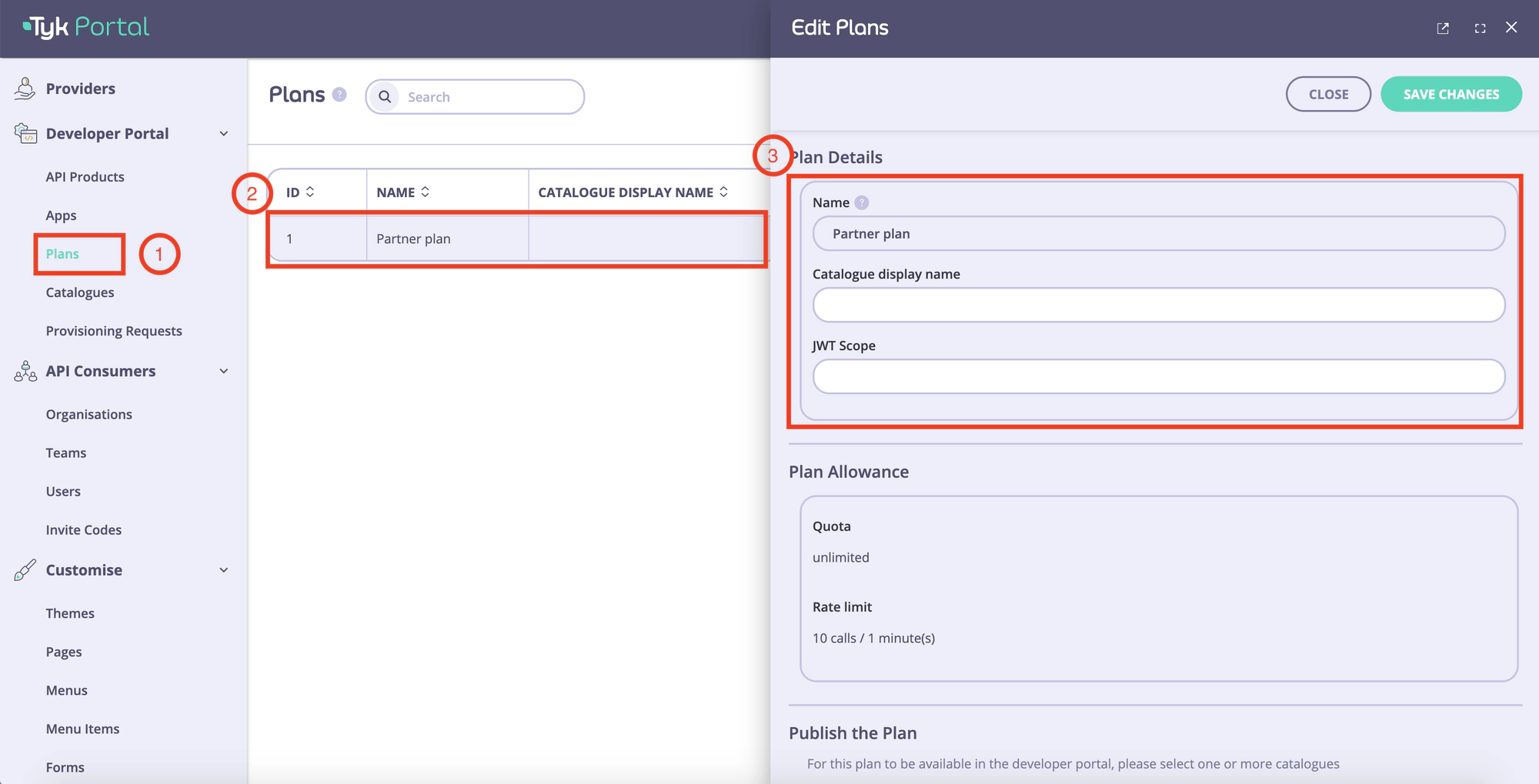

1. From the Plans section, select a plan to open the details.



2. Edit the metadata as needed

Field	Description
Catalog display name	This is the name that will be displayed in the external catalog.
Plan allowance	This section describes what quota and limit is set for this plan. These values can be updated within the ‘policy section’ in the Tyk dashboard.
Catalogs	Select an existing catalog that this product should be available from.
Auto-approve provisioning request	Under plan settings, you can choose to select this option which means whenever an API-consumer requests access to an API product(s) using this plan, it will be approved automatically.
JWT Scope	An experimental feature, it works only for oAuth2.0 enabled APIs

3. Click Save changes. The plan will now be available within selected catalog(s).

Organization and Catalog

In the Tyk Enterprise Developer Portal, Organizations and Catalogs are used to segment the user base and make different APIs available to different user audiences according to the business model. For example, assume the following scenario:

• Account Management API is available only to trusted partners
• Payment API is available to all developers

Subsequently, two catalogs can be created for these two APIs.

In the below example, an API Provider offers two API Products (the Accounts API and Payment API) with two plans (the Free plan and Enterprise plan) to their customers. Customers subscribed to the enterprise plan can use both APIs, offering a higher user limit. Conversely, customers subscribed to the Free plan (individual developers or hobbyists) only have visibility of the Payment API.

To achieve that, the API Provider uses two catalogs to implement their business model so that they can offer different experiences for different customer audiences. This section explains how to achieve that using the Tyk Enterprise Developer Portal.

Create Organization and Team

The Tyk Enterprise Developer Portal uses Organization and Catalogs to segment access to APIs and plans. Therefore, the first thing is to create an organization for your customers. If you don’t want to provision organizations manually, you can leverage the Admin APIs or enable the self-service organization registration. In this guide, we will create the B2B customer organization to fulfill the above business model:

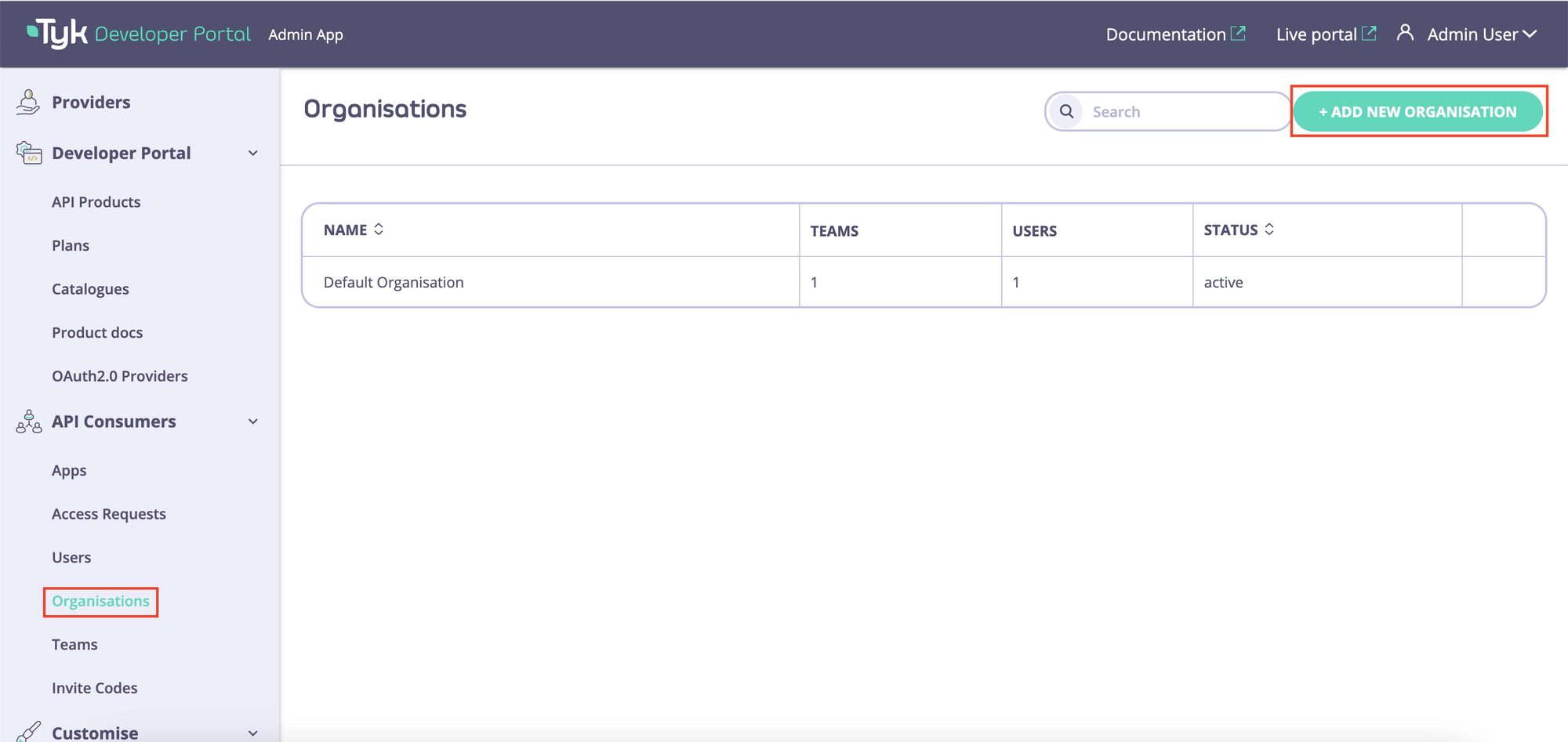

1. To create an organization for the B2B customer, navigate to the Organizations menu and click on the Add new organization button.

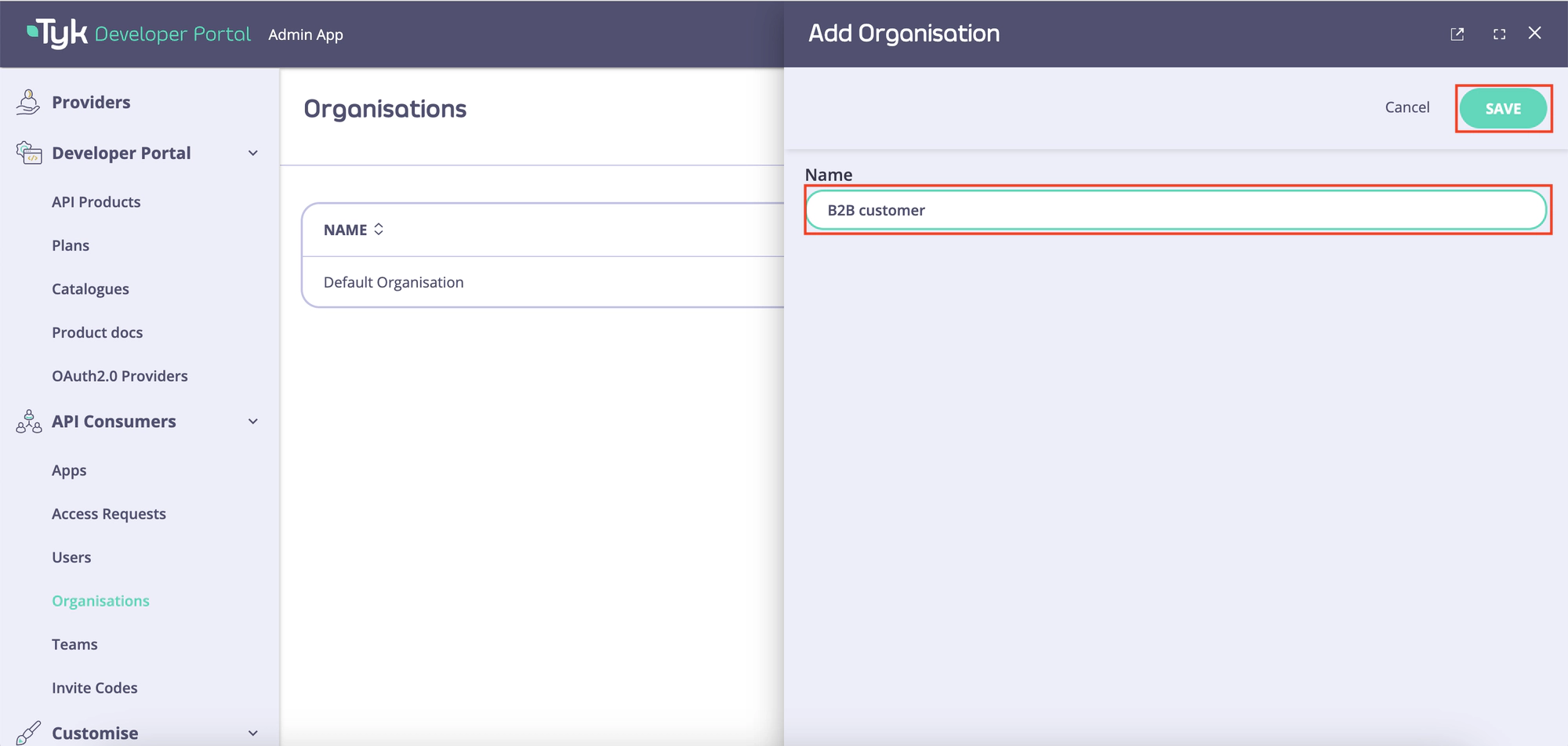

2. Enter the name of your new organization and click on the Save button. A new default-team will be automatically created and associated with your new organization.



Create Catalogs

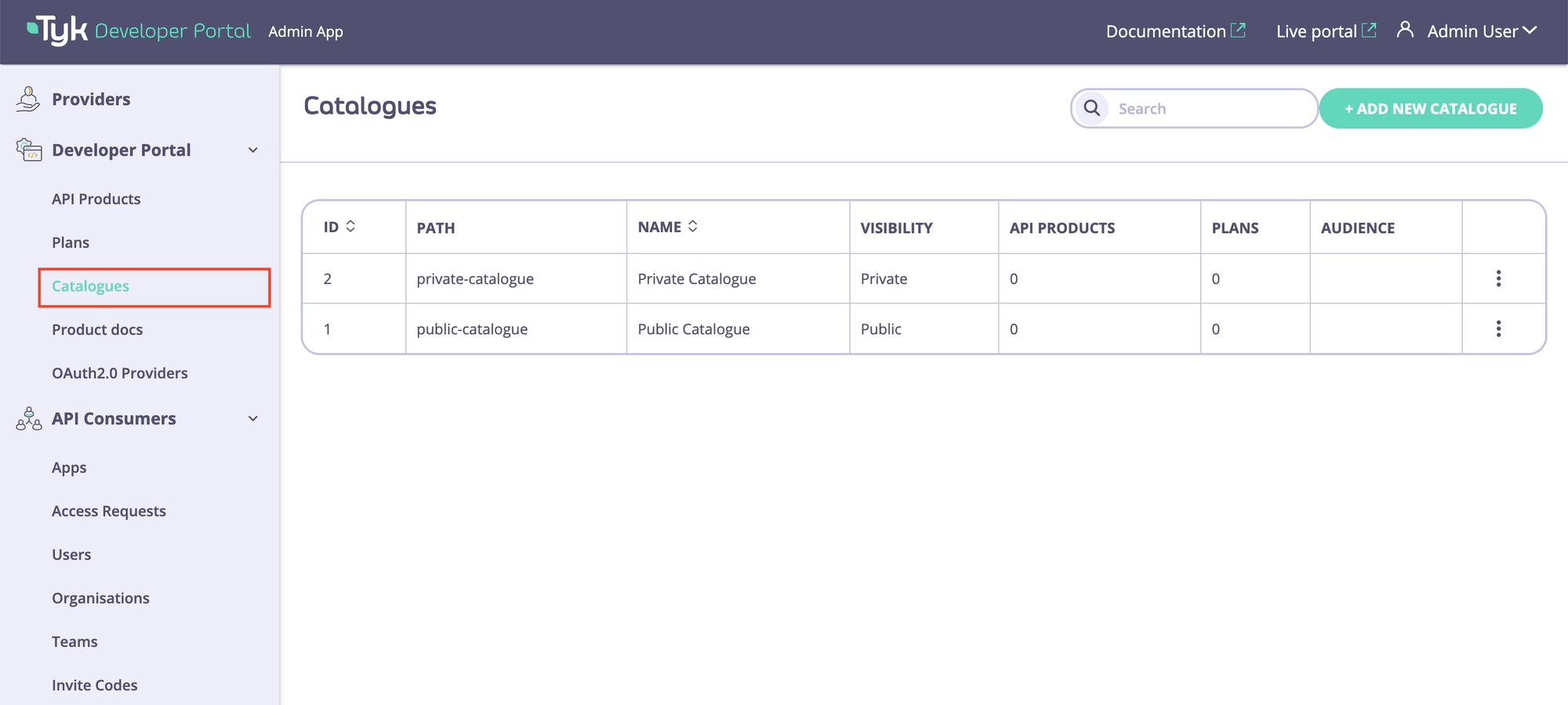

1. To create catalogs, navigate to the catalogs menu in the Tyk Enterprise Developer Portal.

The default catalogs that are featured when the portal is bootstrapped are:

• Public catalogs are available to all developers.
• Private catalogs are available only to logged in developers who have been assigned with access.

You can create new catalogs by clicking on the Add new catalog button or use the default catalogs.

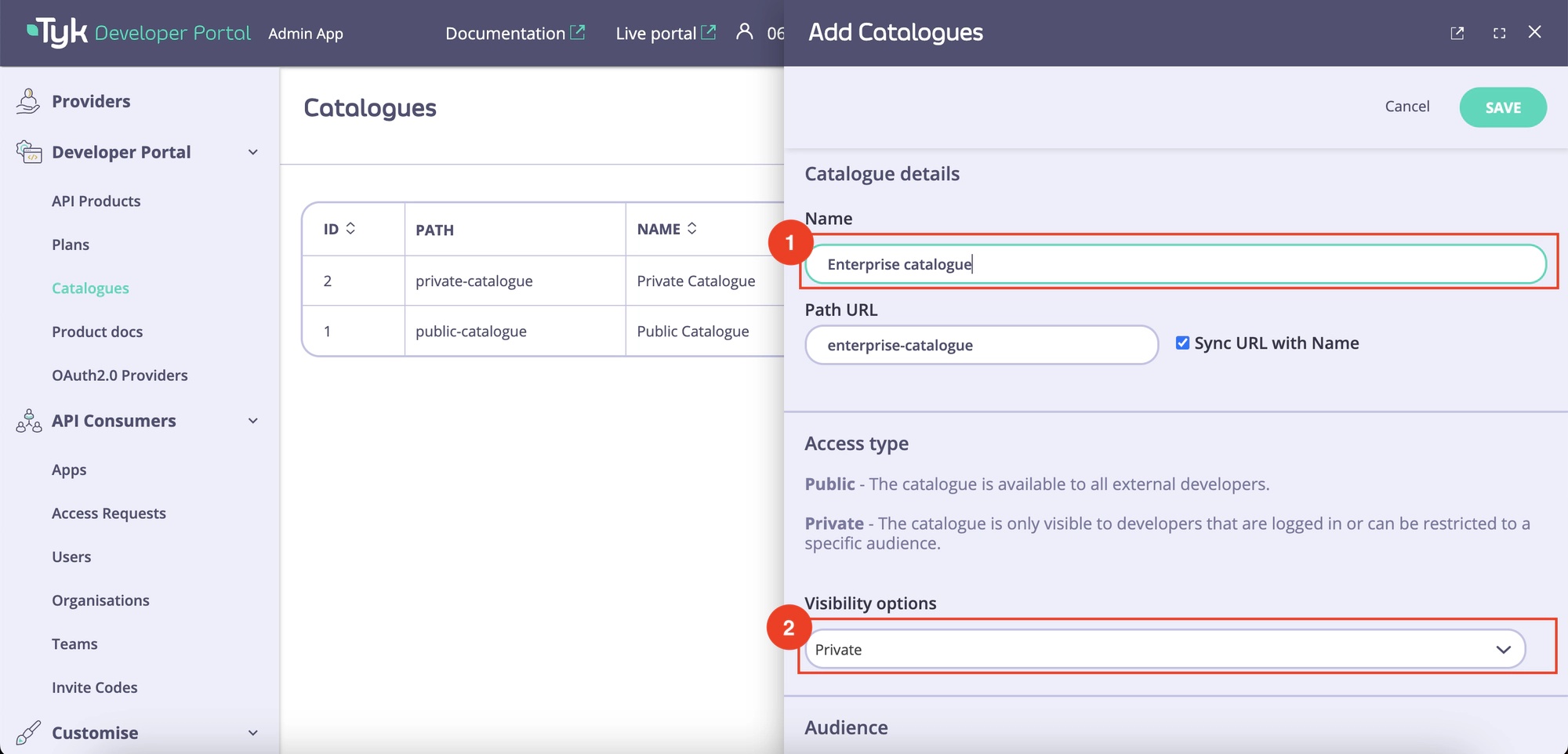

2. To add a new catalog, click on the Add new catalog button. Then specify the name of the catalog and select its type: Private or Public. Since the public catalog already exists, in this guide you need to create only an additional private catalog called Enterprise catalog for the B2B customer who will have extended access rights compared to other developers.

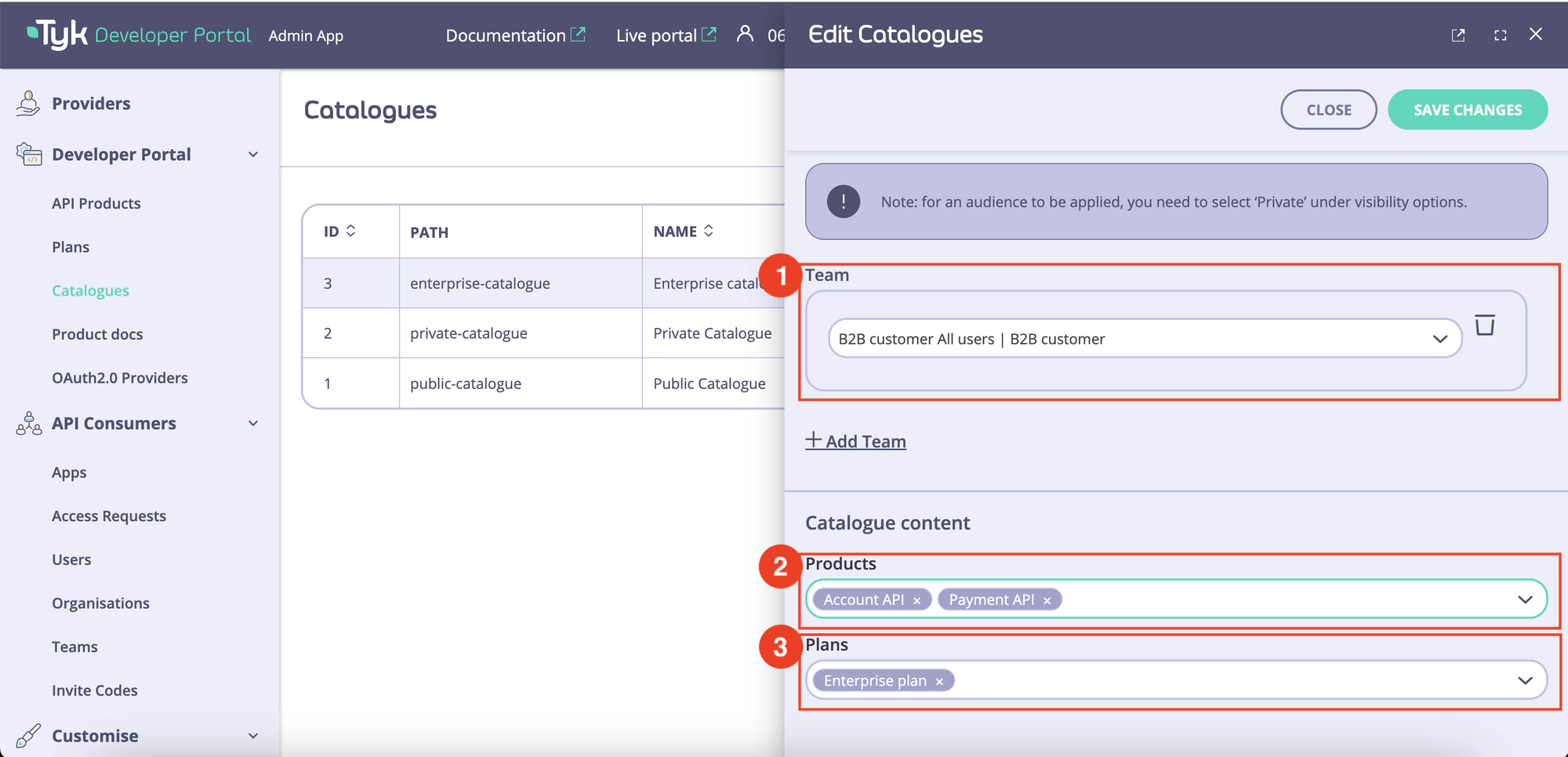

3. Once the catalog is created, add a developer audience to it by clicking on the Add Team button and selecting an appropriate developer team (B2B customer All users in this example). Finally, add plans and API Products to the created catalog so that the selected developer teams can view them.



You can achieve the same result by navigating to the API Products menu. Adding an API Product to a catalog through the Catalogs and the API Products menus will produce the same result.

(Optional) Customize Visual Appearance of API Products and Plans

In this section, you will learn how to customize the visual appearance of API Products and plans with the Tyk Enterprise Developer Portal. That includes:

• The display name for API Products and plans.
• The description and logo of API Products that will be displayed on the API Product catalog page.
• Tags for API Products to match them with related blog posts.

Customize API Products

To customize the visual appearance of API Products:

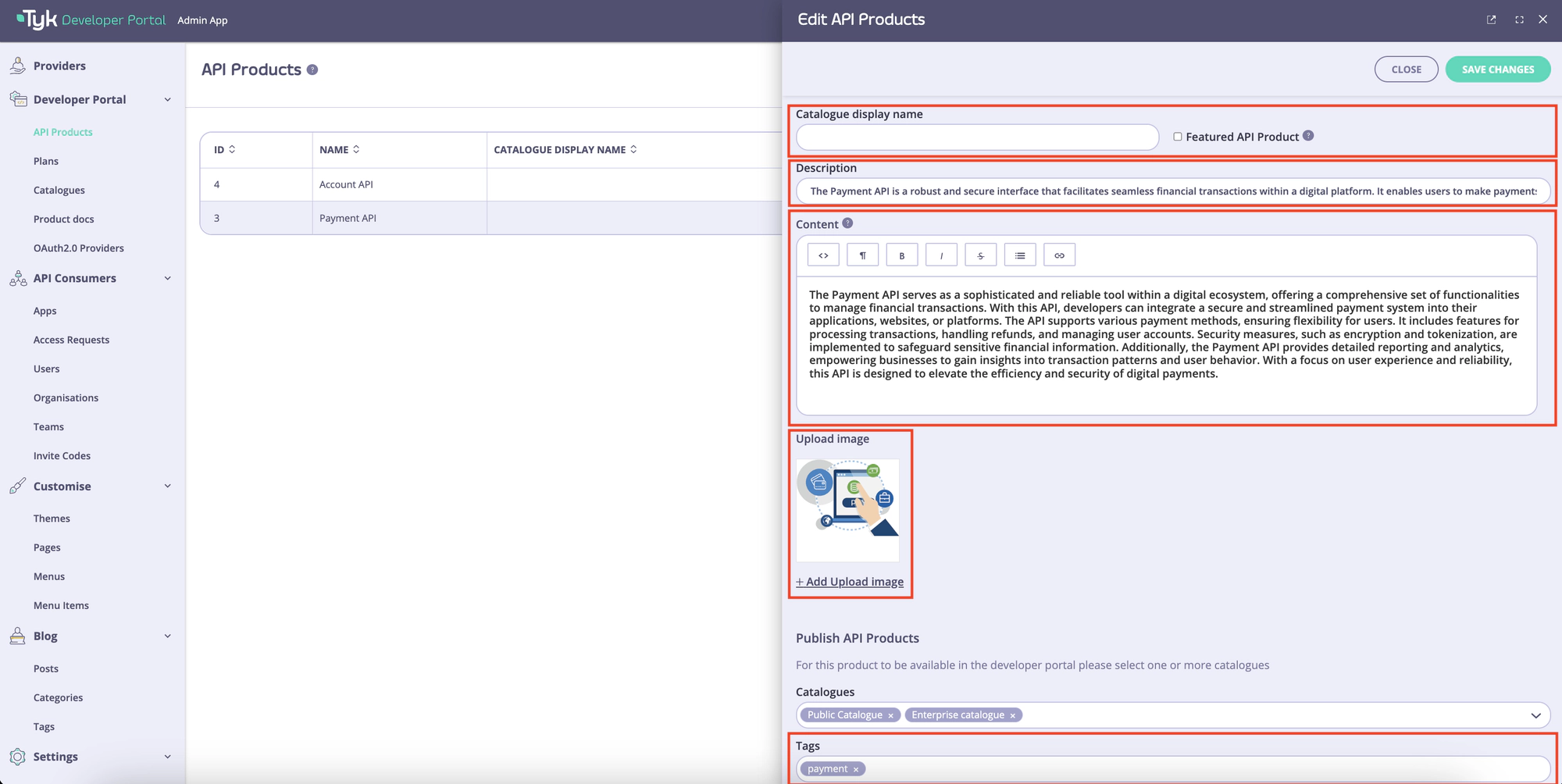

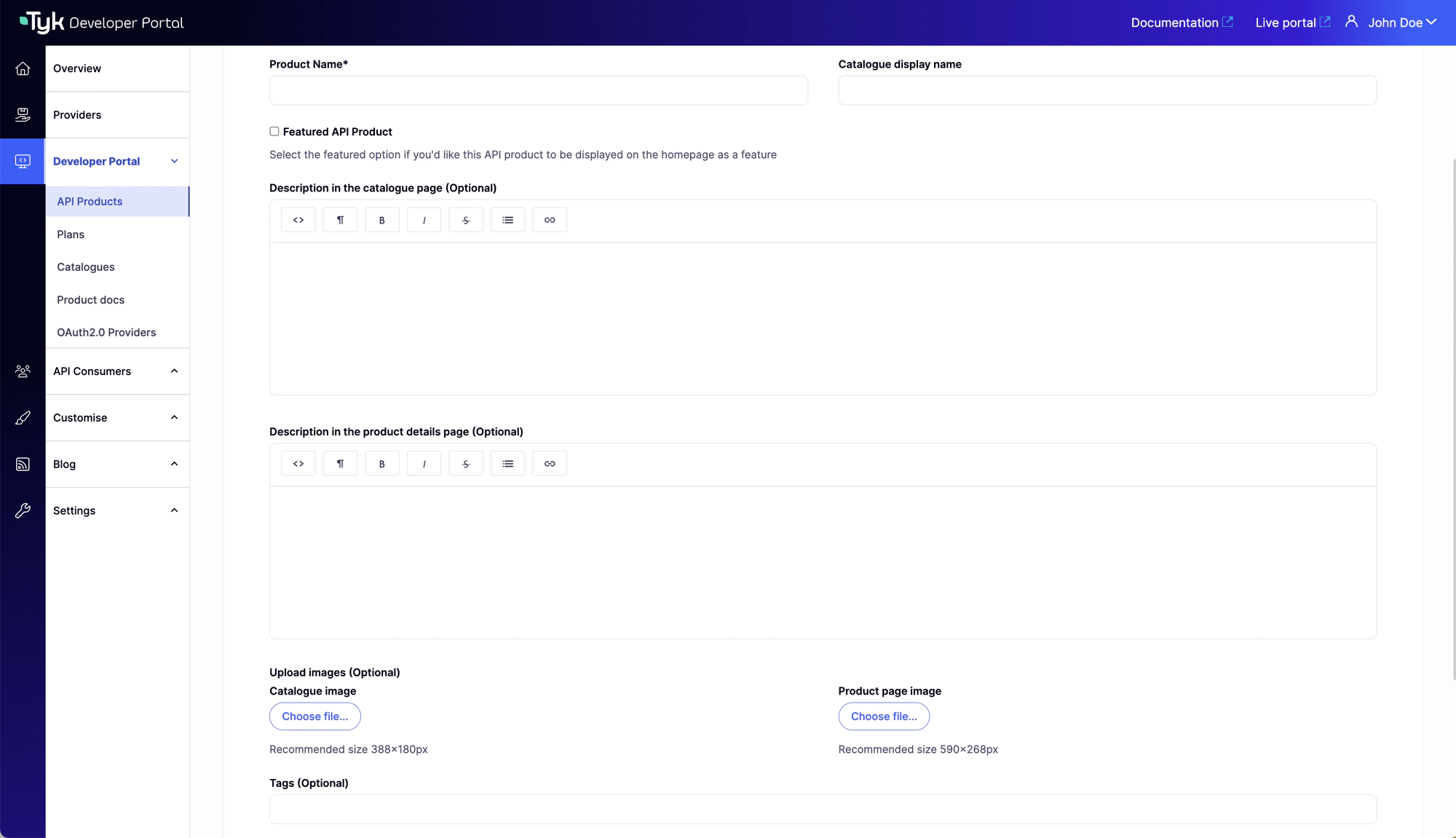

1. Navigate to the API Products menu, select the product that you want to customize (the Payment API in example below). In this menu you can customize the following aspects of API Products:

   • Catalog display name: This is the name that will be displayed in the external catalog.
   • Featured API Product: Tick this option for the API Product to appear on the home page under the Featured products section.
   • Description/Description in the catalogue page: A short description about what this API Product is. It is displayed in the catalog and on the API Product page.
   • Content/Description in the product details page: A long text description that appears on the API Product overview page, the rich text editor enables you to add more information about the API Product e.g. use cases, features, etc.
   • Image: An API Product logo that is displayed on the catalog and on the API Product pages. From version 1.13.0 you can also upload a preview image for the calalogue page.
   • Tags: The tags are used to match the API Product with the related blog posts that have the same tags in common.

   From that page you can also manage OAuth2.0 settings and add Get started guides to your API Products, which is covered in the relevant sections.



2. Save changes by clicking on the Save button. You should now be able to preview how the API Product will be displayed in the catalog:



   Note

   From version 1.13.0 you can customize the api product in the Details tab section of a product.



Customize Plans

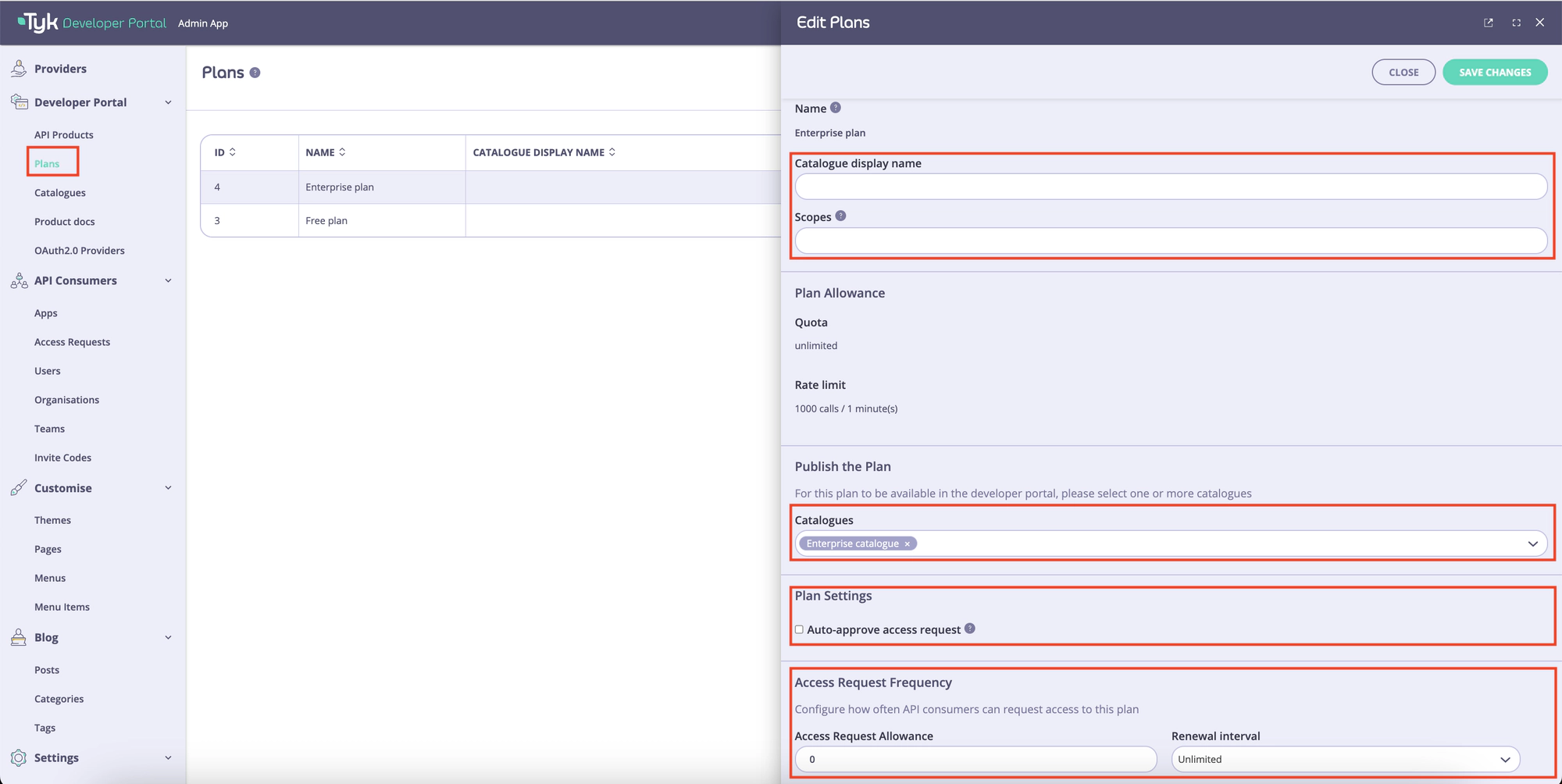

1. To customize visual appearance of plans, open the Plans menu and select the plan you want to customize. You can customize the following settings:

   • Catalog display name: The name of the catalog that will be displayed in the API Product page.
   • Scope: Scope for the OAuth2.0 settings. Please refer to the OAuth2.0 documentation for further guidance.
   • Catalogs: The catalogs in which this plan is available. Catalogs and organization are covered later within this getting started guide.
   • Auto-approve settings for access requests: Determines if access requests for this plan should be approved automatically.
   • Access request frequency: Defines how often developers can request access to a specific plan. This way the admins can prevent developers from creating too many keys and abusing their automatically approved plans.

   Note
   Scope and Access request frequency settings are located under Plan’s view Advanced settings from version 1.13.0.





2. Customize the plan’s visual appearance as required and then click on the Save button. Now you can view the plan in the API Product page:



Workflows for Portal Management

These workflows are designed to help organizations streamline collaboration between developers and content managers in managing the Tyk Developer Portal.

Developer Workflow

For organizations with developers customizing pages layout and other technical aspects of the portal pages, we are recommending the following workflow.

Content Manager Workflow

For organizations with content manager(s) managing the developer portal content, we are recommending the following workflow.

The Tyk Developer portal supports the workflow of content managers who’re responsible for editing and managing page content. The purpose of highlighting this flow is to give recommendations on how to organize effective workflows between front end engineers and content managers. Where front end engineers are building page templates and content managers are managing the pages and the content.
